Multi-dimensional arrays: Worked examples — Coding deep dive

The scenario matrix

Every worked example below is tagged with a cell so you can see the coverage is complete.

Cell	Case class	What makes it tricky	Example
A	Interior element `a[i][j]`, both indices > 0	plain formula	Ex 1
B	First element `a[0][0]`	zero offset — does base survive?	Ex 2
C	Last element `a[R-1][C-1]`	biggest offset, must equal size−1 element	Ex 2
D	Degenerate: single row `a[1][N]` or single column `a[N][1]`	"is it still 2D?"	Ex 3
E	3D element `a[i][j][k]`	product-to-the-right rule	Ex 4
F	Pointer arithmetic reading (`a+i` vs `*a+i`)	row-jump vs element-jump	Ex 5
G	Type/decay twist: `sizeof` on `a`, `a[i]`, `a[i][j]`	which dimension survives decay	Ex 6
H	Real-world word problem	modelling a grid	Ex 7
I	Exam trap: `a[1,2]` comma operator	language gotcha	Ex 8
J	Boundary: reading one-past-the-row (`a[0][C]` aliases `a[1][0]`)	limiting/overflow index	Ex 9

Ten cells, nine examples (Ex 2 covers both B and C — the extremes of one array). Let's go.

Worked example Ex 1 — Cell A: an ordinary interior element

int a[4][5]; base address $= 2000$ , sizeof(int) = 4. Find &a[2][3].

Forecast: guess the byte offset from base before reading. (Hint: it's more than 20, less than 80.)

Read off the numbers. $i = 2$ , $j = 3$ , $C = 5$ (columns), $s = 4$ bytes. Why this step? The formula only ever uses $C$ , $i$ , $j$ , $s$ — never $R$ (rows). Pull those four out first so you never reach for the wrong number.

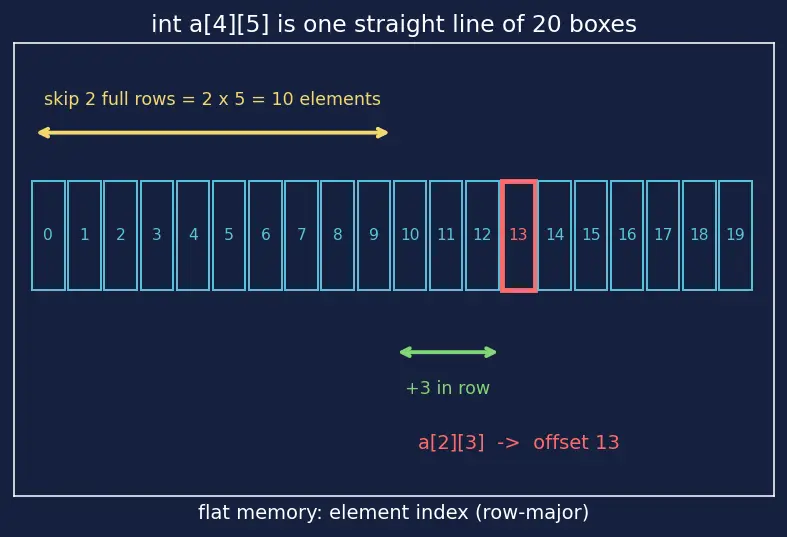

Count elements skipped. $i C + j = 2 \cdot 5 + 3 = 13$ . Why this step? Row-major means whole rows sit back-to-back; skipping 2 full rows is $2 \times 5 = 10$ elements, then 3 more inside row 2. Look at the shelf figure below — you literally walk 13 boxes.
Convert to bytes. $13 \times 4 = 52$ . Why this step? An address is a byte count; each int occupies $s = 4$ bytes.
Add base. $2000 + 52 = 2052$ .

Verify: the element after a[2][3] is a[2][4] at offset $(2 \cdot 5 + 4) \cdot 4 = 56$ , i.e. $2056$ — exactly $4$ bytes further. One int apart. ✅

Worked example Ex 2 — Cells B & C: the two extremes of one array

Same int a[4][5], base $2000$ , sizeof(int)=4. Find (B) &a[0][0] and (C) &a[3][4] (the very last element).

Forecast: the first should land exactly on base; the last should be one element shy of the whole block's end.

(B) First element. $i = 0, j = 0 \Rightarrow i C + j = 0$ . Offset $0 \cdot 4 = 0$ . Address $= 2000$ . Why this step? a[0][0] is the start of the flat block, so its address is the base. This is why &a[0][0] == (int*)a is always true.
(C) Last element. $i = 3, j = 4 \Rightarrow i C + j = 3 \cdot 5 + 4 = 19$ . Why this step? The array has $4 \times 5 = 20$ elements, indexed $0 \dots 19$ . The last one sits at element-index $19$ — the biggest legal offset.
Bytes for (C). $19 \times 4 = 76$ . Address $= 2000 + 76 = 2076$ . Why this step? Convert element count to bytes, add base.

Verify: whole-array size is $20 \times 4 = 80$ bytes, occupying addresses $2000 \dots 2079$ . Last element starts at $2076$ and ends at $2079$ — it fills the final 4 bytes exactly. ✅ And $2076 - 2000 = 76 = (elements - 1) \times s$ . ✅

Worked example Ex 3 — Cell D: degenerate single-row and single-column arrays

int r[1][6]; and int c[6][1]; — both hold 6 ints. For r, find offset of r[0][5]. For c, find offset of c[5][0]. (base 0, sizeof(int)=4)

Forecast: both are secretly just a flat line of 6 ints — do you expect the same offset for the last element?

r[0][5]: here $C = 6$ . Offset $= (0 \cdot 6 + 5) \cdot 4 = 20$ . Why this step? With one row, the row-skip term $i C$ vanishes ( $i = 0$ ), so we only walk columns.
c[5][0]: here $C = 1$ . Offset $= (5 \cdot 1 + 0) \cdot 4 = 20$ . Why this step? With one column, each "row" is just a single int, so skipping 5 rows is skipping 5 ints.
Compare. Both give $20$ . Why this step? Both are 6 contiguous ints; the last element is 5 elements past the start either way. The grid shape is a mental fiction over the same flat memory.

Verify: total elements $= 6$ in each, so the last element sits at offset $(6 - 1) \cdot 4 = 20$ . Matches both. ✅ A "1D-in-disguise" array behaves like a 1D array of the same length.

Worked example Ex 4 — Cell E: the 3D "product to the right" rule

int a[2][3][4]; base $= 5000$ , sizeof(int)=4. Find &a[1][2][3] (the last element).

Forecast: it's the last of $2 \times 3 \times 4 = 24$ ints — where does the offset land?

Assign the multipliers. For a[X][Y][Z] = a[2][3][4]: index $i$ is multiplied by $Y \cdot Z = 3 \cdot 4 = 12$ ; index $j$ by $Z = 4$ ; index $k$ by $1$ . Why this step? Each index steps over "everything to its right". One plane is a $[3] [4]$ block $= 12$ ints; one row inside a plane is $4$ ints; one element is $1$ .
Plug in. $i \cdot 12 + j \cdot 4 + k = 1 \cdot 12 + 2 \cdot 4 + 3 = 12 + 8 + 3 = 23$ . Why this step? This is the generalized $i C + j$ — now with three nested layers.
Bytes + base. $23 \times 4 = 92$ ; $5000 + 92 = 5092$ .

Verify: $2 \times 3 \times 4 = 24$ ints, indices $0 \dots 23$ ; the last element sits at element-index $23$ . ✅ It occupies bytes $5092 \dots 5095$ ; the block ends at $5000 + 24 \cdot 4 - 1 = 5095$ . ✅

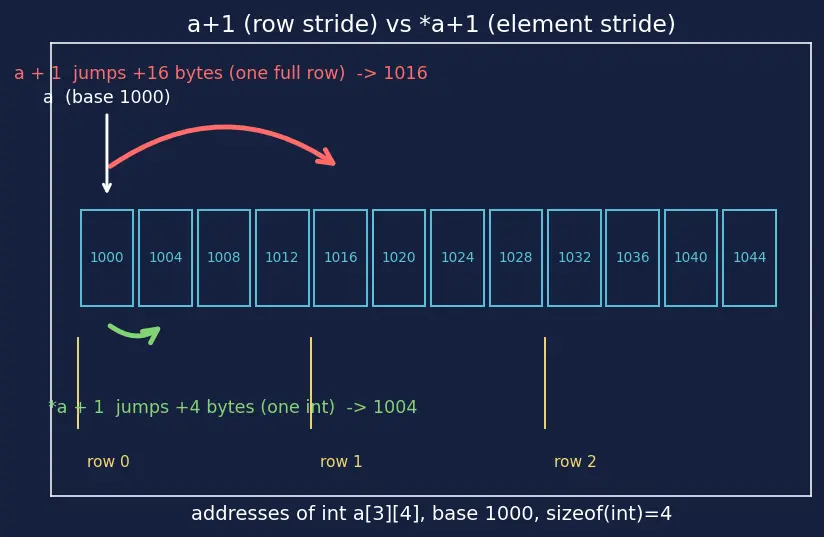

Worked example Ex 5 — Cell F:

a+i (jump a row) vs *a + i (jump an element) int a[3][4]; stored at base $1000$ , sizeof(int)=4. Give the byte address that (a) a + 1 points to, and (b) *a + 1 (equivalently a[0] + 1) points to.

Forecast: one of these jumps far, the other jumps just one int. Which is which?

Type of a. a decays to int (*)[4] — a pointer to a row of 4 ints. Why this step? Pointer arithmetic scales by the size of the pointed-to type. Here that type is int[4], which is $4 \times 4 = 16$ bytes.
(a) a + 1. Advances by $16$ bytes: address $= 1000 + 16 = 1016$ . Why this step? Adding 1 to a "pointer to a whole row" jumps one full row — that's a[1], i.e. &a[1][0].
Type of *a. *a is a[0], an int[4], which decays to int* — a pointer to a single int. Why this step? One dereference peels off a dimension; now arithmetic scales by sizeof(int)=4.
(b) *a + 1. Advances by $4$ bytes: address $= 1000 + 4 = 1004$ — that's &a[0][1].

Verify: &a[1][0] by the formula $= 1000 + (1 \cdot 4 + 0) \cdot 4 = 1016$ ✅ matches (a). &a[0][1] $= 1000 + (0 \cdot 4 + 1) \cdot 4 = 1004$ ✅ matches (b). Same pointer, one extra star, wildly different stride.

Worked example Ex 6 — Cell G:

sizeof on each level of decay int a[3][4]; with sizeof(int)=4. What are sizeof(a), sizeof(a[0]), and sizeof(a[0][0])?

Forecast: guess all three in bytes before reading. (One of them is 48.)

sizeof(a). Whole array $= 3 \times 4 \times 4 = 48$ bytes. Why this step? Inside sizeof, the array does not decay to a pointer — sizeof sees the full object. So you get every byte.
sizeof(a[0]). a[0] is one row, int[4] $= 4 \times 4 = 16$ bytes. Why this step? Again no decay under sizeof; a[0] is a genuine array of 4 ints, so its size is the whole row.
sizeof(a[0][0]). A single int $= 4$ bytes. Why this step? Bottom of the ladder — one element.
Neat cross-check. $sizeof (a) / sizeof (a [0]) = 48/16 = 3 =$ number of rows; and $sizeof (a [0]) / sizeof (a [0] [0]) = 16/4 = 4 =$ number of columns. Why this step? This is the classic idiom for recovering dimensions at runtime without hard-coding them.

Verify: $48 = 3 \cdot 16 = 12 \cdot 4$ . ✅ Row count $48/16 = 3$ ✅, column count $16/4 = 4$ ✅.

Worked example Ex 7 — Cell H: real-world word problem (a seating grid)

A cinema has 8 rows × 12 seats. Ticket price rises by ₹20 per row further back (front row = row 0 costs ₹100). Model it as int price[8][12] filled by price[i][j] = 100 + 20*i. What is the total revenue if every seat sells?

Forecast: all 12 seats in a row cost the same. Guess whether the answer is nearer ₹15,000 or ₹25,000.

Price per row. Row $i$ price $= 100 + 20 i$ . Rows $0 \dots 7$ give ₹100, 120, 140, 160, 180, 200, 220, 240. Why this step? Every column in a row shares one price, so we can sum rows and multiply by seats.
Sum the 8 row-prices. $100 + 120 + 140 + 160 + 180 + 200 + 220 + 240 = 1360$ . Why this step? This is $\sum_{i = 0}^{7} (100 + 20 i) = 8 \cdot 100 + 20 \cdot (0 + 1 + \dots + 7) = 800 + 20 \cdot 28 = 800 + 560 = 1360$ .
Multiply by 12 seats per row. $1360 \times 12 = 16320$ . Why this step? Each of those 8 row-prices is paid by 12 seats.

Verify: average price $= 1360/8 = 170$ ; total seats $= 8 \times 12 = 96$ ; revenue $= 170 \times 96 = 16320$ . ✅ Nearer ₹15,000, as forecast.

Worked example Ex 8 — Cell I: the

a[1,2] exam trap int a[3][4] = { {0,1,2,3}, {10,11,12,13}, {20,21,22,23} }; What does a[1,2] evaluate to, and what does the correct a[1][2] give? (Assume you print a[1][2].)

Forecast: these two look identical but return different types. Guess what a[1,2] even is.

Decode a[1,2]. Inside [ ], 1,2 is the comma operator: it evaluates 1, discards it, and yields 2. So a[1,2] means a[2]. Why this step? C has no multi-index subscript. [expr] takes a single expression; the comma operator is a single expression that just happens to hold two.
What is a[2]? A whole row — type int[4], decaying to int* pointing at &a[2][0] (the value 20's address). It is not a single int. Why this step? One subscript on a 2D array peels one dimension, leaving a row pointer.
Correct a[1][2]. Row 1 is {10,11,12,13}; column 2 is 12. Why this step? Two proper subscripts reach an actual int.

Verify: by the value formula, a[1][2] = 10*(row index within data)… directly: row 1 = {10,11,12,13}, index 2 → 12. ✅ And a[1,2] = a[2] = pointer to the row starting at 20, not the number 12. ✅

Worked example Ex 9 — Cell J: limiting index — reading one-past-the-row

int a[3][4]; Suppose someone writes a[0][4] (column index 4, but valid columns are only 0–3). Which legal element does that flat address coincide with, and why is relying on this dangerous?

Forecast: the flat block doesn't know about "rows". Where does offset "row 0, column 4" actually land?

Compute the offset anyway. $i C + j = 0 \cdot 4 + 4 = 4$ elements. Why this step? The address formula is pure arithmetic — it doesn't check bounds. Offset 4 is a real spot in the flat block.
Find which valid element sits at offset 4. $a [1] [0]$ has offset $1 \cdot 4 + 0 = 4$ . Why this step? Offset 4 is exactly the start of row 1. So a[0][4] aliases a[1][0] — one past the end of row 0 is the beginning of row 1.
Why this is a trap. It's only "safe" because the row happens to be followed by more of the same array. a[0][4] is still technically undefined behaviour per the C standard (indexing past a row's bound), even though in practice it hits a[1][0]. Never rely on it. Why this step? Contrast with a[2][4]: offset $2 \cdot 4 + 4 = 12$ , but the array only has $3 \cdot 4 = 12$ elements (indices 0–11), so offset 12 is genuinely outside the whole block — real corruption.

Verify: &a[0][4] offset $= 4 \cdot s$ ; &a[1][0] offset $= (1 \cdot 4 + 0) \cdot s = 4 \cdot s$ . Equal. ✅ &a[2][4] offset $= 12 \cdot s$ = total size, i.e. one-past-the-whole-array. ✅ Both computed, one aliases inside, one escapes.

Recall Quick self-test (reveal each)

Offset (in elements) of a[2][3] in int a[4][5]? ::: $2 \cdot 5 + 3 = 13$ . &a[0][0] compared to (int*)a? ::: Identical — first element sits at the base. Offset of last element a[3][4] in int a[4][5]? ::: $19$ elements = $76$ bytes past base. a+1 vs *a+1 for int a[3][4], base 1000 — the two addresses? ::: $1016$ (a full row) and $1004$ (one int). sizeof(a), sizeof(a[0]), sizeof(a[0][0]) for int a[3][4]? ::: $48$ , $16$ , $4$ bytes. Offset of a[1][2][3] in int a[2][3][4]? ::: $1 \cdot 12 + 2 \cdot 4 + 3 = 23$ elements. What does a[1,2] mean? ::: The comma operator gives a[2] — a whole row pointer, not a single int. Which valid element does a[0][4] alias in int a[3][4]? ::: a[1][0] (both at offset 4).

Connections

Multi-dimensional arrays — the parent: storage, formula, pointer identity.
C Arrays (1D) — the degenerate single-row/column cases collapse to this.
Pointers in C — Ex 5's a+i vs *a+i is pure pointer arithmetic.
Array Decay — why a becomes int(*)[4] (Ex 5, Ex 6).
Pointer to Array vs Array of Pointers — the int(*)[4] type in Ex 5.
sizeof Operator — Ex 6 in full.
Row-major vs Column-major — why offsets use $i C + j$ (Ex 1–4, 9).
Variable Length Arrays (C99) — passing these grids to functions.
