Control flow — if - else, switch, while, do-while, for, break, continue, goto: Worked examples

The scenario matrix

Control flow has a finite number of "shapes" it can throw at you. If you can trace one example of every row below, you have covered the whole topic.

#	Case class	The tricky thing	Covered by
A	`if/else` chain, all sign branches	first-true-wins; `==0` boundary	Ex 1
B	Assignment-in-condition bug	`=` vs `==`	Ex 2
C	`switch` with intentional fall-through	missing `break` groups cases	Ex 3
D	`switch` with an accidental missing `break`	fall-through is a bug here	Ex 4
E	Loop that runs zero times	`while` tests first	Ex 5
F	Loop that runs exactly once	`do-while` tests after	Ex 5
G	`for` ↔ `while` translation with `continue`	the infinite-loop trap	Ex 6
H	`break` vs `continue` in one loop	who skips, who leaves	Ex 7
I	Nested loops + `goto` escape	`break` only exits one level	Ex 8
J	Real-world word problem	input-validation menu	Ex 9
K	Exam-style twist	fall-through + loop counting combined	Ex 10

The columns below trace each of these. The figures show the path execution actually walks, arrow by arrow.

A — the full sign chain

Worked example Ex 1 — classify three numbers (cell A)

int vals[] = {7, 0, -4};
for (int k = 0; k < 3; k++) {
    int n = vals[k];
    if (n > 0)       printf("pos ");
    else if (n == 0) printf("zero ");
    else             printf("neg ");
}

Forecast: write down the three words before reading on.

n = 7. Check n > 0 → 7 > 0 is true. Why this step? In an if/else if/else chain, C tests conditions top to bottom and stops at the first true one. True here, so print pos and skip the rest.
n = 0. Check n > 0 → 0 > 0 is false. Move to else if: n == 0 → true. Why this step? The 0 boundary is exactly why we need a separate ==0 branch — > alone can never catch it. Print zero .
n = -4. -4 > 0 false, -4 == 0 false → land on the final else. Why this step? else is the "none of the above" catch-all; every negative number funnels here. Print neg .

Output: pos zero neg

Verify: three inputs, three outputs, one word each — the chain is mutually exclusive (exactly one branch runs per number), so counts must match. ✓

Figure — Control flow — if - else, switch, while, do-while, for, break, continue, goto

B — the classic `=` vs `==` trap

Worked example Ex 2 — what does this print? (cell B)

int x = 3;
if (x = 0)  printf("A");
else        printf("B");
printf(" x=%d", x);

Forecast: guess the two things printed.

The condition is x = 0, not x == 0. A single = is assignment: it stores 0 into x. Why this step? In C, an assignment is also an expression whose value is the value assigned — here 0.
The if tests that value. The condition's value is 0, and 0 means false. Why this step? C has no separate boolean requirement: false is exactly 0, true is anything else. So we take the else. Print B.
x was changed as a side effect. x now holds 0. Print x=0.

Output: B x=0

Verify: the danger is that if (x = 5) (non-zero) would always take the if. Here we happened to assign 0, so it always takes the else — either way the branch is decided by the assigned value, never by comparison. The safe habit if (0 == x) would turn the typo into a compile error. ✓

C — fall-through used on purpose

Worked example Ex 3 — grouped cases (cell C)

char c = 'b';
switch (c) {
    case 'a':
    case 'b':
    case 'c': printf("vowel-ish? no, first three letters"); break;
    case 'e': printf("e"); break;
    default:  printf("other");
}

Forecast: which message prints?

Compute the switch expression: c is 'b'. Why this step? switch compares an integer/char value against constant labels; 'b' is really the integer 98.
Jump to case 'b':. There is no code and no break under 'a' or 'b'. Why this step? A switch is a computed jump into a block, not separate boxes. Landing on 'b' means execution keeps flowing downward.
Fall through into case 'c':'s body. It prints the message, then hits break, which exits the switch. Why this step? The empty 'a'/'b' labels deliberately share 'c''s code — that is how you group cases.

Output: first three letters (the full string).

Verify: 'a', 'b', 'c' all reach the same printf and same break; 'e' and anything else do not. Grouping = 3 labels, 1 action. ✓

D — fall-through as a bug

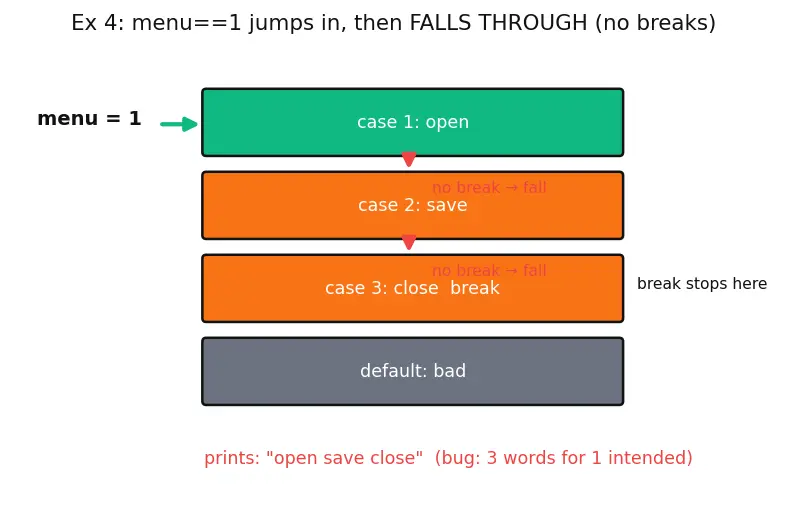

Worked example Ex 4 — the missing

break (cell D)

int menu = 1;
switch (menu) {
    case 1: printf("open ");
    case 2: printf("save ");   // programmer FORGOT break above
    case 3: printf("close ");  break;
    default: printf("bad");
}

Forecast: the programmer meant only open to print. What actually prints?

menu == 1 → jump to case 1. Print open . Why this step? correct so far.
No break after case 1. Execution keeps falling into case 2. Print save . Why this step? the switch does not "re-check" menu at each label — labels are just entry points, and once inside we run straight down until a break.
Still no break, fall into case 3. Print close , then finally break stops us. Why this step? only case 3 has the break, so it's the first exit we meet.

Output: open save close — three words when one was intended.

Verify: compare with Ex 3. There the missing breaks were deliberate (empty grouped labels). Here they sit above non-empty bodies → silent bug. Rule: put break on every case unless you write a /* fall through */ comment. ✓

E & F — zero runs vs exactly-one run

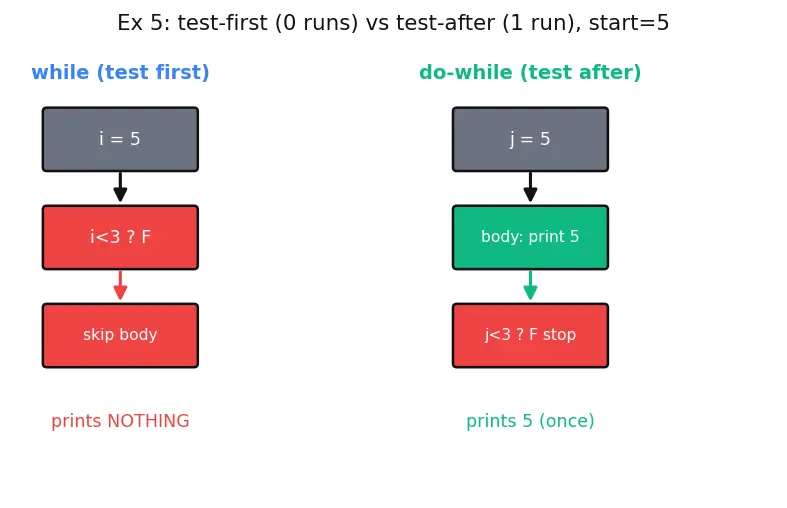

Worked example Ex 5 —

while vs do-while on a false condition (cells E, F)

int i = 5;
printf("while: ");
while (i < 3) { printf("%d ", i); i++; }   // condition false at start

int j = 5;
printf("| do: ");
do { printf("%d ", j); j++; } while (j < 3);

Forecast: how many numbers does each loop print?

while checks first. i < 3 is 5 < 3 = false before the body ever runs. Why this step? while is "test-first" — if false at entry, the body executes zero times (cell E).
So the while prints nothing. Output so far: while: .
do-while runs the body first, then tests. It prints 5, does j++ (now j=6), then checks j < 3 = 6 < 3 = false → stop. Why this step? do-while is "test-after" — the body always runs at least once, even when the condition is false (cell F).

Output: while: | do: 5

Verify: the only difference between these two loops is where the test sits. Same variable, same start value, same condition → while = 0 iterations, do-while = 1 iteration. That single-iteration guarantee is exactly why do-while fits menus and input validation. ✓

G — the `for` → `while` `continue` trap

Worked example Ex 6 — translate a

for and see it break (cell G) The for loop below prints odd numbers under 6:

for (int i = 0; i < 6; i++) {
    if (i % 2 == 0) continue;   // skip evens
    printf("%d ", i);
}                               // prints 1 3 5

A student rewrites it as a while. Trace their version:

int i = 0;
while (i < 6) {
    if (i % 2 == 0) continue;   // BUG
    printf("%d ", i);
    i++;
}

Forecast: does the while version also print 1 3 5?

In the for, continue jumps to the update i++ first, then the condition. So skipping an even still advances i. Why this step? the recipe for(A;B;C) guarantees C runs after every body pass, continue included.
In the while, continue jumps straight to the condition — skipping the manual i++. Why this step? the update is now inside the body, after the continue, so a skipped iteration never reaches it.
Start i = 0: 0 % 2 == 0 true → continue → back to condition with i still 0. Forever. Why this step? i never changes when it's even, so the condition never turns false → infinite loop.

Output: the for prints 1 3 5 ; the while hangs.

Verify: the fix is to do the update before any continue (or keep the counter increment out of the skippable region). The correct for≡while mapping is A; while(B){ S; C; } — but continue inside S must still let C run, which the naïve rewrite violated. ✓

H — `break` and `continue` in one loop

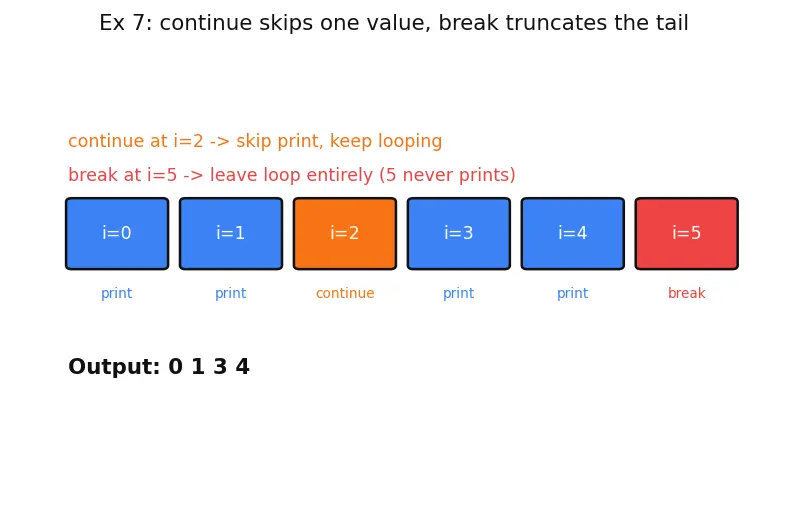

Worked example Ex 7 — who skips, who leaves (cell H)

for (int i = 0; i < 6; i++) {
    if (i == 2) continue;   // skip this pass
    if (i == 5) break;      // leave the loop
    printf("%d ", i);
}

Forecast: list the printed numbers.

i = 0: neither condition → print 0. i = 1: print 1.
i = 2: continue fires → the printf below is skipped, jump to i++. Why this step? continue abandons only the rest of this iteration, the loop lives on. So 2 is never printed.
i = 3: print 3. i = 4: print 4.
i = 5: break fires → leave the whole loop before reaching printf. Why this step? break exits the innermost loop entirely; 5 is never printed and iterations >5 never happen.

Output: 0 1 3 4

Verify: continue removed one interior value (2); break truncated the tail (5 and beyond). Remaining set = {0,1,3,4}. ✓

I — nested loops need `goto` (or a flag)

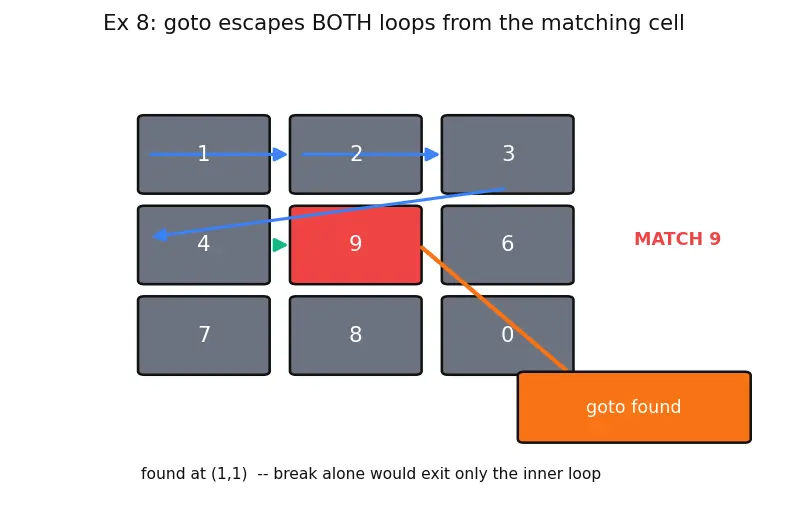

Worked example Ex 8 — escape both loops (cell I)

Find the first cell equal to 9 in a grid and report its position.

int grid[3][3] = {{1,2,3},{4,9,6},{7,8,0}};
int fi = -1, fj = -1;
for (int i = 0; i < 3; i++)
    for (int j = 0; j < 3; j++)
        if (grid[i][j] == 9) { fi = i; fj = j; goto found; }
found:
    printf("found at (%d,%d)", fi, fj);

Forecast: which (i,j) prints?

Scan row-major: i=0 gives 1 2 3 — no match. Why this step? the outer loop walks rows, the inner walks columns; we visit (0,0),(0,1),(0,2) first.
i=1, j=1 holds 9. Record fi=1, fj=1, then goto found. Why this step? a plain break here would exit only the inner j loop; the outer i loop would continue — goto leaps out of both levels at once.
Land on found: and print. Why this step? the label sits after both loops, so control resumes there with the loops abandoned.

Output: found at (1,1)

Verify: scanning row-major, 9 first appears at row 1, column 1 (0-indexed). No earlier cell equals 9. ✓

J — real-world word problem

Worked example Ex 9 — retry-until-valid PIN (cell J)

"Keep asking for a PIN. Accept only when it equals 4242. Print how many tries it took." Simulate with a queued sequence of inputs {1111, 9999, 4242}.

int inputs[] = {1111, 9999, 4242};
int idx = 0, tries = 0, pin;
do {
    pin = inputs[idx++];   // "ask" for a PIN
    tries++;
} while (pin != 4242);
printf("unlocked in %d tries", tries);

Forecast: how many tries?

do-while fits because we must ask at least once. Why this step? you cannot validate a PIN you haven't collected yet — the body must run before the first test (cell F logic, applied for real).
Try 1: pin = 1111, tries = 1, test 1111 != 4242 true → loop again. Try 2: pin = 9999, tries = 2, still != 4242 → loop.
Try 3: pin = 4242, tries = 3, test 4242 != 4242 false → exit. Why this step? the condition finally becomes false, ending the loop on a good input.

Output: unlocked in 3 tries

Verify: 3 inputs consumed, the 3rd matches → tries == 3. A while here would also work but reads worse ("check before asking"); do-while matches the human phrasing "ask, then decide." ✓

K — the exam twist

Worked example Ex 10 — fall-through inside a loop (cell K)

int total = 0;
for (int i = 0; i < 4; i++) {
    switch (i) {
        case 0: total += 1;   // no break
        case 1: total += 10;  break;
        case 2: total += 100; break;
        default: total += 1000;
    }
}
printf("%d", total);

Forecast: compute total before reading.

i=0: land on case 0 → +1 (total 1). No break → fall into case 1 → +10 (total 11), then break. Why this step? the missing break under case 0 chains it into case 1's add — this iteration contributes 11, not 1.
i=1: land on case 1 → +10 (total 21), break. Contributes 10.
i=2: case 2 → +100 (total 121), break. Contributes 100.
i=3: no matching case → default → +1000 (total 1121). Why this step? default catches any value with no label, here 3.

Output: 1121

Verify: per-iteration contributions 11 + 10 + 100 + 1000 = 1121. The trap is step 1's fall-through adding an extra 10 you'd miss if you treated case like an isolated if. ✓

Recall

Recall Which loop runs its body at least once no matter what?

do-while — it tests after the body. A while with a false condition runs zero times.

Recall Why does the hand-translated

while in Ex 6 hang? continue jumps to the condition, skipping the manual i++ that sits after it, so the counter never advances → infinite loop. In a for, the update C still runs after continue.

Recall When must you reach for

goto over break? When escaping nested loops: break leaves only the innermost loop, goto (or a flag variable) can leave all levels at once.

See also: C Operators · Loops and Time Complexity · Boolean Logic · Functions in C · Recursion

Active recall

In Ex 5, how many numbers does the while (i<3) with i=5 print?

Zero — the condition is false before the body runs.

In Ex 6, why does the while version hang?

continue jumps to the condition and skips the i++ after it, so i never advances.

In Ex 8, why not use break to exit both loops?

break exits only the innermost loop; goto escapes both at once.

In Ex 10, what is the final total?

1121 — the missing break under case 0 adds an extra 10.
