Data types — char, short, int, long, float, double, size_t: Worked examples

The scenario matrix

Before working examples, let us enumerate the case classes. Think of this like listing every room in a house before we clean each one — we want to guarantee no room is skipped.

Cell	Case class	What makes it tricky	Example
A	Signed value in range	baseline, no wrap	Ex 1
B	Signed value above max (positive overflow)	wraps to negative	Ex 2
C	Signed value below min (negative overflow)	wraps to positive	Ex 3
D	Unsigned underflow (0 − 1)	wraps to the huge top value	Ex 4
E	Zero / degenerate input	boundary, easy to mis-handle	Ex 5
F	Limiting value (exactly MAX)	the edge itself, +1 tips over	Ex 6
G	Float rounding (no finite binary form)	`==` fails	Ex 7
H	Signed ↔ unsigned mix	silent comparison flip	Ex 8
I	Real-world word problem	pick the right type	Ex 9
J	Exam twist (sizeof + promotion)	trap combining two rules	Ex 10

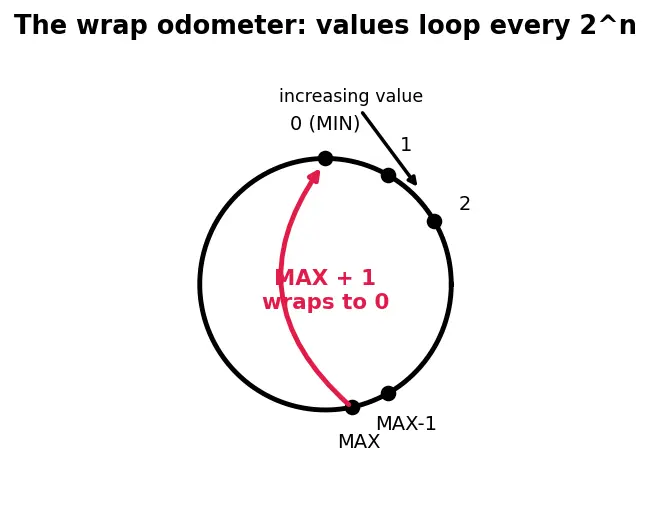

We use the term wrap to mean: when a value goes past the end of a type's range, it re-enters from the other end — like an odometer rolling from 999 back to 000. The figure below is the mental model for every integer example on this page.

Figure — Data types — char, short, int, long, float, double, size_t

Cell A — Signed value in range (baseline)

Worked example Ex 1 · a plain

int addition

int a = 1000, b = 337;
printf("%d\n", a + b);

Forecast: guess the printed number before reading on.

Range of a 32-bit int is $[- 2^{31}, 2^{31} - 1] = [- 2147483648, 2147483647]$ . Why this step? We must confirm the result fits — if it fits, nothing exotic happens.
$1000 + 337 = 1337$ , which is well inside the range. Why this step? Since $1337 < 2147483647$ , no wrap, no undefined behaviour — the answer is just the mathematical sum.

Verify: $1337$ is positive and tiny compared to the max, so the machine prints 1337. ✅

Cell B — Positive overflow (above max)

Worked example Ex 2 · overflowing

unsigned char

unsigned char u = 250;
u = u + 10;          // 260 stored in an 8-bit unsigned box
printf("%u\n", u);

Forecast: 260 doesn't fit in [0,255]. What comes out?

unsigned char is 8 bits, range $[0, 255]$ , so $2^{n} = 2^{8} = 256$ . Why this step? We need $2^{n}$ to apply the wrap rule.
True sum $= 260$ . Apply the wrap rule with $lo = 0$ : $260 mod 256 = 4$ . Why this step? Unsigned overflow is defined in C — it wraps cleanly modulo $2^{n}$ .
Result stored $= 4$ . Why this step? $260 = 256 + 4$ ; the $256$ is one full trip around the odometer (see figure s01), leaving $4$ .

Verify: $260 - 256 = 4$ , and $0 \leq 4 \leq 255$ ✅. Prints 4.

Cell C — Negative overflow (below min)

Worked example Ex 3 · a value below the signed floor

signed char c = -100;
c = c - 50;          // -150, but the floor is -128
printf("%d\n", c);

Forecast: $- 150$ is below $- 128$ . Which way does it wrap?

signed char: 8 bits, range $[- 128, 127]$ , so $lo = - 128$ , $2^{n} = 256$ . Why this step? We reuse the wrap rule; we need $lo$ and $2^{n}$ .
True value $= - 150$ . Compute $((- 150) - (- 128)) mod 256 = (- 22) mod 256 = 234$ . Why this step? In math, mod returns a non-negative remainder: $- 22 + 256 = 234$ .
Add back $lo$ : $234 + (- 128) = 106$ . Why this step? The formula repositions the wrapped remainder into the signed window.

Verify: $- 150 + 256 = 106$ , and $- 128 \leq 106 \leq 127$ ✅. Typical output 106. (Formally UB for signed — value is what a wrapping machine yields.)

Cell D — Unsigned underflow (0 − 1)

Worked example Ex 4 · the classic

0u - 1 trap

unsigned int x = 0;
x = x - 1;
printf("%u\n", x);

Forecast: subtracting 1 from 0 in an unsigned type — negative is impossible, so what appears?

unsigned int is 32 bits, range $[0, 2^{32} - 1]$ , and $2^{32} = 4294967296$ . Why this step? Underflow wraps around the top end; we need $2^{n}$ .
True value $= - 1$ . Wrap: $(- 1) mod 2^{32} = 2^{32} - 1 = 4294967295$ . Why this step? Zero minus one rolls the odometer backwards past 000...0 to the very top value (look at the left edge of figure s01).

Verify: $4294967295 = 2^{32} - 1$ ✅. Prints 4294967295. This is exactly why the countdown-loop bug from the parent note (size_t i; i >= 0) never terminates.

Cell E — Zero / degenerate input

Worked example Ex 5 · storing exactly zero, and

sizeof(0)

long z = 0;
printf("%d\n", z == 0);          // is it really zero?
printf("%zu\n", sizeof(z));      // how many bytes?

Forecast: two outputs — a truth value and a byte count.

Zero is inside every integer range (both signed and unsigned include 0), so no wrap, no rounding. Why this step? Zero is the safest possible value; it exposes no overflow behaviour — but it is the boundary that unsigned underflow (Ex 4) trips over.
z == 0 is true → the == comparison yields 1. Why this step? In C, a true relational expression has the integer value 1.
sizeof(long) on LP64 is 8, and sizeof returns a size_t, printed with %zu. Why this step? sizeof Operator measures the storage, independent of the value stored — even zero occupies the full 8 bytes.

Verify: First line 1, second line 8 ✅. (The number stored is 0, but the box is still 8 bytes wide.)

Cell F — Limiting value (exactly MAX, then +1)

Worked example Ex 6 · sitting on

INT_MAX and stepping over

int m = 2147483647;       // exactly INT_MAX
printf("%d\n", m);        // still fine?
unsigned int um = 4294967295u;   // exactly UINT_MAX
um = um + 1;
printf("%u\n", um);

Forecast: the edge value prints cleanly; then +1 tips over.

INT_MAX $= 2^{31} - 1 = 2147483647$ is the largest representable int — exactly on the boundary, so it stores perfectly. Why this step? The limiting value is inside the range (the range is closed at the top), so no wrap yet.
UINT_MAX $= 2^{32} - 1 = 4294967295$ , the largest unsigned int. Why this step? Same idea for the unsigned ceiling.
um + 1 = 4294967296 = 2^{32}. Wrap: $2^{32} mod 2^{32} = 0$ . Why this step? Stepping one past the top of the odometer lands back on 0 (right edge → left edge in figure s01).

Verify: Line 1 prints 2147483647; line 3 prints 0 because $2^{32} mod 2^{32} = 0$ ✅.

Cell G — Float rounding (no finite binary form)

Worked example Ex 7 · the

0.1 + 0.2 reveal

double d = 0.1 + 0.2;
printf("%.17f\n", d);
printf("%d\n", d == 0.3);

Forecast: does the sum equal 0.3 exactly?

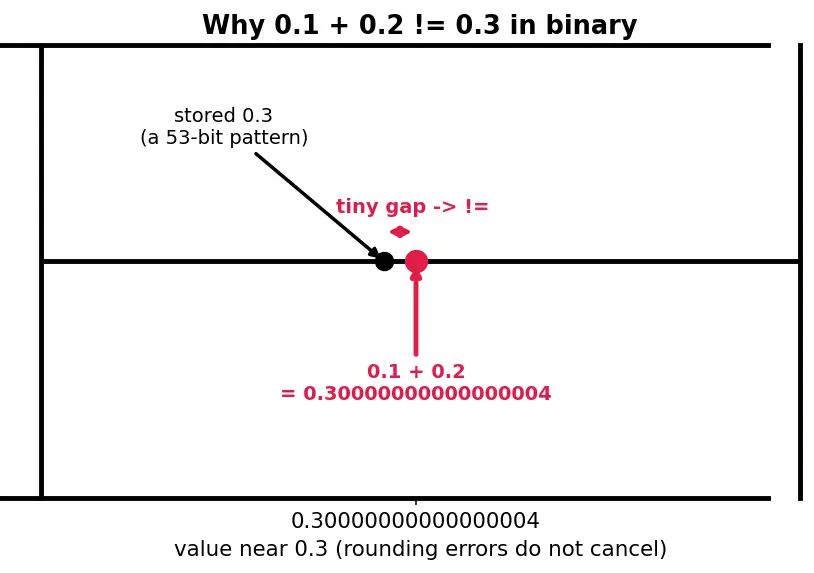

0.1 in binary is a repeating fraction (like $1/3 = 0.333 \dots$ in decimal), so double stores the nearest 53-bit approximation. Why this step? Floating storage is finite; see IEEE-754 Floating Point for the 1/11/52 layout.
The stored 0.1 is slightly above the true 0.1; same for 0.2. Their sum's stored value is $0.30000000000000004 \dots$ . Why this step? Two tiny rounding errors add up and don't cancel to exactly the stored 0.3.
0.3 on its own rounds to a different 53-bit pattern than the sum, so d == 0.3 is false → 0. Why this step? == compares bit patterns; two numbers "equal in decimal" can differ in bits.

Verify: The sum is $\approx 0.30000000000000004$ and d == 0.3 gives 0 (false) ✅. Fix: compare fabs(d - 0.3) < 1e-9.

Cell H — Signed ↔ unsigned mix (silent comparison flip)

Worked example Ex 8 · when

-1 > 1 becomes true

int s = -1;
unsigned int u = 1;
printf("%d\n", s < u);     // is -1 less than 1?

Forecast: surely $- 1 < 1$ is true (1)... or is it?

In a comparison mixing int and unsigned int, C converts both to unsigned. This rule comes from Type Conversion and Promotion. Why this step? The "usual arithmetic conversions" rank unsigned int higher, so the signed operand is coerced.
-1 converted to unsigned int wraps to $2^{32} - 1 = 4294967295$ (same math as Ex 4). Why this step? There is no negative in unsigned; $- 1$ becomes the top value.
Now the comparison is $4294967295 < 1$ , which is false → 0. Why this step? The huge wrapped value dwarfs 1, flipping the intuitive result.

Verify: s < u evaluates to 0 (false) — the exact opposite of naive expectation ✅. Never compare signed to unsigned without an explicit cast.

Cell I — Real-world word problem (pick the type)

Worked example Ex 9 · counting bytes of a 5 GB file

A program must store the size, in bytes, of a file that can be up to 5 gigabytes. Which type is safe, and what value does 5 GB hold? Forecast: will a 32-bit int do the job?

$5 GB = 5 \times 102 4^{3} = 5 \times 1073741824 = 5368709120$ bytes. Why this step? We need the actual number to compare against type ceilings.
A 32-bit signed int maxes at $2147483647 \approx 2.1$ GB — too small; it would overflow (undefined behaviour). Why this step? $5368709120 > 2147483647$ , so int cannot represent it.
Use size_t (unsigned, 64-bit on LP64, ceiling $2^{64} - 1$ ). Its range comfortably holds $5368709120$ . Why this step? size_t is the standard type for object/memory sizes — non-negative and wide enough. See Pointers and Addresses for why it tracks address width.

Verify: $5 \times 102 4^{3} = 5368709120$ , which is $> 2147483647$ but $< 2^{64} - 1$ ✅. Answer: size_t, holding value 5368709120.

Cell J — Exam twist (sizeof + promotion trap)

Worked example Ex 10 · the

sizeof('A') gotcha

printf("%zu %zu\n", sizeof('A'), sizeof(char));

Forecast: both are one character — will both print 1?

sizeof(char) is guaranteed 1 by the standard — the only fixed size in C. Why this step? This is the baseline the trap plays against.
In C, a character constant like 'A' has type int, not char (a historical rule). So sizeof('A') == sizeof(int). Why this step? The token 'A' is promoted to int at the language level — this is the twist most students miss.
On LP64, sizeof(int) == 4. So the two outputs differ. Why this step? The literal is an int (4 bytes) even though the character it denotes fits in 1 byte.

Verify: Prints 4 1 — sizeof('A') is 4 (int), sizeof(char) is 1 ✅. (In C++ the rules differ and sizeof('A') is 1; this trap is C-specific.)

Active Recall

Recall Cover the answers — one per matrix cell

unsigned char u = 250; u += 10; → ? ::: 4 (260 mod 256)
signed char c = -100; c -= 50; → ? ::: 106 (−150 + 256), formally UB
unsigned x = 0; x -= 1; → ? ::: 4294967295 ( $2^{32} - 1$ )
UINT_MAX + 1 → ? ::: 0 ( $2^{32}$ mod $2^{32}$ )
0.1 + 0.2 == 0.3 → ? ::: 0 (false, binary rounding)
int -1 < unsigned 1 → ? ::: 0 (false; −1 becomes huge)
Type for a 5 GB size → ? ::: size_t (holds 5368709120)
sizeof('A') in C → ? ::: 4 ('A' is an int)
