Visual walkthrough — NP — non-deterministic polynomial, verifier definition

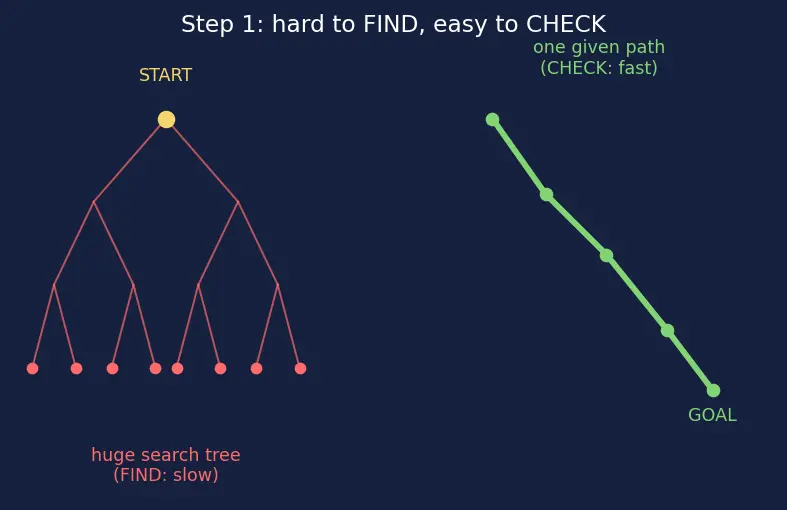

Step 1 — The asymmetry: hard to find, easy to check

WHAT. We start with the raw human observation behind NP. Look at the picture: a huge maze (the search space) with one hidden goal. Finding the goal means wandering through a giant tree of choices. But if someone hands you the path, you just walk it and confirm — a single line traced through the maze.

WHY. Before any math, we must be honest about what we are formalizing. NP is not "problems that are hard." It is the class where one direction is hard (searching) but the other is cheap (checking a given answer). That gap is the whole idea — so we draw the gap first.

PICTURE. On the left, the branching search (many red dead-ends). On the right, a single green checkable path. Same problem, two costs.

Step 2 — Name the pieces: the input $x$, its size $|x|$, and the answer we want

WHAT. A decision problem is a yes/no question. We write the specific question as $x$ — the input. The set of all inputs whose answer is "yes" is called the language $L$. So "the answer to $x$ is yes" is written $x\in L$ (read: "$x$ is in $L$").

We also need to measure how big the input is. We write $|x|$ for the size of the input — how many symbols it takes to write $x$ down (e.g. the number of characters in a graph's edge list).

WHY. We cannot talk about "fast" or "short" without a ruler. Everything later — "polynomial time," "short certificate" — is measured relative to $|x|$. So we pin down $x$, $L$, and $|x|$ before anything else uses them.

PICTURE. A box labelled $x$ (a small graph), with a bracket underneath showing $|x|$ = number of symbols, and a stamp: does $x\in L$? Yes or No.

Step 3 — Introduce the certificate $c$: writing the green path down

WHAT. To check an answer we need the answer handed to us. We call that handed-over object the certificate $c$ (also: witness, proof). It is just a string of symbols — the green path from Step 1, written down.

For "Is this graph 3-colorable?" the certificate is a coloring. For "Is $\varphi$ satisfiable?" it is a truth assignment. In every case, $c$ is the concrete evidence that the answer is yes.

WHY. Without $c$, "checking" collapses back into "solving" — you'd have to find the path yourself. Introducing an explicit extra input $c$ is the minimal fix: it separates "someone gives you the answer" from "you find it." This is why the definition will contain "$\exists c$" ($\exists$ means "there exists").

PICTURE. The verifier machine $V$ takes two inputs now: the question $x$ and the tip $c$. It outputs a single bit: $1$ (accept) or $0$ (reject).

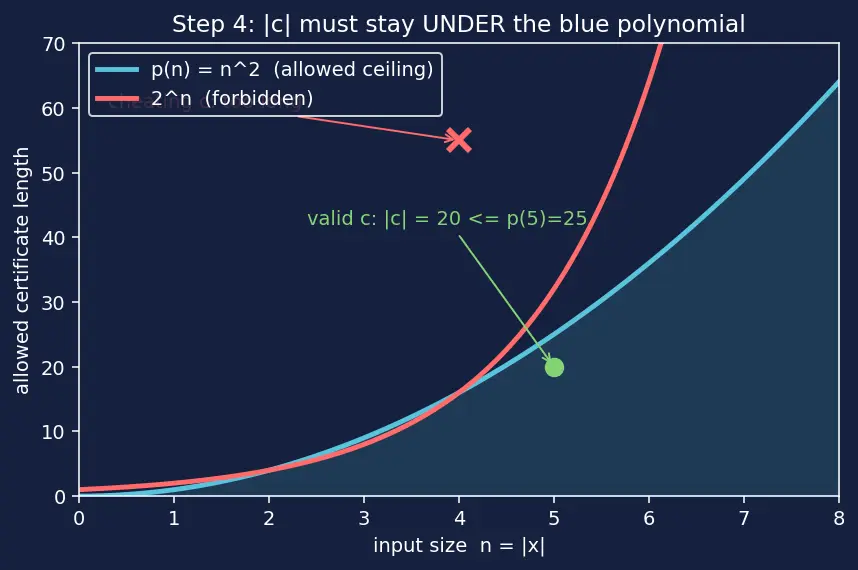

Step 4 — Force the certificate to be short: $|c|\le p(|x|)$

WHAT. We demand the certificate's size $|c|$ be no larger than some polynomial $p$ of the input size: $|c|\le p(|x|)$. A polynomial is a function like $p(n)=n^2$ or $p(n)=3n^3+5n$ — it grows tamely, unlike $2^n$ which explodes.

Reading the inequality term by term:

• $|c|$ — length of the certificate (how many symbols the tip has),
• $\le$ — "at most,"
• $p(|x|)$ — a polynomial evaluated at the input size $|x|$.

WHY. Look at the picture: the tame blue polynomial curve stays low; the red exponential curve rockets up. If we allowed an exponentially long certificate (red), the verifier couldn't even read it in reasonable time — and then every problem would trivially "qualify" by stuffing the whole answer table into $c$. Bounding $|c|$ by a polynomial (staying under the blue curve) closes that loophole.

PICTURE. Two curves versus $n=|x|$: blue $p(n)=n^2$ (allowed region shaded), red $2^n$ (forbidden). A certificate-length dot must sit under blue.

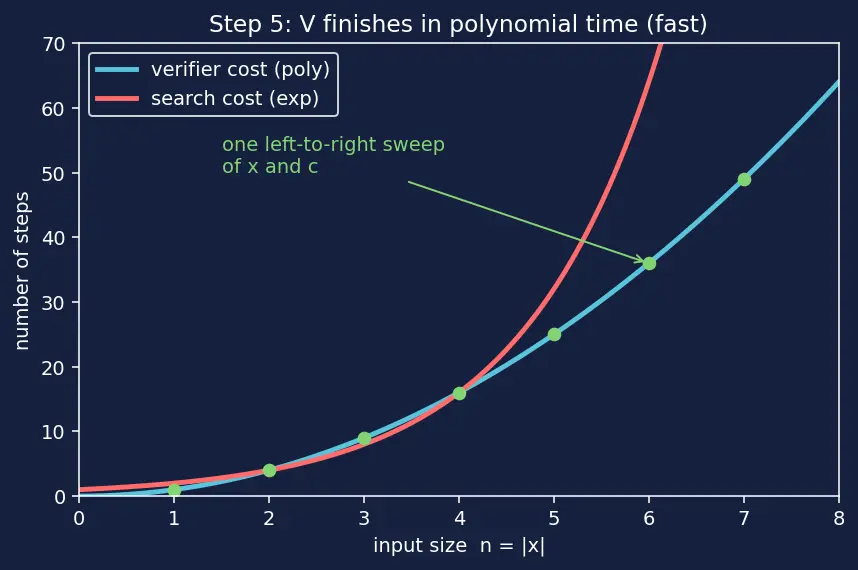

Step 5 — Force the check to be fast: $V$ runs in polynomial time

WHAT. The verifier $V$ must finish in polynomial time — the number of steps it takes is bounded by a polynomial in the size of its input. "Easy to check" must literally mean fast to check.

WHY. A short certificate is useless if verifying it still takes forever. Look at the picture: reading the green path and confirming each step is a single left-to-right sweep — its cost is a gentle polynomial curve, not the exploding search tree from Step 1. Polynomial time is our robust, machine-independent notion of feasible. If we let $V$ be slow, genuinely hard problems could sneak in disguised as "checkable."

PICTURE. A timeline: the verifier reads $x$ then $c$, ticking off checks; a bar shows total steps bounded by the blue polynomial curve, well below the red exponential search cost.

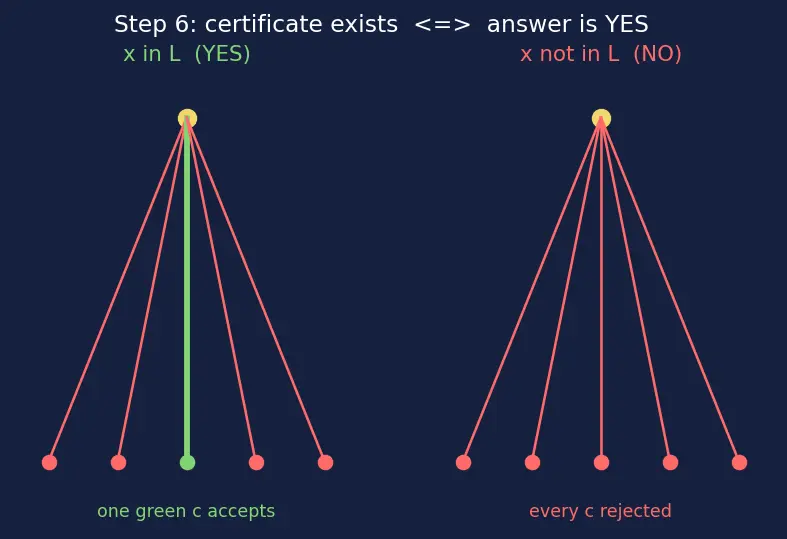

Step 6 — One-sidedness: only "yes" gets a certificate

WHAT. Here is the subtle, crucial clause. We require: $x\in L⟺\exists c(|c|\le p(|x|)\wedge V(x,c)=1).$ The symbol $⟺$ means "if and only if" — the two sides always agree. Reading it:

• If $x\in L$ (answer is yes) → there exists a certificate $c$ making $V$ accept.
• If $x\notin L$ (answer is no) → no certificate exists; every $c$ is rejected.

$\wedge$ means "and": the certificate must be both short and accepted.

WHY. Verification is inherently lopsided. To prove "yes," show one good path — that's easy. To prove "no," you'd have to show every path fails — there is nothing short to hand over. So the certificate lives only on the "yes" side. In the picture: the "yes" input has one glowing green certificate branch; the "no" input has an entire fan of branches, all red, with no green anywhere.

PICTURE. Split panel. Left ("yes"): many branches, one green accepting one. Right ("no"): the same fan, every branch red — the OR over all branches is 0.

Step 7 — Why this is called Nondeterministic Polynomial

WHAT. The name comes from a second, equivalent machine. A nondeterministic Turing machine is allowed to guess: at each step it may branch into several choices, and it accepts if some branch reaches accept (an OR over all branches). It has no probabilities — it is magical guessing, not randomness.

WHY. Compare the two views in the picture. On the left, the nondeterministic machine guesses the certificate bit by bit (the guessed string is $c$), then checks deterministically. On the right, our verifier $V$ receives that exact string as input. The guessed path and the certificate are the same object — that is why "verifier polynomial" and "nondeterministic polynomial" define the identical class. The connection is made rigorous by the Cook–Levin Theorem via Boolean Satisfiability (SAT).

PICTURE. Left: a guessing tree writing bits of $c$, then a deterministic check. Right: an external $c$ fed straight into $V$. An equals sign between them; both point to the same green string.

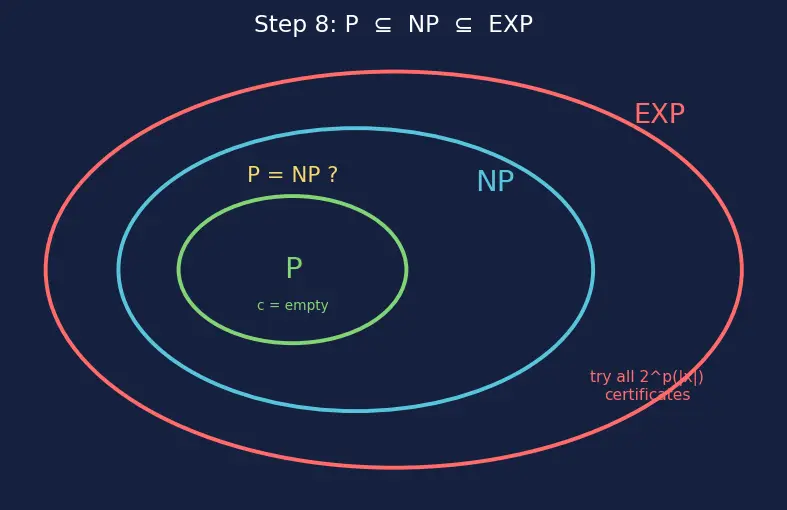

Step 8 — Edge cases: $P\subseteq NP$, degenerate certificates, and the brute-force ceiling

WHAT. Three boundary scenarios the reader might hit:

1. A problem already in P (complexity class). Then we can solve it directly. The certificate is the empty string $c=\epsilon$ (the degenerate, zero-length tip), and $V$ simply re-solves and ignores $c$. A solver is a lazy verifier ⇒ $\text{P}\subseteq \text{NP}$.
2. The all-red "no" input from Step 6. No certificate at all — and that is allowed; it is exactly what "no" means. The empty search is the degenerate certificate case on the no side.
3. The exponential ceiling. Try every possible certificate: there are at most $2^{p(|x|)}$ strings of length $\le p(|x|)$, and each is checked in poly time. That is exponential total — so $\text{NP}\subseteq \text{EXP}$. NP sits between P and EXP.

WHY. A definition is only trustworthy if it behaves at the extremes. Zero-length certificate → P fits inside. All-branches-fail → "no" is handled. Try-all-certificates → an upper ceiling exists, so NP problems are at least solvable. Whether the lower boundary is tight — i.e. whether $\text{P}=\text{NP}$ — is the open P vs NP Problem.

PICTURE. Nested rings: innermost P (with tiny $c=\epsilon$ tag), middle NP, outer EXP (with the $2^{p(|x|)}$ brute-force tag). A question mark on the P–NP boundary.

The one-picture summary

Everything above compresses into a single flow: an input $x$ (size $|x|$) either is or isn't in $L$; a short certificate $c$ (under the blue polynomial curve) is fed with $x$ into the fast verifier $V$; the biconditional forces a green accepting $c$ to exist exactly when the answer is yes.
