UML — use case, class, sequence, activity, state machine, component diagrams: Worked examples

The scenario matrix

Before solving, let us enumerate every class of case. Think of this like a physics problem where you must cover all quadrants and all signs — here the "quadrants" are the different modelling choices that flip your answer.

#	Case class (the "axis")	The two extremes / edge you must decide between	Which diagram
C1	include vs extend	mandatory sub-behaviour vs optional add-on	Use Case
C2	aggregation vs composition	part survives the whole vs part dies with it	Class
C3	multiplicity edge cases	`0..1` (optional), `` (many), `1..` (at least one)	Class
C4	sync vs async message	caller waits vs caller fires-and-forgets	Sequence
C5	alt / opt / loop fragment	branch, conditional, repeat inside one scenario	Sequence
C6	decision vs fork	choose ONE path vs run ALL paths in parallel	Activity
C7	degenerate / self-transition	event that does NOT change state	State Machine
C8	which family & viewpoint	structural vs behavioural — a real-world word problem	any

Below, eight worked examples, each labelled with the cell it covers. Read the "Forecast:" line and guess before scrolling.

Example 1 — Cell C1 (include vs extend)

Step 1 — Classify each sub-behaviour as always vs sometimes. Why this step? The single deciding question for use-case factoring is: does the base always do this, or only conditionally? "Calculate tax" happens on every checkout → mandatory. "Apply coupon" happens only if a coupon exists → conditional.

Step 2 — Assign the stereotype. Why this step? Mandatory shared behaviour = <<include>>; optional conditional behaviour = <<extend>>. So Checkout <<include>> Calculate Tax, and Apply Coupon <<extend>> Checkout.

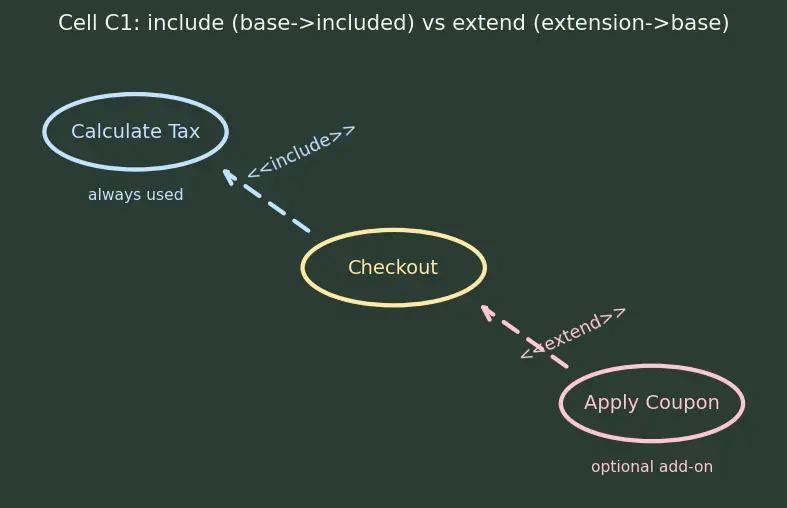

Step 3 — Get the arrow directions right. Why this step? This is the classic trap (see the parent's mistake callout). The <<include>> arrow points from base → included (Checkout depends on Calculate Tax). The <<extend>> arrow points from extension → base (Apply Coupon reaches into Checkout). See the figure — note the two arrows point opposite ways even though both are dashed.

Figure — UML — use case, class, sequence, activity, state machine, component diagrams

Verify: Delete "Apply Coupon" — does checkout still make sense? Yes (it was optional) → confirms <<extend>>. Delete "Calculate Tax" — is checkout now incomplete? Yes → confirms <<include>>. Sanity check passes.

Example 2 — Cell C2 (aggregation vs composition)

Step 1 — Apply the lifecycle test. Why this step? The parent gave us the one discriminating question: "If I delete the whole, must the part die too?" For the Playlist: delete it, songs survive → part is independent. For the Invoice: delete it, line items die → part is owned.

Step 2 — Map the answer to a diamond. Why this step? Independent part = aggregation = hollow ◇. Owned part = composition = filled ◆. So Playlist ◇— Song, Invoice ◆— LineItem.

Verify: Cross-check with reality. A song can belong to many playlists at once — only possible if it is not owned by one → aggregation is consistent. A LineItem never belongs to two invoices → exclusive ownership → composition is consistent. ✔

Example 3 — Cell C3 (multiplicity edge cases)

Step 1 — Translate English quantities to multiplicity symbols. Why this step? Multiplicity is just a range min..max. "none or one" = $0..1$ . "at least one" = $1.. *$ (the * means "unbounded"). "any number including zero" = $*$ (short for $0.. *$ ).

Step 2 — Place the label at the FAR end. Why this step? A multiplicity written near a class says "how many of this class relate to one of the other". So Person "1" —— "0..1" Passport reads: one person, zero-or-one passport.

Verify: For the many-to-many Student * —— * Course, read it both directions: "one student → many courses" ✔ and "one course → many students" ✔. Both ends are *, which is the fingerprint of a many-to-many → correct.

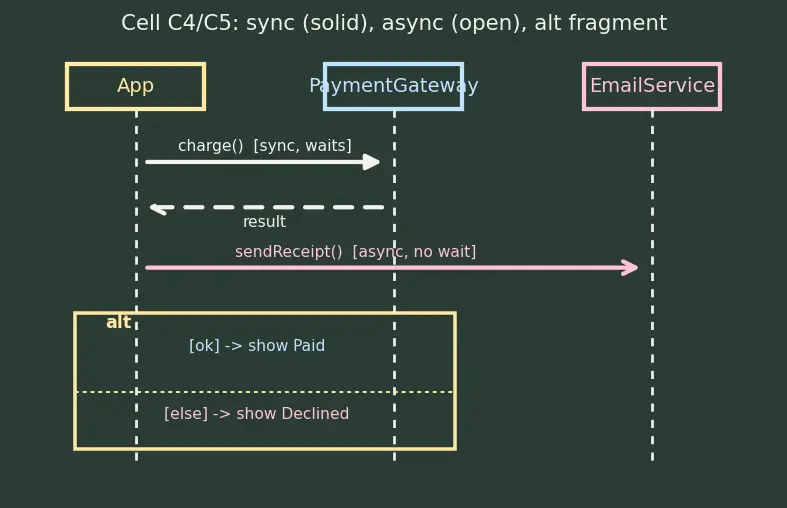

Example 4 — Cell C4 + C5 (sync vs async, and an `alt` fragment)

Step 1 — Classify each message. Why this step? Cell C4: a message is synchronous (solid filled arrowhead, caller blocks) if we need the answer before continuing. charge() must return success/failure before we decide what to show → synchronous. The email is fire-and-forget → asynchronous (open arrowhead).

Step 2 — Wrap the outcome in an alt fragment. Why this step? Cell C5: two mutually exclusive outcomes (success / failure) in one scenario = an alt combined fragment with two compartments guarded by [ok] and [else].

Step 3 — Order top-to-bottom. Why this step? In a sequence diagram time flows downward. charge() happens first (we wait for its return), the async email next, then the alt.

Verify: Trace the "declined" path: charge() returns fail → alt picks [else] → "Declined" shown. The email was fired regardless (it is above the alt, outside it), which matches "send receipt" being independent — but wait, do we email a declined payment? The spec said fire the email after the charge call unconditionally, so the model matches the spec. (In an exam, flag this as a design smell.) ✔ structurally correct.

Example 5 — Cell C6 (decision vs fork) with a figure

Step 1 — Find the exclusive choice → decision. Why this step? "fails vs passes" are mutually exclusive — exactly one path is taken. That is a decision node ◇ with guards [fail] and [pass].

Step 2 — Find the parallel work → fork/join. Why this step? Unit tests and lint run simultaneously and are independent → a fork ━ splits into both, and a join ━ waits for both before Deploy. This is the difference the parent stressed: decision = pick one; fork = do all.

Step 3 — Order: decision first, fork inside the [pass] branch. Why this step? We only parallelise after a successful build, so the fork lives on the pass branch.

Verify: Count exits. The decision has one active outgoing edge at runtime (either fail or pass) — correct for "choose one". The fork has two active outgoing edges at once — correct for "do all". If you accidentally used a fork for build-pass/fail you'd try to run both success and failure handling, which is nonsense. Shapes match semantics. ✔

Example 6 — Cell C7 (degenerate / self-transition) with a figure

Step 1 — List states and the "real" transition. Why this step? One object, its rest-conditions are the states. The genuine state change is Draft --publish--> Published.

Step 2 — Identify self-transitions (the degenerate cell). Why this step? A self-transition is an event that fires but does not change the state. edit in Draft: state stays Draft, an action runs. publish in Published: nothing meaningful happens → a self-loop (or you may simply omit it to say "ignored"). Both are the "zero-input" degenerate case: motion in the event-space, no motion in the state-space.

Step 3 — Decide: draw the self-loop or drop it? Why this step? Drawing it documents "this event is handled here and intentionally does nothing"; dropping it means "undefined/ignored". Being explicit is safer for exams.

Verify: Reachability check — can we reach every state from Draft (the initial)? Draft →(publish)→ Published ✔. Are there dead ends with no way out and no final? Published has no unpublish here, so it is terminal for this spec — acceptable if that is the requirement. Self-transitions correctly leave the state count unchanged (still 2). ✔

Example 7 — Cell C8 (real-world word problem: pick the family & viewpoint)

Step 1 — Structural vs behavioural. Why this step? The parent's grand split: are we describing what exists (static shape) or what happens over time? "Deployable pieces and their dependencies" is a static packaging question → structural.

Step 2 — Choose among structural diagrams. Why this step? Structural = {Class, Component}. Class describes code-level types/attributes; Component describes deployable units and their interfaces/dependencies. "Web front end, inventory service, database" are deployable modules → Component diagram. This is really a Software Architecture question.

Step 3 — Justify the rejections. Why this step? An exam wants you to rule out the others. Sequence/Activity/State = behavioural → wrong family. Use Case answers "who does what", not "how it's packaged". Class is too fine-grained (it shows fields/methods, not deployables).

Verify: Test the choice against the client's exact words: "deployable pieces" → components ✔; "which depends on which" → dependency arrows between components ✔. The Component diagram answers both; no other diagram answers both. ✔

Example 8 — Cell C5 stress (loop fragment + degenerate empty case)

Step 1 — Choose the fragment. Why this step? "Repeatedly until a condition" = a loop combined fragment, guarded [more pages]. Cell C5 again, but the loop flavour.

Step 2 — Reason about the limiting value: zero iterations. Why this step? Always cover the degenerate input. If the guard [more pages] is false on the first check, the loop body executes zero times — the messages inside never fire. A well-drawn loop correctly represents "0 to many" repetitions, unlike a plain arrow which implies "exactly once".

Step 3 — State the loop bound. Why this step? You may annotate loop(0,*) meaning "minimum 0, maximum unbounded", making the zero-page case explicit and exam-proof.

Verify: Substitute the extreme: empty site ⇒ guard false ⇒ 0 body executions ⇒ scraper immediately finishes with no getPage() calls — matches "no more pages". Substitute many pages ⇒ body repeats per page ⇒ correct. Both limits behave. ✔

Recall

Recall Which stereotype is mandatory, and which way does its arrow point?

<<include>> ::: mandatory (always used); arrow points from base → included.

Recall One-question test for aggregation vs composition?

"If I delete the whole, must the part die?" ::: Yes → composition ◆; No → aggregation ◇.

Recall Multiplicity for "at least one" vs "any number"?

at least one ::: $1.. *$ ; any number ::: $*$ (i.e. $0.. *$ ).

Recall Decision ◇ vs Fork ━ — how many outgoing paths are active at runtime?

Decision ::: exactly ONE (guarded, exclusive). Fork ::: ALL (parallel).

Recall A sequence message where the caller does not wait uses which arrowhead?

Asynchronous ::: open (unfilled) arrowhead.

Recall What does a

loop fragment do when its guard is false on the first check? Runs the body ::: zero times (0-to-many, unlike a plain single arrow).
