Requirements — functional vs non-functional, user stories, acceptance criteria: Exercises

Level 1 — Recognition

Goal: can you spot which bucket a statement belongs in, with no rewriting.

Exercise 1.1

For each statement, label it FR or NFR:

(a) "The system shall let a user log in with email and password."
(b) "Login shall complete within 1 second for 95% of attempts."
(c) "The system shall send a receipt email after purchase."
(d) "The site shall be available 99.9% of each month."

Recall Solution 1.1

(a) FR — it names a behaviour ("let a user log in"), a verb, no number attached.
(b) NFR — same login verb, but now constrained by a measurable quality: "within 1 second, 95%". That threshold is the tell.
(c) FR — "send a receipt email" is a behaviour the system performs.
(d) NFR — "99.9% availability" is a measurable reliability quality, not a feature. Nothing new is done; existing features must simply keep running.

Pattern: whenever a statement pins a number+unit onto a verb, the number part is the NFR.

Exercise 1.2

Which FURPS+ category does each NFR belong to? (Functionality, Usability, Reliability, Performance, Supportability, +security/scalability/legal)

(a) "Handles 10,000 concurrent users."
(b) "A new user completes checkout without help in under 3 minutes."
(c) "All passwords stored hashed and salted."

Recall Solution 1.2

(a) Scalability (the "+") — capacity to grow with load. (Some teams file it under Performance; scalability is specifically about load growth.)
(b) Usability — measures how easily a human succeeds ("without help, under 3 minutes").
(c) Security (the "+") — protects data. Note it is measurable-ish ("hashed and salted" is a verifiable state).

Level 2 — Application

Goal: produce the artefact yourself, not just recognise it.

Exercise 2.1

Rewrite this raw stakeholder request as a proper user story using As a <role>, I want <goal>, so that <benefit>:

"People keep asking us to save their card so they don't retype it."

Recall Solution 2.1

As a returning shopper, I want to save my card details securely, so that I can checkout faster without retyping them each time.

Role = "returning shopper" (a real person, not "the system").
Goal = "save my card details" — a capability, not an implementation (we did NOT say "store in a Stripe token vault"; that's a design choice for later).
Benefit = "checkout faster without retyping" — this is the value test; it also silently signals a security NFR ("securely") that must get its own acceptance criterion.

Exercise 2.2

Write three acceptance criteria in Given-When-Then form for the story:

As a shopper, I want to apply a discount code, so that I pay less.

Include at least one edge case.

Recall Solution 2.2

Given a valid code "SAVE10", When I apply it to a £100 cart, Then the total shows £90. (happy path)
Given an expired or invalid code, When I apply it, Then an error "code not valid" shows and the total is unchanged. (negative/edge case)
Given an already-applied code, When I apply the same code again, Then it is not applied twice and a message explains why. (boundary — prevents double-discount bug)

Each line is objective pass/fail: a machine could check "total = £90". That's what makes them acceptance criteria and not opinions.

Level 3 — Analysis

Goal: find what's wrong / missing and explain WHY.

Exercise 3.1

Critique this user story against INVEST and list every letter it violates:

"As the system admin, I want the whole reporting, billing, and notification subsystem redesigned so that everything is better."

Recall Solution 3.1

Violations:

S (Small): "whole reporting, billing, and notification subsystem" is three subsystems — far too big for one story. Split into three+.
E (Estimable): because it's huge and vague, no one can size it. (See Estimation and Story Points — un-slicable stories can't be pointed.)
T (Testable): "everything is better" has no pass/fail condition. What does "better" measure?
V (Valuable): benefit is empty ("better" is not a value statement).
Arguably N (Negotiable) survives and I (Independent) is unclear.

Verdict: at minimum it fails S, E, T, V — four of six. A story failing "Testable" and "Small" is the classic "epic disguised as a story".

This AC set is incomplete. Identify the missing category of case and add one criterion to fix it. Story: As a user I want to upload a profile photo. Given a valid JPG under 5 MB, When I upload, Then it appears as my avatar.

Recall Solution 3.2

Missing category: the negative / boundary cases. Only the happy path is covered. Bugs cluster at boundaries (see the parent note's boundary mistake). Add, for example:

Given a file over 5 MB, When I upload, Then an error "file too large (max 5 MB)" shows and no avatar changes.
Given a non-image file (.pdf), When I upload, Then it is rejected with "images only".

The rule: for every "Then it works", write a "Given an invalid/empty/oversized input, Then it fails gracefully".

Level 4 — Synthesis

Goal: combine FR + NFR + story + AC into one coherent slice, and reason about cost.

Exercise 4.1

A stakeholder says: "Customers must be able to track their order, and it should never feel slow, and it must work even when 50,000 people check at once." Produce: (1) the FR, (2) two NFRs with measurable thresholds, (3) one user story, (4) one AC that encodes an NFR.

Recall Solution 4.1

(1) FR: The system shall let a customer view the current status of their order. (2) NFRs (given numbers — "never slow" and "50,000" must become measurable):

Performance: status page returns in ≤ 1.5 s for the 95th-percentile request.
Scalability: the feature sustains 50,000 concurrent status checks with no errors. (3) Story: As a customer, I want to see my order's current status, so that I know when to expect delivery. (4) AC encoding an NFR: Given 50,000 concurrent users, When each requests order status, Then 95% of responses arrive in ≤ 1.5 s and none return an error.

Note how the vague words "never slow" / "50,000 people" were forced into numbers — that conversion is the whole point of splitting NFRs out. See Test-Driven Development for turning that last AC into an automated load test.

Exercise 4.2 (cost reasoning)

The parent note models the cost of fixing a misunderstanding as $Cost (t) = C_{0} \cdot k^{t}, k > 1,$ where $t$ counts stages: requirements $= 0$ , design $= 1$ , code $= 2$ , test $= 3$ , production $= 4$ . A bug that costs £200 to fix if caught at requirements ( $C_{0} = 200$ ) is instead caught in production. Using $k = 3$ , how much does it cost in production, and how many times more expensive is that?

Recall Solution 4.2

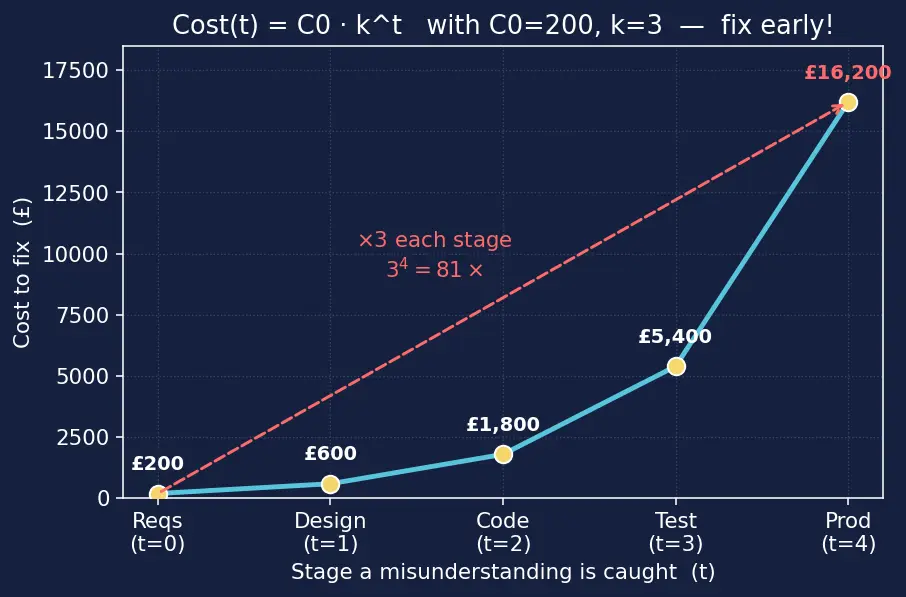

Look at the figure below: each stage multiplies the cost by $k = 3$ . $Cost (4) = 200 \cdot 3^{4} = 200 \cdot 81 = £16, 200.$ The multiplier is $3^{4} = 81$ , so it is 81× more expensive. Interpretation: every stage you let a misunderstanding survive triples the repair bill. Writing requirements well is cheap leverage against the steep right-hand tail of this curve.

Figure — Requirements — functional vs non-functional, user stories, acceptance criteria

Level 5 — Mastery

Goal: design the whole requirements slice for a fresh feature and defend every choice.

Exercise 5.1

Green-field feature: "Let users reset a forgotten password by email." Produce a complete, defensible package:

one user story (INVEST-compliant),
the FR list,
at least two NFRs with thresholds and FURPS+ categories,
an AC set covering happy path + two edge/negative cases + one NFR threshold,
name one downstream artefact each item feeds into.

Recall Solution 5.1

1. Story: As a registered user who forgot my password, I want to reset it via a link sent to my email, so that I can regain access without contacting support. (INVEST check: Independent of other auth features; Negotiable wording; Valuable — self-service saves support cost; Estimable — small and clear; Small — one flow; Testable — see AC below.)

2. FR list:

The system shall let a user request a reset by entering their registered email.
The system shall email a unique, single-use reset link.
The system shall let the user set a new password via that link.
The system shall invalidate the link after use or after it expires.

3. NFRs:

Performance: the reset email is queued within ≤ 5 s of the request, 99% of the time. (FURPS: Performance)
Security: the reset link expires ≤ 30 minutes after issue and is single-use. (FURPS: +Security)
(bonus) Reliability: email delivery success ≥ 99.5% monthly. (FURPS: Reliability)

4. AC set (Given-When-Then):

Happy path: Given a registered email, When I request a reset and click the fresh link, Then I can set a new password and log in with it.
Edge — unknown email: Given an email not in the system, When I request a reset, Then I see the same neutral "if the email exists, a link was sent" message (so we don't leak which emails are registered — a security subtlety).
Edge — expired link: Given a link older than 30 minutes, When I click it, Then it is rejected with "link expired, request a new one".
NFR threshold: Given a valid request, When submitted, Then the email is queued in ≤ 5 s for ≥ 99% of requests.

5. Downstream artefacts:

The story feeds Estimation and Story Points (sizing) and the Agile and Scrum backlog.
The FR list feeds Software Design (the flow/state machine of link lifecycle).
The NFRs feed load/pen-test plans in Test-Driven Development.
The AC set feeds the automated acceptance tests and the Software Development Life Cycle "definition of done".
The whole package originated from Stakeholder Analysis (who asked, and why it's valuable).

Quick self-test recap

Which side of the split gets a number?

Non-functional — it must be measurable (number + unit + context).

In As a <role>, I want <goal>, so that <benefit>, which part is the prioritisation filter?

The benefit ("so that ..."), it states the value.

Why must acceptance criteria include edge/negative cases?

Most production bugs live at boundaries (empty, max, invalid, no-network); happy-path-only AC hides them.

With

Cost (t) = C_{0} k^{t}

C_{0} = 200

k = 3

, production

t = 4

, what is the cost?

200 \cdot 3^{4} = £16, 200

(81× more).

What un-obvious NFR forces "unknown email" resets to show a neutral message?

Security (prevents account enumeration).
