NoSQL — document (MongoDB), key-value (Redis), column (Cassandra), graph (Neo4j): Worked examples

This deep dive lives under the NoSQL parent note. If any term here feels new, the parent built it first.

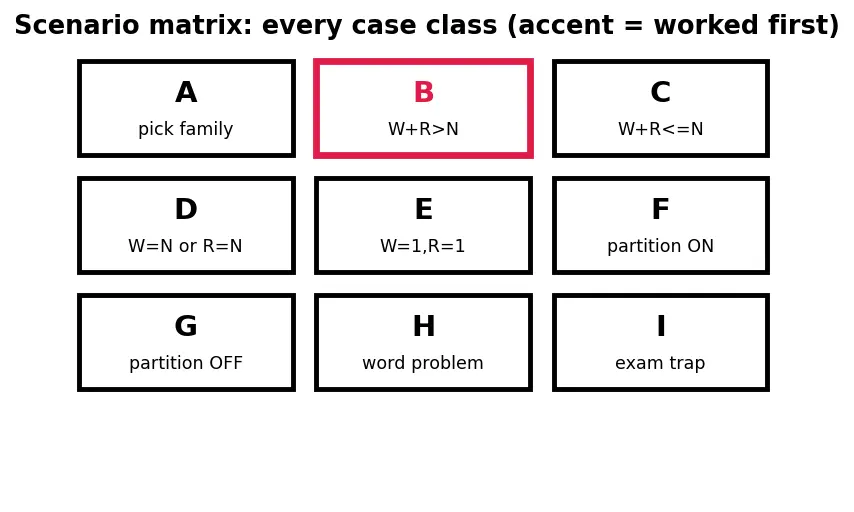

The scenario matrix

Before working examples, let us enumerate every case class this topic can produce. Think of it like listing all quadrants before doing trigonometry — we want zero surprises.

Cell	Case class	What makes it tricky	Worked in
A	Access-pattern → pick a family	matching the query shape to the model	Ex 1, Ex 2
B	Quorum, strong-read region ( $W + R > N$ )	the "safe" sign of the inequality	Ex 3
C	Quorum, eventual region ( $W + R \leq N$ )	the "unsafe" sign — reads may miss writes	Ex 4
D	Quorum degenerate: $W = N$ or $R = N$	one side does all replicas	Ex 5
E	Quorum degenerate: $W = 1, R = 1$	the minimum-cost extreme	Ex 4
F	CAP limiting case: partition PRESENT	forced CP-vs-AP choice	Ex 6
G	CAP limiting case: partition ABSENT	you can have both C and A	Ex 6
H	Real-world word problem (multi-system)	combine several families in one app	Ex 7
I	Exam twist / trap	the "obvious" answer is wrong	Ex 8

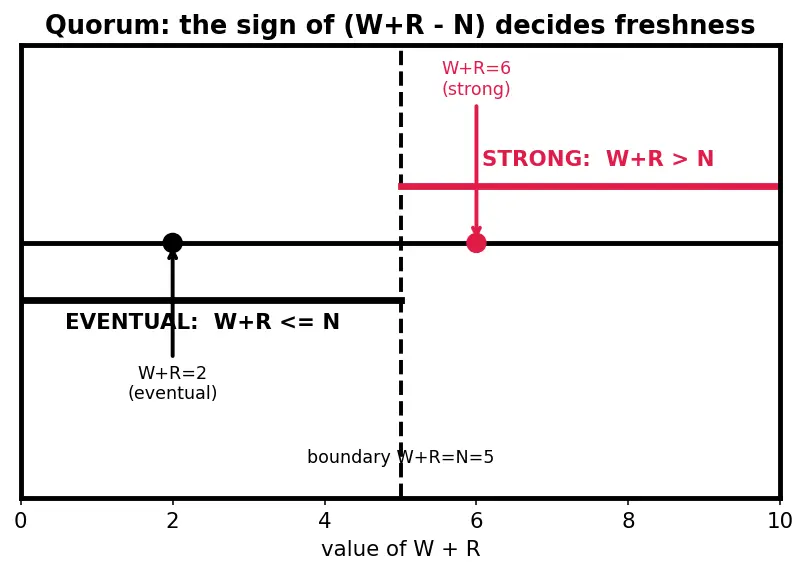

We treat the quorum inequality like a number line: the sign of $W + R - N$ is the whole story. Positive → strong, zero-or-negative → eventual. Every quorum example below is chosen to hit a different sign or a boundary of that line.

Figure — NoSQL — document (MongoDB), key-value (Redis), column (Cassandra), graph (Neo4j)

Cell A — Access pattern picks the family

Worked example Ex 1 — Fetch-by-single-key (Cell A)

Statement: A web app stores login sessions. Every request arrives with a session token and needs the user's session blob back in microseconds, expiring after 1 hour. Which family?

Forecast: Guess before reading — which of the four?

Identify the access pattern. Why this step? The family is chosen by how you read, not by what the data "is". Here we always read by one known key (the token).
Match to model. Why? A single-key lookup needs no query engine — a hash map gives average $O (1)$ . That is exactly key-value → Redis.
Check the extras. Why? We need expiry and speed. Redis has TTL (EX 3600) and lives in RAM.

Answer: Redis (key-value).

Verify: Does the shape fit? "Read by exact key, no filtering, no joins, needs TTL + microsecond latency" — every requirement maps onto a key-value feature. See Caching Strategies. ✓

Worked example Ex 2 — Relationship-heavy traversal (Cell A)

Statement: "Which accounts share a phone number AND a device AND transact within a fraud ring up to 4 hops deep?" Which family, and why not SQL?

Forecast: Depth-4 relationships... which model makes a hop cheap?

Name the operation. Why? The core cost is traversing edges to a depth. That is graph traversal.
Cost in SQL. Why? SQL needs one self-JOIN per hop. If each account links to $k$ others, 4 hops cost roughly $k^{4}$ index lookups — it explodes with depth.
Cost in a graph DB. Why? Each node stores direct pointers to neighbours ("index-free adjacency"), so one hop is $O (1)$ regardless of total graph size.

Answer: Neo4j (graph).

Verify (limiting case): at depth 1 both look similar; the gap only appears as depth grows — which matches "explodes with depth". At $k = 10$ , depth 4: SQL touches $\approx 1 0^{4} = 10000$ rows per seed vs the graph walking only the edges that actually exist. ✓

Cells B, C, D, E — every quorum sign

Recall the parent's rule: with $N$ replicas, write-acks $W$ , read-nodes $R$ , $W + R > N \Rightarrow a read is guaranteed to see the latest write.$ The reason is pigeonhole: the $R$ read nodes and $W$ write nodes overlap in at least $W + R - N$ nodes. We now walk the sign of $W + R - N$ across all its cases.

Worked example Ex 4 — Eventual region + minimum extreme (Cells C & E)

Statement: $N = 3$ , you set $W = 1, R = 1$ for maximum speed. Is a read guaranteed fresh? What is the minimum $R$ that fixes it while keeping $W = 1$ ?

Forecast: $W + R = 2$ vs $N = 3$ — which side of the line?

Compute the sign. Why? $W + R - N = 1 + 1 - 3 = - 1 < 0$ . Negative ⇒ eventual, not strong.
Interpret. Why? Overlap could be $0$ : the one node you write and the one you read may be different replicas, so a read can miss a just-written value. This is the $W = 1, R = 1$ extreme (Cell E).
Repair keeping $W = 1$ . Why? Need $1 + R > 3 \Rightarrow R > 2 \Rightarrow R = 3$ . So read all replicas.

Answer: $W = 1, R = 1$ is eventual (sign $- 1$ ); minimum fresh-guaranteeing read is $R = 3$ .

Verify: $1 + 1 = 2 \neq > 3$ (eventual confirmed). $1 + 3 = 4 > 3$ (strong confirmed), overlap $= 4 - 3 = 1$ . ✓ See BASE vs ACID for why eventual is a deliberate choice, not corruption.

Cells F, G — the CAP limiting cases

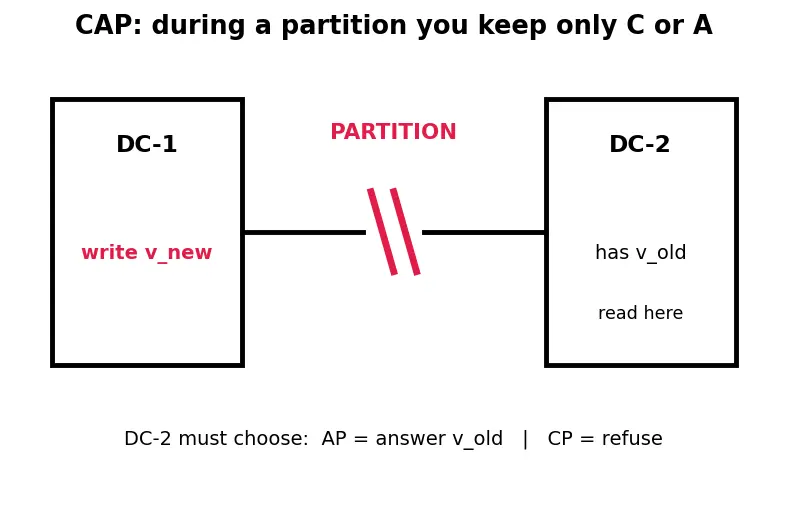

Worked example Ex 6 — Partition present vs absent (Cells F & G)

Statement: A store with $N = 2$ data centres. (a) A cable is cut between them; a client writes $v_{n e w}$ to DC-1, another client reads from DC-2. What can DC-2 do? (b) The cable is fine — can you have both C and A?

Forecast: During the cut, can DC-2 ever return $v_{n e w}$ ?

State the partition. Why? With the link down, DC-2 cannot learn $v_{n e w}$ (Cell F).
Enumerate DC-2's only two moves. Why? There is no third option:
- Return its stale $v_{o l d}$ → Available but not Consistent (an AP system).
- Refuse / error out → Consistent but not Available (a CP system).
Formal statement. $Partition \Rightarrow \neg (C \land A)$ — you get at most one.
No partition (Cell G). Why different? Link up ⇒ DC-2 can fetch $v_{n e w}$ , so it answers and answers correctly → both C and A are possible. CAP only forces a choice during a partition.

Answer: (a) DC-2 must choose AP (stale answer) or CP (refuse). (b) Yes — with no partition you keep both.

Verify: The logic $P \Rightarrow \neg (C \land A)$ is a truth-table fact: if $P$ true then $(C \land A)$ must be false. When $P$ false the implication says nothing, so $C \land A$ may be true. ✓ See CAP Theorem and Sharding and Replication.

Cell H — the real-world word problem

Worked example Ex 7 — One app, four families (Cell H)

Statement: Design storage for a food-delivery app with: (i) live driver-location updates at huge write rate, (ii) restaurant menus where each cuisine has different fields, (iii) the shopping cart fetched by session, (iv) "customers who ordered X also ordered Y".

Forecast: Match each sub-system to a family before reading.

Driver locations → Cassandra. Why? Append-only, write-heavy, time-series, partition by driver_id and cluster by ts → LSM wide-column. (Cell A, write-scale.)
Menus → MongoDB. Why? Varying attributes per document (pizza has crust, sushi has fish_type) → schema-flexible documents; one read returns the whole menu.
Cart → Redis. Why? Single-key, ephemeral, microsecond reads with TTL.
Recommendations → Neo4j. Why? (customer)-[:ORDERED]->(item)<-[:ORDERED]-(other) is pure traversal.

Answer: Cassandra + MongoDB + Redis + Neo4j — one family per access pattern. This is polyglot persistence.

Verify (sanity): each sub-system's dominant query shape (write-stream / flexible-doc / by-key / traversal) uniquely selects one family with no overlap. ✓

Cell I — the exam trap

Worked example Ex 8 — The trap: "no schema, so no design" (Cell I)

Statement: A student stores an event log in Cassandra with PRIMARY KEY (event_id) (a random UUID per event), planning to later run "give me all events for user_42 sorted by time." Will it work efficiently? If not, fix it.

Forecast: Feels fine — it's "schema-free NoSQL", right?

Spot the assumed capability. Why? The plan needs to filter by user_id and sort by time — but the partition key is a random event_id, so rows scatter across all nodes.
Why it fails. Why? Cassandra has no joins and no ad-hoc filtering across partitions; querying by a non-key column forces an ALLOW FILTERING full scan — an $O (N)$ crawl. The "schema moves to your queries" — you must design the table around the read.
Fix it. Why? Make the query the key: PRIMARY KEY ((user_id), ts) — partition by user_id (co-locates a user's events on one node), cluster by ts (pre-sorted by time).

Answer: The original design is a trap — "schema-flexible ≠ schema-free". Correct table: partition key user_id, clustering key ts.

Verify (against parent): matches the parent's rule "design the table around the query you will run"; the fixed key gives the exact WHERE user_id=? ORDER BY ts the app needs, on one partition. ✓

Recall Sign-of-quorum cheat sheet

$W + R > N$ means what for reads? ::: A read is guaranteed to see the latest write (strong) — overlap $\geq 1$ . $W + R \leq N$ means what? ::: Reads may miss a fresh write (eventual); overlap can be $0$ . For $N = 3$ , is $W = 1, R = 1$ strong or eventual? ::: Eventual ( $1 + 1 = 2 \neq > 3$ ). During a partition, the real choice is between? ::: CP (refuse to stay consistent) vs AP (answer stale to stay available). Why can't $W = N$ always be used? ::: A single down replica blocks every write — no write-availability.
