Worked examples — TCP — header, connection (3-way handshake, 4-way termination)

Before any symbols, three names you must know cold:

• ISN = Initial Sequence Number = the byte-position each side chooses to start counting from when a connection opens. It is not always 0 (it is picked semi-randomly for safety), which is exactly why the handshake has to announce it.
• seq (sequence number) = the byte-stream index of the first data byte in this segment. Think of a long ribbon of bytes; seq is "where on the ribbon this piece starts."
• ack (acknowledgment number) = "the next byte I expect from you." Not the last one I got — the next one I want.

And two phantom rules that trip everyone:

• SYN consumes 1 sequence number.
• FIN consumes 1 sequence number.

A note on the maths writing: expressions inside dollar signs like $2^{32}$ are just formatted maths — read $2^{32}$ as "2 to the power 32". The symbol $\mathrm{mod}$ means "the remainder after dividing", and $\%$ is literally the percent sign. Everything below is just the two counters plus the two phantom rules applied carefully.

---

The scenario matrix

The table lists every case class this topic can produce. Each worked example afterwards is tagged with the cell it covers.

#	Case class	What makes it tricky	Example
A	Normal setup, non-zero data	plain seq arithmetic	Ex 1
B	Zero-length data segment (pure ACK)	seq does not advance	Ex 2
C	SYN / FIN phantom byte	seq advances by 1 with no real data	Ex 1, Ex 5
D	Multi-segment stream	chaining seq across segments	Ex 3
E	Degenerate: lost segment + retransmit	ACK stays put (cumulative)	Ex 4
F	Limiting: sequence-number wrap-around at $2^{32}$	modular arithmetic	Ex 6
G	Asymmetric teardown / half-close	server sends data after client's FIN	Ex 5
H	Real-world word problem (throughput vs header)	overhead accounting	Ex 7
I	Exam twist: who is in TIME_WAIT & duration	role-based, not machine-based	Ex 8

Modular arithmetic reminder (used only in Ex 6): the sequence field is 32 bits wide, so it counts $0,1,2,\dots ,2^{32}-1$ and then wraps back to 0 — like a car odometer rolling over. We write $2^{32}=4294967296$.

---

Worked Examples

Example 1 — Normal setup with data (cells A, C)

Forecast: guess the client's data segment seq before reading. Is it 1000 or 1001?

1. C→S: SYN, seq = 1000. Why this step? The client offers its ISN; SYN just proposes "let's start counting here."
2. S→C: SYN, ACK, seq = 5000, ack = 1001. Why this step? Server acks the SYN. SYN consumed slot 1000, so the next expected byte is $1000+1=1001$. Server piggybacks its own ISN 5000.
3. C→S: ACK, seq = 1001, ack = 5001. Why this step? Client's SYN used slot 1000, so its next seq is 1001. It acks the server's phantom SYN byte: $5000+1=5001$.
4. C→S: data, seq = 1001, ack = 5001, len = 200. Why this step? The pure ACK in step 3 carried no data, so seq did not advance. The first real byte therefore sits at 1001.

Verify: After 200 bytes, the client's next seq should be $1001+200=1201$. The server, on receiving these 200 bytes, will send ack $=1201$. Consistent.

---

Example 2 — Pure ACK carries zero data (cell B)

Forecast: does the pure ACK "use up" seq 1201?

1. Receive 200 bytes; the server's data started at seq 5001. Why this step? We derived 5001 in Example 1 — it is the server's first data byte (server ISN 5000, +1 for its phantom SYN). To acknowledge, we compute next expected $=5001+200=5201$.
2. Send pure ACK, ack = 5201, seq = 1201, len = 0. Why this step? The client's own send-seq is still 1201 (unchanged since Example 1). A segment carrying no data and no SYN/FIN consumes zero sequence numbers, so seq stays 1201.
3. Send data segment, seq = 1201. Why this step? Because the pure ACK consumed nothing, seq is unchanged from before it.

Verify: Sequence numbers only advance by (payload length) + (1 if SYN) + (1 if FIN). For the pure ACK that is $0+0+0=0$, so the client's seq stays 1201; and the ack it sends is $5001+200=5201$. ✓

---

Example 3 — Chaining across multiple segments (cell D)

Forecast: what's the seq of the third segment?

1. Segment 1: seq = 1001, len = 500. Why this step? Starts at the first data byte.
2. Segment 2: seq = 1001 + 500 = 1501, len = 500. Why this step? Next seq = previous seq + previous payload length.
3. Segment 3: seq = 1501 + 500 = 2001, len = 300. Why this step? Same rule again — chaining is just repeated addition.
4. Server final ACK: ack = 2001 + 300 = 2301. Why this step? ACK = next byte expected = one past the last byte received.

Verify: Total bytes $=500+500+300=1300$. Last byte index $=1001+1300-1=2300$. Next expected $=2301$. ✓

---

Example 4 — Lost segment, cumulative ACK (cell E, degenerate)

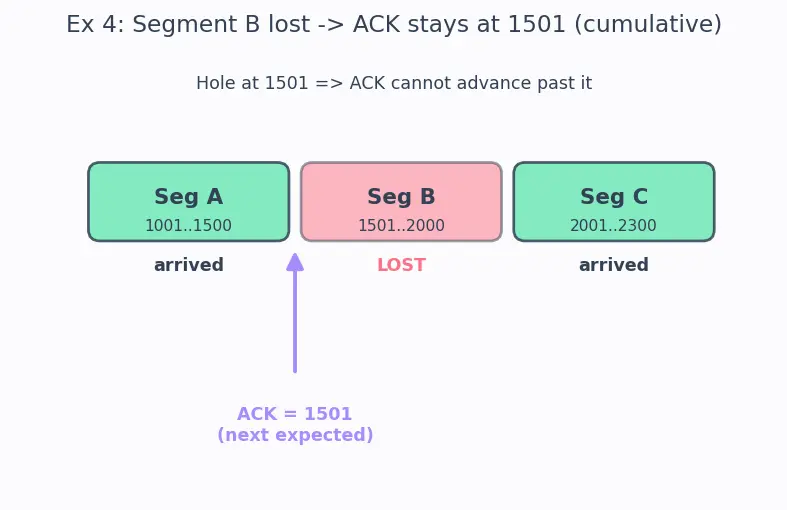

The figure below draws the byte ribbon: two green blocks (A and C) arrived, the middle coral block (B) is lost, and the lavender arrow shows the server's ACK pinned to 1501 — it cannot move past the hole. Follow the arrow as you read the steps.

Forecast: after C arrives, does the ACK jump to 2301?

1. A arrives (1001..1500). Server acks 1501. Why this step? Cumulative ACK = next contiguous byte expected; A ends at 1500, so next is 1501 (green block A in the figure).
2. C arrives (2001..2300) but B (1501..2000) is still missing. Why this step? TCP's basic ACK is cumulative — it can only report the highest contiguous byte. There is a hole at 1501 (the faded coral block B in the figure).
3. Server re-sends ack = 1501 (a duplicate ACK). Why this step? It cannot ack 2301 — bytes 1501..2000 never arrived. It still wants 1501, exactly where the lavender arrow points.

Verify: Cumulative ack is always (highest contiguous byte received) + 1. Highest contiguous is 1500 (from A), so ack = 1501 — unchanged by C's arrival. This duplicate ACK is exactly what triggers fast retransmit in TCP Congestion Control / Sliding Window & Flow Control. ✓

---

Example 5 — Half-close teardown with trailing data (cells G, C)

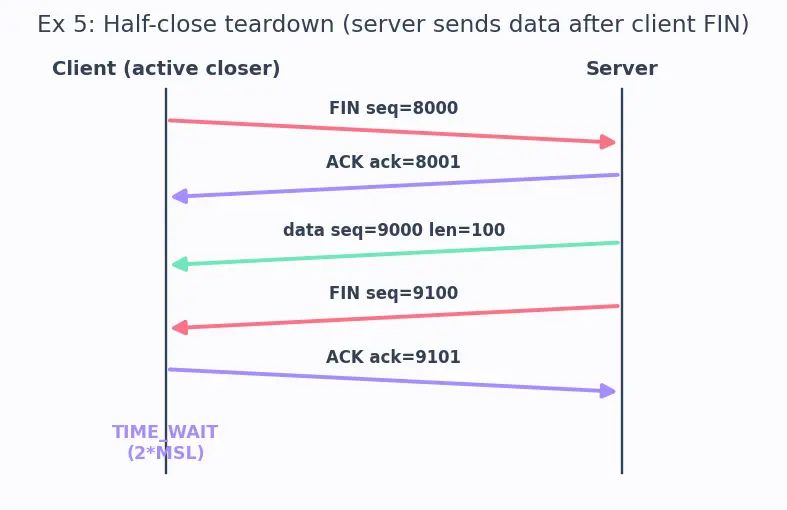

The ladder diagram below shows time flowing downward, client on the left and server on the right. Read the four arrows top-to-bottom: the client's FIN, the server's ACK, the server's trailing 100 bytes of data, the server's own FIN, and the client's final ACK — after which the client sits in TIME_WAIT. Notice the server keeps sending after the client has closed: that asymmetry is why teardown needs four messages.

Forecast: what is the seq of the server's FIN — 9000 or 9100?

1. Segment 1 — C→S: FIN, seq = 8000, ack = 9000. Why this step? Client is done sending; FIN marks the end of the client→server stream. Its ack = 9000 means "the next server byte I expect is 9000" (the server has not sent those 100 bytes yet).
2. Segment 2 — S→C: ACK, seq = 9000, ack = 8001. Why this step? FIN consumes one sequence number, so the next byte expected from the client is $8000+1=8001$. The server is not ready to close — this is the half-close. Its own seq is still 9000 because it has sent no data yet.
3. Segment 3 — S→C: data(100) then FIN, seq of FIN = 9100, ack = 8001. Why this step? The server flushes its remaining 100 bytes (occupying 9000..9099) and then sends FIN at $9000+100=9100$. Its ack stays 8001 (nothing new from the client). This is the single "teardown message" from the server that finally closes its direction.
4. Segment 4 — C→S: ACK, seq = 8001, ack = 9101. Then client enters TIME_WAIT. Why this step? The server's FIN consumed one seq (at 9100), so the next byte expected is $9100+1=9101$. The client's own seq is 8001 (its FIN used slot 8000).

Verify: Server sends 100 data bytes then 1 FIN byte starting at 9000, so the FIN sits at seq $9000+100=9100$; the client's final ack = $9100+1=9101$. The client's FIN used slot 8000, so the server's ack-of-FIN = $8000+1=8001$. ✓

---

Example 6 — Sequence-number wrap-around (cell F, limiting)

Forecast: does the number just keep growing to 4294967400, or does something else happen?

1. Naive sum: $4294967200+200=4294967400$. Why this step? Sequence numbers advance by payload length — the rule doesn't change at the edge.
2. Reduce modulo $2^{32}$: $4294967400-4294967296=104$. Why this step? The field is only 32 bits; it cannot hold $4294967400$. Like an odometer rolling from 999...9 back to 0, the counter wraps: we take the remainder after dividing by $2^{32}$ (that is what $\mathrm{mod}$ means).
3. Next seq = $4294967400\mathrm{mod}{2}^{32}=104$. Why this step? Exactly the remainder computed above.

Verify: The 200 bytes occupy indices $4294967200\dots 4294967295$ (that's 96 bytes to reach the top) and then $0\dots 103$ (the remaining 104 bytes). $96+104=200$. Next free slot = 104. ✓

---

Example 7 — Real-world overhead word problem (cell H)

Forecast: guess — is it above or below 25%?

1. Total bytes per packet = data + TCP header + IP header. Why this step? Every byte on the wire counts, not just payload. $10+20+20=50\text{ bytes}$
2. Efficiency = data / total. Why this step? "Fraction that is application data" is exactly payload over everything. $\frac{10}{50}=0.20$
3. As a percentage: $0.20\times 100=20\%$. Why this step? Multiply by 100 to convert a fraction to a percentage ($\%$ is just the percent sign).

Verify: Overhead = $40$ header bytes out of $50$, i.e. $80\%$ overhead; data share $=100\%-80\%=20\%$. ✓ This is why tiny segments are wasteful — it motivates Nagle's algorithm and larger MSS.

---

Example 8 — Exam twist: TIME_WAIT owner & duration (cell I)

Forecast: "server feels in charge" — but does that matter here?

1. Identify the active closer = whoever sends the first FIN. Why this step? TIME_WAIT is a role, not a machine. Here the server sent the first FIN, so the server is the active closer.
2. The active closer enters TIME_WAIT → the server does. Why this step? Only the side that sent the last ACK (the active closer) must linger to protect against a lost final ACK.
3. Duration = $2\times \text{MSL}=2\times 2\text{ min}=4\text{ min}=240$ seconds. Why this step? TIME_WAIT lasts $2\cdot \text{MSL}$ so any straggling duplicate can die out and a re-sent peer FIN can be re-acked.

Verify: $2\times 2\times 60=240$ s. The "server can't be in TIME_WAIT" belief is the classic trap — it's role-based. ✓

---

Active Recall

Recall Cover the answers and test yourself

What does ISN stand for? ::: Initial Sequence Number — the byte position each side starts counting from Client ISN 1000, after handshake first data seq? ::: 1001 (SYN ate slot 1000) Does a pure ACK advance seq? ::: No — 0 payload, 0 SYN/FIN → 0 consumed Segment starts at 1001 with 1300 bytes total sent; final ack? ::: 2301 Server got A(1001,500) and C(2001,300) but B lost; ack? ::: 1501 (cumulative, hole at 1501) Seq 4294967200 + 200 bytes, 32-bit field, next seq? ::: 104 (wrap mod 2^32) 10 B data + 20 B TCP + 20 B IP: data fraction? ::: 20 percent Server sends first FIN, MSL 2 min: who waits, how long? ::: Server (active closer), 240 s

---
