Visual walkthrough — Static routing vs dynamic routing
Step 1 — What is a network, really? Draw the dots and lines

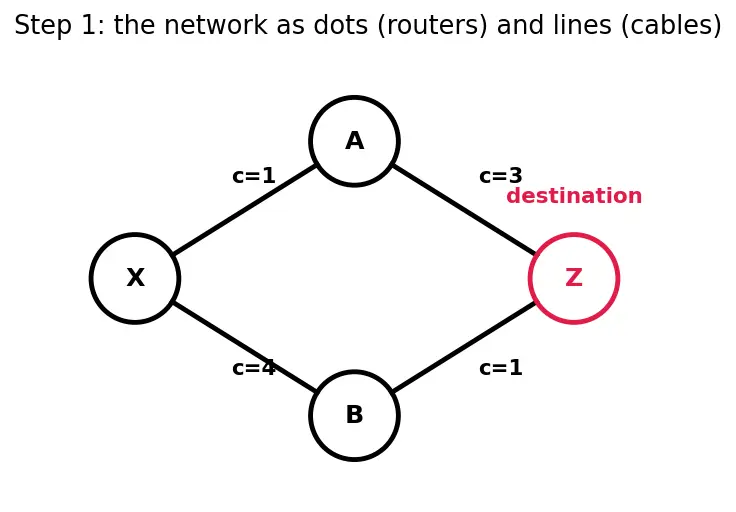

WHAT: We replace the real spaghetti of cables with a clean map of circles and lines. WHY: Every routing algorithm only ever sees this — dots, lines, and a number on each line. If you can read this picture you can read the whole chapter. PICTURE: Look below. Our destination is the red circle . Router is where we're standing.
Step 2 — The quantity we are hunting:
WHAT: We give each router a sticky-note showing its best-known cost to reach . WHY: The routing table is literally these numbers plus "which neighbour gave me the winning number" (= the next hop). Compute and you have the table row. PICTURE: The red number floating over is the thing we don't know yet — the whole page is about filling it in.
Step 3 — The key idea: every journey has a first step
WHAT: We chop a full path into [one hop to v] + [v's whole journey to Z].
WHY: This is why the formula has two added pieces. We never plan the whole path — we only ask one neighbour "how far are you?" and add our one cable.

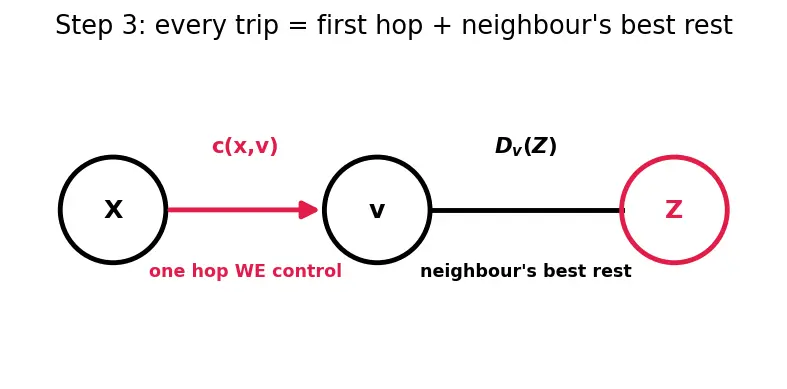

PICTURE: The red segment is the one first hop we control; the black segment is 's problem, already solved and summarised by the single number .
Step 4 — Why and not or average? Pick the best door

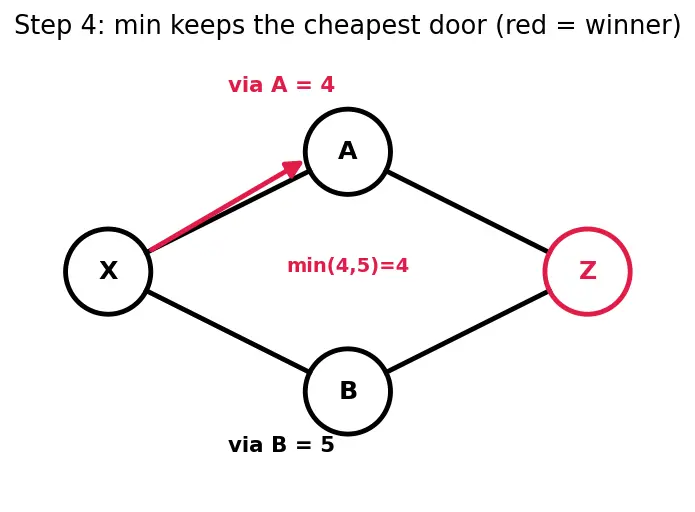

WHAT: Compute the via-cost for every neighbour, then keep the smallest. WHY: Sending the packet through the cheapest door is the whole point of routing. PICTURE: Two candidate totals hang over ; the red one is the winner selects, and its arrow points at the neighbour that becomes the next hop.
Step 5 — Run it by hand (the parent's example, drawn)

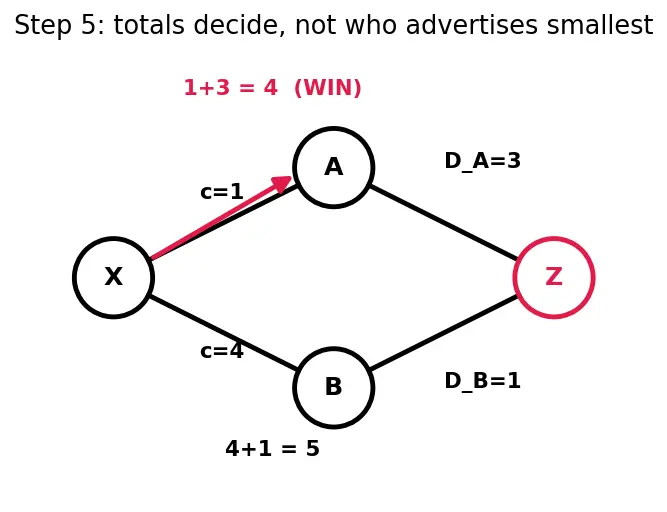

PICTURE: The two candidate sums are laid on their paths; the red winner (via , total ) is what writes into its table.
Step 6 — Edge case: a cable dies (why dynamic routing exists at all)

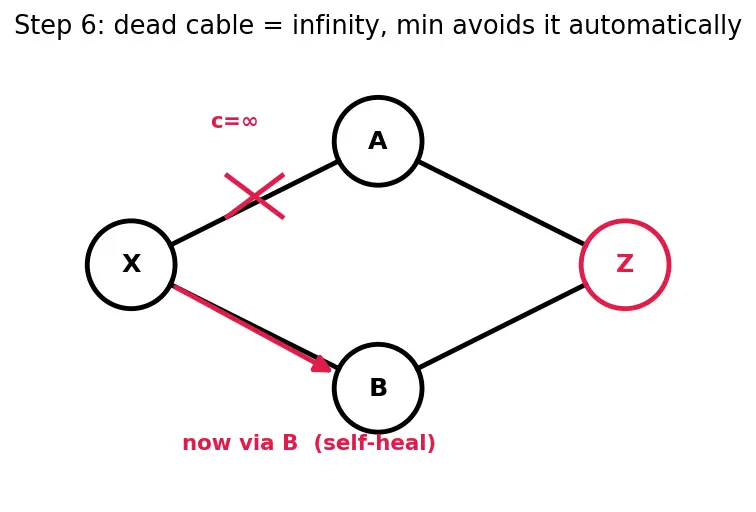

WHAT: Set the failed link's and re-run the . WHY: In static routing the human's hand-written number stays frozen and now points at a dead cable (packets lost). Here the formula silently re-picks. PICTURE: The dead cable is crossed out (its cost jumps to ); now selects the other neighbour in red.
Step 7 — Degenerate case: the destination itself, and the count-to-infinity trap

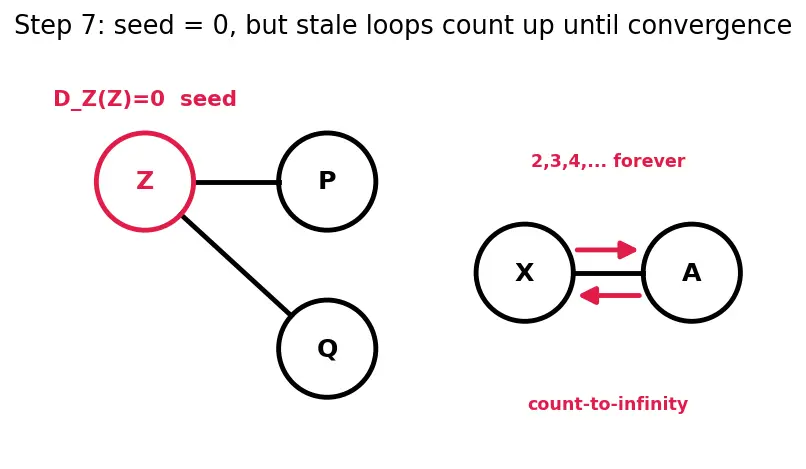

WHAT: Fix the seed ; then watch two routers loop when the seed vanishes. WHY: The clean formula is correct at rest, but a smart 12-year-old must see the ugly transient too — routes are only trustworthy after everyone has re-run the update enough times. PICTURE: Left: the seed at radiating outward. Right (red): and pointing at each other, their numbers climbing
The one-picture summary

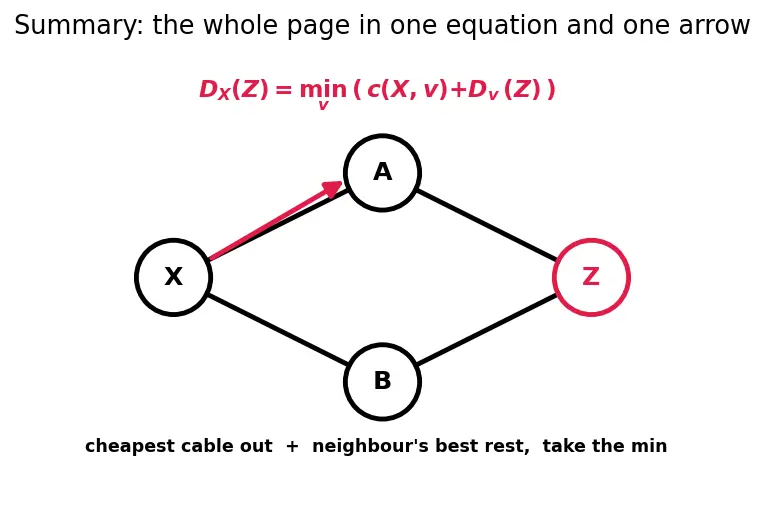

Every arrow in this page collapses into one sentence: the cheapest way from here to there is the cheapest single cable out, plus that neighbour's already-cheapest way onward — take the smallest such total over all your cables. Link-state protocols like OSPF reach the same answer with Dijkstra instead, and BGP scales the idea to the whole internet; but the pictured logic is the heart of the Routing table.
Recall Feynman retelling of the whole walkthrough
