Visual walkthrough — Containers — namespaces, cgroups, difference from VMs

We build in this order:

1. one process on the shared kernel,
2. give it a private view (namespaces),
3. give it a private root filesystem,
4. cap what it can use (cgroups) with the CPU-fraction formula,
5. cover the degenerate cases (no namespace, root-inside),
6. contrast the whole thing with a VM,
7. compress it into one picture.

Step 1 — Start from ONE bare process on ONE kernel

WHAT. At the bottom of every Linux machine sits the kernel: the one piece of code that owns the real hardware (CPU, RAM, disk, network card). Everything else is a process — a running program — and every process asks the kernel for things through syscalls (see Linux Kernel — syscalls).

WHY start here. A container is not a new kind of object. It is going to be this exact process with extra settings. So before we isolate anything, look at what a plain process can see: it shares global tables with every other process — one list of process IDs, one hostname, one network stack, one filesystem mount table.

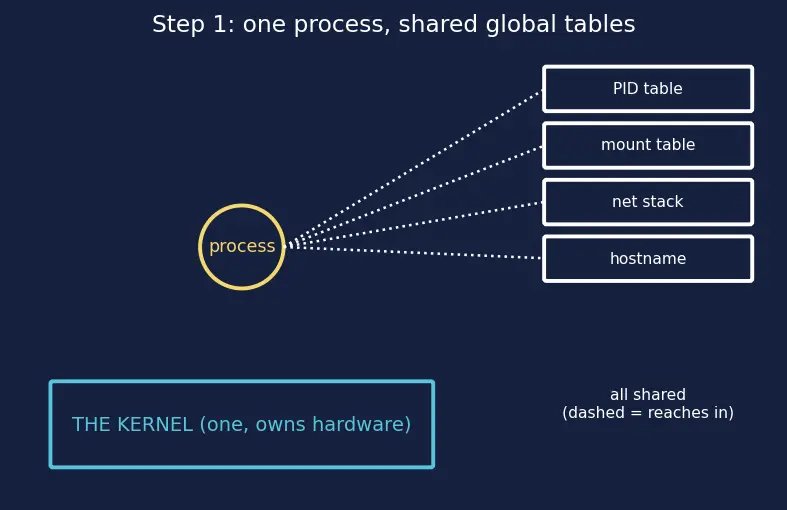

PICTURE. In the figure, the blue box is the kernel; the yellow circle is our process. The dashed lines show it reaching into the kernel's global tables (drawn on the right). Right now nothing is private — our process sees the whole building. Our whole job is to cut those dashed lines and hand it private copies instead.

Step 2 — Cut ONE dashed line: the first namespace

WHAT. We ask the kernel: "Give my new child its own private copy of the process-ID table." The tool is the clone syscall with a flag bit named CLONE_NEWPID.

WHY this tool and not another. We could try to hide other processes with permissions, but they would still exist in the same numbering — our process would see PID 1, PID 2, … of the host. The only clean way is a fresh table: a namespace. A namespace is literally "a second, separate copy of one global table." Cutting that one line and handing over a blank table is exactly what CLONE_NEWPID does.

PICTURE. The figure shows the same process, but now the PID dashed line is cut (red X) and rerouted to a new, empty PID table. In that fresh table our process is renumbered — it becomes PID 1, because a brand-new list starts counting at 1.

$\underset{\text{make a child}}{\underbrace{\text{clone}}}\left(\underset{\text{"give it a fresh PID table"}}{\underbrace{\text{CLONE\_NEWPID}}}\right|\underset{\text{other flags OR-ed in}}{\underbrace{\dots }})$

• clone — the syscall that creates a new process.
• CLONE_NEWPID — one flag bit; setting it says "the child gets its own PID namespace."
• the | (OR) — how you combine flags; each bit privatises one table, so OR-ing more bits privatises more tables.

Step 3 — Cut ALL the lines: the full set of namespaces

WHAT. Repeat Step 2 for every global table the kernel exposes. Each has its own flag.

WHY. From the rule above, isolation is a conjunction: you're only "alone" when every shared thing is private. Miss one and there's a hole — e.g. private PIDs but a shared network stack means you still see the host's IP addresses.

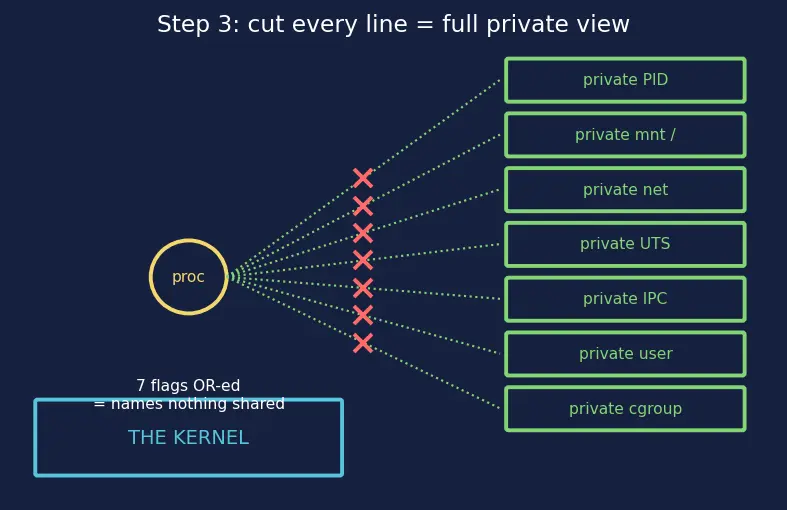

PICTURE. Seven dashed lines, seven red cuts, seven private tables:

At this point the process sees its own little world. But it can still use the whole machine — nothing stops it eating all the RAM. That's Step 5's job. First, the one piece of "what it sees" that needs its own picture: the filesystem.

Step 4 — The private root: mount namespace + chroot

WHAT. Inside the mount namespace we point the process's / at a directory that contains a whole tiny filesystem (a layered image).

WHY a separate step. "Own root filesystem" is what makes a container feel like a machine: it has /bin, /etc, /usr of, say, Alpine or Ubuntu — even though the kernel is still the host's. This is the trick people mistake for "a whole OS." It is not an OS; it is only the files an OS ships, running on the one shared kernel.

PICTURE. The host's real filesystem tree is drawn in blue. A subtree — the container's image — is highlighted in green. A green arrow relabels that subtree's top as / for the container only. From inside, the blue part above is simply gone from view: the mount table has no entry for it, so it cannot be named.

Step 5 — Cap what it can USE: cgroups and the CPU-fraction formula

WHAT. We drop our now-isolated process into a cgroup (control group) and attach a controller that limits a resource. Take CPU.

WHY a new mechanism. Namespaces changed visibility only — they never touched how much a process may consume. A process with perfect namespaces can still spin up threads and hog every core, starving its neighbours. Limiting quantity is a different job, so the kernel uses a different tool: cgroups, which sit on top of the scheduler (Scheduling — CFS and CPU shares).

PICTURE — the leaky-bucket of CPU time. The cpu.max knob holds two numbers, both in microseconds:

$\text{cpu.max}=\underset{\text{µs of CPU you may spend}}{\underbrace{\text{quota}}}\underset{\text{length of each refill window}}{\underbrace{\text{period}}}$

Every period µs the kernel refills your bucket with quota µs of runtime. Spend it all and you are frozen until the next refill. Averaged over time you therefore get:

$\boxed{\text{CPU share}=\frac{\text{quota}}{\text{period}}\text{cores}}$

• quota — microseconds of CPU you're allowed per window.
• period — how long each window lasts.
• the ratio — the fraction of one core you average, because runtime given ÷ time elapsed = fraction busy.

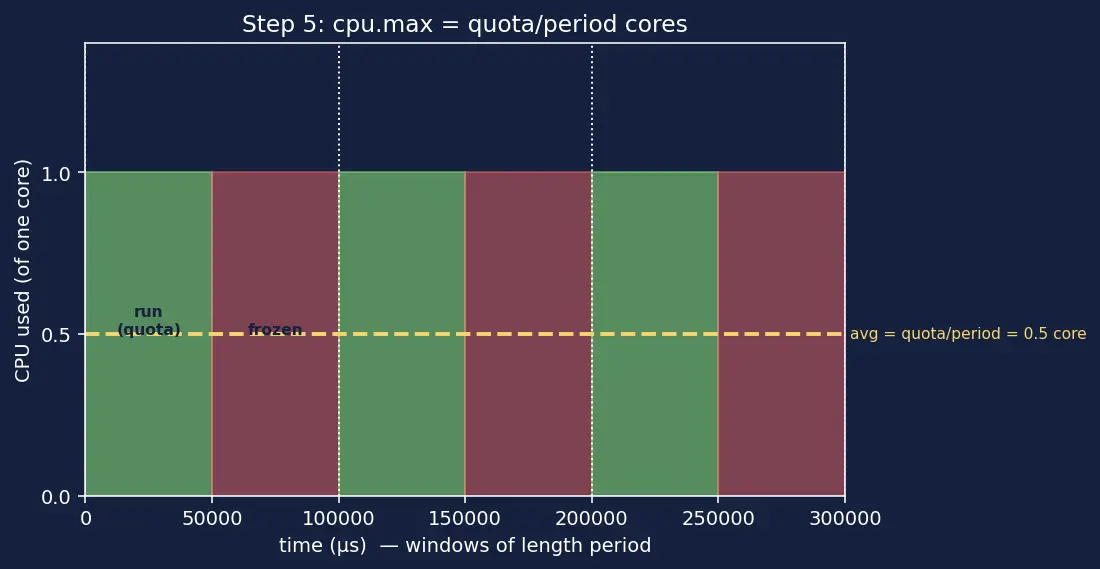

The figure shows time on the x-axis split into period-long windows. Within each window a green bar of width quota is your allowed run-time; after it, a red "frozen" bar until the next window. The dashed line is the long-run average — the fraction $\text{quota}/\text{period}$.

Other controllers work the same way — a number you write, a limit the kernel enforces:

Step 6 — Degenerate cases (so you never hit a surprise)

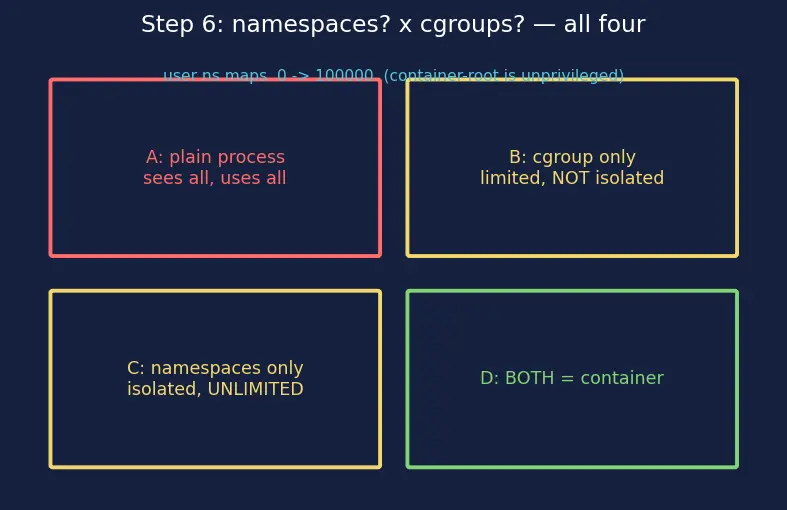

Every real setup is a combination of "has namespaces?" and "has cgroups?". The figure is a 2×2 grid — cover all four corners:

Case A — no namespaces, no cgroup (a plain process). Sees everything, uses anything. Not a container. This is Step 1.

Case B — cgroup only, no namespaces. It is limited (can't hog RAM) but not isolated — it can still ls and kill host processes because its PID/mount/net tables are the shared ones.

Case C — namespaces only, no cgroup. It is isolated (its own view) but unlimited — it can fork-bomb the whole machine because nothing caps it. Isolation without limits is a container that can DoS its host.

Case D — both (a real container). Private view and capped usage. This is the goal.

The root-inside edge case. Inside the PID/mount world, whoami may print root (UID 0). Does that mean host-root?

Step 7 — Container vs VM: count the kernels

WHAT. Put our finished container next to a virtual machine and look at the one structural difference.

WHY it matters. Everything about weight, speed, and security follows from a single fact: how many kernels are running.

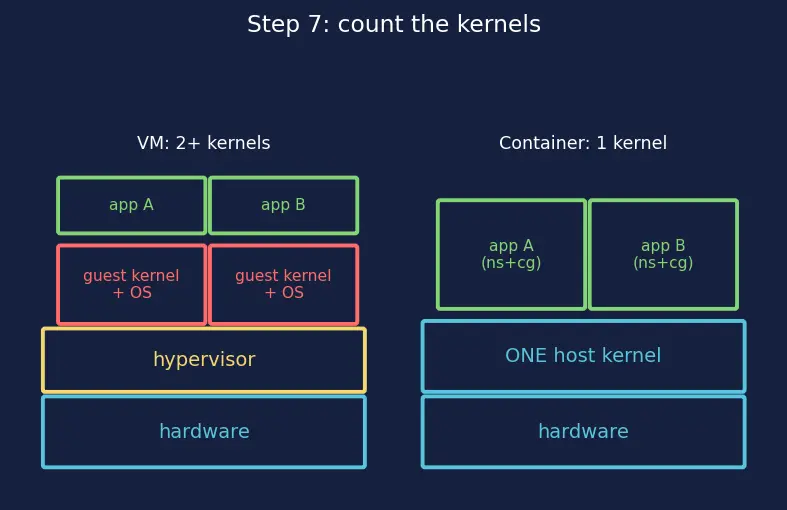

PICTURE — side by side.

• VM (left). A hypervisor emulates hardware (see Virtualization and Hypervisors (Type 1 vs Type 2)); on top of it each VM boots a whole guest kernel + OS. Two boxes → two kernels. Strong walls (hardware-enforced), but GBs and seconds to boot.
• Container (right). Our process group shares the one host kernel; isolation is the namespaces+cgroups we just built. One kernel. MBs and milliseconds, but a kernel bug is a shared blast radius.

The one-picture summary

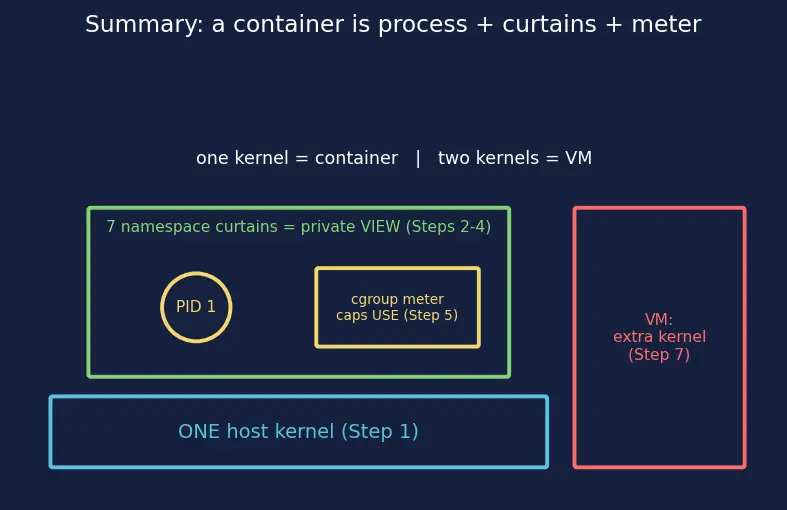

The final figure stacks the whole derivation into one diagram: at the bottom, the single host kernel (Step 1); above it, our process wrapped in seven namespace curtains (Steps 2–4) giving it a private view; around it a cgroup meter (Step 5) capping CPU/RAM; and to the side, the VM with its extra kernel for contrast (Step 7). That stack is a container.
