Visual walkthrough — Virtualization — type 1 and type 2 hypervisors

We will build up to the parent's central claim:

$T_{\text{overhead}}=n_{\text{layers}}\cdot \delta$

Don't worry about that equation yet — you don't have the pieces. Let's earn them.

Step 1 — What "the metal" actually is

WHY start here: every layer we stack later is defined relative to the metal. If you don't fix what "the bottom" is, the words "Type 1" and "Type 2" have no meaning — they are literally names for how far from the metal the hypervisor sits.

PICTURE:

Look at the grey slab at the bottom. The CPU block has a small notch labelled privilege pins — hold onto that, it becomes the whole game in Step 3.

Step 2 — Why one CPU cannot honestly serve two kingdoms

WHY this matters: this collision is the entire reason a hypervisor exists. If two OSes could politely share hardware on their own, we'd need no new software. They can't, because neither knows the other is there.

PICTURE:

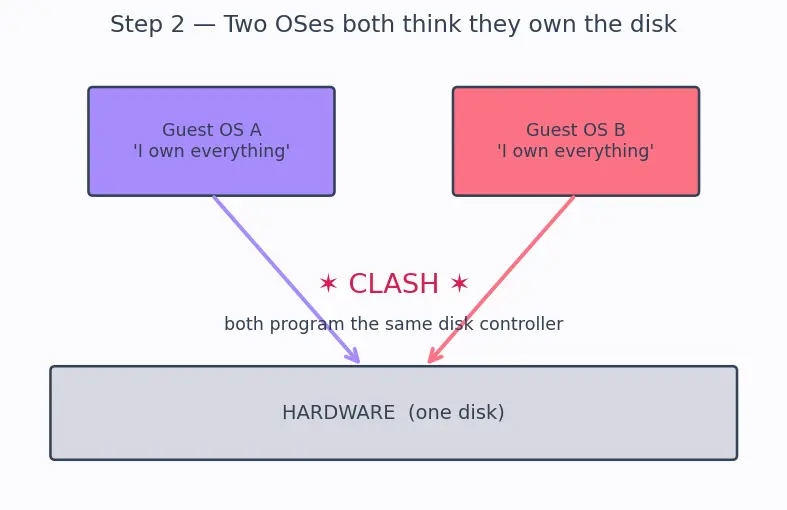

Two guest OSes (the lavender and coral boxes) both reach for the same disk. The red clash-mark in the middle is the problem we must solve. Notice: neither guest is "wrong" — each is behaving exactly as a lone OS should. (This is the same clash context switching solves for processes inside one OS — here we need it one level higher, for whole OSes.)

Step 3 — Privilege rings: the CPU already sorts instructions by danger

WHY the CPU has this: so that ordinary apps in Ring 3 cannot crash the machine. If an app tries a privileged instruction, the CPU refuses and traps — it stops the app and jumps to the kernel to decide what to do (this jump is a trap).

PICTURE:

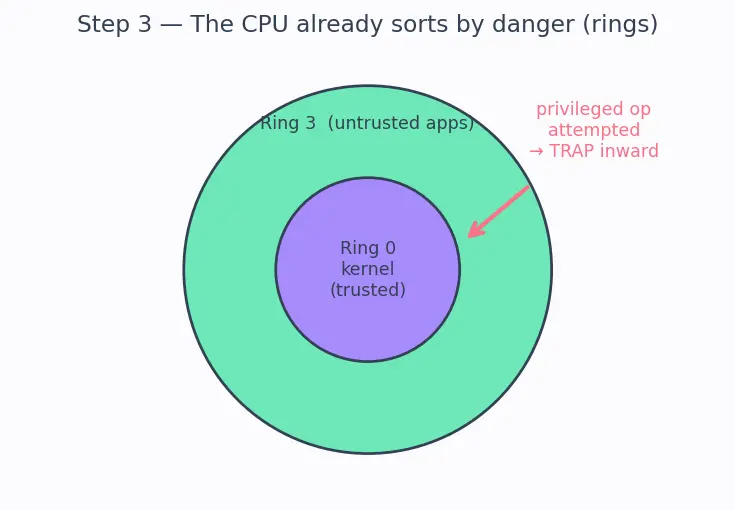

The two concentric rings: inner lavender = Ring 0 (trusted), outer mint = Ring 3 (untrusted). The coral arrow shows a Ring-3 instruction hitting the wall and bouncing inward as a trap.

Step 4 — The trick: demote the guest, seat the hypervisor in Ring 0

WHY this is the whole solution: the guest thinks it ran the instruction. In reality the hypervisor caught it, checked it, and faked a believable result — then handed control back. The guest never learns it isn't alone. This is called trap-and-emulate.

PICTURE:

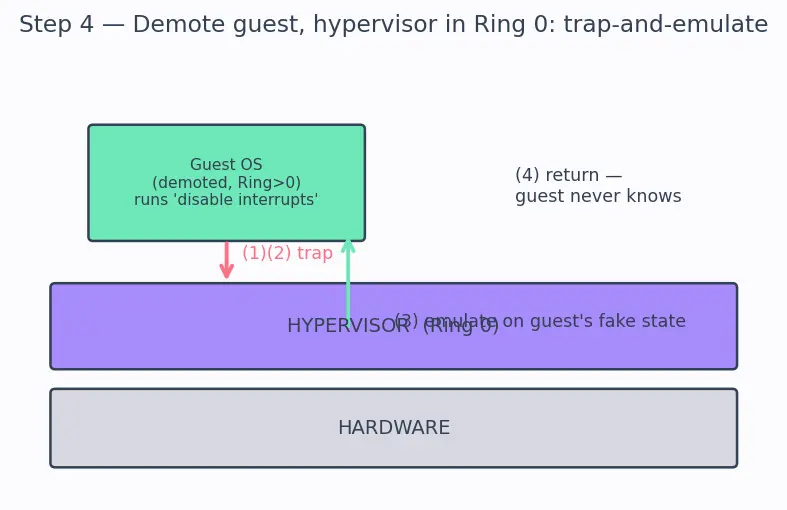

Follow the numbered arrows: (1) guest runs disable interrupts; (2) CPU traps to the hypervisor in Ring 0; (3) hypervisor emulates it just for this guest; (4) control returns. The guest's arrow and the "real" arrow never touch — that gap is the illusion.

Step 5 — The edge case: when a dangerous instruction refuses to trap

WHY this breaks everything: if a sensitive instruction doesn't trap, the hypervisor never gets called, so it can't emulate it. The guest silently does the wrong thing — the illusion cracks. This is exactly the gap the parent's Popek & Goldberg condition names.

PICTURE:

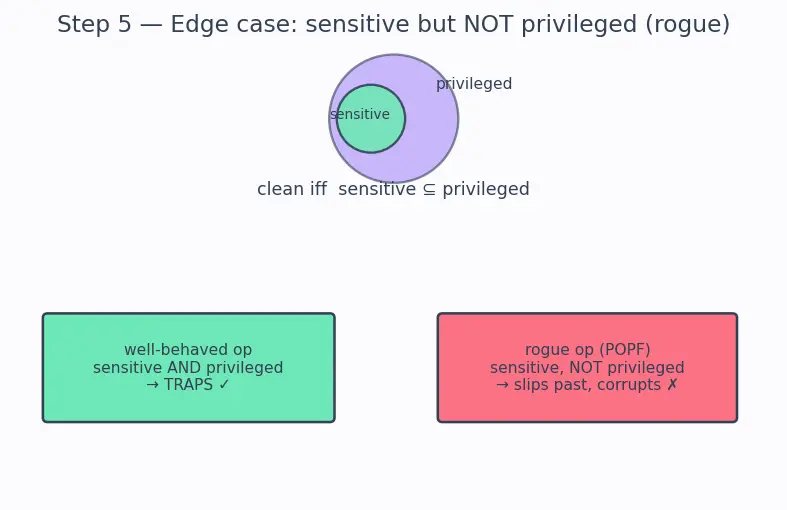

Left path (green): a well-behaved sensitive instruction — sensitive and privileged, so it traps. Right path (red): the rogue instruction — sensitive but not privileged, so it slips past Ring 0 and corrupts the guest's view. The set diagram at top shows the condition: the "sensitive" circle must sit inside the "privileged" circle.

Step 6 — Counting layers: where the two Types diverge

WHY it costs time: each layer crossing is a context switch — save registers, change privilege, restore (the context switch machinery). That costs a fixed toll, call it $\delta$.

PICTURE:

Two stacks side by side. Type 1 (left): guest → hypervisor → hardware, 1 crossing marked. Type 2 (right): guest → hypervisor → host OS → hardware, 2 crossings marked. The extra butter-colored slab is the whole difference.

Step 7 — Plugging in numbers (the parent's Example 3, seen)

$T_1=1+1\cdot 0.2=1.2\mu s{T}_2=1+2\cdot 0.2=1.4\mu s$

• $T_1$: one crossing → add one $\delta$.
• $T_2$: two crossings → add two $\delta$.

The relative slowdown of Type 2:

$\frac{T_2-T_1}{T_1}=\frac{1.4-1.2}{1.2}=\frac{0.2}{1.2}\approx 0.167=16.7\%$

• Numerator $T_2-T_1=0.2\mu s$ — the cost of that one extra host-OS layer.
• Divide by $T_1$ — express it as a fraction of the Type-1 time, i.e. "how much slower."

WHY this is the punchline: the number isn't universal (real overhead is mostly in I/O), but the shape is exact — Type 2's extra layer is a real, countable toll. That single extra slab in the Step-6 picture is the 16.7%.

PICTURE:

A bar chart: $t_{hw}$ base (grey) plus $\delta$ blocks stacked. Type 2's bar is exactly one $\delta$ taller. The label shows the $16.7\%$ gap.

The one-picture summary

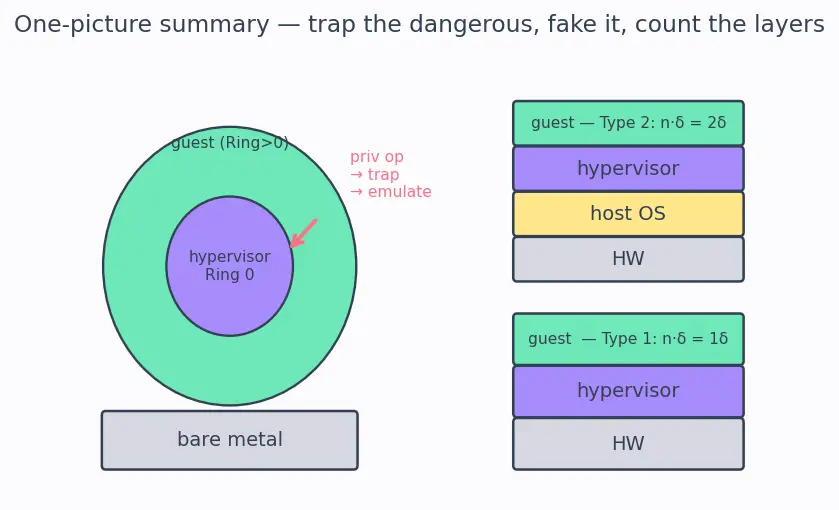

Everything at once: the metal at the bottom, the CPU's ring wall, the hypervisor seated in Ring 0, a guest's privileged instruction trapping upward and being emulated, and — on the right — the two Types differing by exactly one layer with the $n\cdot \delta$ toll beside each.

Related: Memory Management (the hypervisor also fakes each guest's RAM), Containers vs Virtual Machines (a lighter isolation with zero guest OSes), Cloud Computing (Type 1 is what data centers run), and the parent Hinglish note inside Operating Systems.
