Instruction formats — R-type, I-type, J-type (MIPS - RISC-V): Worked examples

This page is a workout. The parent note told you the rules. Here we hit those rules with every awkward case a machine can throw at you: negative offsets, backward branches, zero-register tricks, jumps that reach and jumps that cannot, and an exam-style "decode this hex" twist. If you can survive every cell of the matrix below, no instruction encoding can surprise you.

The scenario matrix

Each row is a class of situation this topic can produce. The last column names the worked example(s) that hit that cell. Every cell is covered.

#	Case class	What makes it tricky	Covered by
A	R-type, positive registers	field reorder (rd sits in the middle)	Ex 1
B	R-type, shift with `shamt`	`rs` unused ⇒ must be 0	Ex 2
C	I-type, positive immediate	offset sits in low 16 bits	Ex 3
D	I-type, negative immediate	two's-complement sign extension	Ex 4
E	Branch, forward (positive offset)	`(PC+4)+imm×4`	Ex 5
F	Branch, backward (negative offset)	signed word offset, loop back	Ex 6
G	J-type, target reachable (same region)	top 4 bits of PC+4 == top 4 bits of target	Ex 7
H	J-type, target unreachable (degenerate)	top 4 bits of PC+4 ≠ top 4 bits of target ⇒ `j` cannot reach	Ex 8
I	Zero / degenerate register (`$zero`)	register number 0 as a real encoding	Ex 9
J	Exam twist: decode raw hex	reverse direction, identify format	Ex 10

Prerequisite vault topics we lean on: MIPS Register File and Conventions, Sign Extension and Immediates, PC-relative vs Absolute Addressing, Control Unit and Decoding.

Reference: the bit layouts we will fill in

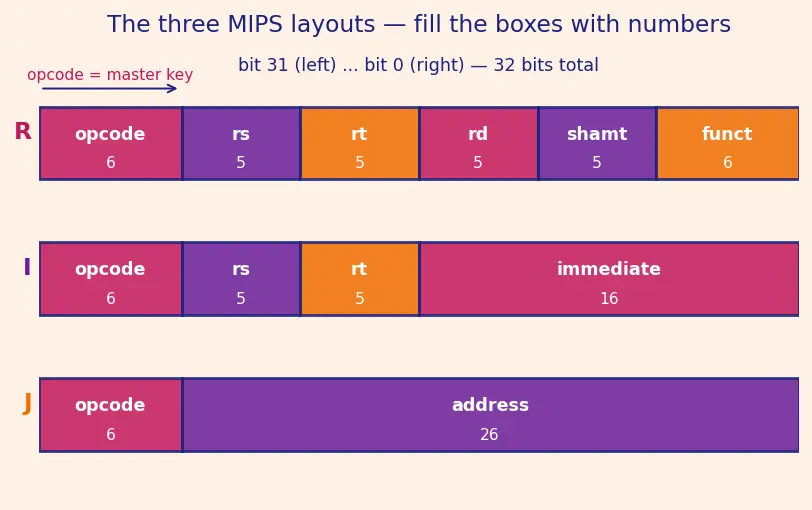

Figure — Instruction formats — R-type, I-type, J-type (MIPS - RISC-V)

Figure s01 (above): the three MIPS layouts stacked. Top row R = opcode(6), rs(5), rt(5), rd(5), shamt(5), funct(6). Middle row I = opcode(6), rs(5), rt(5), immediate(16). Bottom row J = opcode(6), address(26). Bit 31 is on the left, bit 0 on the right; the leftmost box (opcode) is the "master key" the decoder reads first.

Keep this picture open. Every example just fills the coloured boxes with numbers, then converts to binary/hex. The register numbers we use (from MIPS Register File and Conventions):

Recall Register numbers used on this page

$zero=0, $t0=8, $t1=9, $t2=10, $s0=16, $s1=17, $s2=18, $s3=19.

Worked examples

Cell A — R-type, positive registers

Worked example Ex 1 — Encode

sub $t0, $s1, $s2 Forecast: guess where $t0 lands in the 32 bits. First register in the text — is it first in the bits? (It is not.)

Step 1 — Identify the slots. sub rd, rs, rt ⇒ rd=$t0=8, rs=$s1=17, rt=$s2=18. Why this step? The assembly syntax order is destination-first, but the bit order is rs, rt, rd (sources first). Mapping names to slots before touching bits stops this classic mix-up.

Step 2 — Fill the constant fields. opcode=0 (all R-type), shamt=0 (not a shift), funct=34 for sub. Why this step? opcode 0 means "look at funct." For sub, funct is 100010 = 34.

Step 3 — Lay out the six fields. $0_{(6)} ∣ 1 7_{(5)} ∣ 1 8_{(5)} ∣ 8_{(5)} ∣ 0_{(5)} ∣ 3 4_{(6)}$ Binary: 000000 10001 10010 01000 00000 100010 Why this step? Concatenating the fields MSB→LSB in the order opcode, rs, rt, rd, shamt, funct builds the final 32-bit word.

Step 4 — Convert to hex. Regroup the same 32 bits into nibbles of 4 (ignoring the field boundaries): 0000 0010 0011 0010 0100 0000 0010 0010 = 0x02324022. Why this step? Hex is just binary in groups of 4 bits — each nibble is one hex digit. The field boundaries (6/5/5/…) do not line up with nibble boundaries, so we re-slice the exact same 32 bits into groups of 4 before reading off the hex digits.

Verify: Count widths $6 + 5 + 5 + 5 + 5 + 6 = 32$ . ✓ Read rd back out (bits $[15 : 11]$ ) → 01000 = 8 = $t0. ✓

Cell B — R-type shift, `rs` unused

Worked example Ex 2 — Encode

sll $t0, $s1, 4 (shift left logical by 4) Forecast: a shift has only one source register and a small count. Which field holds the count 4, and what happens to the now-unused rs?

Step 1 — Map the operands. sll rd, rt, shamt ⇒ rd=$t0=8, rt=$s1=17, shamt=4. rs is not used ⇒ rs=0. Why this step? Shifts read the value to shift from rt, put the count in shamt, and have no second register — so rs must be zeroed, not left blank. A blank field is still 5 physical bits; the decoder will read whatever is there.

Step 2 — Constants. opcode=0, funct=0 for sll. Why this step? sll is R-type (opcode 0); its funct code is 000000 = 0.

Step 3 — Lay out. $0_{(6)} ∣ 0_{(5)} ∣ 1 7_{(5)} ∣ 8_{(5)} ∣ 4_{(5)} ∣ 0_{(6)}$ Binary: 000000 00000 10001 01000 00100 000000 Why this step? Notice shamt finally does something (=4). In every non-shift R-type it was forced to 0; here it carries the answer.

Step 4 — Hex. Re-slice the 32 bits into nibbles: 0000 0000 0001 0001 0100 0001 0000 0000 = 0x00114100. Why this step? Again the 6/5/5/5/5/6 field cuts do not match the 4-bit hex cuts, so we regroup by 4 and translate each nibble to one hex digit.

Verify: shamt field (bits $[10 : 6]$ ) = 00100 = 4. ✓ rs field = 00000 = 0 as required. ✓

Cell C — I-type, positive immediate

Worked example Ex 3 — Encode

addi $t0, $s3, 100 Forecast: the immediate 100 fits easily in 16 bits. Which register field becomes the destination now that R-type's rd is gone?

Step 1 — Map operands. addi rt, rs, imm ⇒ rt=$t0=8 (destination), rs=$s3=19 (source), imm=100. Why this step? I-type dropped rd, so rt inherits the destination role. This is the opposite of rt's source role in stores — always re-derive it.

Step 2 — opcode. opcode for addi = 8. Why this step? I-type has a non-zero opcode that names the operation directly (no funct field exists).

Step 3 — Immediate in 16 bits. $100 =$ 0000 0000 0110 0100. Why this step? 100 is positive and $< 2^{15}$ , so no sign issues — just pad with leading zeros to 16 bits.

Step 4 — Lay out and convert. $8_{(6)} ∣ 1 9_{(5)} ∣ 8_{(5)} ∣ 10 0_{(16)}$ Binary: 001000 10011 01000 0000000001100100 Hex: re-slice into nibbles 0010 0010 0110 1000 0000 0000 0110 0100 = 0x22680064. Why this step? The hex conversion regroups the 32 bits by 4; the low 16 immediate bits neatly become the last four hex digits 0064, which is a fast sanity check that the immediate landed in the right place.

Verify: $6 + 5 + 5 + 16 = 32$ ✓. Low 16 bits 0x0064 = 100. ✓

Cell D — I-type, NEGATIVE immediate (sign extension)

Worked example Ex 4 — Encode

addi $t0, $s3, -8 Forecast: how do you fit a negative number into an unsigned-looking 16-bit box? Guess the top bit.

Step 1 — Two's complement of $- 8$ in 16 bits. $- 8 = 2^{16} - 8 = 65528 =$ 1111 1111 1111 1000. Why this step? Immediates for addi/lw/sw are signed (see Sign Extension and Immediates). Negative values are stored in two's complement, so the top (sign) bit is 1.

Step 2 — Same slots as Ex 3. rt=$t0=8, rs=$s3=19, opcode=8. Why this step? Sign of the immediate does not change where fields go — only the bit pattern of the immediate.

Step 3 — Lay out. $8_{(6)} ∣ 1 9_{(5)} ∣ 8_{(5)} ∣ FFF8_{(16)}$ Binary: 001000 10011 01000 1111111111111000 Hex: 0010 0010 0110 1000 1111 1111 1111 1000 = 0x2268FFF8. Why this step? Regrouping the 32 bits into nibbles gives the hex; the negative immediate shows up as the high-valued last four digits FFF8, the visual signature of a small negative number.

Step 4 — What the datapath does at runtime. The 16-bit 0xFFF8 is sign-extended to 32 bits 0xFFFFFFF8 before adding. That 32-bit value equals $- 8$ , so $s3 + (-8) is computed correctly. Why this step? Without sign extension the ALU would see $+ 65528$ and give the wrong result. This is exactly why the immediate must be signed.

Verify: $0 xFFF8 = 65528$ ; as a signed 16-bit value $65528 - 65536 = - 8$ . ✓ Sign-extended $0 xFFFFFFF8 = 4294967288$ ; signed 32-bit $= - 8$ . ✓

Cell E — Branch FORWARD (positive offset)

Worked example Ex 5 — Encode

beq $t0, $t1, L where L is 5 instructions ahead Forecast: guess the stored immediate. Is it 5, or is it the byte distance?

Step 1 — Map the register fields. beq rs, rt, offset ⇒ rs=$t0=8, rt=$t1=9. opcode for beq = 4. Why this step? beq is I-type, so before worrying about the offset we fill the same register boxes as any I-type: opcode, rs, rt.

Step 2 — What "ahead" is measured from. The offset is counted from the instruction after the branch, i.e. from address $P C + 4$ . Why this step? By the time the branch executes, the PC has already advanced by 4 (the fetch of the next instruction). MIPS defines the offset relative to that $P C + 4$ (see PC-relative vs Absolute Addressing).

Step 3 — Stored immediate = word distance. L sits 5 instructions past $P C + 4$ 's target, so imm = 5 (in words), stored in the 16-bit field as 0x0005. Why this step? Offsets are stored in words, not bytes, to stretch the 16-bit reach.

Step 4 — Lay out the I-type word. $4_{(6)} ∣ 8_{(5)} ∣ 9_{(5)} ∣ 5_{(16)}$ Binary: 000100 01000 01001 0000000000000101 Hex: 0001 0001 0000 1001 0000 0000 0000 0101 = 0x11090005. Why this step? Same "fill the coloured boxes, then re-slice into nibbles" workflow as every I-type — the offset just happens to feed the branch adder instead of the ALU.

Step 5 — Hardware reconstructs the byte target. $target = (P C + 4) + imm \times 4 = (P C + 4) + 20 = P C + 24$ Why the ×4? Instructions are 4 bytes and word-aligned, so the hardware shifts the stored word count left by 2.

Figure s02 (above): the seven consecutive instruction addresses P, P+4, …, P+24 running top to bottom. P holds the beq (magenta), P+24 holds the target L (orange). The magenta arrow starts at PC+4 (= P+4, violet) and spans five word-steps down to L, labelled imm = 5 words = 20 bytes, showing the target is measured from PC+4, not from the branch itself.

Verify: Encoding $= 0 x 11090005$ (opcode 4, rs 8, rt 9, imm 5). If $P C = 0 x 00400000$ , target $= 0 x 00400000 + 24 = 0 x 00400018$ . ✓

Cell F — Branch BACKWARD (negative offset, a loop)

Worked example Ex 6 — Encode

bne $t0, $zero, TOP where TOP is 3 instructions before the branch Forecast: a loop jumps backwards. So the stored immediate must be… positive or negative?

Step 1 — Map the register fields. bne rs, rt, offset ⇒ rs=$t0=8, rt=$zero=0. opcode for bne = 5. Why this step? Even a loop-back branch is a plain I-type; we fill opcode/rs/rt first, exactly as before. $zero in rt gives the honest field 00000.

Step 2 — Count words from $P C + 4$ . Let the branch be at address $P$ . Then $P C + 4 = P + 4$ . TOP is 3 instructions before the branch, i.e. at $P - 12$ . Why this step? Always measure from $P + 4$ , even when going backwards — the rule never changes.

Step 3 — Solve for the word offset. $target = (P + 4) + imm \times 4 = P - 12 \Rightarrow imm \times 4 = - 16 \Rightarrow imm = - 4$ Why this step? The offset is a signed word count; a backward branch gives a negative immediate.

Step 4 — Encode $- 4$ in 16 bits. $- 4 =$ 1111 1111 1111 1100 = 0xFFFC. Why this step? Two's complement, sign bit 1 — same mechanism as Ex 4, but here it lives in the branch immediate.

Step 5 — Lay out the I-type word and convert. $5_{(6)} ∣ 8_{(5)} ∣ 0_{(5)} ∣ FFFC_{(16)}$ Binary: 000101 01000 00000 1111111111111100 Hex: re-slice into nibbles 0001 0101 0000 0000 1111 1111 1111 1100 = 0x1500FFFC. Why this step? Completing the 32-bit word and regrouping by 4 keeps this example on the same "fill the boxes, then read the hex" track as Ex 5 — only the immediate changed sign.

Figure s03 (above): a loop of five addresses P-12 (=TOP, orange) down to P+4 (violet), with the bne at P (magenta). The magenta arrow curves backwards from PC+4 up to TOP, labelled jump back, imm × 4 = -16, illustrating that a backward jump is simply a negative signed immediate.

Verify: Encoding $= 0 x 1500 F F F C$ (opcode 5, rs 8, rt 0, imm 0xFFFC). With $P = 0 x 00400020$ : target $= (P + 4) + (- 4) \times 4 = 0 x 00400024 - 16 = 0 x 00400014 = P - 12$ . ✓ $0 xFFFC$ signed $= - 4$ . ✓

Cell G — J-type, target REACHABLE (same region)

Worked example Ex 7 — Encode

j 0x00400024, with the jump instruction itself at 0x00400010 Forecast: which bits of the address do we actually store? Guess how many we throw away — and whether the top bits of the jump and the target agree.

Step 1 — Check the region first. Jump at $P = 0 x 00400010$ ⇒ $P C + 4 = 0 x 00400014$ , whose top 4 bits ( $[31 : 28]$ ) are 0000. Target 0x00400024 top 4 bits are also 0000. They match, so j can reach. Why this step? j only supplies the low 28 bits of the target; it inherits the top 4 bits from $P C + 4$ . If those top 4 bits already agree with the target, the jump is reachable — always test this before encoding.

Step 2 — Write the target in binary. $0 x 00400024 =$ 0000 0000 0100 0000 0000 0000 0010 0100.

Step 3 — Drop the low 2 bits and take bits $[27 : 2]$ . The low 2 bits are 00 (word-aligned), so store the address shifted right by 2. Right-shift by 2: $0 x 00400024 ≫ 2 = 0 x 00100009$ ; the low 26 bits are the field $= 0 x 100009$ . Why this step? The always-zero low 2 bits and the PC-supplied top 4 bits are never stored, so only bits $[27 : 2]$ (26 bits) go into the address field.

Step 4 — Assemble the 32-bit word and convert to hex. opcode j = 2, so opcode bits are 000010 (6 bits) and the field is 0x100009 in 26 bits. $2_{(6)} ∣ 0 x 10000 9_{(26)}$ Full 32-bit binary (opcode 000010 then the 26-bit field 00 0001 0000 0000 0000 0000 1001): 00001000 00010000 00000000 00001001 Re-slice into nibbles: 0000 1000 0001 0000 0000 0000 0000 1001 = 0x08100009. Why this step? Concatenating opcode (top 6) with the 26-bit field gives the 32-bit word; regrouping those exact bits into nibbles of 4 yields the hex. Note the opcode 000010 and the field's leading 00… merge into the first hex digit 0 and the 8 — this is why $2_{(6)} ∥0 x 10000 9_{(26)}$ becomes 0x08100009 and not 0x02….

Step 5 — Reconstruct to confirm. $target = (P C + 4)_{[31 : 28]} ∥ field ∥00$ With $(P C + 4)_{[31 : 28]} =$ 0000: target $=$ 0000 $∥$ 0x100009 $∥$ 00 $= 0 x 00400024$ . ✓ We land exactly where asked because the top 4 bits matched (Step 1).

Verify: $0 x 00400024 ≫ 2 = 0 x 100009$ ; encoding $(2 ≪ 26) ∣ 0 x 100009 = 0 x 08100009$ ; reconstruct $(0 x 00400014 & 0 xF0000000) ∣ (0 x 100009 ≪ 2) = 0 x 00400024$ . ✓

Cell H — J-type, target UNREACHABLE (degenerate)

Worked example Ex 8 — A

j at 0x0FFFFFF8 wants to reach target 0x10000000. Can it? Forecast: the two addresses differ by only 8 bytes — surely a jump can hop 8 bytes? Watch what happens to the top 4 bits when PC+4 sits just below a region boundary.

Step 1 — Compute PC+4 and compare top 4 bits. Jump at $P = 0 x 0 F F F F F F 8$ ⇒ $P C + 4 = 0 x 0 F F F F F F C$ . Top 4 bits of $P C + 4$ ( $[31 : 28]$ ) are 0000. Top 4 bits of the target 0x10000000 are 0001. They differ. Why this step? j forces the target's top 4 bits to equal $(P C + 4)_{[31 : 28]}$ . Here that is 0000, but the target needs 0001. There is no address-field value that can override those top 4 bits.

Step 2 — Show that no field can produce the target. The 26-bit field can only supply bits $[27 : 2]$ . Even the largest field, glued with the forced top nibble 0000 and low 00, gives a maximum reachable address of $max = [31 : 28] 0000 ∥ 26 ones 111 \dots 1 ∥ 200 = 0 x 0 F F F F F F C .$ Since the target 0x10000000 $> 0 x 0 F F F F F F C$ , it is outside the reachable window. j cannot encode it. Why this step? This is the honest degenerate case the matrix (row H) promised: when $(P C + 4)_{[31 : 28]} \neq = target_{[31 : 28]}$ , the 256 MB region the jump lives in does not contain the target, so j is impossible — no clever field value fixes it.

Step 3 — What to do instead. Load the full 32-bit target into a register and use jr (jump register, an R-type that reads a complete 32-bit register value — no top-bit stealing). $la $ t 0, 0 x 10000000; jr $ t 0$ Why this step? jr takes the entire 32-bit address from a register, so it can reach anywhere — that is exactly why it exists.

Step 4 — Contrast with a case that DOES cross safely. If instead the jump were at 0x0FFFFFFC (so $P C + 4 = 0 x 10000000$ ), then $(P C + 4)_{[31 : 28]} =$ 0001, which now matches the target 0x10000000. The field would be $(0 x 10000000 ≫ 2) & (2^{26} - 1)$ . Here $2^{26} - 1 =$ 0x03FFFFFF (26 ones); AND-ing keeps only the low 26 bits: $0 x 04000000 & 0 x 03 F F F F F F = 0 x 00000000$ . Reconstruct: 0001 $∥$ 0x0000000 $∥$ 00 $= 0 x 10000000$ . ✓ Reachable — because PC+4 had already crossed into the target's region. Why this step? It isolates the true deciding factor: reachability depends only on whether $P C + 4$ and the target share top 4 bits, not on how "close" the byte addresses look.

Verify: Unreachable case: with $P C + 4 = 0 x 0 F F F F F F C$ the max reachable address $= (0 x 0 F F F F F F C & 0 x F 0000000) ∣ ((2^{26} - 1) ≪ 2) = 0 x 0 F F F F F F C < 0 x 10000000$ , so target unreachable. ✓ Crossing case: $P C + 4 = 0 x 10000000$ , field $= (0 x 10000000 ≫ 2) & 0 x 03 F F F F F F = 0$ , reconstruct $= (0 x 10000000 & 0 x F 0000000) ∣ (0 ≪ 2) = 0 x 10000000$ . ✓

Cell I — Zero / degenerate register

Worked example Ex 9 — Encode

add $t0, $s1, $zero (a copy, using $zero) Forecast: $zero is register number 0. Does its field become blank, or an honest 00000?

Step 1 — Map operands. rd=$t0=8, rs=$s1=17, rt=$zero=0. Why this step? $zero is a real register whose contents are hardwired to 0 (see MIPS Register File and Conventions). Its number is 0, so its 5-bit field is 00000 — a legitimate encoding, not an empty slot.

Step 2 — Constants. opcode=0, shamt=0, funct=32 (add).

Step 3 — Lay out and convert. $0_{(6)} ∣ 1 7_{(5)} ∣ 0_{(5)} ∣ 8_{(5)} ∣ 0_{(5)} ∣ 3 2_{(6)}$ Binary: 000000 10001 00000 01000 00000 100000. Hex: re-slice into nibbles 0000 0010 0010 0000 0100 0000 0010 0000 = 0x02204020. Why this step? Regrouping the field-boundary binary into 4-bit nibbles gives the hex. Because add $s1 + 0 = $s1, this instruction copies $s1 into $t0 — the effect of the move pseudo-instruction. $zero being addressable makes this trick possible.

Verify: rt field (bits $[20 : 16]$ ) = 00000 = 0 = $zero. ✓ funct = 100000 (6 bits) = 32. ✓

Cell J — Exam twist: decode raw hex

Worked example Ex 10 — Decode the 32-bit word

0x8D0A0004. What instruction is it? Forecast: you get bits, not assembly. Your first move must be to read the opcode — it decides everything else.

Step 1 — Expand to binary. 0x8D0A0004 = 1000 1101 0000 1010 0000 0000 0000 0100.

Step 2 — Peel off the opcode (top 6 bits). 100011 = 35. opcode 35 = lw ⇒ I-type (see Control Unit and Decoding). Why this step? The opcode is the master key. Non-zero opcode ⇒ not R-type; 35 specifically names lw, so we now expect the I-type layout: rs(5), rt(5), imm(16).

Step 3 — Slice the I-type fields. After the 6 opcode bits:

rs = next 5 = 01000 = 8 = $t0
rt = next 5 = 01010 = 10 = $t2
imm = last 16 = 0000 0000 0000 0100 = 4

Step 4 — Reassemble the assembly. lw rt, imm(rs) ⇒ lw $t2, 4($t0). Why this step? For lw, rs is the base address, rt is the destination, imm is the byte offset — put them back in lw $rt, offset($rs) order.

Verify: Re-encode lw $t2, 4($t0): opcode 35, rs=8, rt=10, imm=4 → 100011 01000 01010 0000000000000100 = 0x8D0A0004. ✓ Round-trips exactly.

Recall One-line summary of each cell

Positive R-type reorders to rs,rt,rd ::: Ex 1: 0x02324022 Shift uses shamt, rs=0 ::: Ex 2: 0x00114100 Positive immediate pads with zeros ::: Ex 3: 0x22680064 Negative immediate uses two's complement + sign extension ::: Ex 4: 0x2268FFF8 Forward branch stores positive word count ::: Ex 5: 0x11090005, target PC+24 Backward branch stores negative word count ::: Ex 6: 0x1500FFFC, imm 0xFFFC = −4 Reachable jump (same region) stores bits $[27 : 2]$ ::: Ex 7: 0x08100009 Unreachable jump (top 4 bits differ) → use jr ::: Ex 8 $zero encodes as an honest 00000 ::: Ex 9: 0x02204020 Decode by reading opcode first ::: Ex 10: lw $t2, 4($t0)
