SOLID — Single Responsibility Principle: Worked examples

This is a companion to the parent SRP note. Read that first — here we only apply it, exhaustively.

The scenario matrix

Before working examples, let us list every cell a SRP question can fall into. Think of it like listing every quadrant before doing trigonometry: if a case is on this table, you will see a worked example for it below.

#	Cell (case class)	What makes it distinct	Worked in
C1	Clean class, many methods	Many operations but ONE actor → not a violation	Ex 1
C2	Two actors, shared helper	The classic god-class; DRY re-couples actors	Ex 2
C3	Three+ actors	Full extract + Facade; risk formula bites hardest	Ex 3
C4	$A = 1$ boundary	Degenerate: one actor → $R = 0$	Ex 4
C5	$A = 0$ boundary	Degenerate: no actor → dead code, $R$ undefined-ish	Ex 4
C6	Risk formula limiting behaviour	$p \to 0$ , $p \to 1$ , $A \to \infty$	Ex 5
C7	Over-split (SRP misapplied)	Too many tiny classes → shotgun surgery	Ex 6
C8	Word problem (real org)	Map methods → stakeholders from a story	Ex 7
C9	Exam twist: looks-bad-but-clean	Two methods, but same actor → trap	Ex 8
C10	Numeric comparison	Quantify "before vs after" a split	Ex 9

Each example below is tagged with the cell it fills. Together they cover all ten.

Reading the risk formula visually first

Every numeric example uses $R (A) = 1 - (1 - p)^{A - 1}$ . Before plugging numbers, see it.

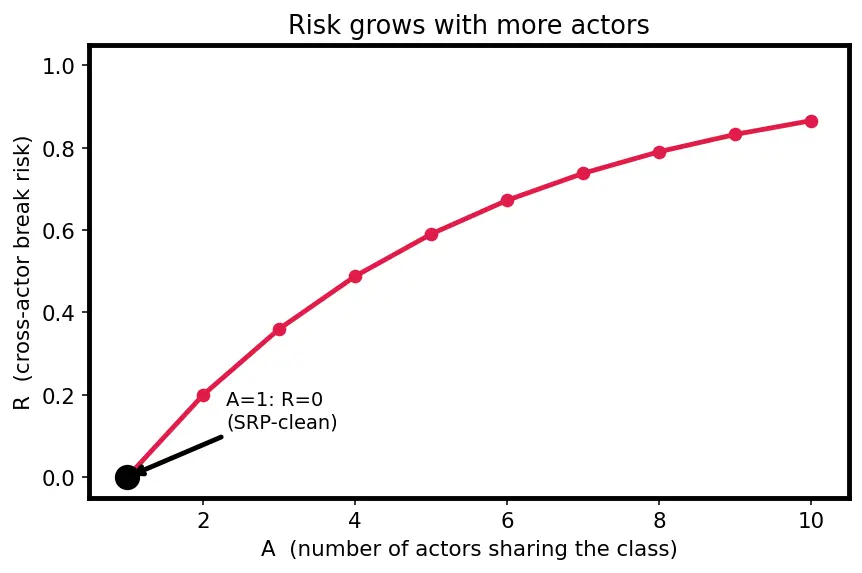

Figure — SOLID — Single Responsibility Principle

Look at the red curve: with break-probability $p = 0.2$ fixed, adding actors ( $A$ on the horizontal axis) pushes risk $R$ upward, fast at first then flattening toward $1$ . The single black dot at $A = 1$ sits exactly on $R = 0$ — an SRP-clean class carries zero cross-actor risk. That dot is the goal of every refactor.

Worked examples

Ex 1 — Clean class, many methods (cell C1)

Worked example

A Vector3D class has add, subtract, dot, cross, normalize, length. Six methods. Does it violate SRP?

Forecast: Six methods sounds like a lot — guess yes or no before reading on.

List the methods. All six operate on the same (x, y, z) data. Why this step? SRP starts from methods, per the parent's procedure.
Tag each with an actor (who requests changes?). Every one of them changes only if the definition of 3D vector maths changes — one mathematical stakeholder. Why this step? SRP counts actors, not methods.
Group by actor. One group ⇒ $A = 1$ . Why? A single reason to change means a single responsibility.
Conclusion: No violation. Many methods, one actor.

Verify: Risk $R (1) = 1 - (1 - p)^{0} = 1 - 1 = 0$ for any $p$ . Zero cross-actor risk, so nothing to split. ✓ (This is the trap the parent's [!mistake] warned about.)

Ex 2 — Two actors, shared helper (cell C2)

Worked example

class Invoice {
    double totalWithTax()  { return subtotal() * 1.18; } // Accounting
    String printReceipt()  { return "Total: " + subtotal(); } // Customer-facing
    private double subtotal() { ... } // shared helper
}

Accounting asks: "change tax from 18% to 20%." Where is the danger?

Forecast: Which method might break that nobody asked to change?

Tag actors. totalWithTax → Accounting. printReceipt → Customer/Sales. Why? Two different bosses request changes here.
Spot the shared code. Both call subtotal(). Why matters? A change to subtotal() reaches both actors.
Trace the change. Accounting edits tax in totalWithTax only — safe so far. But if they "optimise" subtotal() (rounding), the receipt total shifts too. Why a problem? Sales never asked; SRP boundary crossed.
Fix. Extract Subtotal data, split into TaxCalculator (Accounting) and ReceiptPrinter (Sales). Now $A = 1$ each. Why? Aligns boundaries with the two stakeholders.

Verify: Before split $A = 2, p = 0.2$ : $R (2) = 1 - 0. 8^{1} = 0.2$ → 20% of changes risky. After split each class has $A = 1$ → $R = 0$ . ✓

Ex 3 — Three or more actors + Facade (cell C3)

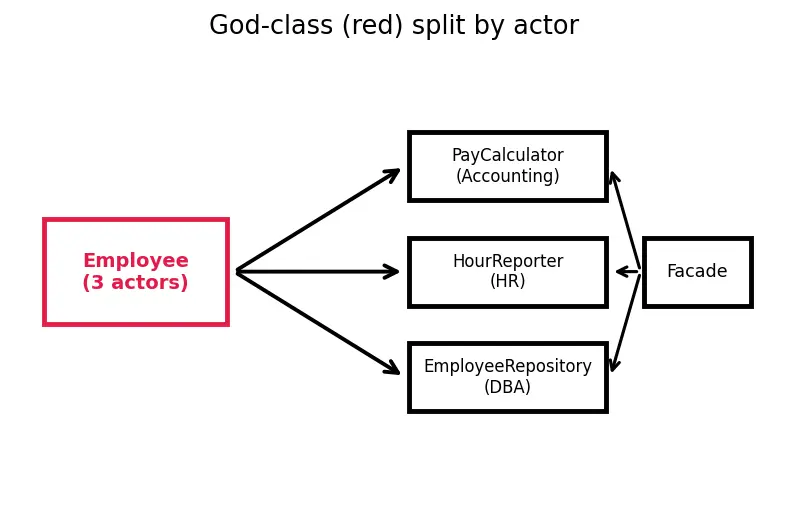

The red block (the tangled god-class) fans out into three isolated black boxes, each owned by exactly one actor; the Facade is the single door back in.

Ex 4 — The degenerate counts $A = 1$ and $A = 0$ (cells C4, C5)

Worked example

What does the risk formula say at its smallest inputs?

Forecast: Guess $R$ for a class with (a) exactly one actor, (b) no actor.

Case $A = 1$ . $R (1) = 1 - (1 - p)^{1 - 1} = 1 - (1 - p)^{0} = 1 - 1 = 0$ . Why $(1 - p)^{0} = 1$ ? Anything (non-zero) to the power $0$ is $1$ — the empty product, "multiply nothing," which is $1$ . There are $A - 1 = 0$ other actors, so there is literally nobody to break.
Case $A = 0$ . $R (0) = 1 - (1 - p)^{- 1} = 1 - \frac{1}{1 - p}$ . With $p = 0.2$ : $R = 1 - \frac{1}{0.8} = 1 - 1.25 = - 0.25$ . Why is that nonsense? A negative probability is impossible. The formula was derived assuming "fix the one requesting actor, count the $A - 1$ others" — that story needs at least one actor. $A = 0$ means dead code nobody owns: not an SRP question at all, just code to delete.
Rule of thumb. The formula is valid for integer $A \geq 1$ . Why? $A - 1 \geq 0$ keeps the exponent non-negative and $R \in [0, 1)$ .

Verify: $R (1) = 0$ ✓ ; $R (0) = - 0.25$ (flagged as out-of-domain, not a real risk). ✓

Ex 5 — Limiting behaviour of the formula (cell C6)

Worked example

Push $p$ and $A$ to their extremes with the formula $R (A) = 1 - (1 - p)^{A - 1}$ .

Forecast: What happens as (a) $p \to 0$ , (b) $p \to 1$ , (c) $A \to \infty$ ?

$p \to 0$ (helpers never break). $(1 - 0)^{A - 1} = 1$ , so $R \to 0$ for any $A$ . Why? If changes never leak, sharing code is harmless — SRP is a stylistic concern, not a safety one, in this idealised world.
$p \to 1$ (every change breaks everything). For $A \geq 2$ , $(1 - 1)^{A - 1} = 0$ , so $R \to 1$ . Why? One actor's edit is certain to hit another — total coupling.
$A \to \infty$ with $0 < p < 1$ . $(1 - p)^{A - 1} \to 0$ , so $R \to 1$ . Why? Add enough actors and someone is almost surely broken. This is the mathematical shape of a God Object (anti-pattern).
Concrete check at $p = 0.5$ : $R (2) = 0.5$ , $R (3) = 0.75$ , $R (5) = 0.9375$ . Why grows? Each extra actor multiplies another survival factor $(1 - p) < 1$ in, shrinking the "nobody broken" chance.

Verify: $R (5)$ at $p = 0.5 = 1 - 0. 5^{4} = 1 - 0.0625 = 0.9375$ . ✓

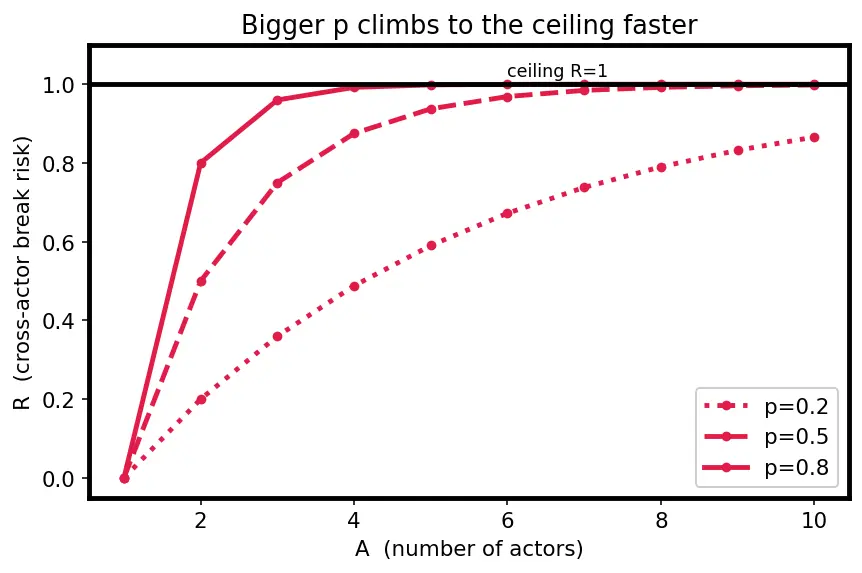

Three red curves for $p = 0.2, 0.5, 0.8$ : all start at $R = 0$ when $A = 1$ and climb toward the black ceiling line $R = 1$ — steeper for bigger $p$ .

Ex 6 — Over-split (SRP misapplied) (cell C7)

Worked example

A developer splits Vector3D (from Ex 1) into VectorAdder, VectorSubtractor, VectorDotter, VectorCrosser, VectorNormalizer, VectorLengther — one method each. What smell did they create?

Forecast: They "obeyed single = one method." What breaks now?

Count actors, not methods. All six still change for the same reason (vector maths). Why? SRP counts reasons to change — still one.
What did splitting buy? Nothing — no actor was separated. It only scattered logic across six files.
New cost. To change the number type from double to float, you now edit six classes. Why bad? That is Shotgun Surgery — one conceptual change, many files.
Fix. Merge back into one Vector3D. $A$ was $1$ the whole time.

Verify: Before and after the wrong split, $R = 0$ either way (one actor), so the split reduced no risk yet multiplied edit-sites 6× — pure loss. ✓

Ex 7 — Word problem: a real org (cell C8)

Worked example

A ticketing startup has a Booking class: reserveSeat(), chargeCard(), emailConfirmation(), logToWarehouse(). The teams are: Operations (seats), Payments, Marketing (emails), Data (warehouse logs). How many classes after refactor, and what is the risk drop at $p = 0.15$ ?

Forecast: Guess the actor count first.

Tag each method with its team. reserve→Ops, charge→Payments, email→Marketing, log→Data. Four distinct actors ⇒ $A = 4$ . Why? Each is a different boss who can request changes.
Compute before-risk. $R (4) = 1 - (0.85)^{3} = 1 - 0.614125 = 0.385875$ . Why $0.85$ ? $1 - p = 1 - 0.15$ . Why cubed? $A - 1 = 3$ other actors.
Refactor → 4 responsibility classes + BookingData + BookingFacade. Why Facade? Front-end still calls one book() — see Facade Pattern.
After-risk = $0$ per class.

Verify: $R (4) \approx 0.3859$ ; drop $\approx 38.6%$ of changes made safe. ✓ Final class count = 4 policies + 1 data + 1 facade = 6. ✓

Ex 8 — Exam twist: looks-bad-but-clean (cell C9)

Worked example

class TemperatureConverter {
    double toFahrenheit(double c) { return c*9/5 + 32; }
    double toCelsius(double f)    { return (f-32)*5/9; }
}

Two methods, two conversions — an exam asks "SRP violation?" Many students answer yes. Are they right?

Forecast: Commit to yes or no before step 1.

Tag actors. Both methods change only if the temperature-conversion definition changes (a physics/units decision) — one actor. Why? No second stakeholder pulls on either method independently.
Check for shared mutable state. None; both are pure functions. Why matters? No hidden cross-actor coupling to worry about.
Verdict. Not a violation. $A = 1$ . This is the [!mistake] from the parent ("one thing ≠ one method count") disguised as an exam question.
When would it violate? If you added logConversion() owned by a Data team and formatForUI() owned by Frontend — then $A = 3$ , split it.

Verify: As written $R (1) = 0$ ; the hypothetical extended version $R (3)$ at $p = 0.2$ $= 0.36$ . ✓

Ex 9 — Numeric before/after comparison (cell C10)

Recall

Which cell does a class with 8 methods but one stakeholder fall in? ::: C1 — clean, many methods, $A = 1$ , no violation. Why is $R (0)$ negative and what does it really mean? ::: The derivation assumes ≥1 actor; $A = 0$ is dead unowned code, outside the formula's domain (not a real probability). As $A \to \infty$ with $0 < p < 1$ , what does $R$ approach and why? ::: $R \to 1$ ; each extra actor multiplies in another $(1 - p) < 1$ , driving the "nobody broken" chance to $0$ . What smell does over-splitting into one-method classes create? ::: Shotgun surgery — one conceptual change now edits many files. For $A = 4, p = 0.15$ , what is the before-refactor risk? ::: $1 - 0.8 5^{3} \approx 0.386$ .

Connections

SOLID — Single Responsibility Principle — the parent rule these examples exercise.
God Object (anti-pattern) — Ex 3 & the $A \to \infty$ limit in Ex 5.
Shotgun Surgery — the over-split smell in Ex 6.
Facade Pattern — the single door-back in Ex 3 & Ex 7.
Cohesion and Coupling — the risk drop is coupling, measured.
DRY Principle — the shared helper trap in Ex 2.
Open-Closed Principle — after splitting, extend without editing.
