Visual walkthrough — Abstract base classes — ABC module, `@abstractmethod`

We assume only three plain ideas, and we build each before using it:

• A class is a template for making objects. Making an object is called instantiation — you write ClassName() and Python hands you back a new object.
• A method is a function that lives inside a class (like area).
• One class can inherit from another (see Inheritance and Method Overriding) — the child gets the parent's methods unless it overrides (rewrites) them.

Everything else — ABC, @abstractmethod, __abstractmethods__, ABCMeta — we define the instant we need it.

Step 1 — The empty blank: what "abstract method" really means

WHAT. We start with a single method that has no real body. We mark it with a special sticker called ==@abstractmethod==. A decorator (the @name written above a function) is just a tag that attaches extra information to that function.

from abc import ABC, abstractmethod

class Shape(ABC):
    @abstractmethod
    def area(self):
        ...        # no real code — a blank to be filled

WHY this and not a plain method? A normal method does something. We want the opposite: a method that says "I refuse to exist until a subclass writes me." The @abstractmethod sticker is exactly the flag that carries that demand. It writes a hidden mark onto the function object — think of stamping the word BLANK in red on a form field.

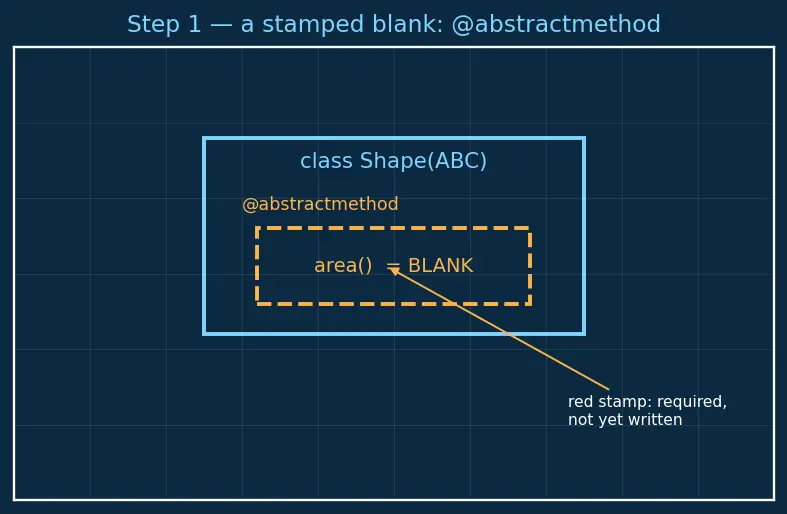

PICTURE. Look at the blueprint below. The area box is drawn as an empty amber slot stamped @abstractmethod. It is a hole in the design, not a finished part.

Step 2 — Who reads the stamps? ABC installs an inspector

WHAT. By writing class Shape(ABC) we inherit from ==ABC==. ABC is a tiny helper class whose only job is to attach a special inspector to your class. That inspector is a metaclass called ABCMeta (deep dive: Metaclasses and ABCMeta).

WHY do we need this? A sticker with no reader changes nothing. In Step 1 the @abstractmethod label sits there, but something must walk over the class, collect every stamped method, and refuse construction while any remain. That "something" is the metaclass. Inheriting ABC is how you hire it.

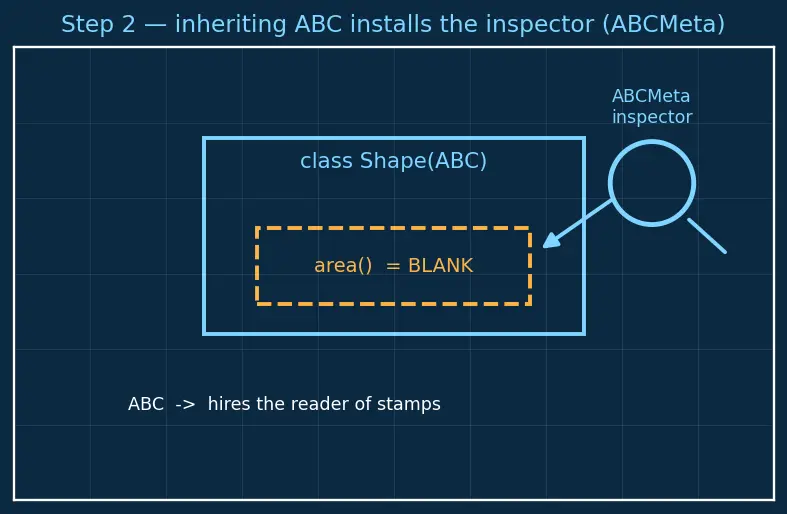

PICTURE. The inspector (cyan magnifying glass) is now clipped to the blueprint. It hasn't reported anything yet — it activates in Step 3.

Step 3 — The inspector writes the tally: __abstractmethods__

WHAT. When the class Shape statement finishes, ABCMeta runs once. It walks every method, collects the names that still carry the @abstractmethod stamp, and stores those names in a hidden ==frozenset (a fixed, unchangeable set) named __abstractmethods__==.

$\text{Shape.\_\_abstractmethods\_\_}=\{\text{’area’}\}$

Term by term:

• Shape.__abstractmethods__ — the tally attached to the class; the double underscores mark it as an internal, Python-managed name.
• $=$ — "was computed to be".
• {'area'} — a set holding one name: the string 'area', our still-unfilled blank.

WHY a set of names? Because the rule only needs to know how many blanks remain, not their code. A set answers "is anything left?" in one glance: is it empty or not?

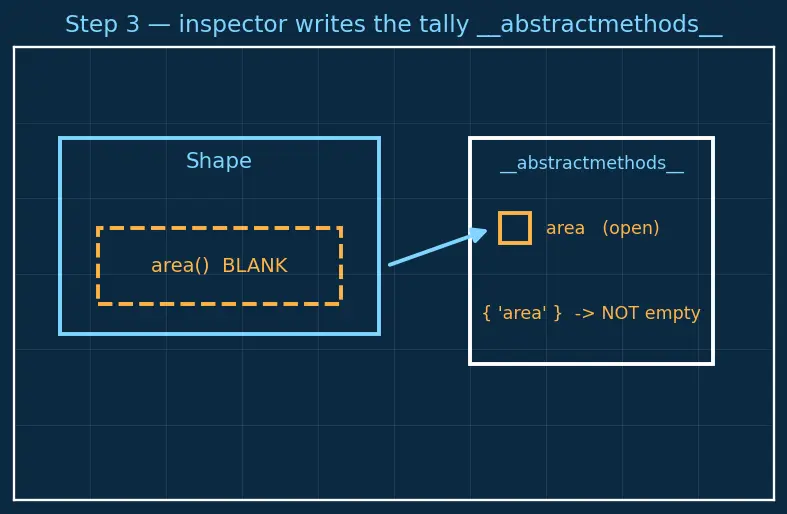

PICTURE. The inspector's clipboard now shows a checklist with one un-ticked box: area.

Step 4 — The construction gate: the rule fires

WHAT. Now someone writes Shape(). Before building anything, ABCMeta reads the tally and applies the central rule:

$\text{can\_build}(C)⟺\text{C.\_\_abstractmethods\_\_}=\varnothing$

• $C$ — the class you are trying to instantiate.
• $⟺$ — "exactly when", the two sides are true together.
• $\varnothing$ — the empty set (no blanks left).

For Shape the tally is {'area'}, which is not empty, so the gate slams shut:

Shape()
# TypeError: Can't instantiate abstract class Shape
#            with abstract method area

WHY check at construction and not at call? This is the whole payoff. A plain base class that just did raise NotImplementedError would only fail when area() is called — possibly deep inside a loop, hours later. The gate moves the failure forward to the moment of creation, and the message even names the missing blank. Fail early, fail loud.

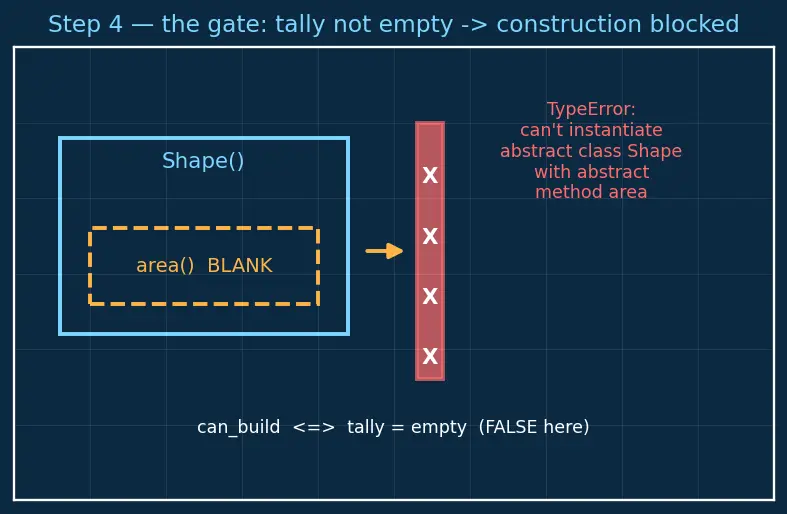

PICTURE. A red barrier drops across the factory door; the amber area slot is still empty, so the object never leaves.

Step 5 — Filling the blank: a concrete subclass passes the gate

WHAT. A subclass overrides area — it defines a real body, so the stamp is gone on that name.

class Circle(Shape):
    def __init__(self, r):
        self.r = r
    def area(self):
        return 3.14159 * self.r ** 2

When Circle's class statement finishes, the inspector runs again. It starts from the parent's tally {'area'} and subtracts every name the child has re-defined with real code:

$\text{Circle.\_\_abstractmethods\_\_}=\{\text{’area’}\}\setminus \{\text{’area’}\}=\varnothing$

• $\setminus$ — set subtraction, "remove from the left set everything in the right set".
• The left set = inherited blanks. The right set = names Circle filled with real code.
• Result: $\varnothing$.

Now the rule from Step 4 gives $\text{can\_build}(\text{Circle})=\text{True}$:

Circle(2).area()   # 12.56636  ✅

WHY does overriding empty the tally? Overriding means the name now points to a normal (unstamped) function. The inspector, re-scanning, finds no stamp for area, so area is not added to the new tally — it silently disappears. A filled blank is an absent blank.

PICTURE. The amber slot is now a solid cyan part; the checklist box is ticked; the barrier lifts and a finished Circle object rolls out.

Step 6 — The half-finished case: partial override stays blocked

WHAT (degenerate case). What if the parent has two blanks and the child fills only one?

class PaymentProcessor(ABC):
    @abstractmethod
    def pay(self, amount): ...
    @abstractmethod
    def refund(self, amount): ...

class CardProcessor(PaymentProcessor):
    def pay(self, amount): return f"Charged {amount}"
    # refund NOT defined

Now trace the tally:

$\text{CardProcessor.\_\_abstractmethods\_\_}=\{\text{’pay’,’refund’}\}\setminus \{\text{’pay’}\}=\{\text{’refund’}\}$

The right set holds only pay (the one name overridden). Subtracting leaves {'refund'} — not empty — so by Step 4's rule, CardProcessor(...) raises TypeError naming refund.

WHY show this? Contracts with many methods are the common case, and this is the trap: "I filled a method, surely I'm concrete now." No — every blank must be filled. The set stays non-empty until the last one is overridden.

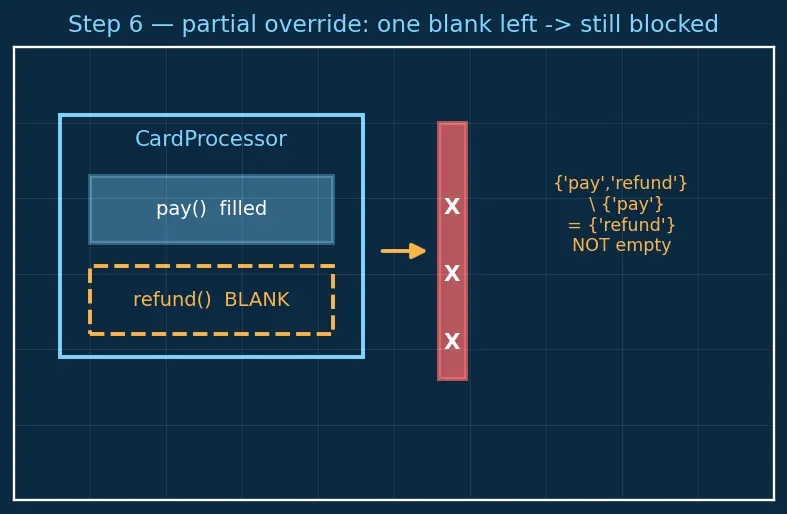

PICTURE. Two slots; pay is solid cyan, refund is still an empty amber hole; the barrier is still down.

Step 7 — The edge case that surprises everyone: abstract ≠ empty

WHAT. An abstract method may carry a real body. @abstractmethod forces the override; it does not forbid shared code.

class Repository(ABC):
    @abstractmethod
    def save(self, item):
        print("logging...")      # runs when child calls super()

class FileRepo(Repository):
    def save(self, item):
        super().save(item)       # reuse the parent body
        # ...then write to file

WHY does the tally not care about the body? The inspector reads only the stamp, never the body. Whether the body is ... or a hundred lines, save is in the parent tally because it is stamped. FileRepo overrides it (removes the stamp) → tally empty → buildable. Yet FileRepo.save can still reach the parent's logic via super().

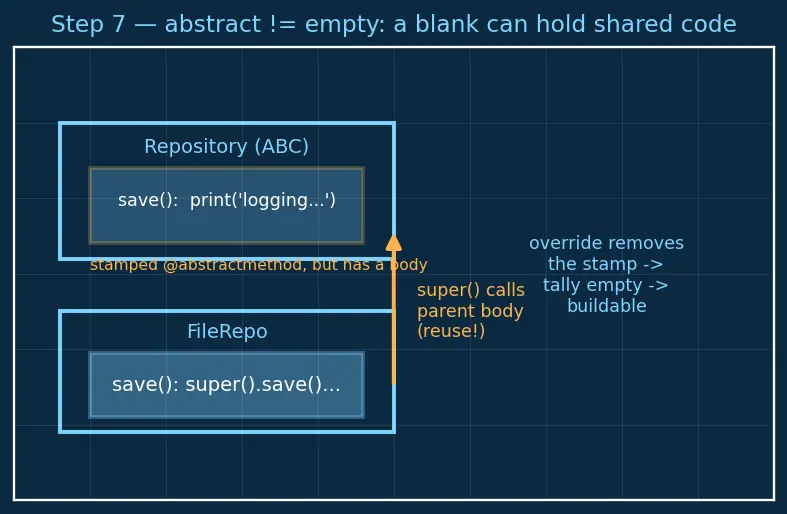

PICTURE. The save slot is stamped-but-shaded (it holds reusable code), an amber arrow shows the child calling super() back up into it.

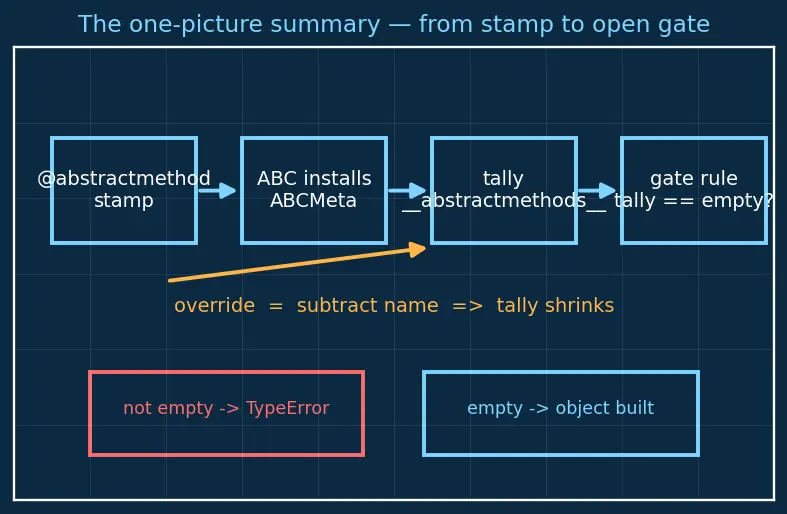

The one-picture summary

Every step compressed onto one blueprint: the stamp (Step 1) → the inspector (Step 2) → the tally (Step 3) → the gate rule (Step 4) → subtract on override (Steps 5–6) → body-optional (Step 7).

Where this connects

• The override step is Inheritance and Method Overriding doing the erasing of blanks.
• The payoff — a function that trusts p.pay() exists for any subclass — is Polymorphism.
• Contrast the "check names at build time" enforcement here with Duck Typing vs Nominal Typing and the runtime-only style of Protocols (typing.Protocol).
• Other languages bake this into the interface keyword: Interfaces in other languages.
• The inspector itself is Metaclasses and ABCMeta.
