Green propellants — LMP-103S, AF-M315E (vs hydrazine): Visual walkthrough

Step 1 — A balloon teaches us thrust

WHAT. A rocket does exactly what a released party balloon does: it squirts stuff out of a hole, and the balloon shoots the other way.

WHY. Before any chemistry, we need the reason thrust exists at all. That reason is momentum — the "amount of motion" a chunk of matter carries, defined as its mass times its velocity. Nature keeps the total momentum of a closed system fixed. So if the balloon flings air backward with some momentum, the balloon must gain the same momentum forward. Nothing else is going on.

PICTURE. In the figure, the pale-yellow arrow is the puff of air leaving; the blue arrow is the balloon recoiling. They are equal in size and opposite in direction — that equality is the law.

Figure — Green propellants — LMP-103S, AF-M315E (vs hydrazine)

Step 2 — Turn "squirting" into a force

WHAT. We now measure how hard the squirting pushes. A steady stream of exhaust leaves the nozzle; we ask what force that stream delivers to the rocket.

WHY. A single puff gives a single kick. But an engine burns continuously, so we care about the kick per second — that steady kick is what we call the thrust force $F$ . To build it we need two new plain-language quantities.

PICTURE. In one second a slug of gas of mass $\overset{m}{˙}$ (kilograms) departs at speed $v_{e}$ . The momentum it carries away that second is (mass) $\times$ (speed) $= \overset{m}{˙} v_{e}$ . By the Step-1 law, the rocket gains that much momentum per second — and momentum-gained-per-second is precisely force. The red arrow on the rocket is that force.

Step 3 — Fairness: rate the fuel, not the engine size

WHAT. A huge engine has huge $F$ just because it burns lots of fuel — that tells us nothing about the fuel's quality. So we divide the thrust by how much propellant-weight flows out each second. The result is called specific impulse, $I_{s p}$ .

WHY. We want a number that says "how good is this chemistry per kilogram burned," independent of engine size or planet. Dividing $F$ by the weight-flow does exactly that.

PICTURE. The figure shows the same nozzle with two dials: the raw thrust $F$ up top, and below it the fuel poured in, weighed by $g_{0}$ . $I_{s p}$ is the ratio of the two.

Step 4 — Where does $v_{e}$ come from? Heat is stored motion

WHAT. Everything now hinges on $v_{e}$ . The propellant flows over a catalyst and decomposes into hot gas. That heat is what we convert into exhaust speed.

WHY. A gas at high temperature is a swarm of molecules already zooming in random directions — temperature is the average kinetic energy of that random jiggle (see the enthalpy released on decomposition). The nozzle's job is to bend all that random motion into one direction: straight out the back. So the hotter the chamber, the more stored motion there is to straighten out.

PICTURE. Left of the figure: molecules bounce every-which-way in the hot chamber (chaotic pink arrows). Right: the converging–diverging nozzle funnels them into one fat directed arrow — that arrow is $v_{e}$ .

Step 5 — Heavy molecules move slower for the same heat

WHAT. Two gases can hold the same energy per molecule yet leave at very different speeds, because speed also depends on molecular mass.

WHY. The random kinetic energy of one molecule is $\frac{1}{2} m v^{2}$ . If two molecules share the same energy but one is heavier, the heavier one must move slower to keep $\frac{1}{2} m v^{2}$ equal. Rearranging, $v \propto energy / m$ . So light exhaust flies out fast; heavy exhaust sluggishly.

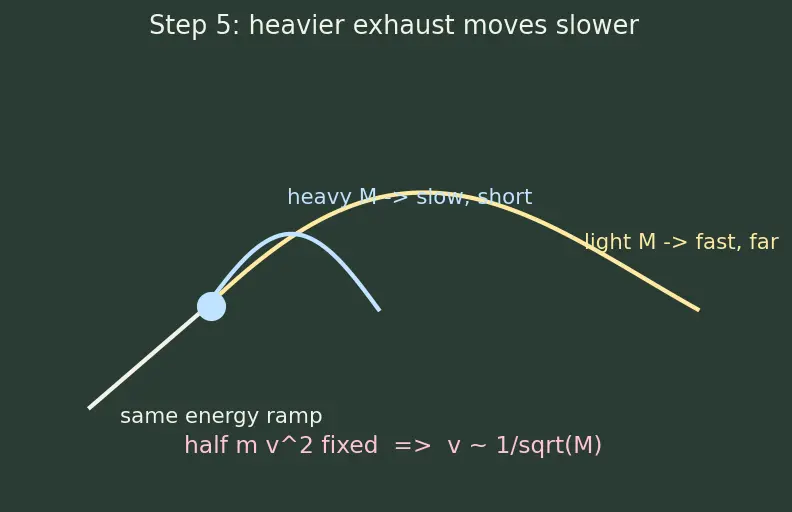

PICTURE. Two chalk molecules launched off the same energy ramp: the small pale-yellow one rockets far, the big blue one lobs a short way. Same push, different mass ⇒ different speed.

Step 6 — Assemble the exhaust-speed formula

WHAT. Combining "energy sets speed" (Step 4) with "mass slows it" (Step 5) gives the ideal-rocket exhaust speed. We read it, not re-derive the gas dynamics, but every symbol is now earned.

WHY. We want the single expression that tells the chemist which propellant will throw gas fastest.

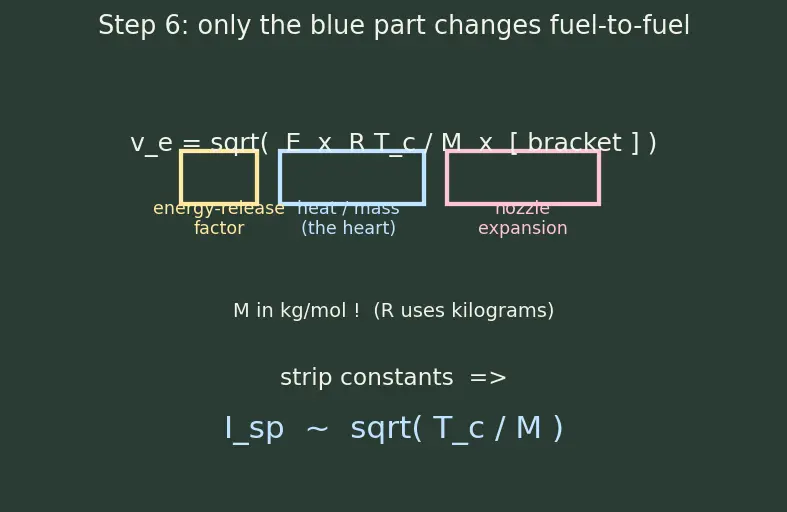

PICTURE. The figure boxes the formula and colours each group: yellow = the energy-release factor, blue = the $T_{c} / M$ heart, pink = the nozzle-expansion bracket. Only the blue part changes from fuel to fuel.

Strip the constants. The yellow factor and the pink bracket are roughly the same for hydrazine and the greens. What survives: $v_{e} \propto \frac{T _{c}}{M} and since I_{s p} = \frac{v _{e}}{g _{0}} : I_{s p} \propto \frac{T _{c}}{M}$ There it is — the parent's headline result, built from a balloon.

Step 7 — The edge cases (never skip these)

WHAT. Push the formula to its extremes so no scenario surprises you. The pressure bracket $[1 - (p_{e} / p_{c})^{(γ - 1) / γ}]$ is only physical for $p_{e}$ between $0$ and $p_{c}$ — we check both ends of that range.

WHY. A formula you trust only in the middle is a formula you don't trust. Check the ends.

The figure plots $T_{c} / M$ : raise $T_{c}$ (yellow curve climbs) and the win from hotter chemistry outruns the penalty of heavier gas (blue curve's gentle fall).

Step 8 — From fuel quality to mission: one more log

WHAT. $I_{s p}$ rates the fuel; the rocket equation turns that rating into how much a real spacecraft can change its velocity, called $Δ v$ ("delta-v", the mission's currency).

WHY. A thruster spends fuel, so the rocket gets lighter as it burns. Summing all the tiny momentum kicks while the mass shrinks produces a logarithm — the natural way a "shrinking-as-you-go" process adds up. This is the Tsiolkovsky rocket equation.

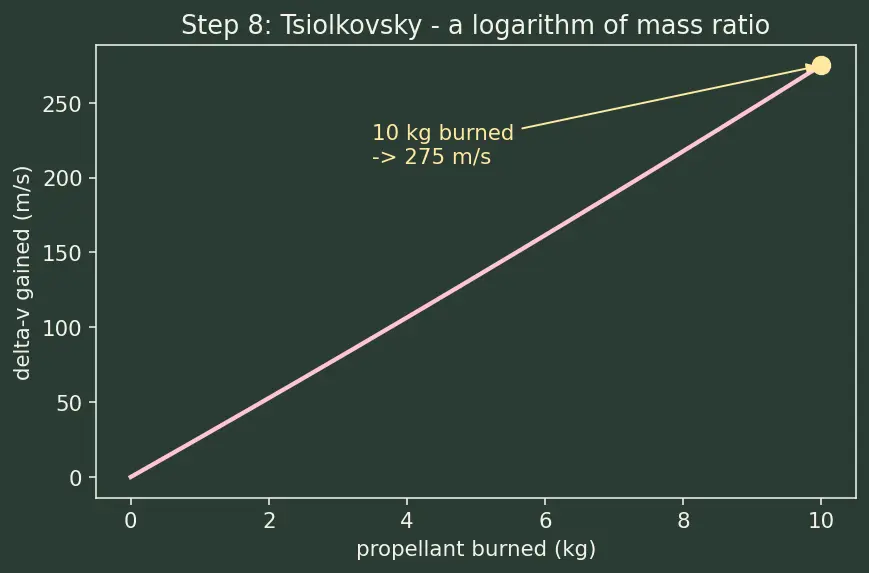

PICTURE. A cubesat gets lighter as fuel drains; each kick adds a shrinking sliver of speed; the running total curves upward like a logarithm.

The one-picture summary

The chain, left to right: balloon (momentum) → thrust $F = \overset{m}{˙} v_{e}$ → specific impulse $I_{s p} = v_{e} / g_{0}$ → chemistry heart $I_{s p} \propto T_{c} / M$ → mission $Δ v = v_{e} ln (m_{0} / m_{f})$ . Hotter chemistry (bigger $T_{c}$ ) is the arrow that lets greens beat hydrazine.

Recall Feynman retelling — the whole walkthrough in plain words

A rocket moves for the same reason a let-go balloon flies off: throw air backward, you go forward — that's momentum, and it's never lost. Throw a steady stream and you feel a steady push; push harder either by throwing more gas each second or throwing it faster. To judge the fuel and not the engine, we measure push per kilogram-weight of fuel per second and call it specific impulse — which turns out to just be exhaust speed in disguise. Now, what makes exhaust fast? Heat is molecules jiggling; the nozzle straightens that jiggle into a jet, so hotter chamber = faster jet. But heavy molecules, given the same energy, crawl instead of sprint, so light exhaust is faster too. Put those together: fuel quality goes like the square root of temperature over molecular weight. Green propellants make heavier exhaust than hydrazine but burn much hotter, and the extra heat wins the tug-of-war. Finally, feed that speed into the rocket equation — a logarithm, because the ship keeps getting lighter as it burns — and you get the actual velocity change a mission can afford. The upshot: the same job the old poison did, now done by a fuel you can handle safely — salty water instead of a carcinogen.

Recall

Why does dividing thrust by $\overset{m}{˙} g_{0}$ make engine size disappear? ::: Thrust is $\overset{m}{˙} v_{e}$ , so the $\overset{m}{˙}$ cancels, leaving $v_{e} / g_{0}$ — a fuel property, not a size property. In the tug-of-war, which quantity lets greens beat hydrazine despite heavier exhaust? ::: The much higher chamber temperature $T_{c}$ ; $T_{c} / M$ still comes out larger. What happens to thrust as $T_{c} \to 0$ , and what real problem is that? ::: $v_{e} \to 0$ , thrust vanishes — this is the cold-start / catalyst light-off problem. What must $M$ be in for the raw $v_{e}$ formula, and why? ::: kg/mol, because $R$ is in joules (built from kilograms); g/mol would make $v_{e}$ about $32 \times$ too large. As $p_{e} \to p_{c}$ (no nozzle expansion), what happens to $v_{e}$ ? ::: The bracket $\to 0$ , so $v_{e} \to 0$ — no expansion means no stored heat converted to speed.
