Intuition The ONE core ideaEvery reaction is a machine that takes atoms in and sends atoms out, and not all the atoms that go in end up in the thing you actually want . Atom economy is a single number that tells you what fraction of the incoming mass lands in the desired product versus how much walks out as waste — decided entirely by the balanced equation, before you ever touch a beaker.
This page assumes you know nothing about the notation on the parent page . We build every letter, every subscript, every symbol from the ground up, in the order they depend on each other. If you can count and read a shopping list, you can follow from line one.

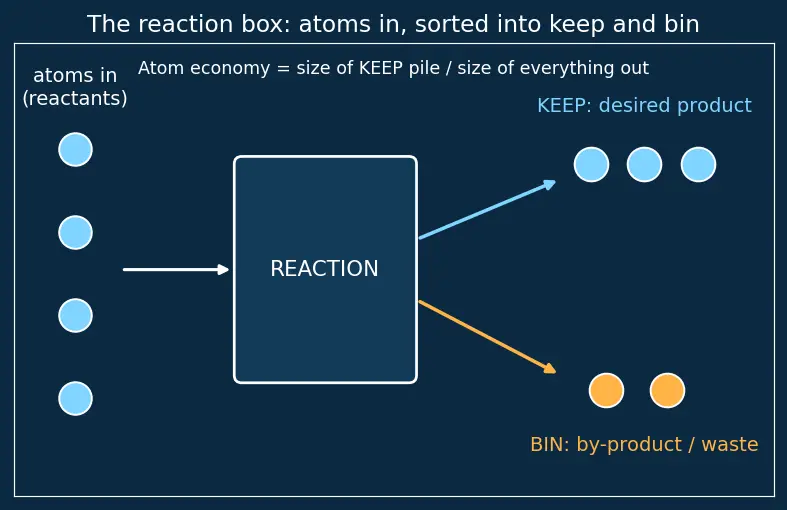

Everything below is really one image: stuff flows into a box (the reaction) and comes out sorted into two piles — keep and bin .
Intuition Hold this in your headThe whole topic is measuring the size of the cyan "keep" pile compared to the size of everything that came out . Every symbol we define is just a precise name for one part of this picture.
An atom is the smallest piece of a chemical element — a single indivisible ball in our drawings. Iron (Fe), carbon (C), hydrogen (H), oxygen (O), chlorine (Cl), bromine (Br) are all kinds of atom.
Picture: one coloured ball. Why we need it: atom economy literally counts where each ball ends up.
Definition Molecule and chemical formulaA molecule is a group of atoms joined together. We write it as a formula like H 2 O subscript number counts how many of that atom are in one molecule.
Picture: two white H balls stuck to one red O ball.
Read a subscript out loud as "how many of the ball to my left":
Formula CO 2 one carbon ball, two oxygen balls — three balls total in one molecule.
Formula C 2 H 4 two carbon balls, four hydrogen balls.
No subscript (like the C in CO 2 exactly one of that atom.
A reaction is written as a sentence with an arrow:
reactants CH 4 + Cl 2 → products CH 3 Cl + HCl
Definition Reactants, products, the→ Reactants (left of the arrow) are what you start with. Products (right of the arrow) are what you end with. The ==arrow → Picture: stuff entering the box on the left, stuff leaving on the right (that is figure s01 again).
The + not arithmetic addition of numbers.
Definition Stoichiometric coefficientn big number written in front of a formula tells you the relative amount of that species taking part — read it either as "how many whole molecules" or, scaled up, as "how many moles " (see §5 for what a mole is). We call it the stoichiometric coefficient and give it the symbol n pure count with no units .
3 CO ⇒ n = 3 (three molecules, or three moles, of carbon monoxide) Picture: three identical CO molecules drawn side by side.
or moles — why it doesn't matter which
A coefficient of 3 this species, take 3 of that one." That ratio is true whether you count in single molecules or in whole moles (6.02 × 1 0 23 m = n M n moles , because M per mole .

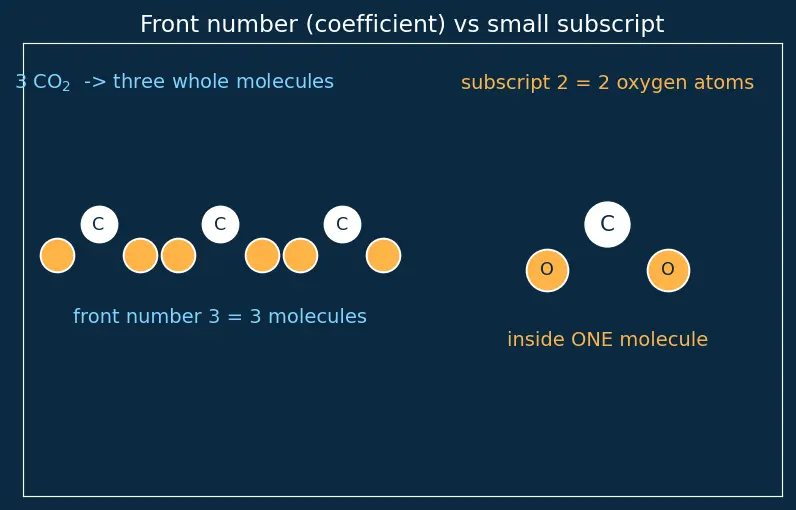

Common mistake Coefficient vs subscript — the easiest mix-upThe big front number (3 CO whole molecule . The small subscript (CO 2 atom to its left .
3 CO 2
Front number of 3 CO three separate CO molecules (or three moles of them) — a unitless count.
Subscript 2 in CO 2 two oxygen atoms inside one molecule.
Why the coefficient matters for atom economy mass of a species = coefficient ×
Definition A balanced equationAn equation is balanced when each type of atom appears the same number of times on the left and on the right . Atoms are never created or destroyed by chemistry — they are only rearranged. This rule is Conservation of Mass .

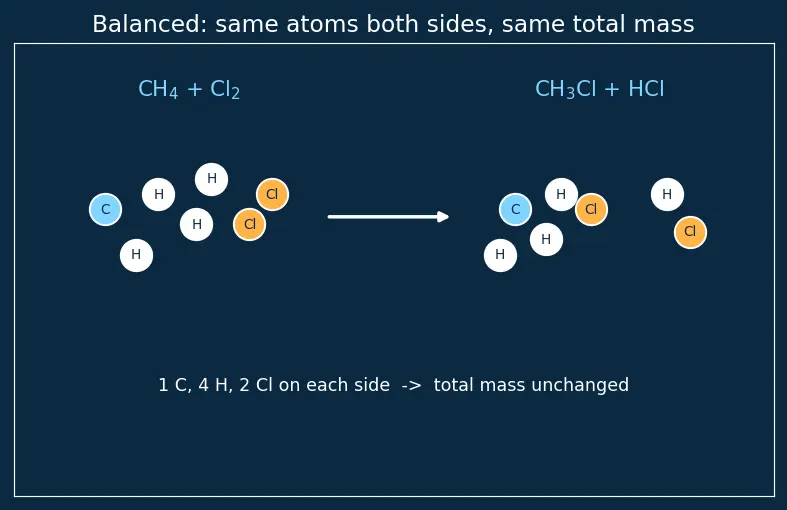

Picture: the same coloured balls on both sides of the arrow, just reconnected differently.
Intuition Why we care so muchBecause atoms are conserved, the total mass entering equals the total mass leaving . This single fact is what lets atom economy use either the reactant side or the product side on the bottom of its formula — they weigh the same. We prove exactly this once we have "mass", at the end of §6.
Balanced means every atom type has equal count on both sides of the arrow.
The law that guarantees it conservation of mass — atoms are only rearranged.
Consequence for later total reactant mass = total product mass, always.
Counting balls is not enough; a lead ball is heavier than a hydrogen ball. We need a weight .
Definition Relative atomic massA r relative atomic mass A r how heavy one of its atoms is compared to a fixed standard (one-twelfth of a carbon-12 atom). It is the number you read off the periodic table — A r ( C ) = 12.0 A r ( O ) = 16.0 A r ( H ) = 1.0 A r ( Cl ) = 35.5 A r ( Fe ) = 55.8 ratio of two masses, A r no units .
Where the numbers come from: they are measured experimentally (by weighing atoms in a mass spectrometer) and tabulated on the periodic table — you look them up, you never derive them here.
Definition What a "mole" is, in one lineA mole is just a fixed huge count of things (6.02 × 1 0 23 A r
M molar mass M of one mole of a substance (not of one molecule!) — the weight ticket stapled to a whole mole's worth . Its unit is g mol − 1 A r g mol − 1 M ( CO 2 ) = A r ( C ) 12.0 + two O 2 × 16.0 = 44.0 g mol − 1
The symbol g mol − 1 grams per mole — grams of stuff in one mole of it.
What A r relative atomic mass, a unitless ratio measured by mass spectrometry and listed on the periodic table.
M ( HCl ) A r 1.0 + 35.5 = 36.5 g mol − 1
Molar mass is the mass of one mole of the substance, not one molecule.
Why we use molar mass and not raw atom count it weights each species fairly by mass, which is what "efficiency of mass" needs.
mass and not just number of atoms ?
We could count atoms, but the real-world cost — raw material bought, waste trucked to landfill — is measured in kilograms , not in atom-counts. Mass is the currency that matters, so atom economy is built on molar mass, not head-count.
Now combine §3 and §5. Taking the coefficient n moles (so its units match M
m = n × M
The parent page writes sums like ∑ i n i M i ∑ "add up over every item in the list" :
Definition The summation symbol∑ ∑ i n i M i i n i M i add them all together into one total mass in grams.
Picture: lining up every pile and reading one combined weight on the scale.
∑ i n i M i add the (moles × molar mass) mass of every product together, giving grams.
The i a label that walks through the list, one species at a time.
Definition Desired product and by-productThe desired product is the molecule you actually want (and would sell or use). A by-product is any other molecule that comes out — waste, unless it too is useful. See E-factor and Process Mass Intensity for how waste is scored more broadly.
Picture: the split in figure s01 — cyan "keep" pile vs amber "bin" pile.
Intuition "Desired" is a human choice, not a chemistry lawNothing in the equation labels a molecule "wanted." You do, based on what you need. If a by-product becomes sellable, you re-label it as desired — and it jumps from the bin pile to the keep pile. That is why the same reaction can have two different atom economies depending on what you count as useful.
Desired product the molecule you set out to make.
By-product any other product; treated as waste unless it is also useful.
Who decides which is "desired" the chemist, based on what is wanted or sellable.
With all symbols earned, the parent's boxed formula reads cleanly:
% AE = i ∑ n i M i ( all products ) n prod M prod × 100
Translate it back to the picture:
top = mass of the cyan keep pile (n × M bottom = mass of everything that came out (the whole scale reading, in grams),× 100 = turn the fraction into a percentage.
Intuition Why the denominator can also be the reactantsFrom the proof at the end of §6, total product mass equals total reactant mass. So the bottom of the fraction can be measured on whichever side is easier to add up. Related tools like Percentage Yield instead compare what you got to what you theoretically could get — a different question entirely.
Reactants and products with arrow
Stoichiometric coefficient n
Balancing and conservation of mass
Total reactant mass equals total product mass
Species mass equals n times M
Summation over all species
Desired product vs by product
Everything on the left is a counting idea; everything in the middle turns counts into mass ; the two streams meet at the atom-economy formula. See also Green Chemistry — 12 Principles , Addition Reactions , Substitution Reactions , and Catalysis for where this number is used. A Hinglish walk-through lives at 5.5.02 Atom economy (Hinglish) .
Tick each item mentally — if any reveal surprises you, reread that section before the main page.
What a subscript number in a formula counts the atoms of the element immediately to its left, inside one molecule.
What a big number in front of a formula (coefficient n the relative amount — molecules, or scaled up, moles — a unitless count.
What A r a unitless ratio of atom weight to the carbon-12 standard, measured by mass spectrometry and read off the periodic table.
What M mass of one mole of a substance, in g mol − 1 A r
How to get a species' total mass in an equation, and its unit multiply moles by molar mass, m = n M
What the symbol ∑ add up the quantity for every species in the list.
Why total reactant mass = total product mass balancing keeps each element's atom count equal on both sides, so the summed masses match (proof in §6).
Which pile goes on top of the atom-economy fraction the desired product's mass (n prod M prod
Which masses go on the bottom the mass of all products (equivalently, all reactants).
Who decides what counts as the "desired" product the chemist, based on what is actually wanted or usable.
What "× 100" at the end does converts the fraction into a percentage.
