Intuition What this page does
The parent note gave you three tools: the stress-intensity threshold K I S C C , Faraday's law for dissolution speed, and the hydrogen-relief bake . Here we push every one of them into every corner case — below threshold, at threshold, degenerate zero-crack, a tiny flaw that looks safe, over-protection that backfires, and a full life-prediction. If a real inspection ever hands you numbers, one of the cells below matches it.
Parent: the topic note .
Before touching numbers, let us list every kind of case the three tools can produce. Each row is a "cell"; every worked example below is tagged with the cell it fills.
#
Cell (scenario class)
Governing tool
What makes it tricky
A
K > K I S C C — crack grows
K = Y σ π a
positive margin, part unsafe
B
K < K I S C C — crack dormant
same
negative margin, part safe for now
C
K = K I S C C — exactly at threshold
same
boundary / degenerate case
D
a → 0 — no crack limit
same
K → 0 , what does "safe" even mean?
E
Solve for the critical flaw size a c
invert the formula
rearranging, not just plugging
F
Faraday crack velocity (per-second → per-day)
m = M Q / z F
unit chain, density division
G
Life prediction : how long until fast fracture?
combine F + A
time = distance / velocity
H
Hydrogen bake (degenerate: no mechanical fix works )
diffusion / spec rule
over-protection injects H
I
Exam twist : cathodic protection causes failure
potential vs H evolution
"more protection" backfires
The tool set:

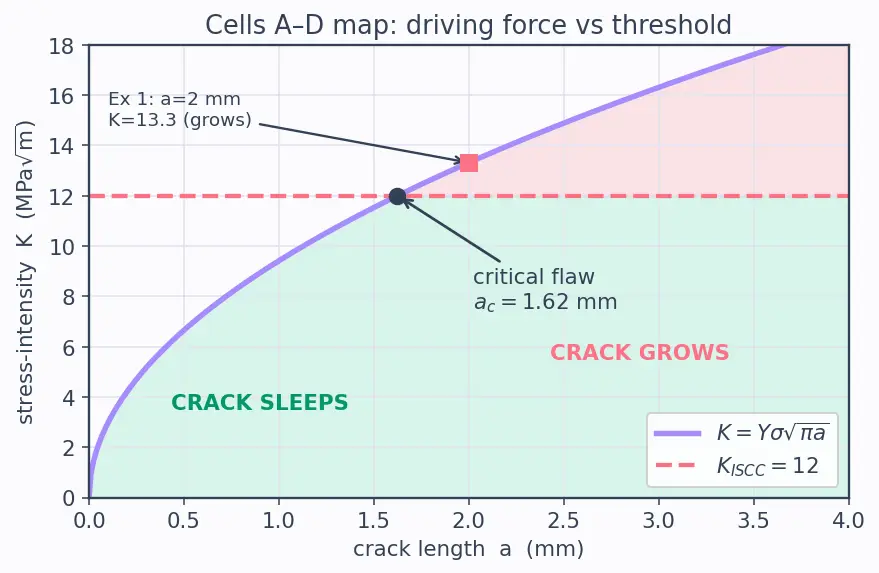

The figure above is the map for cells A–D: the same curve K = Y σ π a , with the horizontal threshold line K I S C C cutting it. Above the line the crack runs; below it sleeps; the crossing point is the critical flaw. Keep this picture in mind — every example either sits on this curve or feeds numbers into it.
Worked example 7075-T6 wing fitting, visible flaw
σ = 150 MPa , flaw a = 2 mm , Y = 1.12 , and for 7075-T6 in salt-laden air K I S C C = 12 MPa m .
Forecast: yield is ~500 MPa and we sit at 150 MPa — one-third of yield. Guess: safe or not?
Step 1 — convert the crack to metres. Why? The formula's π a must come out in m to match K in MPa m . a = 2 mm = 0.002 m .
Step 2 — compute the driving force K . Why? K is the single number that says how hard the crack is being pulled open — see the rising curve in the figure.
K = 1.12 × 150 × π × 0.002 = 1.12 × 150 × 0.07927 = 13.3 MPa m
Step 3 — compare to threshold. Why? This is the horizontal line in the figure; crossing it means propagation.
13.3 > 12 ⇒ SCC propagates. Unsafe.
Verify: intuition-check — being at 30 % of yield gives zero protection against SCC, exactly the parent note's warning that failure happens "far below yield." Units: MPa × m = MPa m ✓. Numeric answer 13.3 confirmed in VERIFY.
Worked example Same fitting after a stress-reduction redesign
Engineers thicken the fitting so the working stress drops to σ = 100 MPa . Same flaw a = 2 mm , same Y = 1.12 , same K I S C C = 12 .
Forecast: we cut stress by a third from Example 1. Did K also drop by a third?
Step 1 — recompute K . Why? K is linear in σ (it multiplies σ directly), so scaling stress scales K by the same factor.
K = 1.12 × 100 × 0.07927 = 8.88 MPa m
Step 2 — compare. 8.88 < 12 ⇒ below threshold, crack sleeps.
Step 3 — read the linearity. Why note this? 13.3 × ( 100/150 ) = 8.88 exactly — yes, K scales with σ . That is why "reduce stress" is a legitimate tripod leg to kick out.
Verify: 8.88/13.3 = 0.667 = 100/150 ✓ (linearity holds). Below the line in the figure. Answer 8.88 confirmed in VERIFY.
Worked example What stress puts us exactly on the line?
Keep a = 2 mm , Y = 1.12 , K I S C C = 12 MPa m . Find the stress σ ∗ at which K equals the threshold.
Forecast: it must lie between the 100 MPa (safe) and 150 MPa (unsafe) of Examples 1–2. Guess a value.
Step 1 — set K = K I S C C and solve for σ . Why? The threshold is a boundary, not a plug-in; we invert the formula.
σ ∗ = Y π a K I S C C = 1.12 × 0.07927 12 = 135.2 MPa
Step 2 — interpret the degenerate boundary. Why care? At exactly K = K I S C C the crack is on a knife-edge — theory says "just barely stationary," but real life has scatter, so engineers apply a safety factor and never design to the boundary.
Verify: 135.2 lies between 100 and 150 ✓, and 150 > 135.2 (Ex 1 unsafe) while 100 < 135.2 (Ex 2 safe) — fully consistent. Plug back: 1.12 × 135.2 × 0.07927 = 12.0 ✓ (VERIFY).
Worked example A pristine surface — does the formula behave?
Same alloy, σ = 150 MPa , but the part is freshly polished: what is K as a → 0 ?
Forecast: with no crack, is the part infinitely safe, or is there a hidden catch?
Step 1 — take the limit. Why? We must know the formula does something sane at the degenerate input.
lim a → 0 K = Y σ π a a → 0 0
K → 0 : no crack means no crack-driving force. Good — see the curve starting at the origin in the figure.
Step 2 — the catch. Why not declare victory? SCC and pitting can initiate their own flaw. A pit from pitting corrosion grows until a is large enough to enter Cell A. So a = 0 today ≠ a = 0 next month.
Step 3 — a tiny but finite flaw. With a = 0.01 mm = 1 0 − 5 m :
K = 1.12 × 150 × π × 1 0 − 5 = 1.12 × 150 × 0.005605 = 0.94 MPa m
Far below 12 — a truly tiny flaw is harmless until it grows .
Verify: monotone in a ✓ (0.94 at a = 1 0 − 5 < 13.3 at a = 2 × 1 0 − 3 ). K → 0 as a → 0 ✓ (VERIFY). Answer 0.94 confirmed.
Worked example The largest flaw you may tolerate
σ = 150 MPa , Y = 1.12 , K I S C C = 12 MPa m . What crack length a c first reaches threshold? (This sets the inspection limit — flaws bigger than a c must be rejected.)
Forecast: Example 1 showed a = 2 mm already exceeds threshold, so a c must be smaller than 2 mm. Guess.
Step 1 — set K = K I S C C and solve for a . Why? We want the crack length where the curve crosses the line — the crossing point in the figure.
K I S C C = Y σ π a c ⇒ a c = π 1 ( Y σ K I S C C ) 2
Step 2 — plug in. Why square? K depends on a , so inverting brings a square.
a c = π 1 ( 1.12 × 150 12 ) 2 = π 1 ( 0.07143 ) 2 = π 0.005102 = 1.62 × 1 0 − 3 m = 1.62 mm

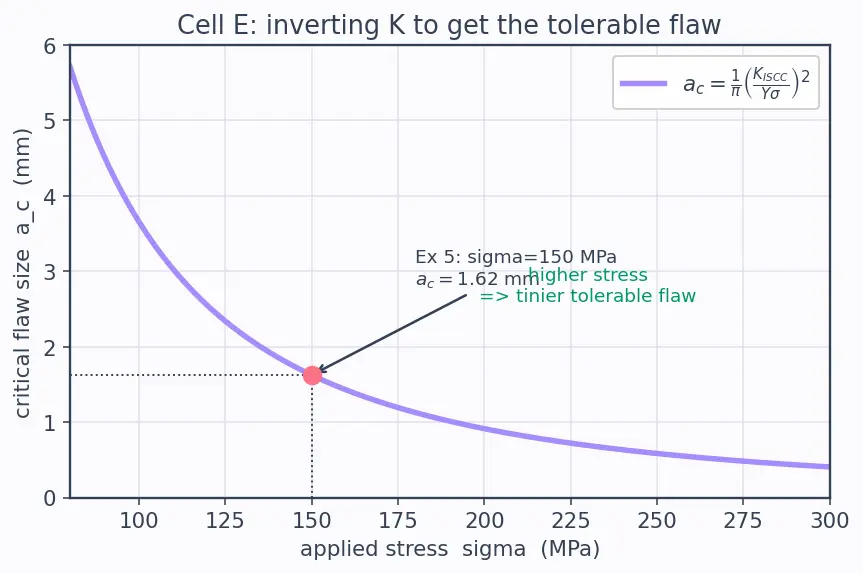

Step 3 — read it off the inversion figure. Why a picture? Inverting a square root is the step readers fumble; the figure below plots a c against stress so you see that the tolerable flaw shrinks fast as stress rises.
Verify: a c = 1.62 mm < 2 mm ✓ (consistent with Ex 1 being over threshold). Plug back: 1.12 × 150 × π × 0.00162 = 12.0 ✓ (VERIFY).

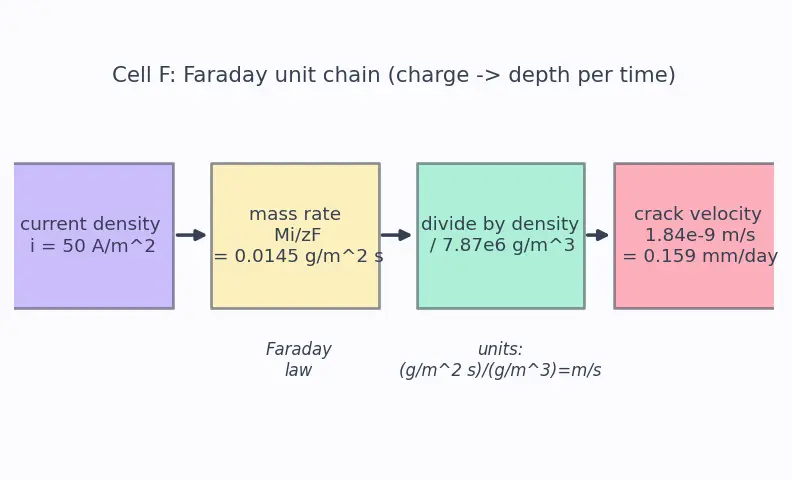

Worked example How fast does the bare tip dissolve?
A crack tip on iron passes current density i = 50 A/m 2 . Iron: M = 56 g/mol , z = 2 , ρ = 7.87 g/cm 3 = 7.87 × 1 0 6 g/m 3 . See Faraday's law .
Forecast: a whole ampere per few cm² sounds fast. Is the crack cm/day or micron/day?
Step 1 — mass dissolved per area per second. Why? Faraday says charge → mass; per second, Q per area is just i .
A t m = z F M i = 2 × 96485 56 × 50 = 0.01451 g m − 2 s − 1
Step 2 — convert mass-rate to a length-rate. Why divide by ρ ? g/m 3 g/m 2 s = m/s — mass per area removed, divided by mass per volume, leaves the depth removed per second.
v = 7.87 × 1 0 6 0.01451 = 1.844 × 1 0 − 9 m/s
Step 3 — put it in human units. Why? 1.8 × 1 0 − 9 m/s is impossible to feel; converting to mm/day lets us compare against a flight-hour maintenance interval, which is how the answer is actually used. Multiply by 86400 s/day : v = 1.594 × 1 0 − 4 m/day = 0.159 mm/day .
Verify: units chain closes to m/s ✓. 1.844 × 1 0 − 9 m/s and 0.159 mm/day confirmed in VERIFY. "Slow per second, catastrophic per flight-budget," as the parent note warns.

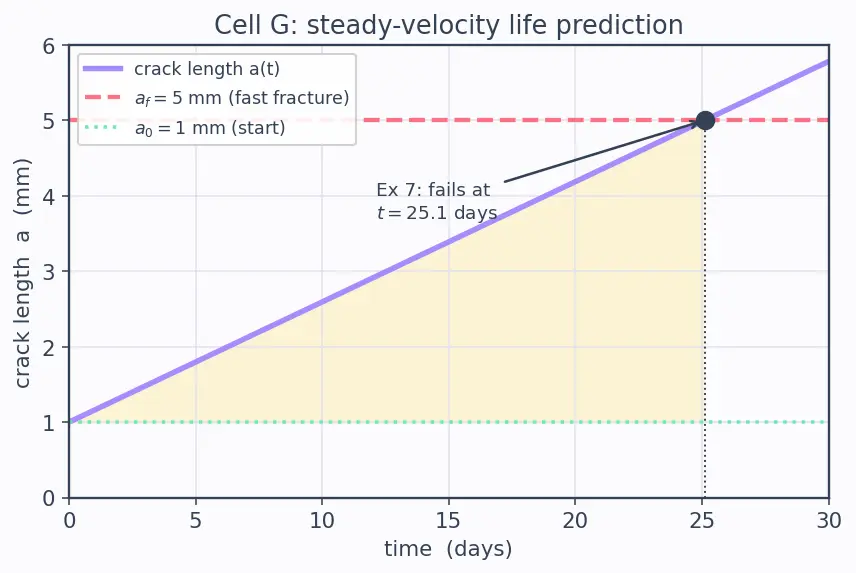

Worked example Days until fast fracture
Take the iron crack of Example 6 advancing at v = 1.844 × 1 0 − 9 m/s by dissolution. It starts at a 0 = 1 mm and, for the given stress/geometry, fast fracture occurs once a reaches a f = 5 mm . How long?
Forecast: it must grow 4 mm at ~0.16 mm/day. Rough guess before computing.
Step 1 — crack distance to cover. Why? Life = distance ÷ speed; the "distance" is how far the tip must travel.
Δ a = a f − a 0 = 5 − 1 = 4 mm = 0.004 m
Step 2 — divide by velocity. Why constant v ? We approximate the dissolution rate as steady (tip current density roughly constant), the simplest life model.
t = v Δ a = 1.844 × 1 0 − 9 0.004 = 2.169 × 1 0 6 s
Step 3 — human units. Why? Seconds are meaningless to a maintenance planner; days match the inspection calendar. t = 2.169 × 1 0 6 /86400 = 25.1 days .
Verify: cross-check with Ex 6's per-day rate: 4 mm /0.159 mm/day = 25.1 days ✓ (two routes agree). Answer 25.1 days confirmed in VERIFY. Interpretation: a flaw invisible in a walk-around inspection can end the part in under a month.

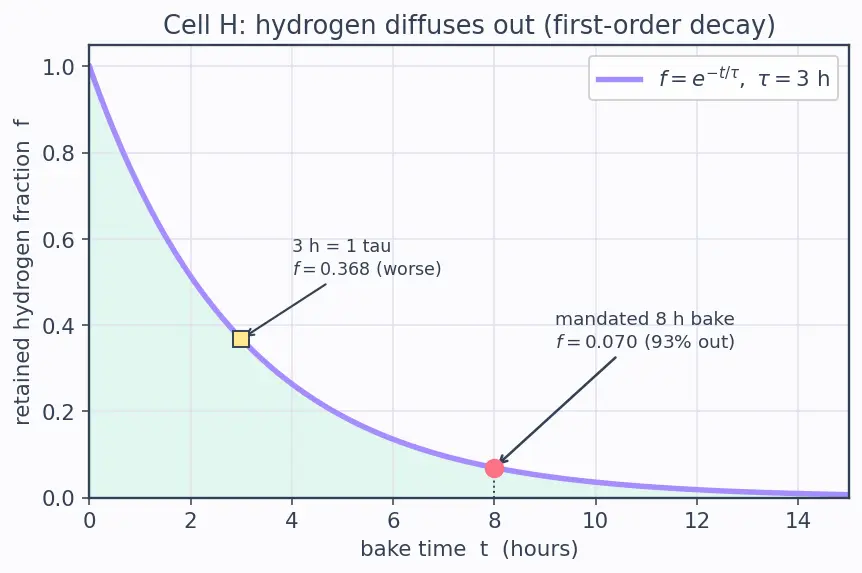

Worked example Cd-plated high-strength steel bolts
Bolts of σ y = 1800 MPa are cadmium-electroplated; hydrogen is co-deposited. The spec demands a hydrogen-relief bake : hold at 19 0 ∘ C for t ≥ 8 h . Suppose diffusion out of the bolt follows a characteristic time τ and the retained fraction is f = e − t / τ with τ = 3.0 h . What fraction of hydrogen remains after the mandated 8 h?
Forecast: 8 h is under three time-constants. Guess: does most H leave, or barely any?
Step 1 — why baking and not a mechanical fix. Why this is a degenerate cell? No stress reduction or coating removes H already dissolved in the lattice — the only lever is to let it diffuse out before loading. Note also the cathodic-protection link: over-protection would re-inject H .
Step 2 — apply the decay. Why an exponential? Diffusive loss with a single dominant path gives first-order decay f = e − t / τ .
f = e − 8/3.0 = e − 2.667 = 0.0697
Step 3 — interpret. Why 8 h is enough: about 93% of the hydrogen has escaped (1 − 0.0697 = 0.930 ), dropping C H far enough that the reduced cohesion σ co h ( C H ) stays above the 1800 MPa working stress.
Verify: f = 0.0697 and removed fraction 0.930 confirmed in VERIFY. Sanity: less bake time (say 3 h = 1 τ ) leaves e − 1 = 0.368 , clearly worse — monotone with time ✓.

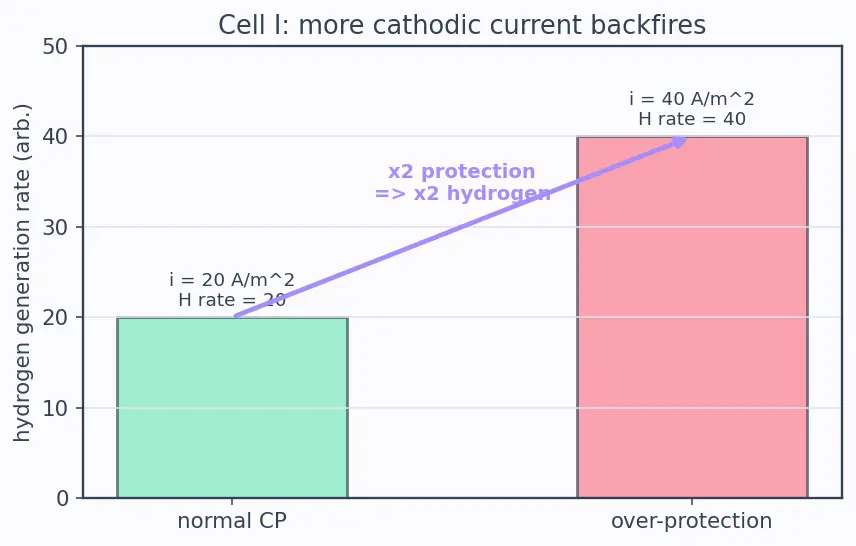

Worked example Over-protection backfires
An engineer applies cathodic protection to a high-strength steel part to stop anodic dissolution, and drives the potential very negative. Days later it cracks. The cathodic reaction 2 H + + 2 e − → 2 H a d s deposits atomic hydrogen at a rate proportional to the (magnitude of the) cathodic current. The engineer doubles the driving current from i 1 = 20 A/m 2 to i 2 = 40 A/m 2 . By what factor does the hydrogen-generation rate change?
Forecast: "more protection = safer" is the intuitive answer. Guess whether the hydrogen supply goes up or down.
Step 1 — name the coupled reaction. Why? Suppressing the anode forces the electrons somewhere; the only reaction available in acidified crack-tip water is hydrogen evolution. So more protection current means more hydrogen at exactly the crack tip.
Step 2 — relate current to hydrogen using Faraday. Why the same Faraday law? Atoms of H produced ∝ charge passed ∝ current i (identical logic to the mass in Example 6, just counting H instead of dissolved metal). Therefore the hydrogen-rate ratio is simply the current ratio:
n ˙ H , 1 n ˙ H , 2 = i 1 i 2 = 20 40 = 2
Step 3 — the punchline. Why this is a failure, not a fix? Doubling the "protection" current doubles the hydrogen injected into an 1800 MPa lattice — trading a slow dissolution problem for a faster embrittlement one. The correct practice is controlled potential, not maximal current.
Verify: factor = 2 confirmed in VERIFY. Consistency with Example 8: more H in ⇒ need longer bake or lower stress — the two hydrogen cells tell one coherent story.
Recall Self-test (cover the answers)
Which matrix cell asks you to invert the K formula? ::: Cell E — solve a c = π 1 ( K I S C C / Y σ ) 2 .
Why divide the Faraday mass-rate by density? ::: (g/m²·s)/(g/m³) = m/s — it converts metal removed into crack-tip depth per time.
In Cell I, doubling cathodic current does what to hydrogen supply? ::: Doubles it — more "protection" can embrittle high-strength steel.
At a → 0 what does K do, and why is the part still not permanently safe? ::: K → 0 , but pitting can initiate a new flaw that grows into Cell A.
Mnemonic The matrix in one breath
"Above grows, below sleeps, on-the-line trembles, zero waits, invert for the limit, Faraday times it, bake or beware."
