Foundations — Stoichiometric vs fuel-rich vs fuel-lean combustion

This page assumes you know nothing beyond counting atoms. We build every symbol the parent note (parent topic) throws at you, from the ground up, in an order where each piece rests on the one before.

---

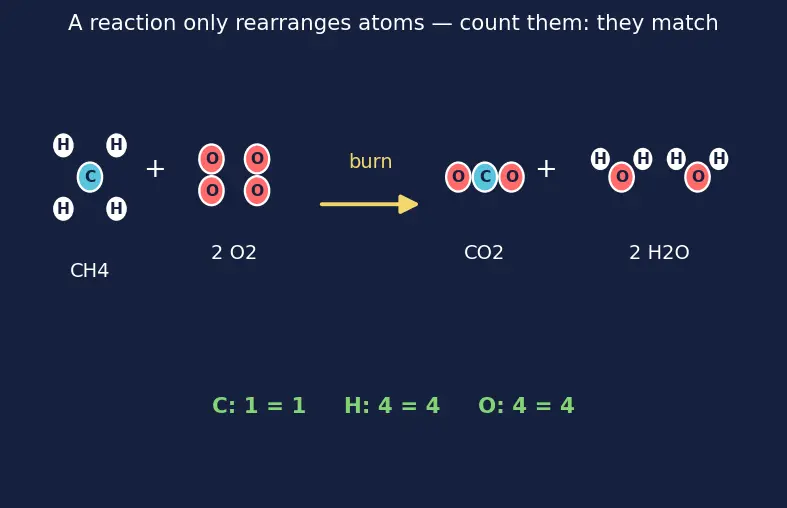

0. What is a chemical reaction, in pictures?

Before any formula: a reaction just rearranges atoms. Nothing is created or destroyed — the same little balls (atoms) that go in must come out, only clumped differently.

---

1. The molecule symbols: $C_x{H}_y$, $O_2$, $C{O}_2$, $H_{2}O$

Why the letters $x$ and $y$? We don't want to redo the algebra for methane, then octane, then diesel. Writing $C_x{H}_y$ means "any hydrocarbon: put $x$ carbons and $y$ hydrogens". Choose $x=1,y=4$ and you have methane $C{H}_4$; choose $x=8,y=18$ and you have octane. One derivation, every fuel.

---

2. The coefficient $a$ and subscript $\frac{y}{2}$ — the big numbers out front

The parent writes: $C_x{H}_y+a{O}_2\to xC{O}_2+\frac{y}{2}{H}_{2}O$

Let us earn every number here, one balance at a time.

Carbon balance (WHAT/WHY/PICTURE). Left side has $x$ carbons (inside $C_x{H}_y$). Every carbon must end up in a $C{O}_2$. So we need exactly $x$ copies of $C{O}_2$. That is the coefficient $x$ on the right.

Hydrogen balance. Left side has $y$ hydrogens. Each $H_{2}O$ holds 2 hydrogens. To place $y$ hydrogens into water molecules we need $y÷2=\frac{y}{2}$ of them. That is where the fraction $\frac{y}{2}$ is born — it is not magic, it is "$y$ hydrogens, 2 per bottle".

Oxygen balance → solving for $a$. Now count oxygen atoms on the right: each $C{O}_2$ has 2 (that's $2x$), each $H_{2}O$ has 1 (that's $\frac{y}{2}$). Total right-side oxygen atoms $=2x+\frac{y}{2}$. On the left, oxygen only lives in $a$ copies of $O_2$, i.e. $2a$ atoms. Match them: $2a=2x+\frac{y}{2}\Rightarrow a=x+\frac{y}{4}$

This $a$ is the heart of Combustion Stoichiometry & Balancing. Everything downstream multiplies it.

---

3. Moles $n$ and molar mass $M$ — counting by weighing

You cannot count trillions of molecules by hand. Chemists count them by weight instead, using two linked ideas.

The bridge between them: $\text{mass}=n\times M$

Why we need this. Reactions are counted in molecules (the coefficients $a$, $x$, $\frac{y}{2}$ count molecules), but engineers buy fuel and air in kilograms. $M$ is the translator between "how many molecules" and "how many kilograms". Without it we could never write the Air–Fuel Ratio in kg/kg.

---

4. What "air" is: the 21/79 split and the number 3.76

The reaction only wants the $O_2$. But you cannot suck in oxygen without dragging its nitrogen roommate along. For every 1 mole of $O_2$ you inhale, you also inhale: $\frac{79}{21}=3.76\text{ mol }{N}_2$

So one "packet of air" that delivers 1 mol $O_2$ actually contains $1+3.76=4.76$ mol of gas total.

The mean molar mass of air, $28.96$ g/mol, is just the weighted average: $0.21\times 32+0.79\times 28\approx 28.96$ (oxygen weighs 32, nitrogen 28 per mole).

---

5. AFR — the master ratio

Now every ingredient exists, we can assemble the parent's headline quantity.

Why a ratio and not just "how much air"? Because doubling the size of your engine doubles both fuel and air; the ratio stays the same. The ratio captures the chemistry, independent of engine size.

The special value where air is exactly right — no leftover fuel, no leftover $O_2$ — is written ${\text{AFR}}_{\text{st}}$ (the subscript "st" = stoichiometric).

This is exactly the recipe used in Limiting Reagent reasoning: when air is short, oxygen becomes the limiting ingredient and combustion stalls at $CO$.

---

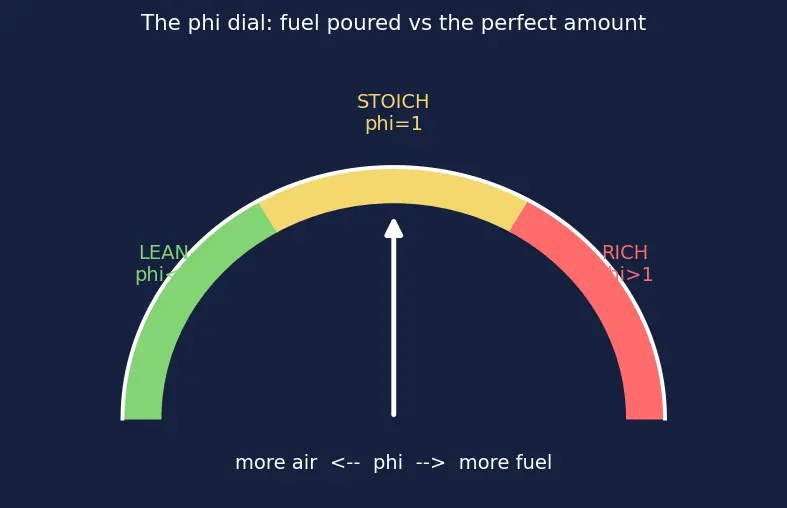

6. $\varphi$ — the dimensionless dial, and its inverse $\lambda$

Raw AFR changes from fuel to fuel (17.2 for methane, 15.1 for octane). We want one dial that reads the same "meaning" for every fuel. That dial is $\varphi$ (the Greek letter phi).

Its cousin is the excess-air factor $\lambda$ (Greek lambda), simply the upside-down $\varphi$: $\lambda =\frac{1}{\varphi }=\frac{{\text{AFR}}_{\text{actual}}}{{\text{AFR}}_{\text{st}}}$ $\lambda =1.25$ means "125% of the needed air", i.e. 25% excess air. Engineers who think in terms of air surplus prefer $\lambda$; those thinking in fuel surplus prefer $\varphi$. They are the same information, flipped.

---

7. How the foundations feed the topic

Every arrow is a dependency: you cannot understand $\varphi$ (bottom) until you have ${\text{AFR}}_{\text{st}}$, which needs $a$, which needs balancing, which needs conservation of atoms (top). This is the ladder — climb it in order.

---

8. Worked micro-check (numbers you can trust)

---

Equipment checklist

Test yourself — cover the right side, answer, then reveal.
