Vitamins — fat-soluble (A, D, E, K) vs water-soluble (B-complex, C): Worked examples

Everything here rests on one chain you must be able to recite (built in the parent from Solubility — like dissolves like):

The scenario matrix

Think of every vitamin question as landing in exactly one of these case classes. Our job is to cover them all. First, see the matrix as a picture — its two axes and where each case sits:

Figure — Vitamins — fat-soluble (A, D, E, K) vs water-soluble (B-complex, C)

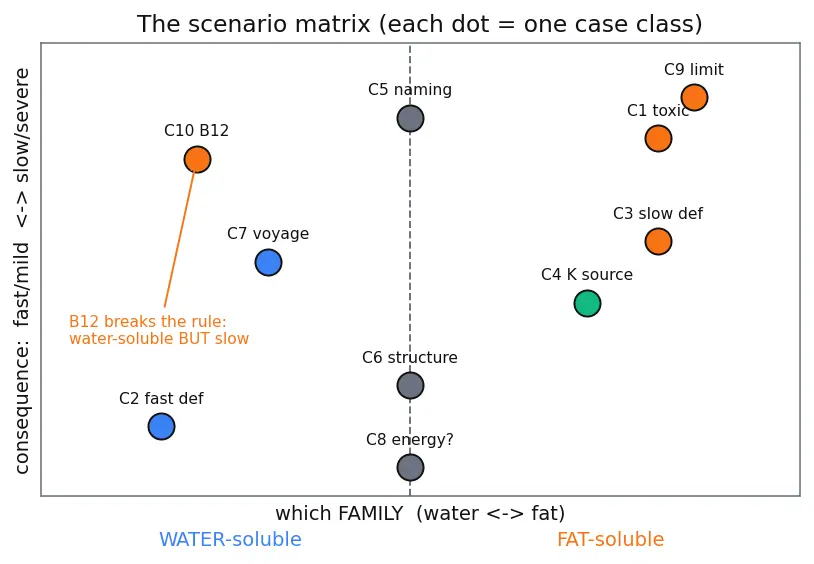

Figure 1 — The scenario matrix as a 2-D grid. Horizontal axis = which family (water-soluble ↔ fat-soluble); vertical axis = which consequence (toxicity, deficiency speed, source, structure, limiting behaviour). Each labelled dot is one case class C1–C10; the orange B₁₂ dot deliberately sits on the "water" side but high up in the "slow" region, showing it breaks the default rule.

#	Case class	What it tests	Covered by
C1	Toxicity / overdose	Which family accumulates?	Example 1
C2	Fast-onset deficiency	Water-soluble, not stored	Example 2
C3	Slow-onset deficiency	Fat-soluble, stored buffer	Example 3
C4	"Degenerate" input: gut bacteria removed	Vitamin K special source	Example 4
C5	Match chemical name ↔ family	Naming trap	Example 5
C6	Solubility from structure	Predict family from polar groups	Example 6
C7	Real-world word problem	Voyage / diet reasoning	Example 7
C8	Exam twist: "vitamins give energy?"	Coenzyme vs fuel	Example 8
C9	Limiting case: infinite intake	What is the ceiling per family?	Example 9
C10	Rule-breaking edge case	Water-soluble BUT stored (B₁₂)	Example 10

The two "axes" of this matrix are: which family (fat vs water) and which consequence (storage, toxicity, deficiency speed, source, structure). Every example below labels its cell.

Example 1 — C1: Toxicity / overdose

Worked example A gym-goer swallows 20× the recommended dose of a supplement daily for months and develops liver damage and high blood calcium. Was the culprit vitamin more likely fat-soluble or water-soluble? Name a candidate.

Forecast: Guess before reading — fat or water? And why does "months" matter?

Step 1 — Identify the key clue. "Builds up over months" + "high blood calcium". Why this step? Accumulation over time is the signature of storage. Water-soluble excess would have left in urine within a day, so it cannot pile up.

Step 2 — Apply the chain. Storage ⇒ fat-soluble family (A, D, E, K). Why this step? Only the fat-soluble family dissolves into liver/fat and stays; that is the only way a dose can accumulate to a toxic level (hypervitaminosis).

Step 3 — Pick the candidate from the symptom. "High blood calcium" points to Vitamin D (calciferol regulates Ca²⁺ absorption). Excess D → too much Ca²⁺ pulled into blood → hypercalcaemia.

Verify: Sanity check the logic direction — if it were water-soluble, 20× dose would just make expensive urine, no accumulation, no toxicity. The presence of toxicity forces the fat-soluble branch. ✓ Answer: fat-soluble, Vitamin D.

Example 2 — C2: Fast-onset deficiency

Worked example A person eats zero fruit or fresh vegetables for

6 weeks and gets bleeding gums. What vitamin, and why did it appear so fast? Forecast: Which vitamin? And would a fat-soluble deficiency show up this quickly?

Step 1 — Read the symptom. Bleeding gums + poor wound healing → Vitamin C (ascorbic acid), needed to build collagen (see Enzymes and Coenzymes for how it assists collagen-forming enzymes). Why this step? Collagen is the "glue" of gums and blood-vessel walls; no C ⇒ weak glue ⇒ bleeding.

Step 2 — Explain the speed. C is water-soluble ⇒ not stored ⇒ body reserves run out in weeks. Why this step? The chain says "not stored ⇒ fast onset". Six weeks fits perfectly.

Verify: Contrast — a fat-soluble vitamin (A, stored in liver) can take months to years to deplete. The 6-week timescale is only consistent with a water-soluble vitamin. ✓ Answer: Vitamin C, scurvy.

Example 3 — C3: Slow-onset deficiency

Worked example A toddler is kept indoors with no sunlight and a poor diet. Bone deformities (rickets) appear only after

many months. Which vitamin, and why the delay? Forecast: Fast or slow onset — and what does that tell you about its family?

Step 1 — Symptom → vitamin. Rickets (soft, bending bones) → Vitamin D (calciferol) deficiency. Why this step? D drives calcium absorption for bone hardening; no D ⇒ weak bones.

Step 2 — Explain the delay. D is fat-soluble ⇒ stored in liver/fat ⇒ there is a reserve to burn through before symptoms show. Why this step? The chain says "stored ⇒ slow onset". A stored buffer delays deficiency by months.

Step 3 — Note the sunlight clue. Skin makes D from sunlight; no sun plus poor diet removes both sources. Why this step? We must confirm the deficiency is real and not just dietary — because D is unusual in having a second source (sunlight), a question could try to trick you by supplying sun. Here both routes are blocked, so the deficiency is genuinely forced.

Verify: The "many months" timescale is the fingerprint of a fat-soluble vitamin's storage buffer — inconsistent with water-soluble (which would deplete in weeks). ✓ Answer: Vitamin D, rickets.

Example 4 — C4: Degenerate input (gut bacteria removed)

Worked example A patient on broad-spectrum antibiotics for 3 weeks starts bruising and bleeding longer than normal. Which vitamin, and why does an antibiotic cause a

vitamin problem? Forecast: How can a drug that kills bacteria cause a vitamin deficiency?

Step 1 — Symptom → vitamin. Prolonged bleeding / bruising → clotting failure → Vitamin K (phylloquinone) deficiency. Why this step? Bruising and slow bleeding mean the blood is not clotting properly; Vitamin K is required to synthesise prothrombin, a clotting protein. So a clotting failure points straight back to K's job in making that protein — the symptom is the fingerprint of missing K.

Step 2 — Trace the unusual source. Some Vitamin K is made by gut bacteria, not just eaten. Why this step? This is the "degenerate input" case — a non-dietary source exists. Antibiotics kill the gut bacteria ⇒ that internal factory shuts down ⇒ K supply drops.

Verify: Units/logic check — less K ⇒ less prothrombin ⇒ slower clotting ⇒ longer bleeding time. The causal arrow is unbroken. ✓ Answer: Vitamin K.

Example 5 — C5: Name ↔ family matching (the naming trap)

Worked example Match each chemical name to its vitamin letter AND its family: retinol, ascorbic acid, tocopherol, calciferol.

Forecast: Which of these four is the odd one out by solubility?

Step 1 — Recall the pairings (built in the parent Biomolecules note):

Retinol → A → fat-soluble
Calciferol → D → fat-soluble
Tocopherol → E → fat-soluble
Ascorbic acid → C → water-soluble Why this step? The classic trap is confusing "C = retinol". Pair name + family together to break it.

Step 2 — Spot the odd one out. Ascorbic acid (C) is the only water-soluble one here. Why this step? Isolating the outlier is what the question actually rewards — three names cluster in the fat-soluble family, so naming the single water-soluble one proves you sorted by solubility (the real classifier) and not by alphabet.

Verify: Count check — the fat-soluble set is exactly {A, D, E, K} ("All Dogs Eat Kibble"). Three of the four names given (retinol, calciferol, tocopherol) sit in that set; ascorbic acid does not. ✓

Example 6 — C6: Predict solubility from structure

Worked example Molecule X is a long hydrocarbon chain ending in a fused ring, with

no –OH, –COOH, or –NH₂ groups. Molecule Y is a small ring carrying several –OH groups and a –COOH. Predict each vitamin's family. Forecast: Which one dissolves in oil, which in water?

Look at the two structures below (schematic).

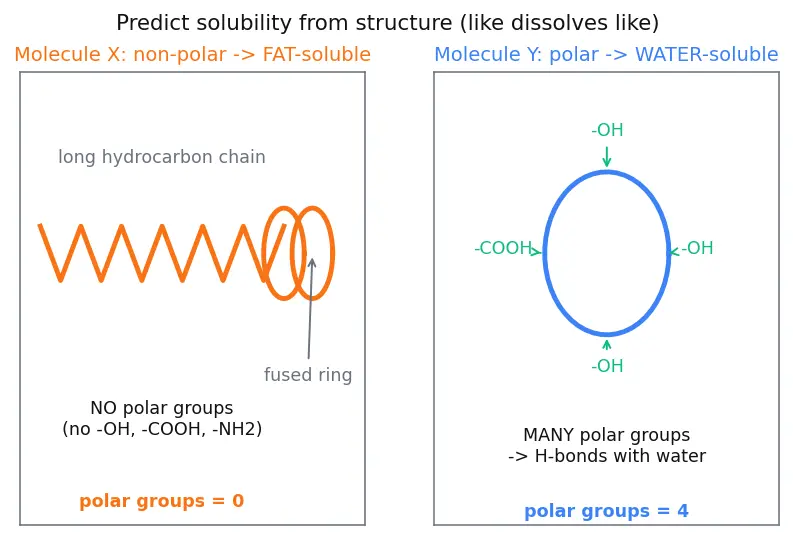

Figure 2 — Left: Molecule X, a long non-polar hydrocarbon chain ending in fused rings, carrying zero polar groups → hides in fat. Right: Molecule Y, a small ring studded with several –OH groups and a –COOH → hydrogen-bonds with water. The count of polar groups (0 vs 4) is the deciding feature.

Step 1 — Apply "like dissolves like" (from Solubility — like dissolves like). Why this step? Solubility is governed by polarity matching: polar groups (–OH, –COOH, –NH₂) form hydrogen bonds with water; long non-polar chains cannot, so they hide in fat. This principle is the whole engine of vitamin classification, so we start every structure question here.

Step 2 — Molecule X. Long hydrocarbon + ring, no polar groups ⇒ non-polar ⇒ dissolves in fat ⇒ fat-soluble (structurally like A/D/E/K's isoprenoid/steroid skeletons — see Lipids). Why this step? With zero polar groups there is nothing to hydrogen-bond with water, so the only "like" environment left is fat; we classify X by what it cannot do (bond water) as much as what it can.

Step 3 — Molecule Y. Many –OH + –COOH ⇒ polar, strong H-bonding ⇒ water-soluble (like ascorbic acid, C — a sugar-acid, cf. Carbohydrates). Why this step? Each –OH and –COOH is a hydrogen-bond hook; four of them anchor the molecule firmly into water, so the polar count directly forces the water-soluble verdict.

Verify: Count polar groups: X has 0 → fat; Y has 4+ → water. The prediction follows directly from group count, no memorisation needed. ✓

Example 7 — C7: Real-world word problem (the voyage)

Worked example On an 8-week sea voyage a crew eats only salted meat and dried biscuits (no fresh produce). Gums bleed by week 6, but no one shows night blindness. Explain both facts.

Forecast: Why does one deficiency appear but not the other?

Step 1 — Bleeding gums. ⇒ Vitamin C (water-soluble, not stored) runs out in ~6 weeks. Matches C2.

Step 2 — No night blindness. Night blindness = Vitamin A (retinol) deficiency. A is fat-soluble ⇒ stored in the liver ⇒ the crew's liver reserves last far longer than 8 weeks, so symptoms don't appear yet. Why this step? This is the payoff of the whole matrix: the same diet triggers a water-soluble deficiency but not a fat-soluble one, purely because of storage.

Verify: Timescales: C reserve ≈ weeks (matches week-6 onset); A reserve ≈ months (exceeds 8 weeks). Both observations are consistent with the storage chain. ✓

Example 8 — C8: Exam twist — "vitamins give energy?"

Example 9 — C9: Limiting case — infinite intake

Worked example Push each family to its limit: if a person took an

unbounded daily dose, what happens to blood/tissue levels of (a) a water-soluble vitamin and (b) a fat-soluble vitamin over time? Forecast: Which one has a "ceiling" and which one keeps climbing?

The graph below tracks tissue level versus time for both families under constant high dosing.

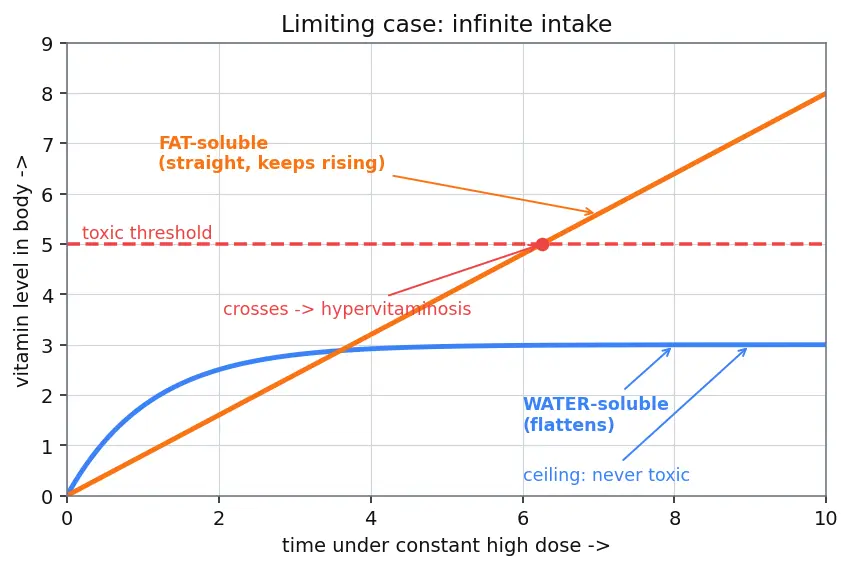

Figure 3 — Tissue level vs time under constant high dosing. The lower solid curve marked "WATER-soluble" rises then flattens to a plateau (labelled "ceiling") — it never reaches the red dashed toxic line. The upper straight line marked "FAT-soluble" climbs without limit and crosses the toxic threshold. Each curve is directly text-labelled on the plot, and the two are distinguished by shape (flattening vs straight-rising), not colour alone.

Step 1 — Water-soluble (the curve that flattens to a plateau). Excess leaves in urine each day ⇒ level rises to a plateau (a ceiling) and then stays flat no matter how much more you take. Why this step? The kidneys filter and dump surplus water-soluble vitamin every day; the more you take, the more is excreted, so intake and loss balance at a fixed level. That balance point is the plateau — it is self-limiting, which is exactly why toxicity is rare.

Step 2 — Fat-soluble (the straight line that keeps rising). Excess is stored, not excreted ⇒ level keeps climbing with no natural ceiling ⇒ eventually crosses the toxic threshold (red dashed line) ⇒ hypervitaminosis. Why this step? There is no daily dumping mechanism for fat-soluble vitamins — each surplus molecule is tucked into fat and stays. With losses near zero, intake simply piles up without limit, so the line rises straight through the toxic threshold.

Verify: The two curves diverge exactly as the master chain predicts: bounded (water) vs unbounded (fat). The water curve $3 (1 - e^{- 0.9 t})$ flattens to a limit of $3$ (below the toxic line at $5$ ), while the fat line $0.8 t$ crosses $5$ at $t = 6.25$ . ✓

Example 10 — C10: The rule-breaking edge case (B₁₂)

Worked example A strict vegan with no B₁₂ supplement develops pernicious anaemia only after

~3 years. B₁₂ is water-soluble — so why did deficiency take years, not weeks? Forecast: By the default rule (water-soluble ⇒ fast deficiency) you would expect weeks. What breaks it?

Step 1 — Symptom → vitamin. Pernicious anaemia → Vitamin B₁₂ (cyanocobalamin), water-soluble B-complex member. Why this step? Pernicious anaemia is the textbook fingerprint of B₁₂ deficiency, so the symptom pins the vitamin before we even reason about timescale.

Step 2 — Confront the paradox. Default rule predicts fast onset, but reality is years. Why this step? Naming the contradiction is the whole point of an edge case — it forces you to find which assumption failed.

Step 3 — Locate the broken assumption. The rule assumes "water-soluble ⇒ not stored". But B₁₂ is stored in the liver for years, bound to carrier proteins, so its reserve depletes slowly. Why this step? Once you see the storage assumption is what bends, the "years" timescale becomes fully consistent — a slow, fat-soluble-style deficiency in a water-soluble vitamin.

Verify: Timescale check: B₁₂ liver store ≈ years, so a 3-year onset is expected; contrast Vitamin C (no store) ≈ weeks. B₁₂ is the documented exception to "water-soluble ⇒ not stored". ✓ Answer: Vitamin B₁₂, stored in liver.

Recall

Recall Which case class is each fingerprint?

Symptom builds up over months + high calcium ::: C1 toxicity — fat-soluble (Vitamin D) Bleeding gums after 6 weeks of no fruit ::: C2 fast deficiency — Vitamin C Rickets after many months indoors ::: C3 slow deficiency — Vitamin D (stored buffer) Bleeding after 3 weeks of antibiotics ::: C4 gut-bacteria source — Vitamin K A curve that keeps climbing forever under high dose ::: C9 fat-soluble, no excretion ceiling Water-soluble vitamin whose deficiency still takes years ::: C10 Vitamin B₁₂ (stored in liver)
