Foundations — Lipids — fatty acids, triglycerides, phospholipids; saponification

Before you touch the parent note Lipids, you need to be able to read every squiggle it throws at you. This page builds each symbol from absolute zero — no prior chemistry notation assumed. We go slow, one idea at a time, and every symbol is earned before it is used.

0. The very first symbols: what a chemical formula even means

A molecule is a group of atoms stuck together. We write it with letters for atoms and small numbers for counts.

So ${\text{H}}_2\text{O}$ is the picture of one oxygen atom holding two hydrogen atoms — water.

WHY do we need this? Because the whole topic is about counting atoms before and after a reaction. If you can't read ${\text{H}}_2\text{O}$, you can't see that "3 waters are released" — the single most-tested fact in the chapter.

Figure s01 (below) draws ${\text{H}}_2\text{O}$ as balls-and-sticks: one big red oxygen ball in the middle, two smaller blue hydrogen balls, each joined by a white bond line. The yellow labels point out that the subscript $2$ counts the two hydrogens while the lone oxygen (no subscript) is a single atom. Read the picture and the formula together — they say the same thing.

1. Bonds, skeletal drawings, and bond multiplicity

Atoms connect by bonds — shared pairs of electrons that act like glue. We draw a bond as a line between two atoms.

The skeletal (line-angle) drawing convention

Chemists get tired of writing every $\text{C}$ and $\text{H}$, so they use a shorthand picture called a skeletal or line-angle drawing.

WHY does the topic care about single vs double? Because a locked double bond can force a permanent bend into a fatty acid chain (the "kink"). That bend is a big reason many oils are liquid while many fats are solid. The notation $\text{C=C}$ is how you spot where a bend might live on paper.

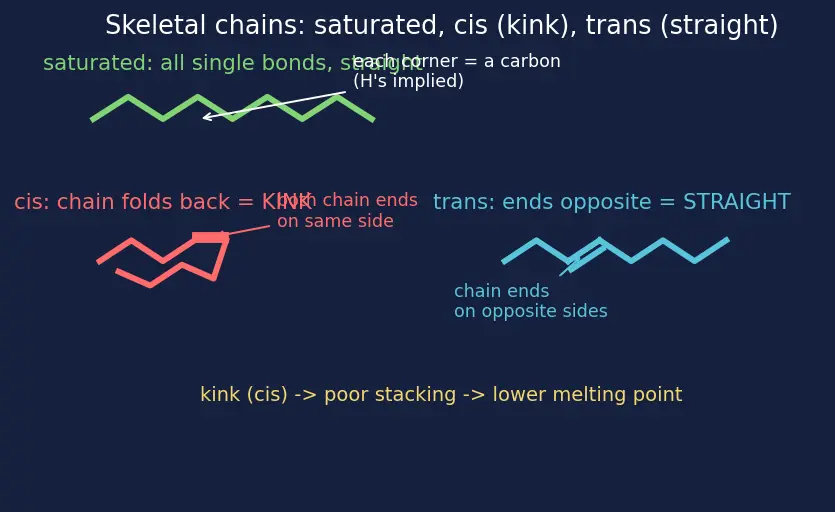

Figure s02 (below) contrasts three zig-zag skeletal chains: a green straight chain (all single bonds) that stacks neatly like raw spaghetti; a red cis chain whose double bond folds it into a hairpin; and a blue trans chain whose double bond keeps it essentially straight. Watch how only the red one refuses to stack.

2. The two "heads" you must recognise: –OH and –COOH

Chemistry has recurring little clusters of atoms called functional groups. Two of them run this whole topic.

WHY these two specifically? Because the central bond of the whole chapter — the ester bond — is made by joining an $\text{–OH}$ to a $\text{–COOH}$. Every triglyceride, every fat, every soap reaction is these two groups meeting. If you can't spot them in a formula, you can't see where the reaction happens.

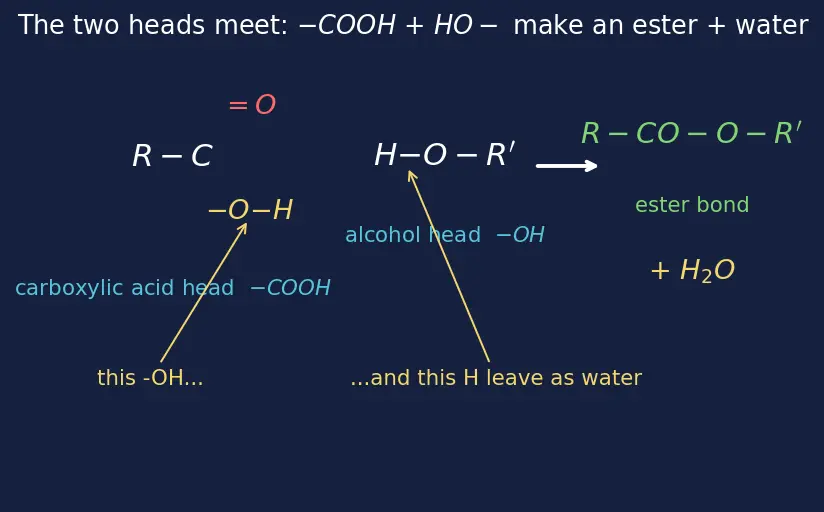

Figure s03 (below) stages that meeting: on the left an acid head $\text{R–COOH}$ (its reactive $\text{–OH}$ marked in yellow), in the middle an alcohol ${\text{H–O–R}}^{\prime }$, and a white arrow to the right showing the green ester product ${\text{R–CO–O–R}}^{\prime }$ plus a yellow ${\text{H}}_2\text{O}$. The two yellow arrows trace exactly which $\text{–OH}$ and which $\text{H}$ leave together as that water. This is the reaction you'll see three times over in a triglyceride.

3. The letter $\text{R}$ — the "boring part" placeholder

Fatty acids have a long chain of carbons and hydrogens that is chemically dull — it just sits there being greasy. Rather than redraw 17 carbons every time, chemists abbreviate the whole tail as a single letter.

WHY use a placeholder? Because the tail never changes what the reaction does — only the head reacts. Writing $\text{R}$ lets us focus on the head chemistry without drowning in carbons. When the parent note writes ${\text{R–COO}}^{-}{\text{Na}}^{+}$, the $\text{R}$ is the same greasy tail; only the head became a salt.

4. Charges and the plus/minus superscripts

Sometimes an atom or group carries an electric charge, shown as a small raised $+$ or $-$.

WHY does the topic need charges? Because soap is a salt. In saponification the acid head loses its $\text{H}$ (becoming ${\text{RCOO}}^{-}$) and pairs with sodium (${\text{Na}}^{+}$). The charge is why soap dissolves its head-end in water — charged things love water. No charge notation, no understanding of why soap cleans.

5. Reaction arrows: →, ⇌, and what "+" means

A chemical equation is a sentence: reactants → products.

WHY both arrows matter here: Esterification (building the fat) is written with $\rightleftharpoons$ because it can reverse. Saponification uses $⟶$ because the base traps the product as a salt so it can't go back. The parent note's claim "saponification goes to completion" lives entirely in the shape of the arrow.

6. Glycerol's shorthand and the whole-triglyceride formula

Now we can assemble the big formulas the parent note uses.

WHY the bracket-with-subscript? It's pure compression: instead of writing three identical ester arms, we write one and multiply. Reading it back, you unfold it into three tails — which is exactly why "3 waters" and "3 NaOH" appear everywhere.

7. The fatty-acid shorthand $18:0$ and $18:1$

WHY compress it this way? Those two numbers predict melting behaviour well: bigger first number → longer chain → higher melting point; bigger second number → more cis kinks → lower melting point. Two digits carry most of the structure→property story (the cis/trans detail from §1 fine-tunes it).

Prerequisite map

The diagram below is a flow chart: read each arrow as "you need the box it starts from before the box it points to." Everything funnels rightward into the two hinges of the chapter — the ester bond and the salt — which then feed the parent topic. If you can trace a path from any starting box all the way to "Parent topic Lipids," you have the prerequisites in the right order.

In words, the same map reads: reading formulas → understanding bonds (and skeletal pictures) → recognising the $\text{–OH}$/$\text{–COOH}$ heads and the placeholder $\text{R}$ → building the ester bond; separately, charges → soap-as-salt; and the double bond splits into the cis/trans branch that decides melting point. All roads meet at triglycerides, saponification and the colon shorthand, which together are the parent topic.

Equipment checklist

Test yourself — cover the right side. If you can answer all, you're ready for the parent note.
