This page assumes nothing. Every arrow, letter, and squiggle the parent note uses is built here from the ground up, in the order you need them.


0. The atom of it all — carbon's four hands

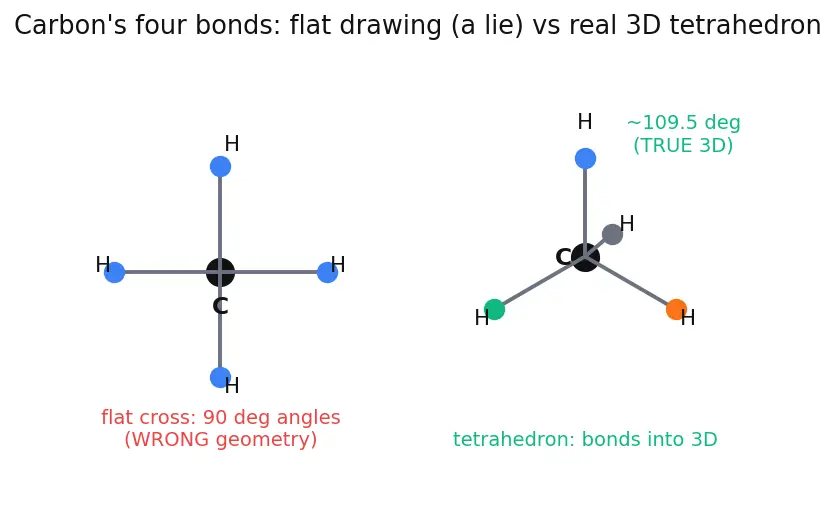

Look at the figure. On the left carbon is drawn flat with four sticks — convenient but a lie about the geometry. On the right is the truth: the four bonds splay out at ~109.5° into 3D space.

Figure — Carbohydrates — classification (mono - di - polysaccharides), Fischer - Haworth projections, mutarotation, glycosidic bo

Why the topic needs this: the carbonyl group (next section) is a C=O double bond, and the whole idea of a "chiral centre" (§4) needs carbon's four different attachments in 3D.

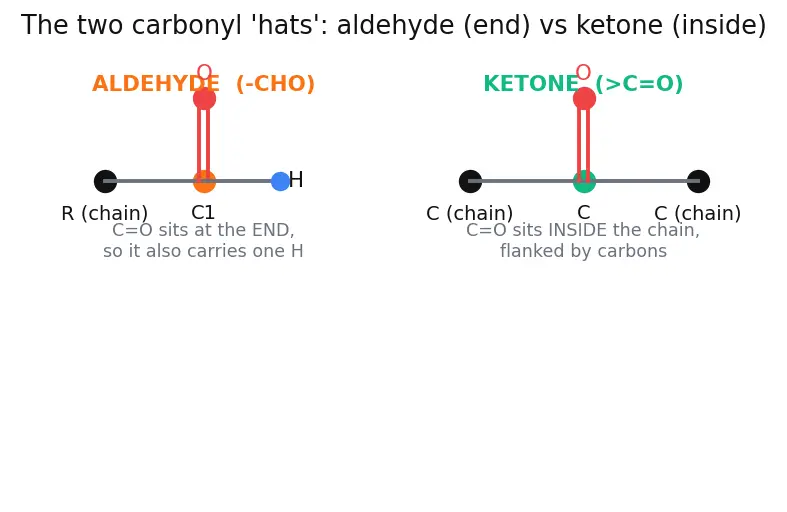

1. The two "hats" — the hydroxyl and the carbonyl

Figure — Carbohydrates — classification (mono - di - polysaccharides), Fischer - Haworth projections, mutarotation, glycosidic bo

2. Counting carbons and reading a sugar's name

Why the topic needs this: the two-word code is the entire naming system for monosaccharides. Once you can read "aldohexose", classification (§ parent's Section 1) is trivial.


3. Chains, numbering, and the C1…C6 labels

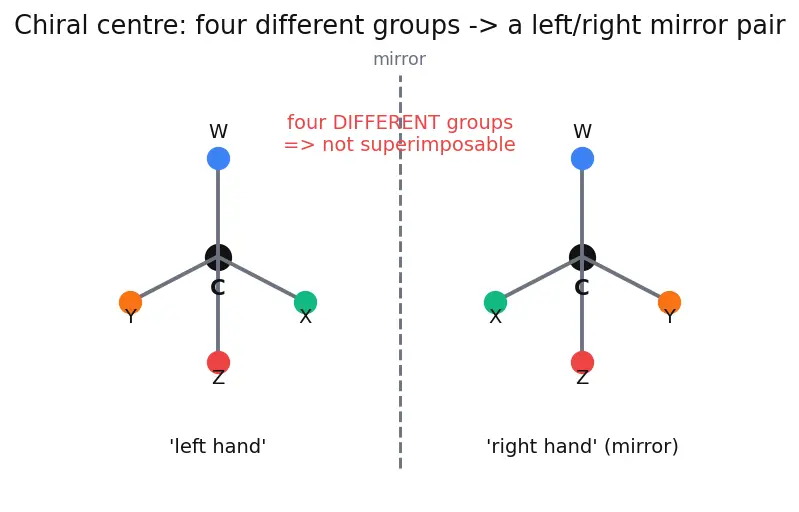

4. Mirror images, handedness, and the chiral centre

This is the heart of the chapter. Take your time.

Figure — Carbohydrates — classification (mono - di - polysaccharides), Fischer - Haworth projections, mutarotation, glycosidic bo

5. Optical rotation — how we see handedness in the lab


6. Hemiacetal & acetal — the reaction that builds rings and bonds


7. The joining arrow and water bookkeeping


How these foundations feed the topic

Carbon four bonds in 3D

Chiral centre four different groups

C=O carbonyl and -OH hydroxyl

Aldose vs ketose naming

Enantiomer diastereomer epimer anomer

Optical rotation and specific rotation

Hemiacetal ring formation

Anomeric carbon and alpha beta

Glycosidic bond acetal

Mutarotation

Condensation and hydrolysis water bookkeeping

Mono di poly classification

Read it top-down: the four bonds of carbon split into "which groups?" (giving names) and "different groups?" (giving handedness). Handedness feeds the stereo-vocabulary and optical rotation; the hydroxyl+carbonyl pair feeds ring formation, which creates the anomeric carbon that powers α/β, mutarotation, and glycosidic bonds — and those, via water bookkeeping, give the final mono/di/poly classification.


Equipment checklist

Recall Am I ready? (hide answers, test each)

How many bonds does carbon form, and in what shape? ::: Four bonds, pointing to the corners of a tetrahedron (3D, ~109.5°). What does a single line "–" and a double line "=" between atoms mean? ::: One shared electron pair vs two shared pairs (a stronger, non-rotating bond). What is a hydroxyl group and what is polyhydroxy? ::: –O–H attached to carbon; polyhydroxy means many –OH groups. Difference between an aldehyde (–CHO) and a ketone (>C=O)? ::: Aldehyde C=O is at the chain end (also holds an H); ketone C=O is internal. What does "aldohexose" tell you? ::: Aldehyde-type carbonyl + 6 carbons (e.g. glucose). Where does carbon numbering start in glucose and why? ::: At the –CHO end (C1), so addresses like "α(1→4)" have meaning. What makes a carbon a chiral centre? ::: It carries four different groups, so its mirror image is a distinct molecule. Enantiomer vs diastereomer vs epimer vs anomer? ::: Mirror at every centre / differ at some centres / differ at exactly one / differ at the anomeric C1. What does measure and what do + and − mean? ::: Specific optical rotation in degrees; + clockwise, − anticlockwise twist of polarised light. Why is a changing rotation evidence of a chemical change? ::: Each anomer has a fixed rotation, so drift means α⇌β interconversion (mutarotation). What is a hemiacetal and how does it make the anomeric carbon? ::: –OH adds across C=O, giving a carbon with both –OH and –OR; the old carbonyl C becomes a new chiral centre. What is a glycosidic bond in one line? ::: The C–O–C bridge joining two sugars, formed when an anomeric –OH condenses with another –OH. Condensation vs hydrolysis water bookkeeping? ::: Condensation loses one H₂O to form a bond; hydrolysis adds one H₂O to break it.
