Foundations — Cyanides and isocyanides

Before you can read a single line like $R-C\equiv N$, you must be able to read each mark in it. Below, every symbol and idea the parent note leans on is unpacked from absolute zero, in the order that lets each one stand on the shoulders of the one before.

1. Atoms, and why we draw them as letters

The picture: think of each atom as a coloured bead. In this whole topic there are only three kinds of bead you must track — a carbon bead, a nitrogen bead, and hydrogen beads.

Why the topic needs it: the entire cyanide/isocyanide story is a story about one carbon bead and one nitrogen bead and the order they are strung. If you cannot tell the two beads apart, nothing later makes sense.

2. The bond — a shared pair of dots

The picture: two beads with a short stick between them. Each end of the stick "belongs" a little to both beads — that stick is the shared pair.

Why the topic needs it: carbon and nitrogen in these molecules reach their octet by sharing three pairs at once. Understanding that a line = one shared pair lets you count electrons, which is the only way to get the charges right later.

3. Single, double, triple bonds and the $\equiv$ symbol

The picture: one stick, two sticks, three sticks between the same pair of beads. Three sticks pull the beads very close and very hard.

Why the topic needs it: both a cyanide and an isocyanide contain a carbon–nitrogen triple bond, $C\equiv N$. That triple bond is the fixed skeleton; only its attachment point changes. The symbol $\equiv$ appears in every formula on the parent page.

4. Lone pairs and the two dots :

The picture: two dots parked on the surface of a single bead, not on a stick between beads.

Why the topic needs it: the terminal carbon of an isocyanide carries a lone pair. That parked pair is what makes isocyanides reactive and smelly, and it is why the carbon there behaves so strangely. If you ignore lone pairs you cannot count charge — see §7.

5. What "$R$" means — the stand-in group

The picture: a grey blob with one free hand sticking out, ready to grab one bead. The blob doesn't care about its own internal detail; only its one connecting hand matters here.

Why the topic needs it: the whole punchline of the topic is "does $R$'s hand grab the carbon bead or the nitrogen bead?" So $R$ must be understood as a group with exactly one point of attachment.

6. Connectivity — the ONE idea that splits the topic

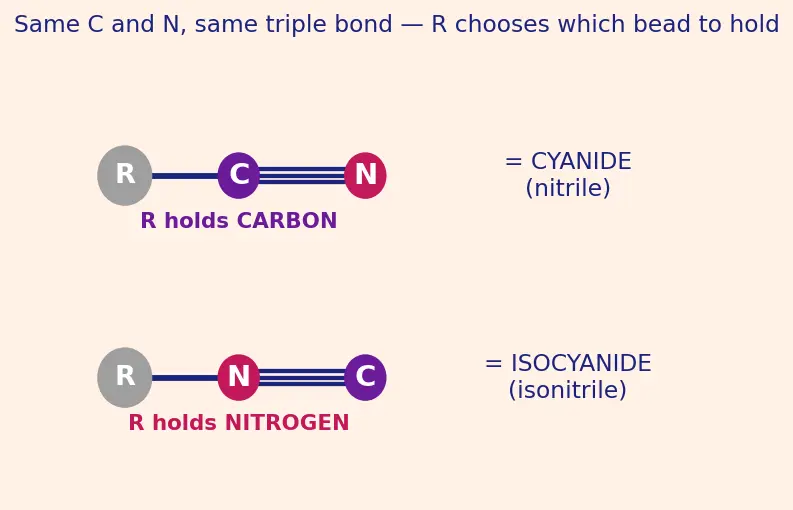

The picture: the same two beads, same triple stick — but the grey $R$-blob's hand lands on the left bead in one drawing and the right bead in the other. Look at which bead the blob touches; that is the only difference.

Why the topic needs it: every downstream fact (smell, hydrolysis, reduction) is just this fork carried forward. See Alkyl halides and SN2 substitution for how $R$'s hand gets placed, and HSAB principle for why it lands where it does.

7. Formal charge — the bookkeeping that gives $+$ and $-$

The picture: a tiny accountant sits on each atom, counts the dots it fully owns plus half of every shared pair, and compares to what the atom "should" own. A surplus means $-$; a shortfall means $+$.

Let us run the accountant on the isocyanide $H_{3}C-N\equiv C$:

• Nitrogen: valence $5$, lone electrons $0$, bonding electrons $8$ (one line to $R$ = 2, plus triple bond = 6). $5-0-\frac{1}{2}(8)=5-4===+1==$.
• Terminal carbon: valence $4$, lone electrons $2$ (it keeps one lone pair), bonding electrons $6$ (only the triple bond). $4-2-\frac{1}{2}(6)=4-2-3===-1==$.

So the honest structure is $R-\stackrel{+}{N}\equiv \stackrel{-}{C}:$ — nitrogen is short one electron ($+1$), the terminal carbon is over by one ($-1$) and clings to a lone pair.

Why the topic needs it: the $+$ on N and $-$ on the terminal C are exactly what the parent note draws, and they explain the divalent "carbene-like" carbon and the foul reactivity of isocyanides. You cannot understand the isocyanide's personality without this count.

8. The arrow symbols $⟶$ and $\to$

The picture: a one-way street sign. Left of the arrow = what you start with; right = what you end with; the label on top = the tool you used to make the trip.

Why the topic needs it: every preparation and reaction on the parent page is written as starting stuff ⟶(reagent) products. Reading the label correctly (is it $KCN$? $AgCN$? $H_3{O}^{+}$?) is how you predict the product.

9. Nucleophile & "ambident" — the two-handed attacker

The picture: a two-headed snake; either head can bite. Whichever head is free to strike is the one that bonds to $R$.

Why the topic needs it: this is the mechanism behind the KCN-vs-AgCN split. The reasoning about which end attacks uses HSAB principle, and the substitution step itself is an SN2 reaction. Downstream, the products connect to Amines preparation and properties, Carboxylic acids, Carbylamine reaction and Amides and dehydration.

The prerequisite map

Every arrow points toward the parent topic Cyanides and isocyanides: atoms feed bonds, bonds feed the triple bond and lone pairs, those feed connectivity and formal charge, and together they define the two molecules.

Equipment checklist

Tick each only when you can answer without peeking.
