Foundations — Diazonium salts — preparation, Sandmeyer, Gattermann, coupling reactions (azo dyes)

Before you can read a single reaction arrow in the parent note, you must own the alphabet it is written in. Below is every symbol, group, and idea the topic assumes — each in plain words, then as a picture, then why the topic cannot live without it. Read top to bottom; each rung stands on the one below it.

1. The benzene ring — what "Ar" means

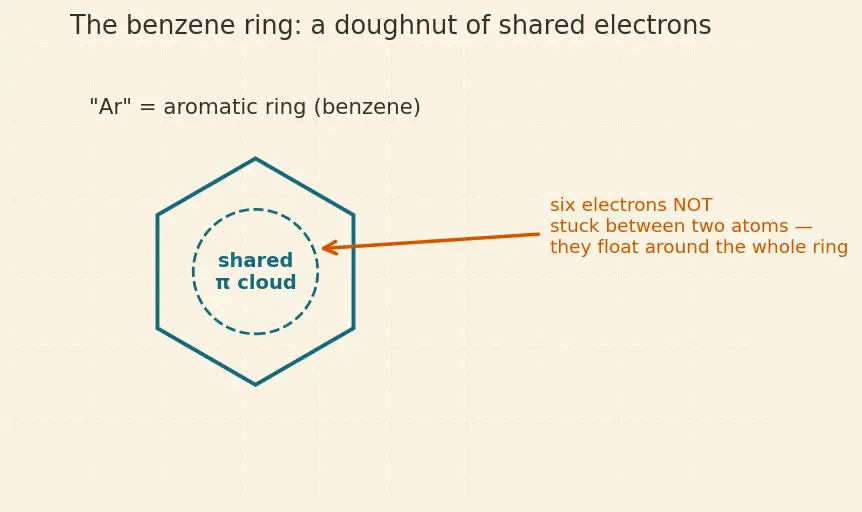

Picture it (figure below): a hexagon of six carbons. The circle in the middle is the "electron cloud" — six π-electrons that are not stuck between two atoms but float around the whole ring like a doughnut of charge.

Why the topic needs it: that shared electron cloud is what lets the ring share out a positive charge placed on a neighbouring atom. That sharing (resonance) is the single reason an aromatic diazonium salt survives at all while an aliphatic one blows up instantly.

Prerequisite deep-dives on the ring itself: Aromatic Amines — Aniline and Electrophilic Aromatic Substitution.

2. The amine group $-N{H}_2$ and the arrow of "primary"

Picture it: a nitrogen dangling off the ring, holding two little H's and one lone pair (two dots) pointing away. Those two dots are electrons available to attack something.

Why the topic needs it: the whole story starts here. That lone pair is the nucleophile that attacks the nitrosonium ion in step one. Only a primary amine has the right number of H's to end up as $-\stackrel{+}{N}\equiv N$ after two of them are stripped off. Secondary/tertiary amines take different, non-diazonium paths.

3. Lone pairs, nucleophiles, electrophiles — the push and pull

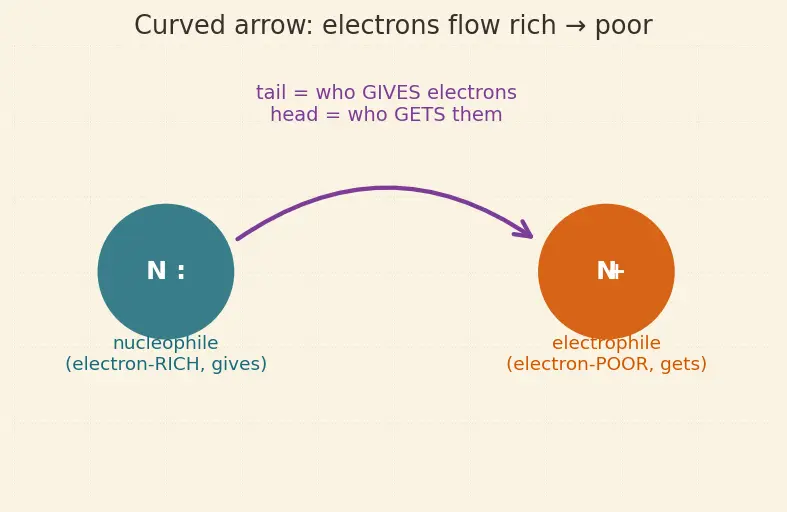

Picture it (figure below): a curved arrow always starts at a lone pair or bond (the electron source) and points to where the electrons go (the electron-poor atom). The tail = "who gives", the head = "who gets".

Why the topic needs it: every mechanism arrow in the parent — amine attacking $N{O}^{+}$, an aryl radical grabbing a halogen, a phenol ring attacking a diazonium — is one of these pushes. If you cannot read "electron-rich attacks electron-poor," the arrows are gibberish.

4. The charge symbols: $\stackrel{+}{N}$, $C{l}^{-}$, and the triple bond $\equiv$

Picture it: two nitrogens gripped by a fat triple bond, a "+" hovering on the ring-side N, and a lonely $C{l}^{-}$ nearby like a magnet's opposite pole. The triple bond is why, once it leaves as $N_2$, it never wants to come back — $N_2$ is one of the most stable molecules in existence.

Why the topic needs it: "$N_2$ is a fantastic leaving group" is the parent's headline. It is fantastic because of that triple bond and neutral charge. The "+" is what makes the group a leaving group in the first place — positive charge on a bond primed to snap.

5. Resonance — how the ring babysits the "+"

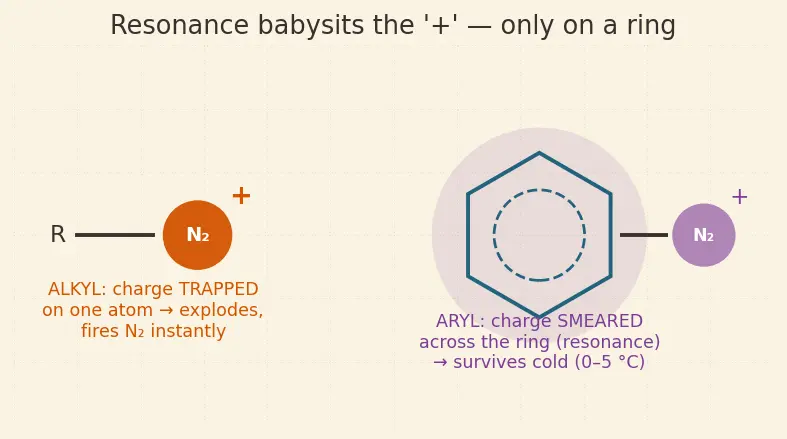

Picture it (figure below): left panel — an alkyl $-N_2^{+}$ with the "+" bottled on one atom (an angry red dot). Right panel — an aryl $-N_2^{+}$ with the "+" smeared as a faint glow all around the hexagon.

Why the topic needs it: this is the answer to "why do we keep it at 0–5 °C and why does it only work for aromatic amines." Resonance buys just enough stability to survive cold; warm it and even the ring can't hold it together (→ phenol).

More on how ring substituents feed or drain this cloud: Activating and Directing Groups.

6. The reaction arrow and its overhead labels

Why the topic needs it: the same two rings can become a halide, a phenol, or a dye depending only on what sits over the arrow (CuBr vs warm water vs mild NaOH). The overhead label is the difference between three different chapters of the story.

7. Radical vs ionic — two ways a bond can break

Picture it: a bond is two dots between atoms. Cut it down the middle → one dot each (radical). Cut it to one side → one atom gets both dots (ion).

Why the topic needs it: the Sandmeyer/Gattermann reactions run through an aryl radical (Ar•) made when copper hands the diazonium one electron. Coupling, by contrast, is a normal ionic electron-pair push. Knowing which is which tells you why one loses $N_2$ (radical, fires the booster) and the other doesn't (ionic, keeps the bridge). Compare pathways in Nucleophilic Substitution vs Radical Substitution.

8. Conjugation, chromophore, and "colour"

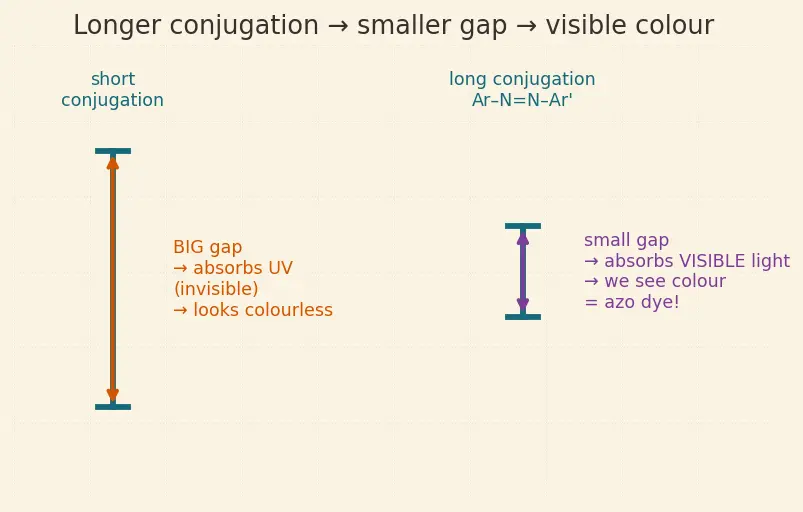

Picture it (figure below): a short conjugated chain absorbs high-energy (UV, invisible) light — big energy jump. A long conjugated chain (like the azo dye's Ar–N=N–Ar′) has a small energy jump, small enough to grab visible light → we see colour.

Why the topic needs it: azo dyes are the payoff of the whole chapter. "Why is it coloured?" is answered entirely by conjugation length shrinking the HOMO→LUMO gap into the visible band. Full treatment: Conjugation and Colour — Chromophores.

9. o/p-directing and pH — where and how the coupling happens

Why the topic needs it: coupling lands at para because that's the most activated, least crowded spot. And the reaction only works in a narrow pH window: too acidic protonates an amine (kills the ring's richness), too basic destroys the fragile diazonium. See Phenols — Reactions for how $O{H}^{-}$ upgrades phenol to the far more reactive phenoxide.

Prerequisite map

This map feeds straight into the parent, Diazonium Salts.

Equipment checklist

Test yourself — you are ready when you can answer each without peeking.
