Carboxylic acids — acidity, derivatives (acid chlorides, anhydrides, esters, amides), Hell-Volhard-Zelinsky, esterificat: Visual walkthrough

We build the parent's central result — **why $R\text{-}COOH$ is far more acidic than an alcohol** — from absolute zero.

Step 1 — What a bond, a proton, and "acidity" actually mean

WHAT. A chemical bond is just a shared pair of electrons — two negatively-charged electrons sitting between two atomic nuclei, gluing them together. An acid is a molecule that can hand away a hydrogen nucleus — a bare proton, written $H^{+}$ — while leaving both bonding electrons behind.

WHY start here. Every symbol later ( $O^{-}$ , the curved arrows, resonance) is only bookkeeping for where those two leftover electrons go. If you see the electrons, you never memorise anything.

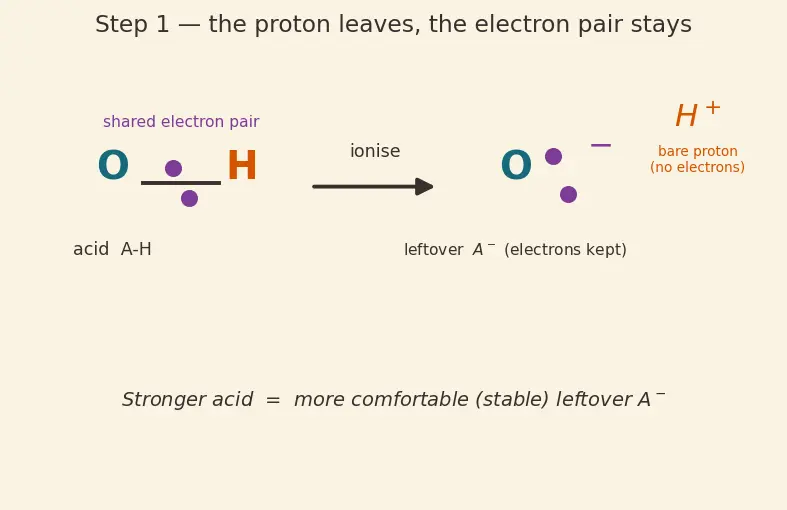

PICTURE. Look at the left cartoon: an oxygen ( $O$ ) and a hydrogen ( $H$ ) share a pair of dots (the electrons). When the acid "ionises", the $H$ leaves as $H^{+}$ — a naked nucleus, no dots — and the dot pair stays on the oxygen. That oxygen is now electron-rich: it carries an extra negative charge, drawn $O^{-}$ .

Figure — Carboxylic acids — acidity, derivatives (acid chlorides, anhydrides, esters, amides), Hell-Volhard-Zelinsky, esterificat

Step 2 — Two rival molecules: alcohol vs. carboxylic acid

WHAT. We set up a fair fight. On the left, an alcohol $R - O - H$ : a carbon chain ( $R$ ) attached to one oxygen attached to one hydrogen. On the right, a carboxylic acid $R - C (= O) - O - H$ : the same $O - H$ , but now the oxygen is bolted onto a carbon that already holds a second, double-bonded oxygen (the $C = O$ , called the carbonyl).

WHY these two. They differ by exactly one extra oxygen next door. If the acid turns out far stronger, that one neighbour must be the entire cause — nothing else changed. Clean experiment.

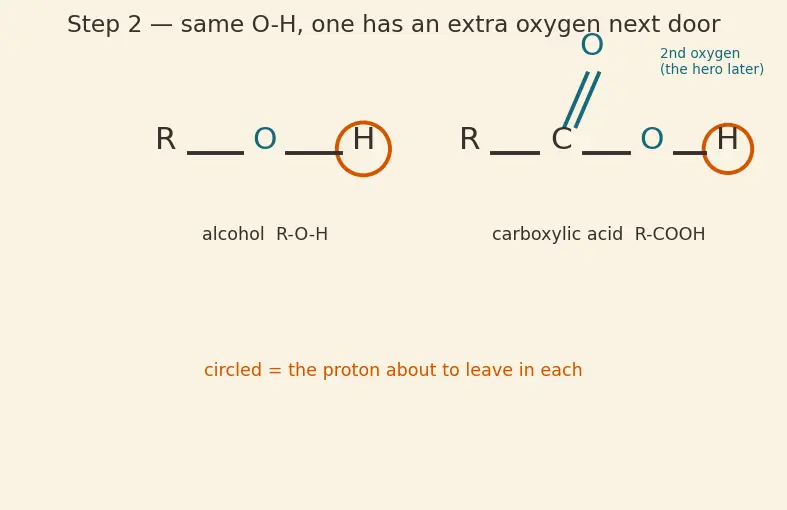

PICTURE. Both molecules drawn with their $O - H$ proton circled in burnt orange — the proton about to leave in each case. Note the acid's second oxygen sitting to the side (teal), doing nothing yet. Remember it; it is the hero of Step 4.

Step 3 — Let the alcohol lose its proton: the charge gets stuck

WHAT. Rip the proton off the alcohol. We are left with alkoxide $R - O^{-}$ : one oxygen carrying the full negative charge, all by itself.

WHY show the loser first. To feel why the acid wins, you must first feel the acid's rival struggling. The alkoxide has nowhere to put its charge — it is a lump of negative all in one spot.

PICTURE. The negative charge is drawn as a solid plum blob squashed onto the single oxygen. There is no escape route; the electron pair is trapped. High concentration of charge in one place = high energy = unhappy = the reaction did not want to go this way, so it barely goes. Alcohols are weak acids ( $p K_{a} \approx 16$ , a large number).

$R - O - H ⟶ charge stuck on one O R - O^{-} + H^{+} (p K_{a} \approx 16, weak)$

$R - O^{-}$ — the alkoxide, negative charge localised.
$p K_{a} \approx 16$ — a large number; large $p K_{a}$ means the acid is weak (we quantify this in Step 6).

Step 4 — Let the acid lose its proton: the charge spreads out

WHAT. Now rip the proton off the carboxylic acid. We get carboxylate $R - C O O^{-}$ . Here is the magic: the leftover negative charge does not have to sit on one oxygen. That second, double-bonded oxygen next door can take a turn.

WHY this is possible (and it wasn't for the alcohol). The alkoxide had no neighbour to share with. The carboxylate does. The electron pair can slide from one oxygen to the other without moving any atom — only the electrons shift. When the same molecule can be drawn two equally-good ways that differ only in electron position, the truth is the average of both. This averaging is called resonance, and it is the star of the whole page — see Resonance and delocalisation.

How to read the drawings below. We avoid any cramped shorthand and write the carboxylate the plain way, $R - C O O^{-}$ — read left to right as "an $R$ group, a carbon $C$ , then two oxygens $O O$ , and the whole thing carries one minus charge." The two resonance sketches differ only in which of those two oxygens holds the double bond and which holds the minus. The figure draws both fully, with the carbon in the middle and one oxygen branching up, one branching down — lean on the figure; the formula is just its one-line caption.

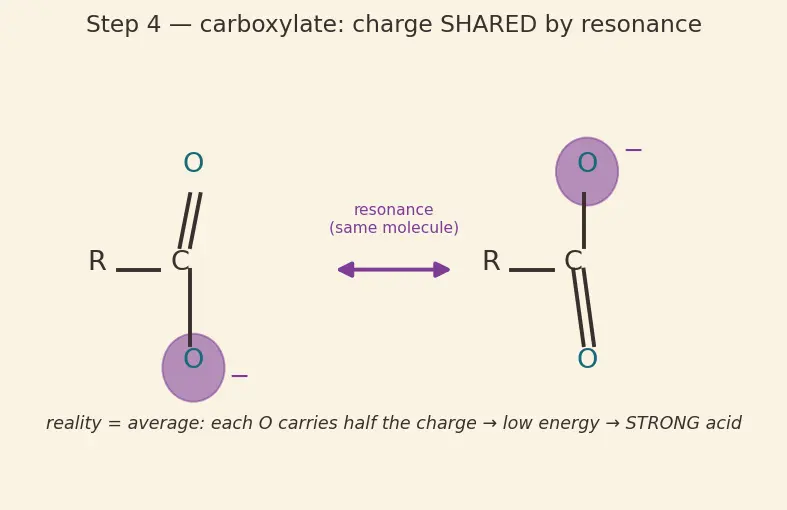

PICTURE. Two drawings joined by a double-headed arrow $\leftrightarrow$ . On the left, the double bond is up and the charge is down; on the right they have swapped. The double-headed arrow does not mean "flips back and forth" — it means "the real molecule is both at once, a blend." The blended charge is drawn as a faint half-blob on each oxygen — half the burden each.

Step 5 — The proof that the average is real: bond lengths

WHAT. If resonance were just artistic bookkeeping, the carboxylate should have one short $C = O$ (double, strong, ~123 pm) and one long $C - O$ (single, ~143 pm). Instead, experiment finds both C–O bonds identical at ~127 pm — right in between.

WHY this matters. This is the moment "resonance" stops being a story and becomes a measured fact. The two oxygens are genuinely equivalent; the double-bond character is shared half-and-half, exactly as the average picture demands. (A picometre, pm, is $1 0^{- 12}$ m — a convenient ruler for atoms.)

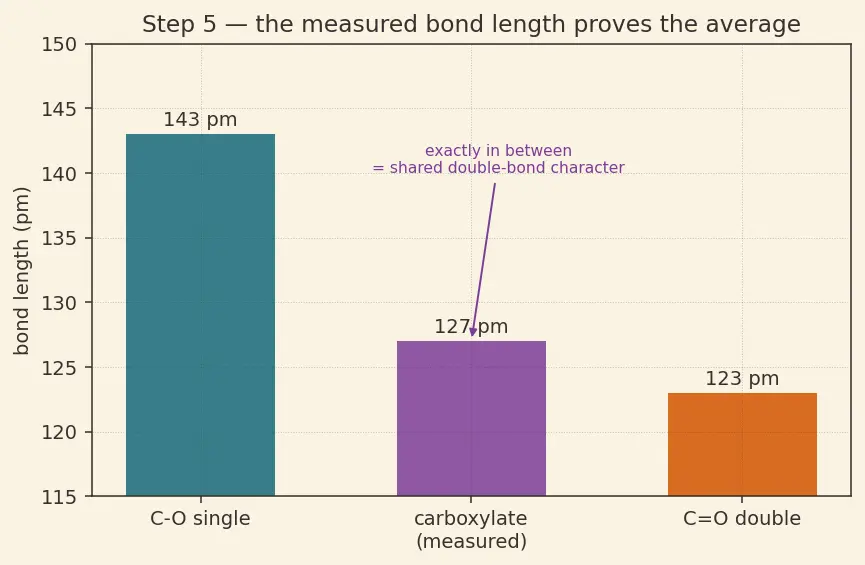

PICTURE. A little bar chart: pure single bond (long, teal), pure double bond (short, orange), and the measured carboxylate bond (plum) sitting exactly between them — the physical fingerprint of a delocalised electron pair.

$C - O single 143 pm > carboxylate (measured) 127 pm > C = O double 123 pm$

Both carboxylate bonds sit at the same intermediate length — neither pure single nor pure double. Delocalisation is real.

Step 6 — Turning "more stable anion" into the number $p K_{a}$

WHAT. We attach a scale to "how comfortable is the anion." Chemists measure the ratio of dissociated to undissociated acid at equilibrium, call it $K_{a}$ , then take a logarithm to get a friendly number $p K_{a}$ .

First, where does the proton actually go? A bare $H^{+}$ never floats around alone in water — it is instantly grabbed by a passing water molecule ( $H_{2} O$ ), which has lone electrons to share. The result is the hydronium ion $H_{3} O^{+}$ (a water molecule that has accepted the extra proton). So "the acid released a proton" and "a hydronium ion $H_{3} O^{+}$ appeared" are the same event; that is why $H_{3} O^{+}$ shows up in the formula below.

Where did water go in the formula? The full equilibrium is $R C O O H + H_{2} O ⇌ R C O O^{-} + H_{3} O^{+}$ , so strictly $[H_{2} O]$ belongs in the denominator too. But water is the solvent — it is present in enormous, essentially unchanging amount — so $[H_{2} O]$ stays effectively constant and is folded into the constant $K_{a}$ . That is why water does not appear explicitly below.

WHY a logarithm, and why the minus sign? $K_{a}$ values span a huge range ( $1 0^{- 16}$ to $1 0^{0}$ ). Raw numbers with sixteen zeros are unreadable, so we compress them with $lo g_{10}$ — the tool built for "how many powers of ten." The extra minus sign flips it so that a stronger acid gets a smaller $p K_{a}$ , matching the thermometer intuition we used since Step 3.

PICTURE. A number line from $0$ to $16$ : trichloroacetic acid near $0.65$ (very strong), acetic acid at $4.76$ , phenol at $10$ , alcohol at $16$ . Arrow labelled "more stable conjugate base ⟶ lower $p K_{a}$ " points leftward. You can literally read the stability off the axis.

Step 7 — Edge case: the substituent dial (electron-pulling neighbours)

WHAT. We now nudge the anion's comfort up or down by attaching a group that pulls electrons through the bonds. Replace an $H$ on the neighbouring carbon with chlorine ( $C l$ ). Chlorine is electron-hungry; it siphons electron density away from the carboxylate, thinning out the negative charge even more.

WHY it strengthens the acid. More spreading = more comfort = more willing to lose the proton. This through-the-bonds tug is the Inductive effect, and — crucially — it fades with distance (it travels through bonds, weakening at each hop).

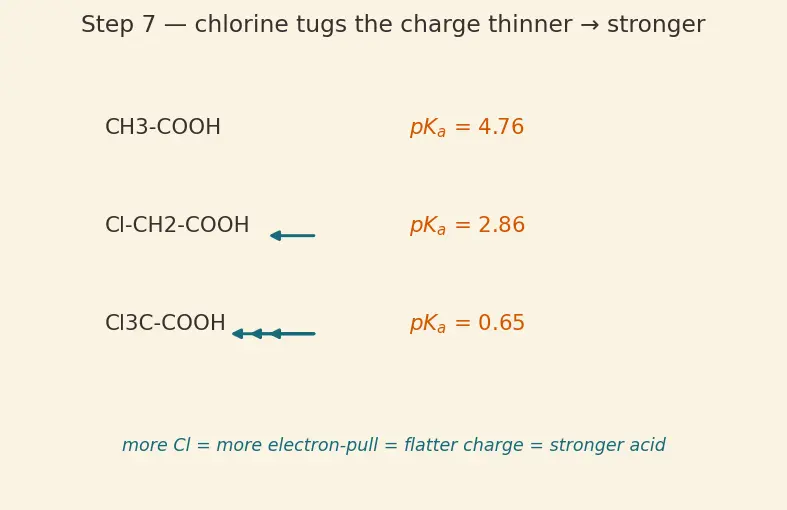

PICTURE. Three acids stacked: acetic ( $p K_{a} 4.76$ ), chloroacetic ( $2.86$ ), trichloroacetic ( $0.65$ ). Little teal arrows show electron density being tugged toward each $C l$ ; more arrows = flatter, happier charge = stronger acid.

Acid	$p K_{a}$	Charge on anion
$C H_{3} C O O H$	4.76	spread over 2 O only
$C l C H_{2} C O O H$	2.86	+1 $C l$ pulls extra
$C l_{3} C C O O H$	0.65	3 $C l$ pull hard — very flat, very strong

Step 8 — Degenerate case: why phenol looks similar but loses

WHAT. Phenol, $C_{6} H_{5} - O H$ , also has resonance in its anion (phenoxide) — the charge spreads into the benzene ring. Yet phenol ( $p K_{a} \approx 10$ ) is thousands of times weaker than a carboxylic acid. Why doesn't resonance save it equally?

WHY it fails to match. In carboxylate the charge lands on oxygen — a very electronegative atom that loves holding negative charge. In phenoxide the charge is forced onto ring carbons, which are far worse at holding it. Same idea (delocalisation), worse landing spots ⟹ less stabilisation ⟹ weaker acid.

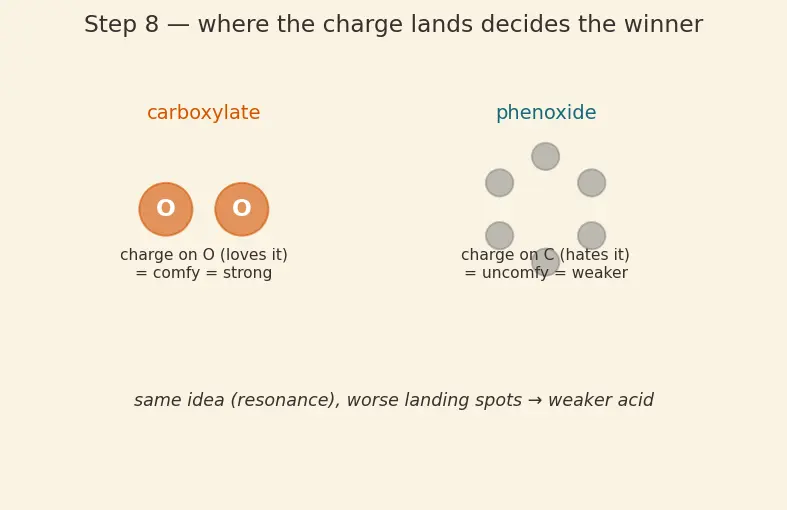

PICTURE. Side by side: carboxylate's charge resting on two orange oxygens (comfortable); phenoxide's charge smeared onto grey ring carbons (uncomfortable). The number of resonance structures is not what counts — where the charge sits is.

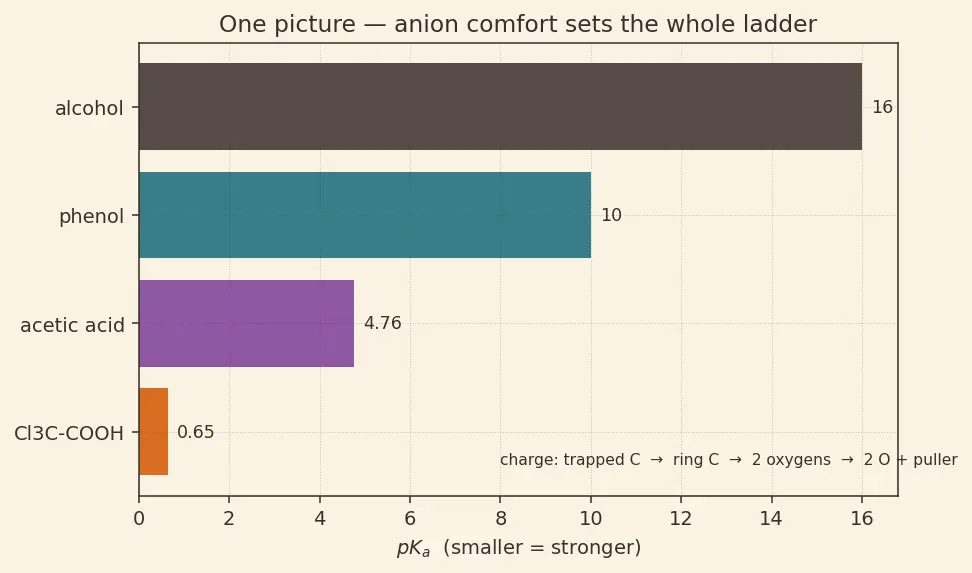

The one-picture summary

Everything collapses into a single spectrum of "how comfortable is the anion after the proton leaves":

Charge trapped on one carbon-ish atom → miserable → weak acid (alcohol, $p K_{a} 16$ ).
Charge on carbons via ring resonance → so-so → medium (phenol, $10$ ).
Charge shared over two oxygens → happy → strong (acetic acid, $4.76$ ).
...and an electron-puller nearby flattens it further → very happy → very strong (trichloroacetic, $0.65$ ).

Recall Feynman retelling — say it back in plain words

Imagine every acid is a person holding a heavy backpack (the negative charge) after handing away a coin (the proton). How willing they are to hand the coin away depends only on how bad the backpack feels afterward.

The alcohol must carry the whole pack on one shoulder — awful — so it clings to its coin (weak acid). The carboxylic acid has a friend right beside it (the second oxygen), so the two of them share the pack, each carrying half — comfy — and it gladly gives the coin away (strong acid). We proved the sharing is real because both straps stretch equally: both C–O bonds measure the same 127 pm.

If you park an electron-hungry neighbour like chlorine next to them, it grabs a corner of the pack too, spreading the weight even thinner — now the acid practically throws its coin at you (trichloroacetic, $p K_{a} 0.65$ ). And phenol? It also shares its pack, but only with clumsy friends (ring carbons) who hate carrying weight, so it is only lukewarm about giving up its coin (medium acid, $p K_{a} 10$ ). Finally we turn "how comfortable" into an actual number with $p K_{a} = - lo g_{10} K_{a}$ : the released proton becomes a hydronium ion $H_{3} O^{+}$ , we measure how much of it forms, and read off the score — smaller number, happier anion, stronger acid.

Recall

Why is a carboxylic acid far more acidic than an alcohol? ::: Its conjugate base (carboxylate) spreads the negative charge over two equivalent oxygens by resonance, lowering the anion's energy; the alkoxide traps the charge on one oxygen. What single experimental fact proves carboxylate resonance is real? ::: Both C–O bonds are equal at ~127 pm — between a single (143 pm) and double (123 pm) bond. Does a smaller $p K_{a}$ mean a stronger or weaker acid? ::: Stronger — the $- lo g_{10}$ turns a large $K_{a}$ (lots of ionisation) into a small $p K_{a}$ . What is the $H_{3} O^{+}$ in the acidity formula? ::: The hydronium ion — a water molecule that has accepted the proton the acid released; a bare $H^{+}$ cannot exist alone in water. Why is phenol weaker than a carboxylic acid despite having resonance? ::: Phenoxide's charge lands on ring carbons (poor at holding negative charge), whereas carboxylate's charge sits on electronegative oxygens. What do the symbols $δ +$ and $δ -$ mean? ::: A partial (fractional) positive or negative charge — an atom that has lost or gained some, not a whole, share of a bonding electron pair. Why is water $[H_{2} O]$ missing from the $K_{a}$ expression? ::: It is the solvent, present in vast constant excess, so its concentration is folded into the constant $K_{a}$ .
