Before you can read the parent note, you need to be able to see every squiggle it writes. This page takes each symbol, gives it a plain-words meaning, draws the picture behind it, and says why the topic needs it. Read top to bottom — each idea is built from the one above, and no symbol is used before the section that defines it.
So now we can write an alcohol precisely: R−O−H reads a carbon group, bonded to an oxygen, bonded to a hydrogen. That is the whole definition of an alcohol.

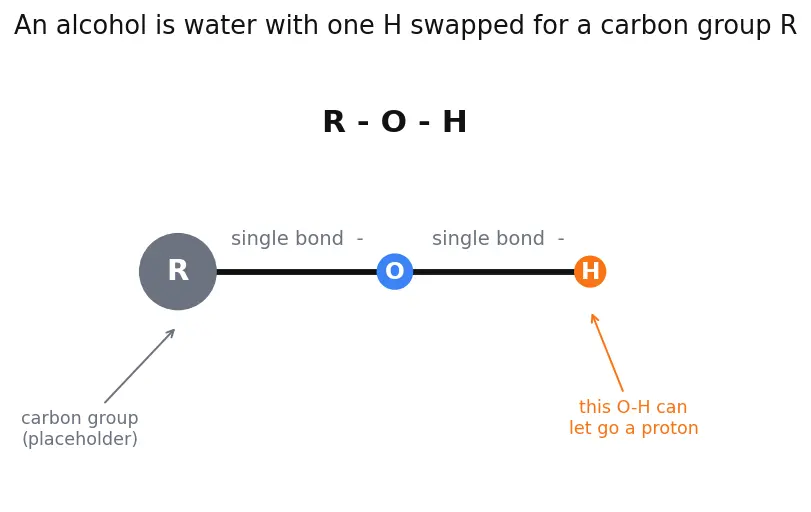

Figure 1 — the anatomy of R−O−H: the grey R blob, the blue oxygen, the orange hydrogen, and the two single bonds joining them. Trace each bond and name it out loud.
We link the fuller story here: Haloalkanes — SN1 and SN2.
Those tiny charges — written δ+ and δ− (the Greek letter delta, meaning "a little bit of") — are why the hydrogen can eventually leave, and why the oxygen can attack other molecules. (When that hydrogen leaves without its electron, it becomes a bare positive particle; we give that particle its own symbol and full definition in section 4.)

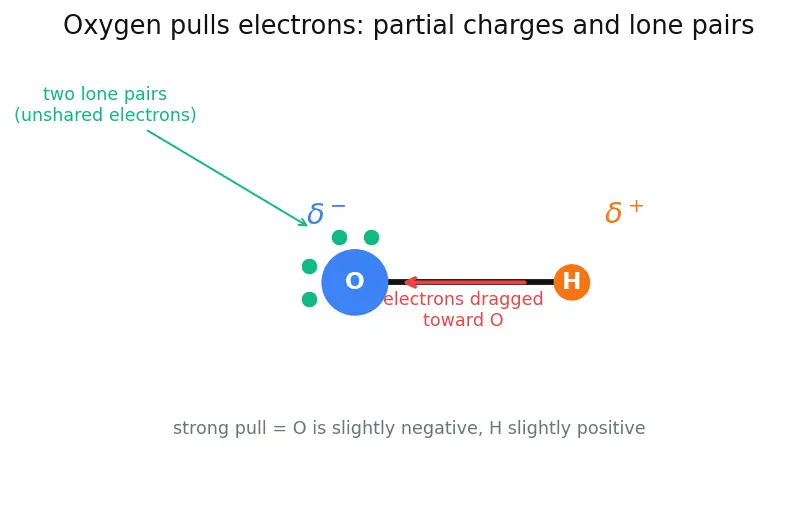

Figure 2 — the tug-of-war: watch the red arrow showing electrons dragged toward oxygen, the resulting δ− / δ+ labels, and the four green dots that are oxygen's two lone pairs. This one picture explains both alcohol acidity and alcohol reactivity.
Recall Why does the whole chapter reduce to "oxygen's two faces"?
The O–H hydrogen makes alcohols acidic; the lone pairs make oxygen a nucleophile and let the carbon be oxidised ::: Because both acidity and reactivity are controlled by that one oxygen atom.

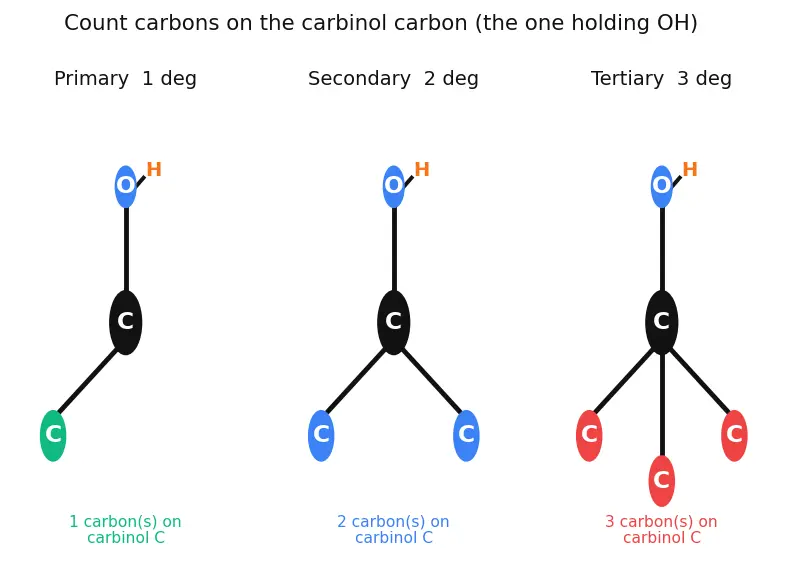

Figure 3 — the three classes side by side: the same carbinol carbon (black) holding OH, surrounded by one, two, or three coloured carbons. Count the coloured balls in each panel.
Why the topic needs this: class decides whether the alcohol oxidises (a 3° carbinol carbon has no C–H left to remove, so it can't) and how fast it reacts in the Lucas test. Hold this picture — half the chapter is just "which class is it?"

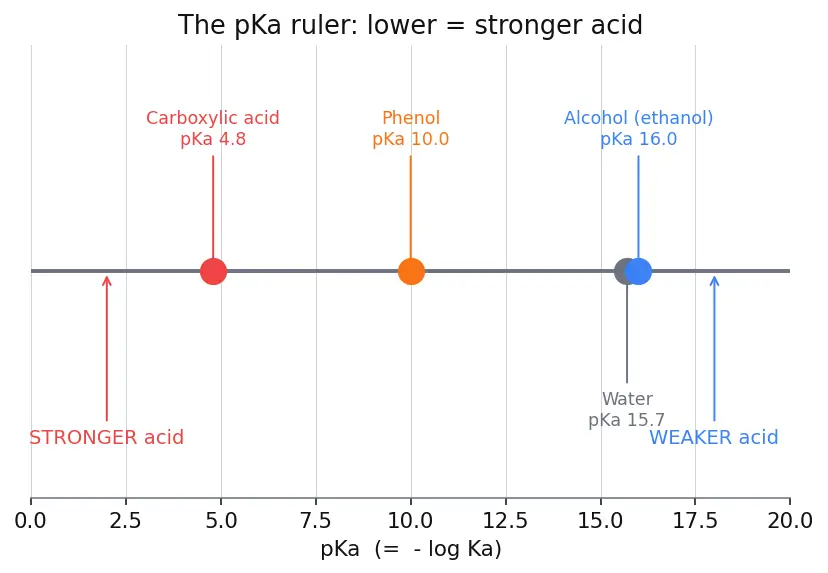

Figure 4 — the pKa ruler: four species pinned to a horizontal scale. Note how the strong acids sit to the left (low pKa) and the weak alcohol sits far right.

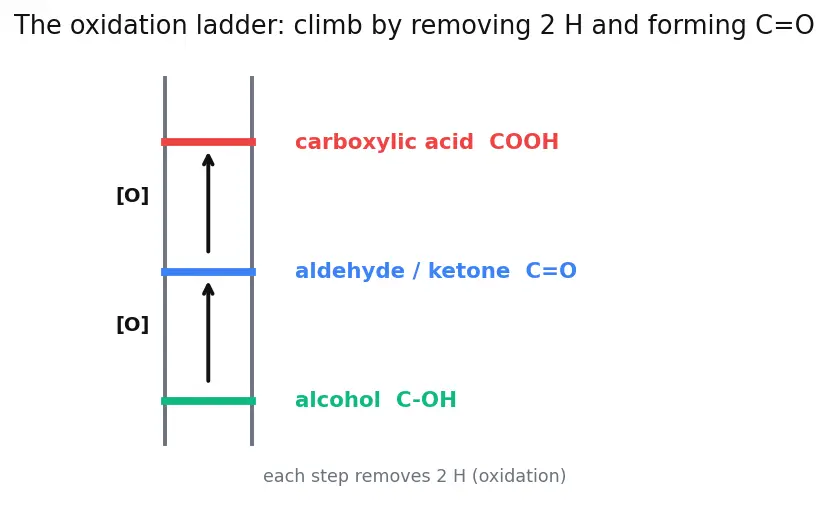

Figure 5 — the oxidation ladder: three coloured rungs (alcohol → carbonyl → carboxylic acid), each labelled with the group and the "−2 H, form C=O" step that climbs it.
The lone-pair oxygen of an alcohol is a nucleophile; the carbonyl carbon and H+ are electrophiles. This one push-pull idea runs Grignard Reagents and Markovnikov and Anti-Markovnikov Addition.
Read this as a stack: the plain-words ideas at the bottom are the bricks; each layer above is built only from the layer below it, until you reach the full Alcohols topic at the top.
Bricks (sections 1–2): the placeholder R, the bond dash −, electronegativity, and lone pairs → these define the molecule R−O−H itself.
From the O–H bond → partial charges → the idea of losing a proton → acidity and the pKa scale (section 5).
From the lone pairs → nucleophile behaviour → building alcohols by attacking a carbonylC=O (section 6).
From counting carbons (section 3) → the oxidation ladder (does it climb?) and the Lucas test / SN1 vs SN2 (how fast does R+ form?).
All four streams meet in the parent Alcohols note.
