4.3.2 · D1Halides and Oxygenated Derivatives

Foundations — Effect of substrate, nucleophile - base, solvent, leaving group

1,927 words9 min readBack to topic

Before you can read the parent note the four control knobs, you must be able to read every symbol on the page like a sentence. This page builds each one from zero — plain words, then a picture, then why the topic needs it.


0. The stage: what is an alkyl halide?

Figure — Effect of substrate, nucleophile - base, solvent, leaving group

Look at the figure. The carbon (slate) sits in the middle. One bond goes to (coral) — that is the bond that will break. The other three bonds go to groups (lavender). Everything in this topic is a story about that one carbon and its four bonds.

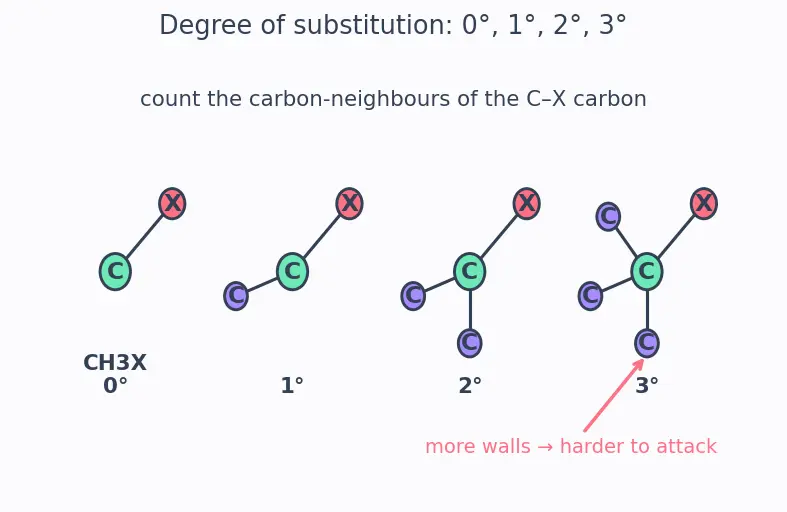

1. Degree of substitution — 1°, 2°, 3° (the little circles)

The little circle symbol ° after a number is read "degree". It counts how many other carbons are attached to the carbon that holds the halogen.

Figure — Effect of substrate, nucleophile - base, solvent, leaving group

2. Charges, arrows, and the "⁺ / ⁻" symbols


3. Nucleophile and Base — the two "attacker" ideas

Figure — Effect of substrate, nucleophile - base, solvent, leaving group

Look at the figure: the same electron pair (mint) can aim at two different targets.

  • Aim at the carbon → substitution (it substitutes for the leaving group).
  • Aim at a hydrogen on the neighbouring carbon → elimination (it plucks off the H and a double bond forms).

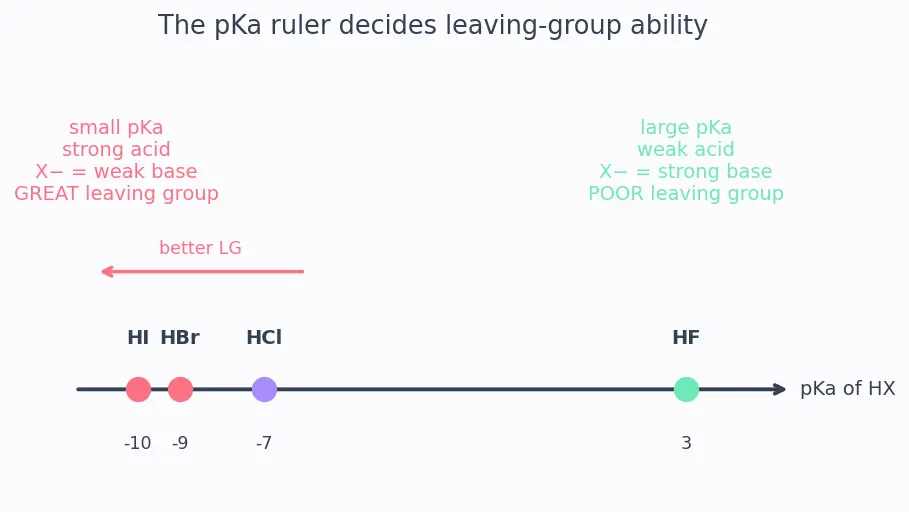

4. pKa, Ka, and "strong vs weak" — the leaving-group ruler

The leaving-group knob rests entirely on one idea: a good leaving group is a weak base. To measure base strength we borrow the acid scale.

Figure — Effect of substrate, nucleophile - base, solvent, leaving group

5. Solvent words: polar, protic, aprotic


6. The mechanism labels: SN1, SN2, E1, E2

You now have every piece to read the answer labels themselves.


The prerequisite map

Alkyl halide R-X

Degree 1 2 3 substitution

C-X bond can break

Carbocation C plus

Steric bulk wall

Charges plus and minus

Nucleophile vs Base

Attack carbon or pluck H

pKa and Ka scale

Leaving group ability

Polar protic vs aprotic

Solvation cage

Four control knobs

SN1 SN2 E1 E2 labels

Read it top-down: the plain molecule splits into the four foundations (crowding, cation, attacker, solvent, leaving group), which feed the four-knob decision, which finally spits out one of the four mechanism labels.


Equipment checklist

Cover the right side and test yourself — you are ready for the parent note only when every line is instant.

What does stand for?
R = any carbon chain (the alkyl part); X = a halogen (the leaving group); the C–X bond is where reaction happens.
What do 1°, 2°, 3° count?
The number of other carbons attached to the carbon that holds the halogen.
What two opposite effects does adding carbons cause?
More steric wall (blocks attack, hurts SN2) AND more stabilisation of a positive charge (helps SN1).
What is a carbocation and how is it written?
A carbon missing one electron, net positive → written ; formed when X leaves with both bond electrons.
Difference between a nucleophile and a base?
Nucleophile attacks carbon (kinetic, "how fast"); base attacks H⁺ (thermodynamic, "how strong").
What does tell you?
Small pKa = strong acid = its conjugate base is a weak, stable base = a good leaving group.
Why is a weak base a good leaving group?
It is content holding the electrons alone, so it walks off and stays off, lowering the transition-state energy.
Protic vs aprotic solvent — one-line difference?
Protic has O–H/N–H and hydrogen-bonds (cages anions); aprotic is polar but has no O–H/N–H (leaves the anion naked).
What do the letters/numbers in SN1, SN2, E1, E2 mean?
S = substitution, E = elimination, N = nucleophilic; number = how many species in the slow step (1 = substrate only, 2 = substrate + attacker).
Which liquid helps SN1, which helps SN2?
Polar protic helps SN1 (stabilises ions); polar aprotic helps SN2 (frees the nucleophile).
