Electrophilic aromatic substitution (EAS) — nitration, halogenation, sulfonation, Friedel-Crafts alkylation - acylation;: Visual walkthrough

We use only ideas from Benzene and aromaticity (Hückel 4n+2 rule), Resonance and delocalization, and Lewis acids and catalysis. Everything else is built below.

Step 1 — Draw the electron cloud (the thing that reacts)

WHAT. Benzene is a flat ring of 6 carbons. Above and below that ring floats a doughnut of 6 shared electrons — the π cloud. "π" (Greek letter pi, said "pie") is just a label chemists use for these loosely-held, sideways-shared electrons.

WHY draw this first. A reaction is electrons moving. Before we move anything we must see where the electrons are. The whole story is: this cloud is electron-rich, so it is a magnet for anything electron-poor. We call an electron-poor attacker an electrophile (Greek: "electron-lover"), written $E^{+}$ — the little $+$ means it carries positive charge and therefore wants electrons.

PICTURE. The green ring is the 6 carbons; the pale-blue halo is the π cloud sitting above and below.

Figure — Electrophilic aromatic substitution (EAS) — nitration, halogenation, sulfonation, Friedel-Crafts alkylation - acylation;

Step 2 — Why NOT just add, like an alkene? (the energy picture)

WHAT. An alkene (a plain $C = C$ ) greedily adds an electrophile across its double bond. Benzene refuses. To see why, we compare two roads on an energy diagram — a graph where up = less stable (more energy), down = more stable.

WHY this tool — an energy diagram. We need to compare two possible products' stabilities, and "stability" just means "how low on the energy graph." A picture of the two heights answers the question instantly, no numbers needed.

PICTURE. The left cliff is the addition road: it ends high because addition breaks the aromatic ring and throws away its special stabilization (the ~ $150 kJ/mol$ resonance/aromatic energy from Resonance and delocalization). The right valley is the substitution road: it dips through a bump but ends low, back at an aromatic ring.

$Δ E_{aromatic} \approx - 150 kJ/mol$

$Δ E$ :: "change in energy," the height dropped. The Greek $Δ$ (delta) always means "change in."
The minus sign :: energy is released — the aromatic ring is a deep, comfortable valley the molecule fights to keep.

Step 3 — Make the attacker: generate $E^{+}$

WHAT. Before the ring can attack, we must hand it something electron-poor. Each reaction cooks up its own $E^{+}$ — but the recipe is always "rip electrons/atoms off a reagent using an acid."

WHY. Neutral reagents ( $H N O_{3}$ , $B r_{2}$ , $R - C l$ ) are not hungry enough. A strong acid (proton acid $H_{2} S O_{4}$ , or a Lewis acid like $A l C l_{3}$ ) tears them into a genuinely positive, genuinely greedy $E^{+}$ .

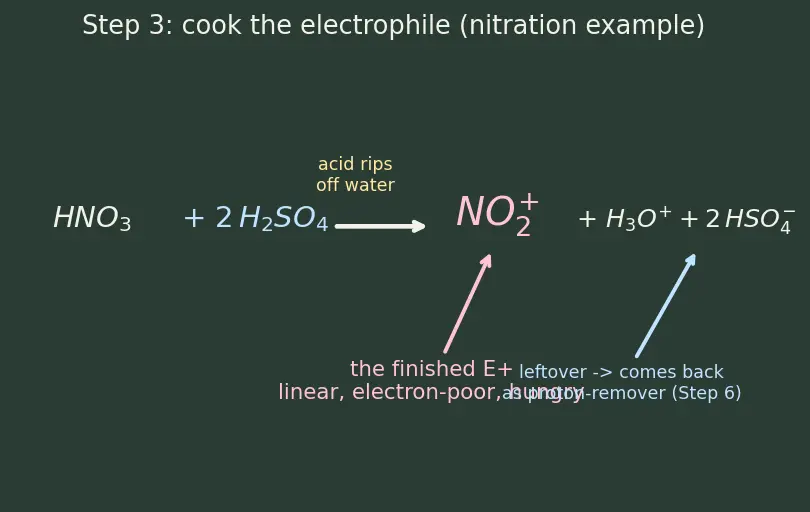

PICTURE. Nitration shown: sulfuric acid protonates nitric acid, water walks off, leaving the linear ==nitronium ion $N O_{2}^{+}$ ==.

$H N O_{3} + 2 H_{2} S O_{4} ⟶ the E^{+} N O_{2}^{+} + H_{3} O^{+} + 2 H S O_{4}^{-}$

$N O_{2}^{+}$ :: the finished electrophile — a nitrogen flanked by two oxygens, missing electrons, hungry.
$H_{3} O^{+}$ :: the water that was pulled out, now carrying the extra proton.
$2 H S O_{4}^{-}$ :: the leftover from sulfuric acid — it comes back later as our proton-remover.

Step 4 — The attack: π cloud grabs $E^{+}$ → the arenium ion (the RDS)

WHAT. Two electrons of the π cloud reach out and bond one ring carbon to $E^{+}$ . That carbon now holds both its old $H$ and the new $E$ — it has four single bonds, so it becomes == $s p^{3}$ == (a plain tetrahedral carbon, no longer part of the flat aromatic ring). The ring is now missing an electron pair, so it carries a $+$ charge. This whole positive creature is the arenium ion (also: σ-complex / Wheland intermediate).

WHY this is the slow step (the RDS). RDS = Rate-Determining Step, the single slowest hurdle that sets the reaction's speed — like the narrowest gate on a road. This step is slow because forming the arenium ion breaks aromaticity (climbing up out of that deep valley from Step 2). Climbing costs energy, so it's the hardest, slowest move.

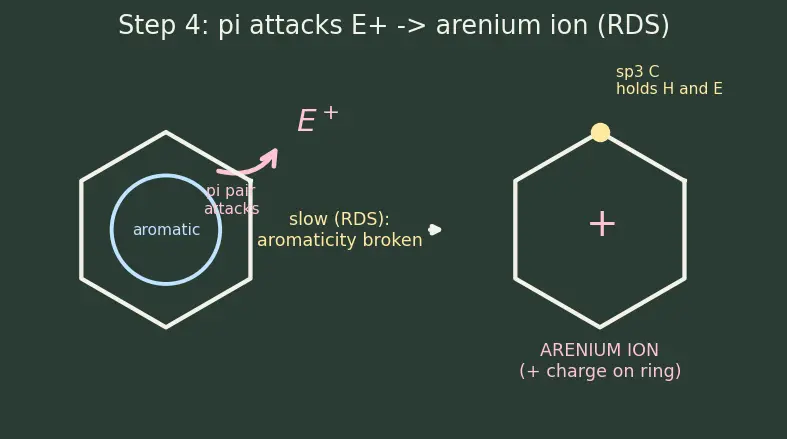

PICTURE. Watch the curved arrow (chalk-pink): it starts on the π cloud (electrons) and points to $E^{+}$ — arrows always fly from electrons toward the electron-poor spot. The attacked carbon puffs up to $s p^{3}$ ; a $+$ appears on the ring.

$Ar + E^{+} slow, RDS [Ar - E]^{+} (arenium ion)$

$Ar$ :: the aromatic ring (short for "aryl").
The $s p^{3}$ carbon :: the one carbon that stepped out of the flat ring to hold $H$ and $E$ .
$[\dots]^{+}$ :: the whole ion is positive because we spent a π pair making the new bond.

Step 5 — Why the arenium ion survives: charge spreads by resonance

WHAT. That $+$ charge is not stuck on one atom. It slides around the 5 remaining ring carbons. But not evenly — draw the resonance structures and the charge lands specifically on the carbons ortho, ortho, and para to the attacked carbon (the 2 neighbours and the far-across one).

WHY this matters — and why "resonance." Resonance means one real molecule is described by several drawings; the true structure is their blend, and spreading charge over more atoms lowers energy (each atom bears less burden). This is exactly what keeps the fragile arenium ion alive long enough to react instead of falling apart. More resonance structures ⇒ more stable ⇒ faster EAS. (This is also why substituents steer new groups — the ortho/para vs meta story lives right here.)

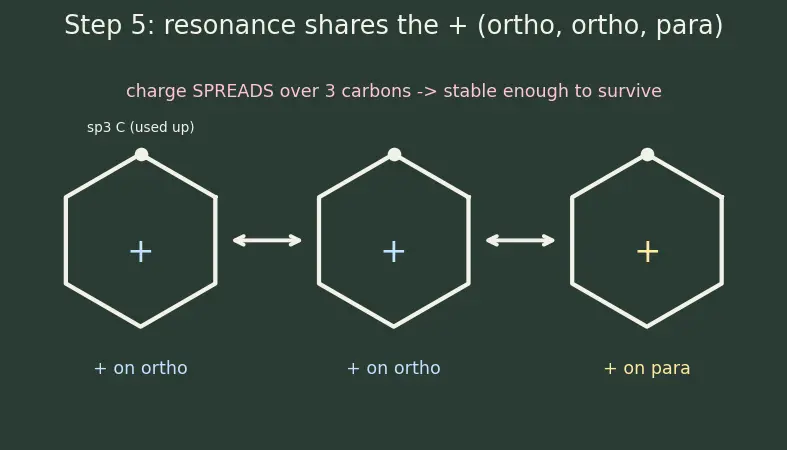

PICTURE. Three drawings share the $+$ : on the two ortho carbons (chalk-blue) and the para carbon (pale-yellow). The dotted overlay shows the true, smeared-out charge.

Step 6 — The escape: lose $H^{+}$ , rearomatize

WHAT. The $s p^{3}$ carbon still carries its old $H$ . A weak base in the flask (here $H S O_{4}^{-}$ , the leftover from Step 3) plucks that $H$ off as $H^{+}$ . Its two electrons snap back into the ring — the π cloud is whole again, all carbons flat and $s p^{2}$ , aromaticity restored.

WHY lose $H^{+}$ and not grab a nucleophile? Grabbing a partner (addition) would leave the ring $s p^{3}$ and non-aromatic — stuck up on the high cliff from Step 2. Ejecting $H^{+}$ drops the molecule back into the aromatic valley ( $- 150 kJ/mol$ reward). The molecule always takes the aromatic exit.

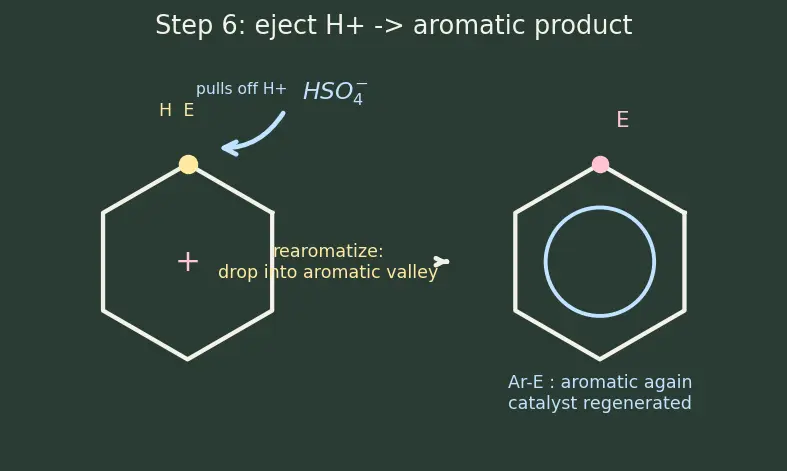

PICTURE. The base (chalk-blue) reaches for the $H$ on the $s p^{3}$ carbon; a curved arrow shows that C–H pair collapsing back into the ring; the finished product $Ar-E$ is flat and aromatic again, and the catalyst is regenerated.

$[Ar - E]^{+} + H S O_{4}^{-} ⟶ Ar- E + H_{2} S O_{4}$

The base $H S O_{4}^{-}$ :: removes $H^{+}$ and, doing so, regenerates $H_{2} S O_{4}$ — catalyst back, so a trace runs a whole reaction.
$Ar- E$ :: the substituted aromatic product — $H$ swapped for $E$ , ring intact.

Step 7 — Edge case A: no catalyst ⇒ no reaction

WHAT. Mix plain $B r_{2}$ with benzene, no Lewis acid — nothing happens. Benzene does not decolourize bromine water the way an alkene does.

WHY. Without $F e B r_{3}$ to polarize it, $B r_{2}$ is only weakly electron-poor. The benzene π cloud is comfortable (aromatic, low-energy) and won't spend that stability on a feeble attacker. Contrast an alkene, whose localized, higher-energy π bond attacks $B r_{2}$ directly.

PICTURE. Left: alkene + $B r_{2}$ → instant addition (bromine colour vanishes). Right: benzene + $B r_{2}$ → the $E^{+}$ never forms strongly enough; the barrier is too tall; no product.

Step 8 — Edge case B: the ring is too poor (deactivated) ⇒ EAS stalls

WHAT. Put a strongly electron-withdrawing group like $- N O_{2}$ on the ring (nitrobenzene). Now Friedel–Crafts and even further nitration crawl or fail — the ring is deactivated.

WHY. Step 4's whole engine is the π cloud being electron-rich enough to attack. A $- N O_{2}$ group sucks electrons out of the ring, so there's less charge to offer $E^{+}$ ; the arenium ion (Step 5) is now harder to form and less stabilized — the RDS barrier shoots up. Same logic with $- N H_{2}$ under Friedel–Crafts: its lone pair grabs the $A l C l_{3}$ , poisoning the catalyst and deadening the ring.

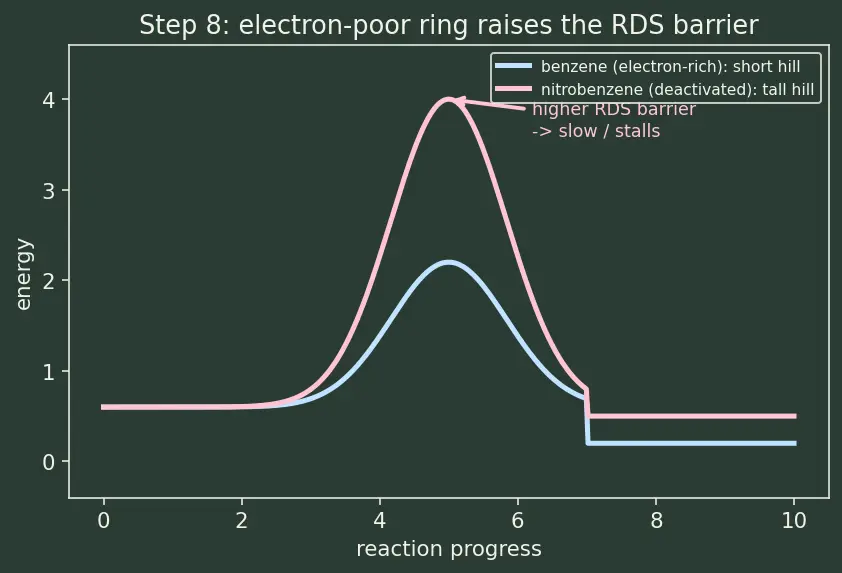

PICTURE. The energy barrier of Step 4 redrawn taller for a deactivated ring (chalk-pink, high) versus shorter for benzene (chalk-blue) — same mechanism, higher hill, so reaction slows or stops.

Recall Check yourself on the edge cases

Why does plain $B r_{2}$ + benzene give nothing? ::: No Lewis acid ⇒ no strong $E^{+}$ ; benzene's aromatic π cloud won't attack a feeble electrophile. Why does Friedel–Crafts fail on nitrobenzene? ::: $- N O_{2}$ pulls electron density out of the ring ⇒ π cloud too poor to attack, arenium ion too unstable ⇒ RDS barrier too high.

The one-picture summary

Everything above, compressed onto a single energy landscape: a shallow start (aromatic benzene $+ E^{+}$ ), a tall peak (transition state into the arenium ion — the RDS), a small dip (the arenium ion resting in a shallow well), and a deep final valley (aromatic product $Ar-E$ ). The reaction coordinate runs left→right; height = energy.

Recall Feynman: the whole walkthrough in plain words

Benzene's six electrons live in a cosy shared cloud — a super-stable club nobody wants to leave. A greedy positive stranger ( $E^{+}$ ) shows up, but he's only greedy enough if an acid first roughs him up (Step 3). When he is greedy enough, the cloud reaches out and grabs him (Step 4) — but grabbing him means one ring member steps out of the circle to hold both the stranger and its old hydrogen. Now the club is broken and unhappy, wearing a $+$ sign. Good news: that $+$ doesn't sit on one member; it gets shared around three of them, which makes the unhappiness bearable (Step 5). To get the cosy club back, the ring throws out one tiny hydrogen (Step 6) — and snap, everyone joins hands again, stranger included. It never tears the whole circle apart to let him in (that would be "addition" and would waste the club's precious stability) — it just swaps one member. And if there's no acid to rough up the stranger, or if some grumpy group has already drained the club's electrons, the whole thing never gets going (Steps 7–8).
