Ligand Field Theory (LFT) and MO description (overview)

Intuition The big picture

Crystal Field Theory (CFT) pretends ligands are just point negative charges that electrostatically push up the metal $d$ -orbitals. That works, but it's a lie of convenience — ligands actually form real covalent bonds with the metal. Ligand Field Theory is CFT upgraded with Molecular Orbital (MO) theory: we let metal orbitals and ligand orbitals mix to form bonding and antibonding MOs. The famous splitting $\Delta_o$ then drops out naturally as an MO energy gap, not as a fudge of electrostatics.

WHY bother? Because pure electrostatics cannot explain:

The spectrochemical series (why neutral CO splits more than negative $\text{F}^-$ ).
π-bonding effects (back-bonding, π-donors vs π-acceptors).
The nephelauxetic effect (electron clouds expanding = covalency).

1. What LFT actually is

WHAT are the players (octahedral $O_h$ case)?

Source	Orbitals available
Metal	$s$ ( $a_{1g}$ ), $p_x,p_y,p_z$ ( $t_{1u}$ ), $d$ split as $e_g$ ( $d_{z^2}, d_{x^2-y^2}$ ) + $t_{2g}$ ( $d_{xy},d_{yz},d_{xz}$ )
6 Ligands (σ)	6 σ-donor orbitals combine into LGOs of symmetry $a_{1g} + e_g + t_{1u}$

2. Deriving $\Delta_o$ as an MO gap (from scratch)

Step 1 — Why do only the $e_g$ d-orbitals interact with σ-ligands? The $d_{z^2}$ and $d_{x^2-y^2}$ lobes point directly at the 6 ligands along $\pm x, \pm y, \pm z$ . The $t_{2g}$ ( $d_{xy}, d_{yz}, d_{xz}$ ) lobes point between the axes. Why this step? Overlap integral $S = \langle d | \text{LGO}\rangle$ is large only when lobes point at each other; zero by symmetry for $t_{2g}$ with σ-ligands.

Step 2 — Build the σ-MO diagram. The two $e_g$ LGO/metal combinations form a bonding $e_g$ (mostly ligand) and an antibonding $e_g^*$ (mostly metal). The $a_{1g}$ and $t_{1u}$ similarly form bonding/antibonding pairs. The metal $t_{2g}$ stays non-bonding in the middle.

Step 3 — Identify the frontier gap. The electrons we care about (the metal $d$ electrons) occupy the $t_{2g}$ (non-bonding) and the $e_g^*$ (antibonding) sets.

3. π-bonding: the part CFT can't do

Now allow the ligands to also have π-type orbitals (these have $t_{2g}$ symmetry — they finally match the metal $t_{2g}$ !).

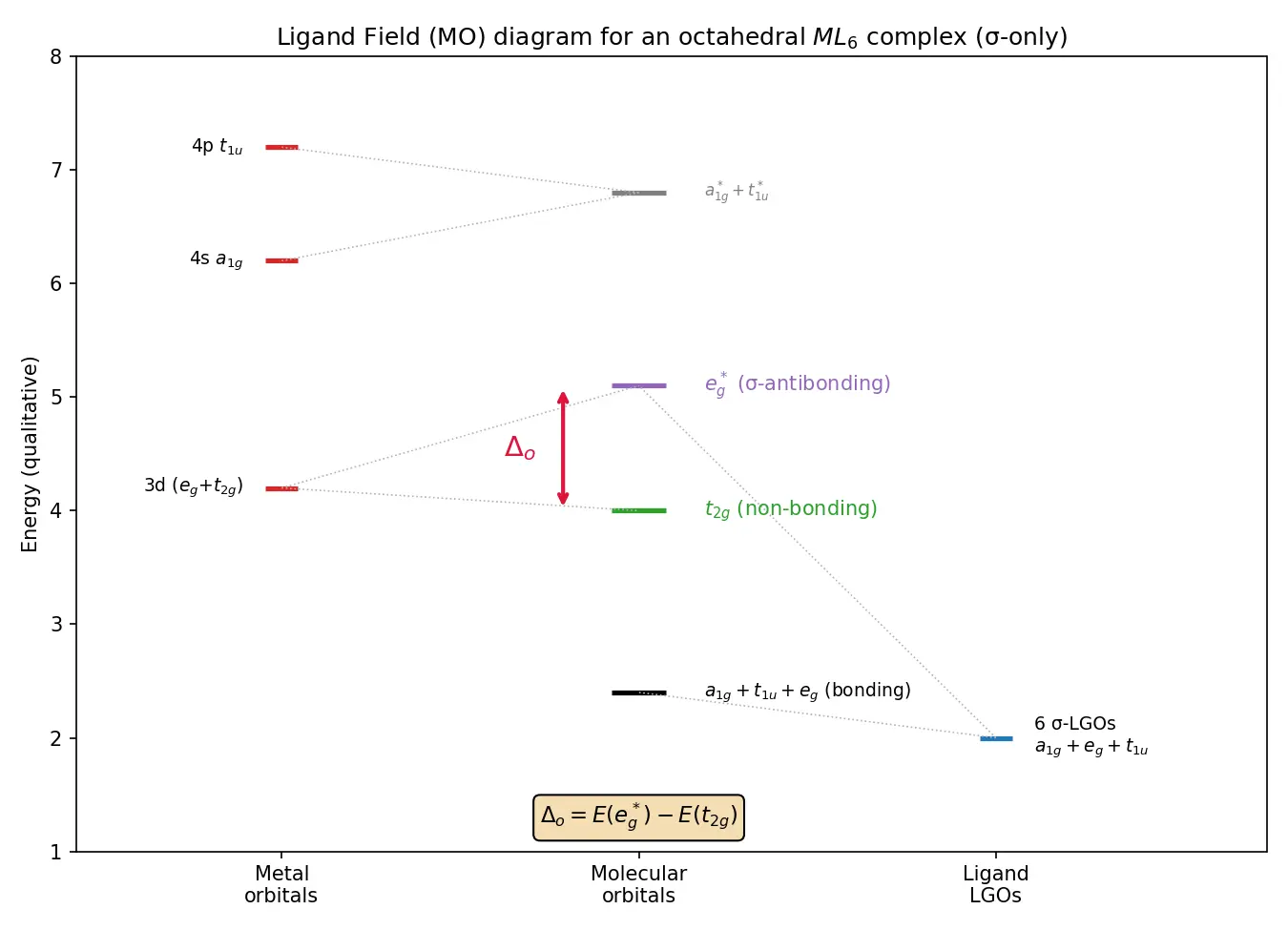

Figure — Ligand Field Theory (LFT) and MO description (overview)

4. Worked Examples

5. Common Mistakes (steel-manned)

6. Flashcards

What is LFT in one line?

MO theory applied to coordination complexes (CFT + covalency).

In σ-only

O_h

, which metal d-set is non-bonding?

t_{2g}

(

d_{xy}, d_{yz}, d_{xz}

) — they point between the ligands.

Which metal d-set forms σ-antibonding MOs and why?

e_g

(

d_{z^2}, d_{x^2-y^2}

); lobes point straight at the ligands.

Define

\Delta_o

in MO terms.

\Delta_o = E(e_g^*) - E(t_{2g})

What symmetry do the 6 σ-LGOs span in

O_h

a_{1g} + e_g + t_{1u}

Effect of a π-donor ligand on

\Delta_o

Raises

t_{2g}

→

\Delta_o

decreases (weak field).

Effect of a π-acceptor ligand on

\Delta_o

Lowers

t_{2g}

via back-bonding →

\Delta_o

increases (strong field).

Why is CO strong-field despite being neutral?

Empty π* orbitals accept metal

t_{2g}

electrons (back-bonding), widening

\Delta_o

Why can't CFT explain the spectrochemical series?

It ignores covalent π-bonding; point charges would rank negative ligands highest, contradicting CO.

Nephelauxetic effect indicates what?

Covalency — metal d-electron cloud expands onto ligands, lowering electron repulsion.

Recall Feynman: explain to a 12-year-old

Imagine a metal atom holding hands with 6 friends (ligands) in a cube-cross shape. Two of the metal's "hand-orbitals" point straight at the friends, so they bump into them and get pushed high up — those are the $e_g^*$ . Three other hand-orbitals point into the empty corners, so they don't bump — they stay low ( $t_{2g}$ ). The height difference between "bumped" and "not bumped" is the splitting $\Delta_o$ . Some friends (like CO) also have an empty pocket where the metal can secretly tuck spare electrons (back-bonding); that secret sharing makes the friendship stronger and the gap bigger. The size of that gap decides the colour of the complex!

Connections

Crystal Field Theory (CFT) — the electrostatic ancestor LFT refines.
Spectrochemical Series — explained only by the MO/π picture here.
Molecular Orbital Theory — parent framework; symmetry-adapted LGOs.
Back-bonding and π-Acceptor Ligands — CO, CN⁻ metal carbonyls.
High-spin vs Low-spin Complexes — driven by $\Delta_o$ vs pairing energy $P$ .
Nephelauxetic Effect — measures M–L covalency.
d-d Transitions and Colour of Complexes — $\Delta_o = hc/\lambda$ .

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, CFT (Crystal Field Theory) mein hum maan lete hain ki ligands sirf point charges hain jo metal ke d-orbitals ko electrostatically upar push karte hain. Yeh kaam to chalta hai, par yeh ek half-truth hai. Reality mein metal aur ligand ke beech proper covalent bond banta hai. Ligand Field Theory (LFT) isi reality ko MO theory se describe karti hai — metal ke orbitals aur ligand ke orbitals mix hote hain aur bonding/antibonding molecular orbitals bante hain.

Octahedral complex mein, metal ke $e_g$ orbitals ( $d_{z^2}, d_{x^2-y^2}$ ) seedhe ligands ki taraf point karte hain, isliye yeh ligand orbitals se overlap karke antibonding $e_g^*$ banate hain (energy upar chadh jaati hai). Magar $t_{2g}$ orbitals ( $d_{xy}$ etc.) ligands ke beech point karte hain, to σ-only case mein yeh non-bonding rehte hain. Ab famous $\Delta_o$ ka matlab hai: $\Delta_o = E(e_g^*) - E(t_{2g})$ . Yani gap automatically MO diagram se nikal aaya, koi fudge nahi!

Sabse mast baat — π-bonding. Agar ligand π-donor hai (jaise $\text{F}^-$ ), to woh $t_{2g}$ ko upar push karta hai, gap chhota ho jaata hai (weak field). Agar ligand π-acceptor hai (jaise CO, CN⁻), to metal apne $t_{2g}$ electrons unke empty π* mein de deta hai (back-bonding), jisse $t_{2g}$ neeche aata hai aur gap bada ho jaata hai (strong field). Isliye neutral CO bhi sabse strong field ligand hai — yeh baat CFT kabhi explain nahi kar sakti, sirf LFT karti hai.

Yeh matter isliye karta hai kyunki yahi gap complex ka colour, magnetism (high-spin vs low-spin) aur stability decide karta hai. Exam mein spectrochemical series, back-bonding aur high/low spin ke "kyun" wale questions seedhe is concept se aate hain.
