Intuition The ONE core ideaA metal atom in a complex is like a collector who counts all the electrons it can "see" around itself — its own leftover electrons plus the pairs its ligand-friends lend it. When that grand total lands exactly on the electron count of the nearest noble gas , the complex sits in a specially comfortable, stable spot.
This page assumes you have seen the parent note Effective Atomic Number (EAN) rule and now want every single symbol in its formula built up from nothing. We will not use a letter until we have drawn it.
The whole topic rests on one line:
EAN = Z − ( oxidation state ) + 2 × ( coordination number )
Four things live inside it: Z × 2
Definition Electron — the thing being countedAn electron is a tiny negative-charge particle that lives in the cloud around an atom's nucleus. For this whole topic, an electron is just a countable token . We never do physics with it — we only ask "how many?"
Intuition Why counting at all? (WHY)Nature "likes" certain magic totals of electrons (the noble-gas totals). So the entire EAN rule is a counting game : get the total to a magic number and win stability. Every symbol below is just a rule for adding or subtracting electron-tokens .

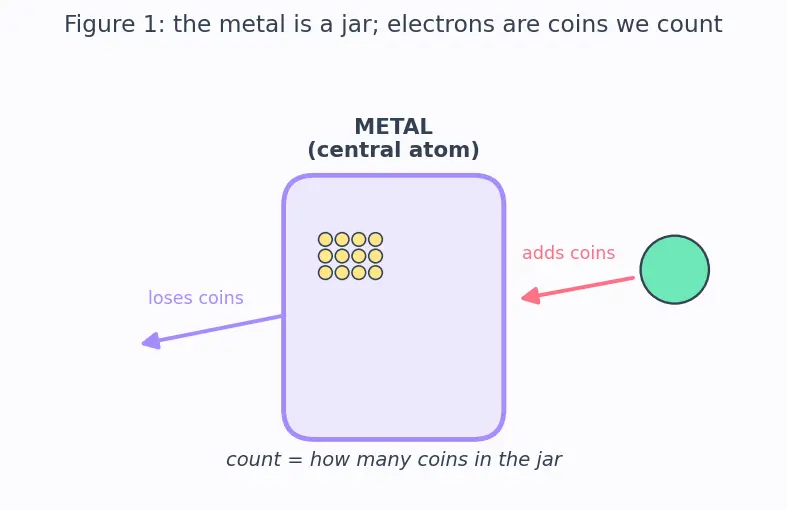

Look at the figure: the metal sits in the middle as a jar, and electrons are little coins. Everything that follows either adds coins to the jar or takes coins out .
Z Z protons in a neutral atom's nucleus — and for a neutral atom, that is also its number of electrons. Plain words: "how many electrons the untouched metal atom starts with."
Think of Z size of the coin pile you are handed at the start , before anything happens. Cobalt hands you 27 coins (Z = 27
Intuition Why the topic needsZ total count. Every total needs a starting value . Z
Z in the complex ."
Why it feels right: we are studying the complex, so surely Z The fix: Z neutral, free metal's number. The complex changes the count later ; Z
Prerequisite link: this is exactly the Oxidation state of central metal chapter's starting atom, and it comes from Werner's theory 's picture of a central metal.
Definition Oxidation stateThe oxidation state of the central metal is the number of electrons it has (on paper) lost to become the charged ion sitting inside the complex. A + 3 0
From your starting pile of Z hands back some coins to become a positive ion. If it loses 3, you subtract 3. That is why the formula has a minus sign in front of oxidation state.

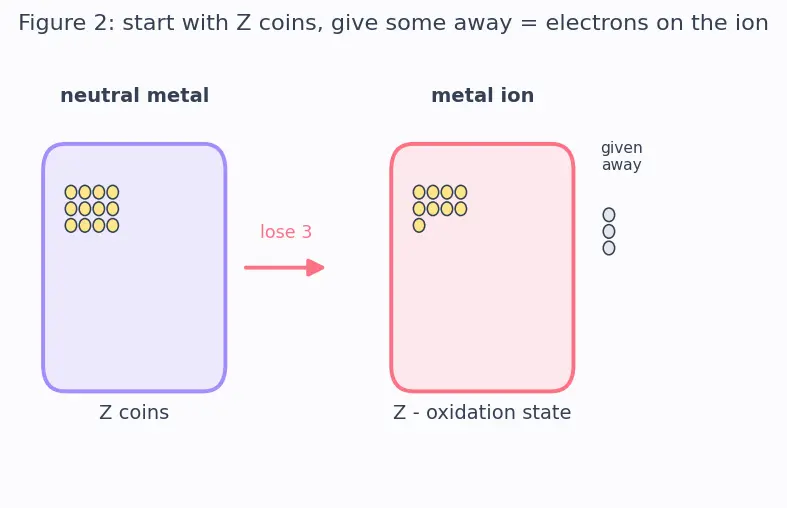

In the figure the jar starts with Z Z − ( oxidation state )
Intuition Why subtract, and whythis tool? (WHY)
We could imagine other bookkeeping, but oxidation state is exactly "electrons no longer belonging to the metal." Those electrons left the jar, so counting them again would be double-counting. Subtraction is the only honest move.
find the oxidation state
oxidation state = ( overall complex charge ) − ( sum of all ligand charges ) Oxidation state of central metal if it feels shaky.
Worked example Reading oxidation state off a formula
[ Co(NH 3 ) 6 ] 3 + NH 3 + 3 = 3 − 6 ( 0 ) = + 3 [ Fe(CN) 6 ] 4 − CN − − 1 − 6 − 4 = − 4 − ( − 6 ) = + 2 [ Ni(CO) 4 ] = 0 − 0 = 0
Common mistake "The number on the bracketis the metal's oxidation state."
Why it feels right: the charge is printed right there.
The fix: subtract the ligand charges first. In [ Fe(CN) 6 ] 4 − − 4 + 2
Definition Coordination number (CN)The coordination number is the count of donor atoms directly bonded to the central metal — i.e. how many ligand "hands" reach in and grab the metal.

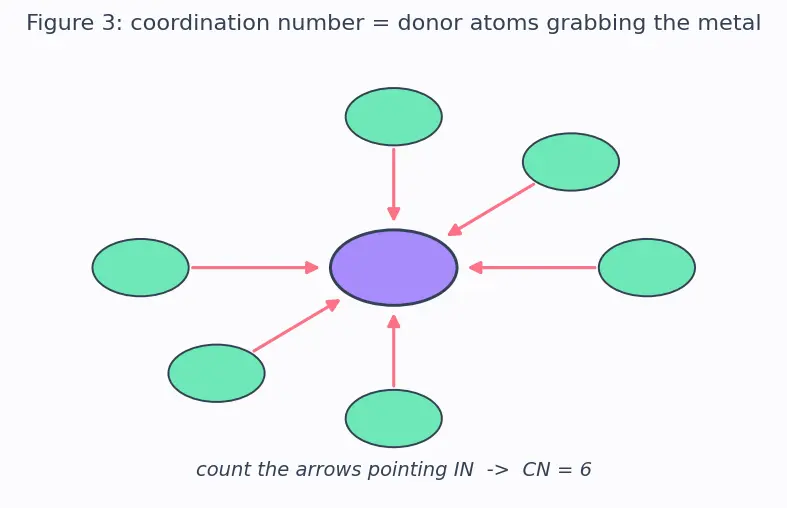

Draw the metal in the middle and count the arrows pointing into it. Six arrows → CN = 6 CN = 4
Intuition Why the topic needs CN (WHY)Each attached friend will donate electrons. To know how many donations happen, we first need how many friends — that count is exactly the coordination number. See Coordination number for how to count it when ligands have more than one grabbing hand.
Common mistake "Coordination number = number of ligandmolecules ."
Why it feels right: one molecule looks like one friend.
The fix: CN counts donor atoms , not molecules. A ligand with two grabbing atoms (bidentate) counts as 2 toward CN even though it is one molecule. For the parent note's simple examples (NH₃, CN⁻, CO — all one-handed) molecule-count and CN happen to match.

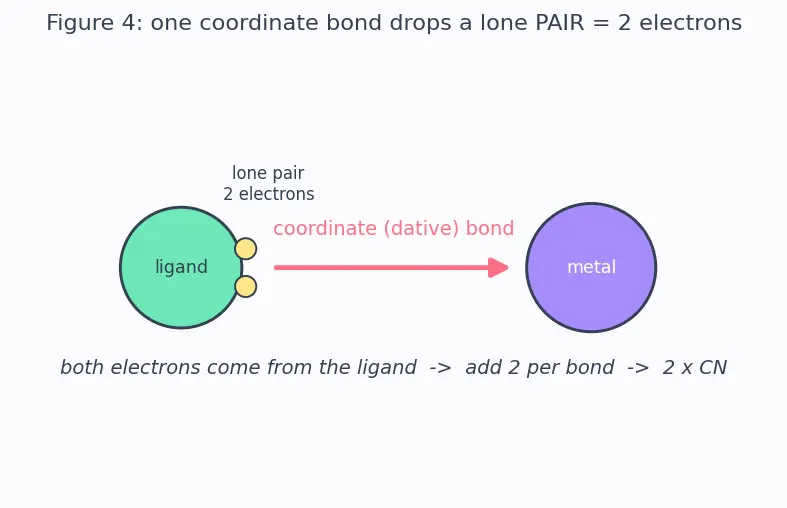

Definition Coordinate (dative) bondA coordinate bond is a chemical bond where both shared electrons come from the same atom (the ligand), not one from each partner. The ligand offers a lone pair = 2 electrons , and the metal simply accepts them.
Intuition The picture — this is the heart of the "×2"A ligand walks up holding a pair of coins in one hand and drops both into the metal's jar. Not one coin — two , because a lone pair is two electrons. So each of the CN friends adds 2 coins, giving 2 × CN
this tool: a lone pair, not a shared pair? (WHY)
In an ordinary covalent bond each atom gives one electron. Here the metal ion is electron-hungry and the ligand is electron-rich, so the ligand supplies the whole pair . Because the metal now "has use of" both electrons, EAN counts both — hence multiply by 2. This is exactly the Coordinate (dative) bond concept.
Common mistake "Each ligand donates 1 electron."Why it feels right: one bond sounds like one electron.
The fix: one coordinate bond carries a lone pair = 2 electrons . Multiply CN by 2 .
Recall Assemble the donated-electron termHow many electrons does the metal gain from ligands, in symbols? ::: 2 × ( coordination number )
Definition Noble gas configurationThe noble gases are the elements in the last column of the periodic table (He, Ne, Ar, Kr, Xe, Rn). Their electron arrangements are unusually stable — a "full, contented" arrangement nature likes to imitate.
Intuition The picture — the "cool kid's plate"Line up the magic totals:
He = 2 , Ne = 10 , Ar = 18 , Kr = 36 , Xe = 54 , Rn = 86 finish lines of the counting game. If your metal's total lands on one of these, you win stability. See Noble gas configuration .
Intuition Why the topic needs a target (WHY)A count with no goal means nothing. The EAN rule says: stability happens when EAN hits one of these six numbers. The nearest one above the metal's leftover count is usually the target it reaches for.
This EAN total, counted using only valence electrons instead of all electrons, becomes the 18-electron rule — same game, different starting line.
Electrons as countable tokens
Z = starting electron pile
Oxidation state = coins given away
Coordinate bond = lone pair 2 electrons
Metal ion count Z minus OS
Coordination number = friends attached
EAN = final electron total
Test yourself — you are ready for the parent note if you can answer each without peeking.
What does Z The atomic number = electrons in the neutral metal atom; read straight off the periodic table.
Why does oxidation state appear with a MINUS sign? Those electrons were lost to form the ion, so they no longer belong to the metal — subtract them.
How do you compute a metal's oxidation state inside a complex? Overall complex charge minus the sum of all ligand charges.
What does coordination number count — molecules or donor atoms? Donor atoms (the "hands" attached to the metal), which can differ from molecule count.
Why do we multiply coordination number by 2? Each coordinate bond is a lone pair = 2 electrons donated by the ligand.
Name the six noble-gas target numbers in order. 2, 10, 18, 36, 54, 86 (He, Ne, Ar, Kr, Xe, Rn).
Write the full EAN formula from memory. EAN = Z − (oxidation state) + 2 × (coordination number).
When is a complex "especially stable" by this rule? When its EAN equals the atomic number of the nearest noble gas.
