Foundations — Important compounds — KMnO₄, K₂Cr₂O₇ — preparation, oxidizing reactions

Before you can read a single equation in the parent note, you need the alphabet those equations are written in. Below is every symbol and idea the topic assumes, each built from nothing, each leaning on the one before it.

---

1. An atom, a charge, and what a "+" means

Picture a see-saw perfectly balanced: as many "−" weights on one side as "+" weights on the other. That balance is neutral.

Figure 1 — reading a charge. Left: three "−" weights balance three "+" weights, so the see-saw is level — the atom is neutral. Right (red): one electron ("−") has been plucked off, so the "+" side now outweighs and the beam tips; the leftover charge is $+1$. The whole figure is teaching you to read the tilt as the charge: count what is missing, and that many pluses appear.

If an atom loses an electron (one "−" weight falls off), the "+" side now outweighs — the atom is left with a net positive charge, written as a small superscript: $M{n}^{2+}$ means "an Mn atom that is short two electrons." If it gains electrons, it becomes negative, e.g. $C{l}^{-}$ ("one extra electron").

---

2. Oxidation state — the "coins given away" counter

Think of each atom carrying a purse of electron-coins. Oxidation state $=+7$ means "this atom has given away 7 coins." It is desperate if the number is very high, because a nearly-empty purse wants refilling.

This machinery lives in Oxidation States of Transition Metals — visit it if the rule feels shaky.

---

3. Ions and formulae — reading $Mn{O}_4^{-}$, $C{r}_2{O}_7^{2-}$, $C_2{O}_4^{2-}$

So $Mn{O}_4^{-}$ = one manganese + four oxygens, total charge $-1$. $C{r}_2{O}_7^{2-}$ = two chromiums + seven oxygens, total charge $-2$. $C_2{O}_4^{2-}$ (oxalate) = two carbons + four oxygens, charge $-2$.

We will also meet two reduced metal ions later: $M{n}^{2+}$ (manganese short 2 electrons) and $C{r}^{3+}$ (chromium short 3 electrons). $C{r}^{3+}$ is simply what dichromate's Cr becomes after it has grabbed electrons and fallen from $+6$ down to $+3$ — a green ion. Keep it in mind; it appears in the "hunger meter" of section 8.

You see	Read it as
$Mn{O}_4^{-}$	permanganate, purple, Mn is $+7$
$Mn{O}_4^{2-}$	manganate, green, Mn is $+6$
$M{n}^{2+}$	manganese ion, colourless, Mn is $+2$
$C{r}_2{O}_7^{2-}$	dichromate, orange, Cr is $+6$
$Cr{O}_4^{2-}$	chromate, yellow, Cr is $+6$
$C{r}^{3+}$	chromium ion, green, Cr is $+3$

---

4. Oxidation, reduction, and the two "agents"

Picture a handshake where coins pass from one hand to the other. The hand that receives coins is the oxidising agent. KMnO₄ and K₂Cr₂O₇ are the receiving hands.

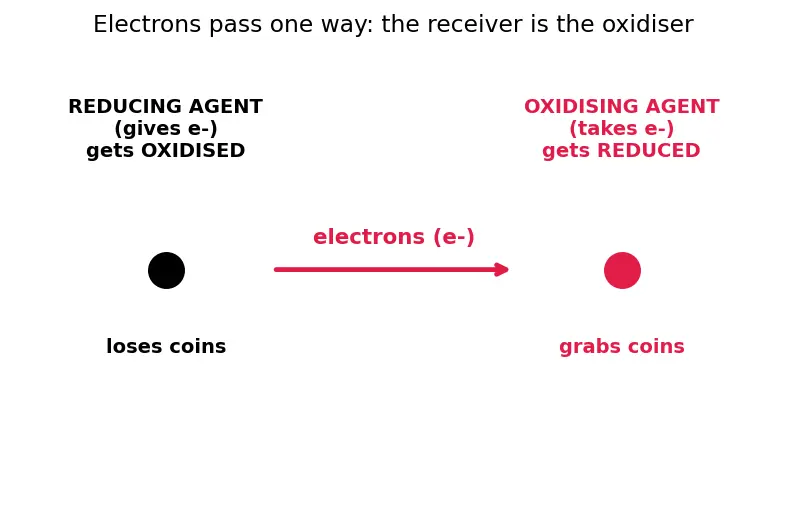

Figure 2 — the one-way electron handshake. The black dot (left) is the reducing agent: it gives electron-coins away and is therefore oxidised. The red dot (right) is the oxidising agent: it receives the coins along the red arrow and is therefore reduced. The single direction of the arrow is the whole point — electrons only ever flow toward the hungrier partner, and the receiver is always the oxidiser. KMnO₄ and K₂Cr₂O₇ live on the red side.

---

5. Water, $H^{+}$, and the three "rooms" of a solution

We define these now, before any equation, because the reactions to come literally consume $H^{+}$ and spit out $H_{2}O$. You must be able to read both symbols on sight.

Why the topic obsesses over the "room": a strong grab by permanganate needs a pile of $H^{+}$. No spare $H^{+}$ around means it can't run the full reaction and must settle for a weaker grab (fewer electrons). So the medium literally decides how many electrons KMnO₄ can take:

Figure 3 — the room sets the grab. Three bars show the electrons $Mn{O}_4^{-}$ can grab in each "room." Acidic (red, tallest, 5 e⁻ → $M{n}^{2+}$): plenty of $H^{+}$ powers the biggest grab. Neutral (3 e⁻ → $Mn{O}_2$): little $H^{+}$, weaker grab. Strong base (1 e⁻ → $Mn{O}_4^{2-}$): no $H^{+}$ at all, feeblest grab. The bar heights are the electron counts — taller means hungrier-satisfied. This single picture is why the parent note keeps repeating "the medium decides everything."

Room ($H^{+}$ supply)	Mn ends at	Electrons grabbed
Acidic (plenty $H^{+}$)	$M{n}^{2+}$	5
Neutral (little $H^{+}$)	$Mn{O}_2$	3
Strong base (no $H^{+}$, lots $O{H}^{-}$)	$Mn{O}_4^{2-}$	1

---

6. The half-reaction and the electron symbol $e^{-}$

Now that $H^{+}$ and $H_{2}O$ are defined (section 5), we can read the grabbing side of acidic KMnO₄ with every symbol earned: $Mn{O}_4^{-}+8H^{+}+5e^{-}\to M{n}^{2+}+4H_{2}O$

Read it aloud: "permanganate takes in 5 electrons and 8 hydrogen ions to become colourless $M{n}^{2+}$ plus 4 water molecules $H_{2}O$." The $5e^{-}$ on the left means 5 electrons are consumed here.

---

7. Chemical equilibrium and the $\rightleftharpoons$ arrow

This is exactly the chromate ⇌ dichromate story: $2Cr{O}_4^{2-}+2H^{+}\rightleftharpoons C{r}_2{O}_7^{2-}+H_{2}O$ Add $H^{+}$ (acid) → the system shifts right → orange dichromate. Add base (removes $H^{+}$) → shifts left → yellow chromate. The full logic of "push it, it shifts to oppose you" is Le Chatelier's Principle. Notice Cr stays $+6$ everywhere — no electrons move, so this is not redox.

---

8. $E^{\circ }$ — the "hunger meter" (volts)

Using the ions defined in section 3: $E^{\circ }(Mn{O}_4^{-}/M{n}^{2+})=+1.51\text{ V}{E}^{\circ }(C{r}_2{O}_7^{2-}/C{r}^{3+})=+1.33\text{ V}$ Since $+1.51>+1.33$, permanganate is the stronger grabber — its "hunger meter" reads higher. (Here $C{r}^{3+}$ is the green chromium ion from section 3, i.e. dichromate after it has fallen from $+6$ to $+3$.) Where these numbers come from and how to compare them lives in Standard Electrode Potential & E° values.

---

9. Colour — why these compounds are vivid

The mechanism (electrons jumping between d-levels) is Colour & d-d Transitions. For this topic you only need: each species has a signature colour, and colour change signals the reaction reached its end — which is why these are used in Volumetric Analysis / Titrations.

---

10. How it all feeds the topic

The map below is read top-to-bottom, following the arrows: each box is a foundation you just built, and an arrow "X → Y" means "you need X before Y makes sense." Start at the top row. "Atom and charge" feeds "oxidation state number" (you can't count coins handed over until you know what a charge is). That feeds "ion formulae," which feeds the "oxidation/reduction" verbs, which feed the "half-reaction," which — together with the "$H^{+}$ supply / three rooms" box — feeds "balancing." Two side-channels also pour into the final box: the "$E^{\circ }$ hunger meter" (which is stronger) and "colour → titration endpoints" (how we see the reaction finish). Everything drains into the bottom node: KMnO₄ and K₂Cr₂O₇ as oxidisers — the parent topic. If any upstream box is fuzzy, the parent equations will feel like magic; solid boxes make them obvious.

---

Equipment checklist

Test yourself — you are ready for the parent note only if every line is instant.

---
