Foundations — Group 18 (Noble gases) — discovery, isolation, compounds of Xe (XeF₂, XeF₄, XeF₆, XeO₃) — structure and bonding

Before you can read the parent note, you need to own every word and symbol in it. Below, each one is built from nothing: plain meaning → the picture → why the topic needs it. Read top to bottom; each rung stands on the one before.

1. What an atom looks like (the picture behind everything)

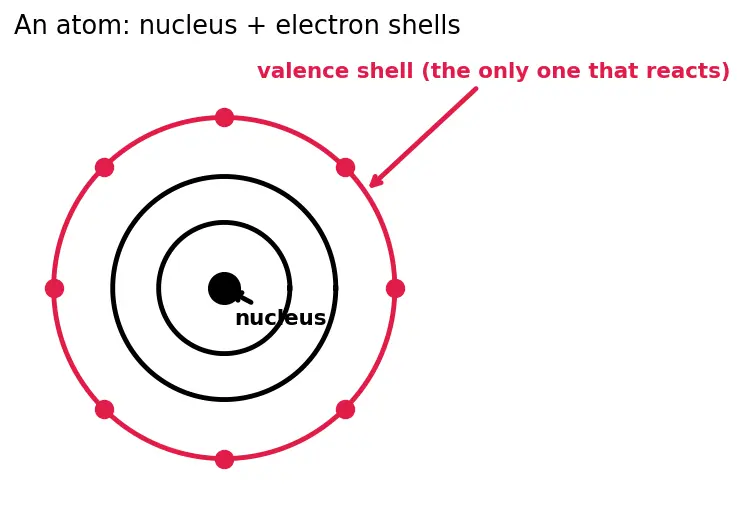

Look at the figure: the black dot in the middle is the nucleus, the black rings are shells, and the electrons live on the rings. The red outermost ring is the valence shell — the only ring that matters for chemistry. Everything in this topic is a story about what the outermost electrons do.

• The picture: onion-like rings, outer ring highlighted.
• Why the topic needs it: "full valence shell," "far from the nucleus," "poorly held" — all describe this outer red ring.

2. The notation $n{s}^{2}n{p}^6$ — reading electron addresses

$\underset{\text{shell number}}{\underbrace{n}}\underset{\text{orbital type}}{\underbrace{s}}\stackrel{\text{how many }{e}^{-}}{\overbrace{{}^2}}$

So $n{s}^{2}n{p}^6$ read aloud is: "in shell $n$, the $s$ compartment holds 2 electrons and the $p$ compartment holds 6." That is $2+6=8$ electrons — a full outer shell (an octet). Helium is the exception: $1s^2$, only 2 electrons, because its first shell has no $p$ compartment at all.

• The picture: boxes labelled $s$ (one box) and $p$ (three boxes), filled with electron dots.
• Why the topic needs it: "full shell $n{s}^{2}n{p}^6$" is the entire reason noble gases are unreactive. You must be able to read it.

3. Ionization Enthalpy (IE) — the "grip strength" number

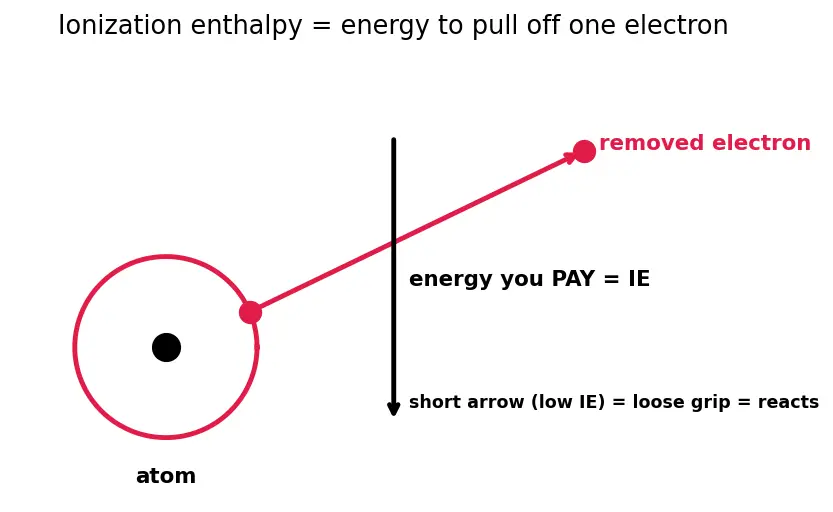

In the figure, the vertical arrow is the energy you pay to pull an electron off the red valence ring. A short arrow (small energy) = loose grip = easy to react. A tall arrow = tight grip = hard to react.

• Units: $\text{kJ/mol}$ = kilojoules of energy per one mole of atoms. Just read it as "how much energy per big standard batch of atoms."
• Why the topic needs it: Bartlett's whole forecast is "IE of Xe ≈ IE of ${\text{O}}_2$." Without IE you can't follow his reasoning.
• See Ionization Enthalpy trends for the full down-group pattern.

4. Electronegativity & "electron-hungry" (F and O)

• The picture: think of F as a strong magnet reaching toward Xe's loose outer electron.
• Why the topic needs it: it explains why only XeF₂/XeF₄/XeF₆ and Xe–O compounds exist — no other partner is greedy enough.

5. A chemical bond, bond pairs, and lone pairs

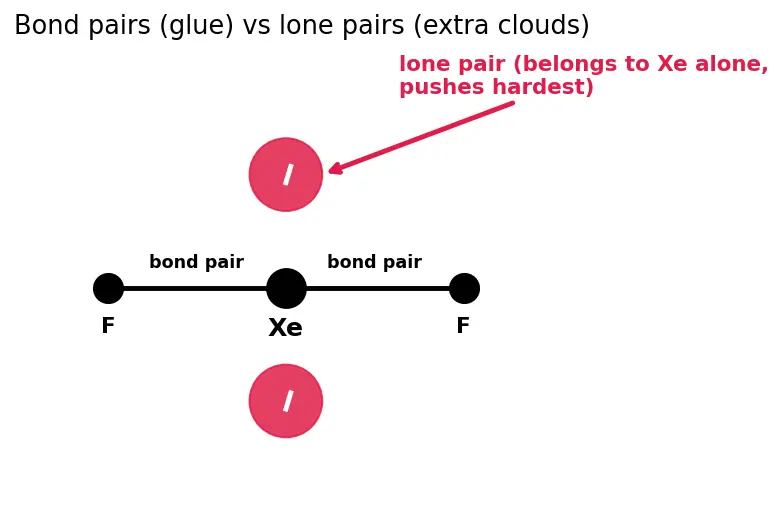

In the figure the red blob is a lone pair (belongs to Xe alone), while the black lines to the F atoms are bond pairs. Both a bond pair and a lone pair are just clouds of negative charge — and here is the key fact you will use over and over: clouds repel clouds. A lone pair is fatter and pushes harder than a bond pair.

• Why the topic needs it: every shape (linear, square planar, pyramidal) is decided by counting bond pairs + lone pairs and letting them spread apart.

6. VSEPR — the rule that turns counting into shapes

• The picture: balloons tied at a point automatically splay apart — same physics.
• Why the topic needs it: this is the machine that gives you linear XeF₂, square-planar XeF₄, etc.
• Full method: VSEPR Theory.

7. Hybridisation ($s{p}^{3}d$, $s{p}^3{d}^2$, $s{p}^3{d}^3$)

• Why the topic needs it: the parent labels each molecule with one of these; now you can decode it and know why only heavy central atoms qualify.
• More: Hybridisation (sp3d, sp3d2, sp3d3).

8. The pair-counting formula (decoded piece by piece)

The parent uses this master recipe:

Reading it in words:

• Xe brings 8 valence electrons (its full $n{s}^{2}n{p}^6$).
• Each bonded F donates 1 electron to the shared pair, so add 1 per F.
• Divide by 2 because electrons live in pairs.

Do the same and you get: XeF₄ → 6 pairs (4 bond + 2 lone), XeF₆ → 7 pairs (6 bond + 1 lone).

• Why the topic needs it: this single line generates every fluoride shape in the note.

9. Fractional distillation — the words in the isolation step

• The picture: a ladder of gases leaving the liquid in order as it warms.
• Why the topic needs it: it is the industrial route by which Ne, Ar, Kr, Xe are actually collected.
• See Fractional Distillation of Liquid Air.

10. Two symbol conventions you'll meet

• Why the topic needs it: Bartlett's equation $\text{Xe}+{\text{PtF}}_6\to {\text{Xe}}^{+}[{\text{PtF}}_6{]}^{-}$ is unreadable without these.

Prerequisite map

The diagram below shows how each foundation feeds the next; every arrow means "you need the left idea before the right idea."

(If the diagram fails to render, read it as this chain: Atom & shells → valence shell $n{s}^{2}n{p}^6$ → ionization enthalpy → why Xe reacts but Ne/Ar don't. Separately, valence shell → bond pairs & lone pairs → pair-counting formula → VSEPR arrangement → hybridisation (cloud count) → shapes of XeF₂/XeF₄/XeF₆/XeO₃. And a side branch: boiling point → fractional distillation → feeds the isolation half of the topic. Both the "why it reacts" branch and the "what shape" branch converge on the final shapes/compounds box.)

The topic (parent note) sits at box I.

Equipment checklist

Self-test: cover the right side and answer before revealing.
