Foundations — Sulfur — allotropes (rhombic, monoclinic); SO₂, SO₃; H₂SO₄ (Contact process); oxoacids of S

Before you touch allotropes, oxides, or the Contact process, you need to read the language the parent note speaks. Below is every symbol, number and idea it quietly assumes — built from nothing, in an order where each one leans on the last.

1. The atom itself — what "S" means

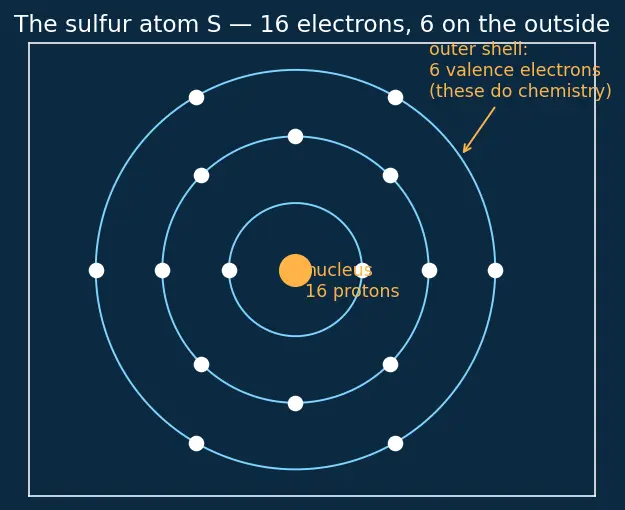

The picture: imagine three rings around a dot. The outer ring has 6 dots — those 6 outer electrons are the only ones that do chemistry.

Why the topic needs this: every reaction sulfur does is sulfur trying to fill that outer shell to 8. It can either grab 2 electrons (→ shell full, charge $-2$) or share/give up electrons (up to all 6). That range "$-2$ to $+6$" you keep seeing is literally "grab 2" on one end, "give 6" on the other.

2. Oxidation state — the bookkeeping number

The picture: picture a tug-of-war rope for each bond. Oxygen is stronger, so it wins the rope and "keeps" the shared electrons. Count how many ropes sulfur lost → that's how positive it is.

Why the topic needs this: the whole oxoacid table is organised by S's oxidation state (+2, +3, +4, +6). And "SO₂ is both oxidising and reducing" only makes sense once you see +4 sits in the middle of the $-2\to +6$ range — it can go up or down.

3. The oxygen family — where these trends come from

The picture: a staircase going down — each step is a fatter, softer atom. Oxygen (top) is small and grabby; sulfur (next step) is bigger and mellower.

Why the topic needs this: "oxygen double-bonds, sulfur single-bonds" is a size story. Small oxygen atoms sit close enough to overlap sideways (a $\pi$ bond → double bond). Bigger sulfur atoms sit too far apart for good sideways overlap, so they settle for plain single bonds — and single bonds chain up. See Group 16 - Oxygen family - general trends and Oxygen and its oxides.

4. Catenation — why sulfur makes chains and rings

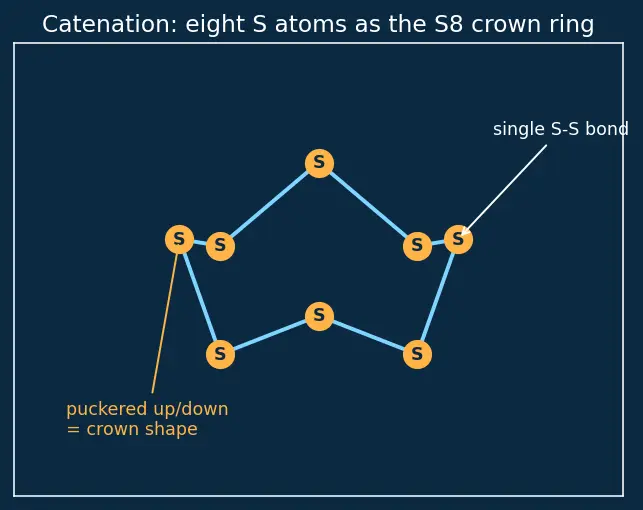

The picture: a bracelet of 8 sulfur beads, each linked to its two neighbours by a single S–S bond, buckled up and down into a crown shape (the S₈ ring).

Why the topic needs this: the S₈ crown ring is both rhombic and monoclinic sulfur (they differ only in packing). Break the ring open and let the pieces link end-to-end and you get the long chains of plastic sulfur. All of "allotropy" rests on this one word. Compare with Allotropy - carbon and phosphorus.

5. Allotropes — same element, different build

The picture: the same LEGO bricks (S atoms) snapped into different shapes — one dense block, one looser block, one long snake.

Why the topic needs this: "rhombic $\rightleftharpoons$ monoclinic at 369 K" is an allotrope conversion. Understanding why the stable form changes with temperature needs the next two symbols.

6. The double arrow $\rightleftharpoons$ — reversible equilibrium

The picture: a see-saw that has stopped tilting — not because motion stopped, but because equal pushes act on both ends.

Why the topic needs this: two of the biggest ideas use it — the allotrope transition $S_{\alpha }\rightleftharpoons S_{\beta }$, and the heart of the Contact process $2S{O}_2+O_2\rightleftharpoons 2S{O}_3$. Whichever side conditions favour, the see-saw shifts. That "shifting" rule is Le Chateliers Principle.

7. $\Delta H$ and "exothermic" — the heat tag

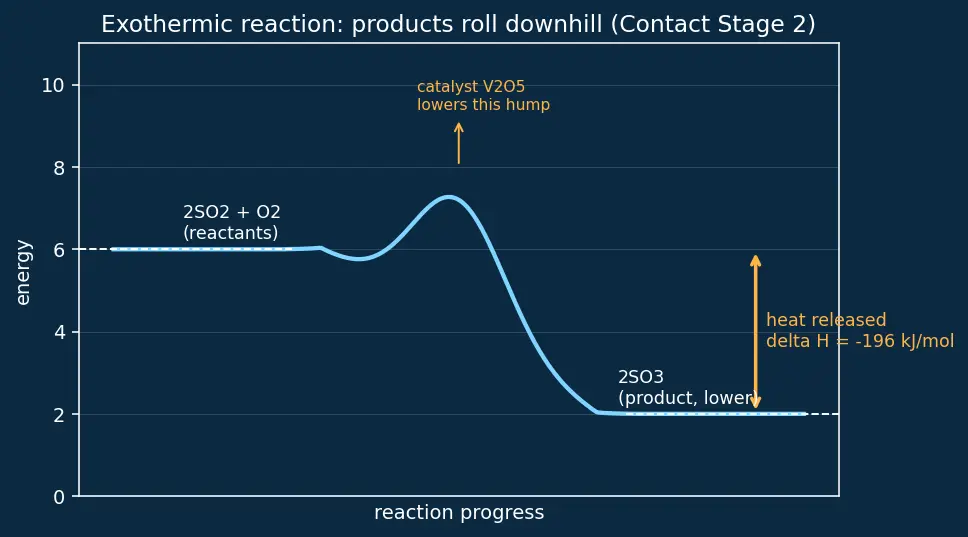

The picture: a ball rolling downhill — products sit lower than reactants, and the height it dropped is released as heat.

Why the topic needs this: $2S{O}_2+O_2\rightleftharpoons 2S{O}_3$ has $\Delta H=-196\text{kJ/mol}$. Because it's exothermic, adding heat pushes the see-saw backward (less product). That single sign is why the Contact process uses only a moderate 720 K and not blazing heat.

8. Free energy $G$ and entropy $S_{\text{entropy}}$ — who wins, and when

The picture: two competitors — "tightness" (low $H$, favours dense rhombic) and "looseness" (high entropy, favours airy monoclinic). Turn up the temperature dial and looseness starts winning.

Why the topic needs this: this is exactly why rhombic (denser) wins below 369 K and monoclinic (higher entropy) wins above it. The transition temperature is the tie-point where both $G$'s are equal.

9. Catalyst — the speed-only helper

The picture: a mountain pass — the catalyst digs a lower tunnel through the energy hill, so molecules cross sooner, but the valleys on either side (reactants and products) stay at the same height.

Why the topic needs this: the Contact process uses ==$V_2{O}_5$== (vanadium pentoxide) as catalyst. Since low temperature gives high yield but is slow, the catalyst restores the speed — letting us keep the yield-friendly moderate temperature. See Catalysis and V2O5.

10. Bond order & resonance — "1.5 bonds"?

The picture: in SO₂ you could draw the double bond on the left O or the right O. Reality is the average — each S–O is "one-and-a-half" bonds, and both are identical length (~143 pm).

Why the topic needs this: it explains why both S–O bonds in SO₂ are equal (bond order 1.5) and all three in SO₃ are equal (bond order ~1.33). "pm" just means picometre = $10^{-12}$ m, a convenient ruler for atom-sized distances.

The prerequisite map

Equipment checklist

Cover the right side and test yourself. If any answer is fuzzy, re-read its section above.

Ready? Now go back to the parent topic — every symbol there is now yours.
