Visual walkthrough — Phosphorus allotropes (white, red, black); P₄O₆, P₄O₁₀; oxoacids of P (H₃PO₃ vs H₃PO₄ basicity)

Everything here rests on ideas from the parent topic. If a word feels new, we build it here from zero.

---

Step 1 — What "acidic" even means: a hydrogen that can walk away

WHAT. Before any phosphorus, let us define the only thing that matters: what makes a hydrogen acidic.

WHY. People say "$H_{3}P{O}_3$ has 3 H, so it gives 3 $H^{+}$." That guess treats every H as equal. It is not. A hydrogen is acidic only if the bond holding it can break, leaving the H behind as $H^{+}$ and its electron behind on the molecule. So we must first ask: which bonds let go, and which grip tight?

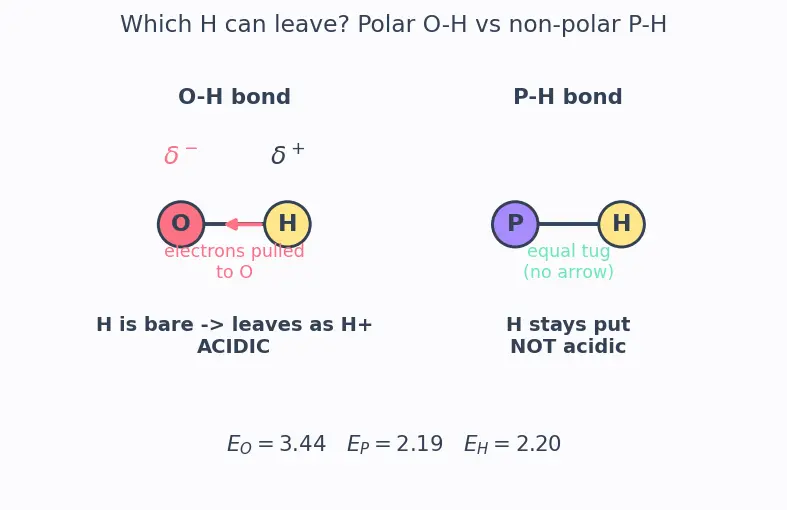

PICTURE. Look at two little bonds side by side.

• On the left, an O–H bond. Oxygen is greedy for electrons (very electronegative). It pulls the shared pair toward itself, leaving the H "bare" and slightly positive (${\delta }^{+}$). Give it a nudge from water and the H pops off as $H^{+}$ — the electron pair stays on the O. This H is acidic.
• On the right, a P–H bond. Phosphorus and hydrogen tug on the shared electrons almost equally.

Here is the number that decides it — the pull-strength (electronegativity, written $E$):

$E_{\text{O}}=3.44,E_{\text{P}}=2.19,E_{\text{H}}=2.20$

• $E_{\text{O}}$ ::: how hard oxygen pulls shared electrons — very hard.
• $E_{\text{P}},E_{\text{H}}$ ::: phosphorus and hydrogen pull almost identically ($2.19$ vs $2.20$).

The gap $E_{\text{O}}-E_{\text{H}}=3.44-2.20=1.24$ is large → very polar → H leaves easily. The gap $|E_{\text{P}}-E_{\text{H}}|=|2.19-2.20|=0.01$ is tiny → non-polar → H stays put.

This links to the bigger picture of Oxides — acidic vs basic character: acidity always comes down to which bond releases $H^{+}$.

---

Step 2 — Build the phosphorus atom's "hands"

WHAT. Take one neutral phosphorus atom and count how many bonds it wants to make.

WHY. The whole molecule is decided by how many connections P forms and what sits on each. If we know P's bonding capacity, we can build every oxoacid like assembling LEGO.

PICTURE. Phosphorus is in group 15, configuration $n{s}^{2}n{p}^3$ — three unpaired electrons in the outer shell, plus it can expand to use five bonds when oxygen is around.

Think of P as a hub with hands. In its highest oxidation state ($+5$) it forms five bonds' worth of connections: it will hold one double bond to oxygen ($P=O$) and four single bonds. Those four single-bond slots are where either an $-OH$ group or an $-H$ can attach — and that choice is the entire story.

This "how many bonds and in what state" idea is exactly Oxidation states and disproportionation in action.

---

Step 3 — Assemble H₃PO₄ (phosphoric acid): all slots get O–H

WHAT. Fill P's structure so that P is $+5$ with three $-OH$ groups and one $=O$.

WHY. This is the "clean" case — no P–H at all. It shows what "maximum basicity for 3 H" looks like, so we have a reference to compare $H_{3}P{O}_3$ against.

PICTURE.

Read the molecule slot-by-slot around the central P:

$\underset{\text{central hub}}{\underbrace{P}}\underset{\text{terminal cap}}{\underbrace{=O}}\underset{\text{three acidic arms}}{\underbrace{(-OH{)}_3}}$

• $P$ ::: the hub, oxidation state $+5$.
• $=O$ ::: one terminal double-bonded oxygen — a cap, holds no H, contributes nothing to acidity.
• $(-OH{)}_3$ ::: three separate O–H arms. Each O is greedy → each H is ${\delta }^{+}$ → each can leave.

Count the acidic (O–H) hydrogens: 3. So $H_{3}P{O}_4$ donates its protons in three steps:

$H_{3}P{O}_4\to H^{+}+H_{2}P{O}_4^{-}\to 2H^{+}+HP{O}_4^{2-}\to 3H^{+}+P{O}_4^{3-}$

Every arrow releases one H from one O–H group. Three arrows, three protons → basicity = 3 (tribasic).

---

Step 4 — Assemble H₃PO₃ (phosphorous acid): one slot is a trap

WHAT. Now build the $+3$ acid. It still has 3 H total — but one of those hydrogens sits directly on P, not on O.

WHY. This is the crux. It has the same $H_{3}P{O}_{?}$ formula shape, tempting you to say "3 H → basicity 3." We must place the atoms honestly and see the trap.

PICTURE.

Read the molecule slot-by-slot:

$\underset{\text{central hub, }+3}{\underbrace{P}}\underset{\text{cap}}{\underbrace{=O}}\underset{\text{two acidic arms}}{\underbrace{(-OH{)}_2}}\underset{\text{stuck! P–H}}{\underbrace{(-H)}}$

• $P$ ::: hub, oxidation state $+3$ (lower because one slot spends on a plain H, not an oxygen).
• $=O$ ::: terminal cap, no H, no acidity.
• $(-OH{)}_2$ ::: two O–H arms → two hydrogens that can leave.
• $(-H)$ ::: one hydrogen bonded straight to P. From Step 1, the $E_P\approx E_H$ near-tie means this bond is non-polar — this H cannot ionise.

So even though the formula reads "$H_3$", only two of those three hydrogens are on oxygen:

$H_{3}P{O}_3\to H^{+}+H_{2}P{O}_3^{-}\to 2H^{+}+HP{O}_3^{2-}(\text{and then it stops})$

The third H is locked in the P–H bond and never appears as $H^{+}$. Basicity = 2 (dibasic).

Check with the rule: total H $=3$, P–H bonds $=1$, basicity $=3-1=2$. ✓

---

Step 5 — Extend the pattern: H₃PO₂ (hypophosphorous), two traps

WHAT. Push the idea one more notch: an acid with two P–H bonds.

WHY. A rule you can only apply once is a coincidence; a rule that predicts the next case is real understanding. If our picture is right, $H_{3}P{O}_2$ should be monobasic.

PICTURE.

$\underset{+1}{\underbrace{P}}\underset{\text{cap}}{\underbrace{=O}}\underset{\text{one acidic arm}}{\underbrace{(-OH)}}\underset{\text{two stuck P–H}}{\underbrace{(-H{)}_2}}$

• $(-OH)$ ::: only one O–H arm → only one releasable H.
• $(-H{)}_2$ ::: two hydrogens bonded straight to P → both locked, both non-acidic.

Rule: basicity $=3-2=1$. Monobasic. ✓ The pattern holds perfectly.

Acid	Formula	Ox. state of P	P–H bonds	O–H groups	Basicity
Hypophosphorous	$H_{3}P{O}_2$	$+1$	2	1	1
Phosphorous	$H_{3}P{O}_3$	$+3$	1	2	2
Phosphoric	$H_{3}P{O}_4$	$+5$	0	3	3

Notice the beautiful bookkeeping: (P–H count) + (basicity) = 3 in every row, and as P–H bonds rise, oxidation state falls (each P–H "spends" a slot that an oxygen would have oxidised).

---

Step 6 — The bonus payoff: P–H bonds also make reducing agents

WHAT. The very same P–H bond that kills acidity creates reducing power.

WHY. A single structural feature (the P–H bond) explains two properties at once — that is the sign we found the true cause, not a surface pattern.

PICTURE.

A P–H bond is a place where P is not yet fully oxidised — it still has a hand that can grab more oxygen / give up electrons. So:

• $H_{3}P{O}_2$ (two P–H) → strongest reducer (e.g. reduces $A{g}^{+}\to Ag$ metal).
• $H_{3}P{O}_3$ (one P–H) → moderate reducer.
• $H_{3}P{O}_4$ (zero P–H) → not a reducing agent — nothing left to give.

This is the full story of Reducing agents and P–H bonds: count P–H bonds and you predict both the (low) basicity and the (high) reducing strength.

---

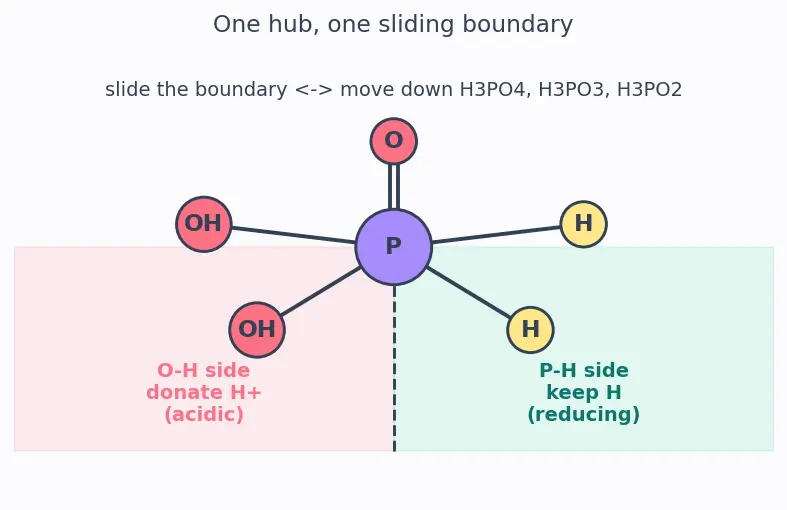

The one-picture summary

One central P, one $=O$ cap, and four slots. Slide the boundary: O–H slots on the left donate $H^{+}$ (acidic); H slots on the right stay put (reducing). Move the boundary and you move down the series $H_{3}P{O}_4\to H_{3}P{O}_3\to H_{3}P{O}_2$, trading acidity for reducing power one slot at a time.

Recall Feynman retelling — the whole walkthrough in plain words

Imagine phosphorus as a little hub with a fixed cap of oxygen and four open slots. Into each slot you can plug one of two things: an O–H arm or a bare H.

A hydrogen only escapes as $H^{+}$ if the atom holding it is greedy for electrons and yanks them away, leaving the H hanging. Oxygen is greedy — so an O–H hydrogen leaves easily (acidic). Phosphorus pulls on hydrogen almost equally (their electronegativities are $2.19$ vs $2.20$, basically a tie) — so a P–H hydrogen refuses to let go.

Now just plug in slots. Phosphoric acid $H_{3}P{O}_4$ has three O–H arms → all three H's can leave → basicity 3. Phosphorous acid $H_{3}P{O}_3$ has two O–H arms and one bare P–H → only two leave → basicity 2, even though the formula shows three hydrogens! Hypophosphorous $H_{3}P{O}_2$ has one O–H and two P–H → basicity 1.

The magic bonus: those bare P–H hands, which are useless for donating $H^{+}$, are the very hands that can grab more oxygen — so the more P–H bonds an acid has, the weaker its acidity but the stronger its power as a reducing agent. One picture, two properties. Count the O–H arms for basicity; count the P–H hands for reducing power.

---
