Before you can read a single equation in the parent note, you must be fluent in the alphabet it is written in. Below is every symbol, arrow, and idea the parent assumes — built from absolute zero, each one earning its place before the next.

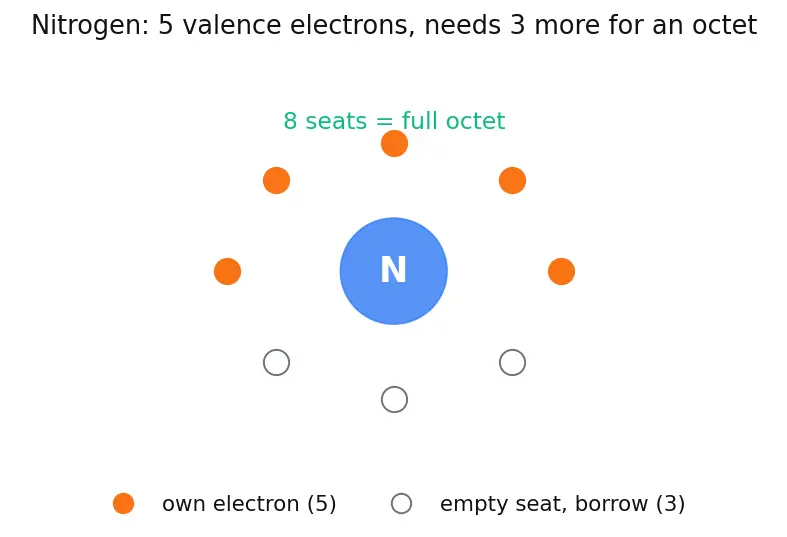

1. What an atom "wants": valence electrons and the octet

Nitrogen (N) sits in Group 15, so it has 5 valence electrons. Oxygen (O) has 6. That single count drives the whole chapter.

Figure — Group 15 (Nitrogen family) — N₂ inertness; NH₃ synthesis (Haber); HNO₃ (Ostwald); oxides of N (N₂O, NO, NO₂, N₂O₄, N₂O₅)

Because N needs 3 shared electrons and the other N also needs 3, they share three pairs — that is what a "triple bond" will mean below.


2. Bonds: the dash, the double dash, the triple dash

So when the parent writes it is a full picture: two dots (lone pair) — three lines (triple bond) — two dots (lone pair). Six shared electrons, plus two held-back pairs.

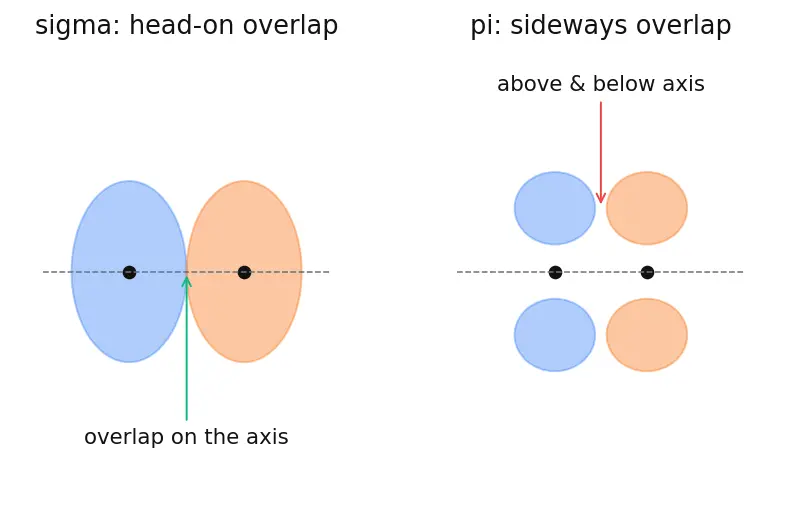

3. σ and π: the two shapes a bond can have

The symbols (sigma) and (pi) confuse everyone. They are just two shapes in which electron clouds overlap.

Figure — Group 15 (Nitrogen family) — N₂ inertness; NH₃ synthesis (Haber); HNO₃ (Ostwald); oxides of N (N₂O, NO, NO₂, N₂O₄, N₂O₅)

4. Bond order — counting the net glue

The parent computes it with a formula from Molecular Orbital theory:

Recall What does the star in

mean? An antibonding orbital — electrons there weaken the bond, so we subtract them.


5. Enthalpy and bond dissociation enthalpy

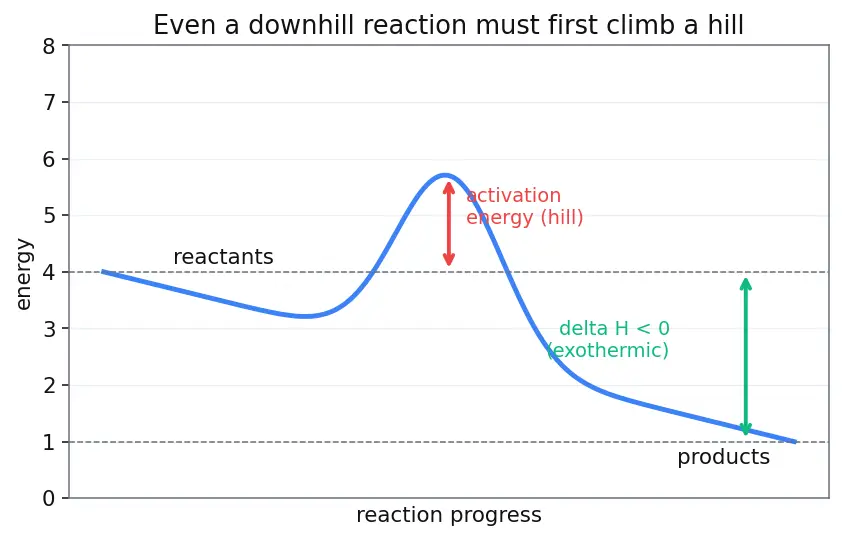

6. Activation energy — the hill before the reaction

Figure — Group 15 (Nitrogen family) — N₂ inertness; NH₃ synthesis (Haber); HNO₃ (Ostwald); oxides of N (N₂O, NO, NO₂, N₂O₄, N₂O₅)

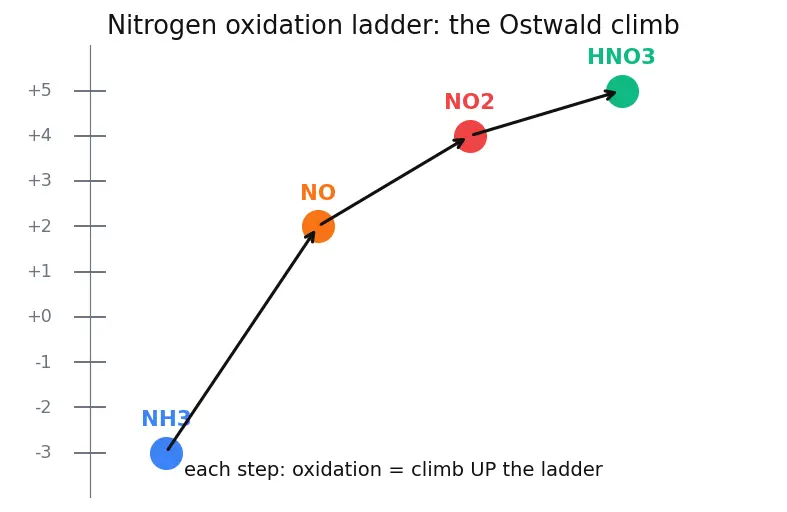

7. Oxidation state — nitrogen's changeable "outfit"

Two rules do 90% of the work:

  • Oxygen is almost always .
  • Hydrogen bonded to a nonmetal is .
  • The oxidation states in a neutral molecule add to 0.
Figure — Group 15 (Nitrogen family) — N₂ inertness; NH₃ synthesis (Haber); HNO₃ (Ostwald); oxides of N (N₂O, NO, NO₂, N₂O₄, N₂O₅)

8. The reversible arrow and

Recall Why is

cubed in ? Because the balanced equation has — each species' exponent is its stoichiometric coefficient.


Prerequisite map

Valence electrons and octet

Bonds single double triple

sigma and pi shapes

Bond order counting

N2 triple bond very strong

Enthalpy delta H and sign

Bond dissociation enthalpy 941

Activation energy the hill

Kinetic inertness of N2

Oxidation state pretend charge

Oxidation ladder minus3 to plus5

Disproportionation split both ways

Reversible arrow and Kp

Le Chatelier drives Haber

Group 15 N2 NH3 HNO3 oxides


Equipment checklist

Test yourself — cover the right side and answer before revealing.

What are valence electrons?
The outermost electrons of an atom; the only ones that form bonds.
How many valence electrons does nitrogen have, and how many more for an octet?
5 valence electrons; needs 3 more to reach 8.
What is a triple bond in terms of shared pairs and σ/π?
Three shared electron pairs = 1 σ (head-on) + 2 π (sideways).
Give the bond-order formula and 's value.
(bonding − antibonding)/2 = (10 − 4)/2 = 3.
What does mean?
Exothermic — heat is released to the surroundings.
Why is breaking a bond endothermic?
You must pull against the bond's attraction, which costs energy in.
What is activation energy?
The energy hill (from breaking old bonds first) that must be climbed before a reaction proceeds; it sets the rate.
Is 's inertness kinetic or thermodynamic, and why?
Kinetic — a huge activation hill from the 941 kJ/mol triple bond makes it slow, not impossible.
What does a catalyst change and not change?
It lowers activation energy (speeds both directions equally); it does NOT change equilibrium yield.
How do you find the oxidation state of N in a neutral N–O compound?
Set N = x, O = −2 each, sum to 0, solve for x.
Oxidation state of N in ?
+5.
What is disproportionation?
One element in a single reaction goes both up and down the oxidation ladder.
What does the arrow mean?
The reaction is reversible and reaches equilibrium (forward rate = reverse rate).
Write for .
.

Connections

  • Parent topic (Hinglish)
  • N2 molecule MO diagram — where σ, π and bond order come from rigorously
  • Le Chatelier Principle — the rule behind and Haber conditions
  • Disproportionation Reactions — the split in Ostwald Step 3
  • Oxidation States and Redox — the ladder and how to assign states
  • Group 15 Hydrides PH3 vs NH3 — where these foundations extend down the group
  • Aqua regia and Noble Metals — HNO₃ chemistry built on these ideas
