Aluminium — chemistry, alloys; alumina, alums: Visual walkthrough

We only assume you can count to eight. Everything else — "octet", "lone pair", "Lewis acid", "bridge" — is built here, in order, with a picture per idea.

Step 1 — Count what aluminium brings to the table

WHAT. An aluminium atom's outermost shell holds 3 electrons available for bonding. We write its configuration $[N e] 3 s^{2} 3 p^{1}$ .

Let me unpack that symbol before using it:

WHY this matters. A "happy" outer shell in the second row of the p-block wants 8 electrons around it — the octet. Think of 8 as a full parking lot with 8 spaces. Aluminium arrives owning only 3 cars; it has 5 empty spaces it would love to fill.

PICTURE. The left panel shows aluminium's 3 outer electrons as chalk dots and an empty box marking the vacancy it wants to fill.

Figure — Aluminium — chemistry, alloys; alumina, alums

Step 2 — Build the monomer $A l C l_{3}$ and count again

WHAT. Each chlorine has 7 outer electrons and is desperate for just one more to reach 8. So chlorine happily shares one electron with aluminium. Three chlorines give aluminium three shared pairs:

$A l + 3 C l \to flat, three bonds A l C l_{3}$

$A l$ ::: brings its 3 electrons, one per bond.
$3 C l$ ::: each brings 1 electron to share, and each walks away with a full octet.
Each $A l - C l$ bond ::: a shared pair = 2 electrons near aluminium.

WHY it's still unhappy. Now count the electrons around aluminium: 3 bonds × 2 electrons each $= 6$ . Aluminium sits at 6, not 8. Two parking spaces are still empty.

PICTURE. The flat $A l C l_{3}$ triangle, with a dashed empty orbital drawn above aluminium — the "hole" that drives everything next.

Step 3 — Who can fill the hole? A chlorine has spare pairs

WHAT. Look closely at a chlorine already bonded to aluminium. It used one of its 7 electrons for the $A l - C l$ bond. The other 6 sit as three lone pairs — pairs of electrons doing nothing, just parked on chlorine.

WHY it's the key. Aluminium has an empty seat; chlorine has spare pairs to donate. A donor and an acceptor in the same neighbourhood — that is exactly the recipe for a new bond, where both electrons come from one atom.

PICTURE. One chlorine highlighted, its three lone pairs drawn, an arrow reaching toward a neighbouring aluminium's empty box.

Step 4 — Two monomers link: the chloride bridge forms

WHAT. Bring two $A l C l_{3}$ units close. A chlorine on molecule A donates a lone pair into the empty orbital of the aluminium on molecule B. By symmetry, a chlorine on B donates back into the aluminium of A. Two coordinate bonds form at once:

$2 A l C l_{3} \to A l_{2} C l_{6}$

$2 A l C l_{3}$ ::: the two electron-deficient monomers.
The two new arrows ::: chlorine-to-aluminium coordinate bonds, one each way.
$A l_{2} C l_{6}$ ::: the joined, stable dimer.

WHY it happens (and stays). After bridging, each aluminium is now surrounded by 4 bonds = 8 electrons — the octet is complete on both aluminiums. The system dropped to a lower, more comfortable energy. Nature took the deal.

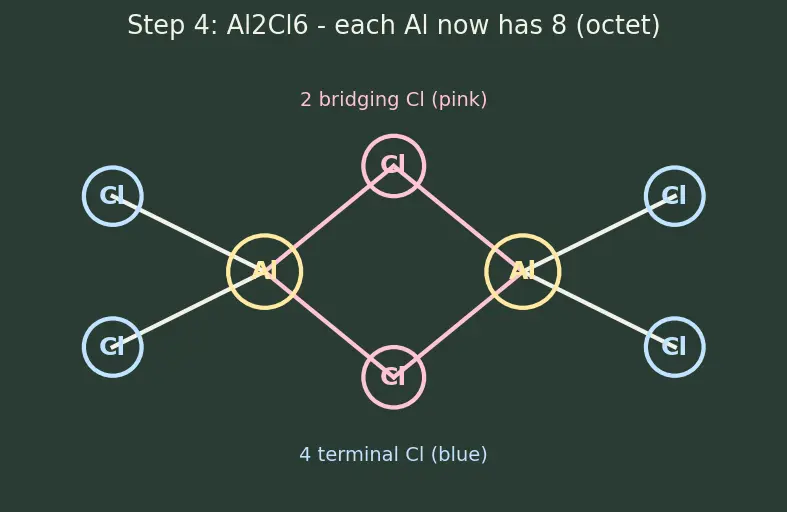

PICTURE. Both monomers snapped together, the two bridging chlorines in the centre coloured differently from the four terminal ones.

Step 5 — Why the shape is tetrahedral ( $s p^{3}$ ), not flat

WHAT. In the lonely monomer, aluminium made 3 bonds and stayed flat (a triangle, called $s p^{2}$ ). In the dimer each aluminium now makes 4 bonds. Four things repelling each other point to the corners of a tetrahedron.

WHY the shape changed. Adding the coordinate bond took aluminium from 3 attachments to 4. More attachments ⇒ new best-spread geometry. So dimerisation isn't just electron-counting; it physically re-sculpts each aluminium from flat-triangle to 3-D pyramid.

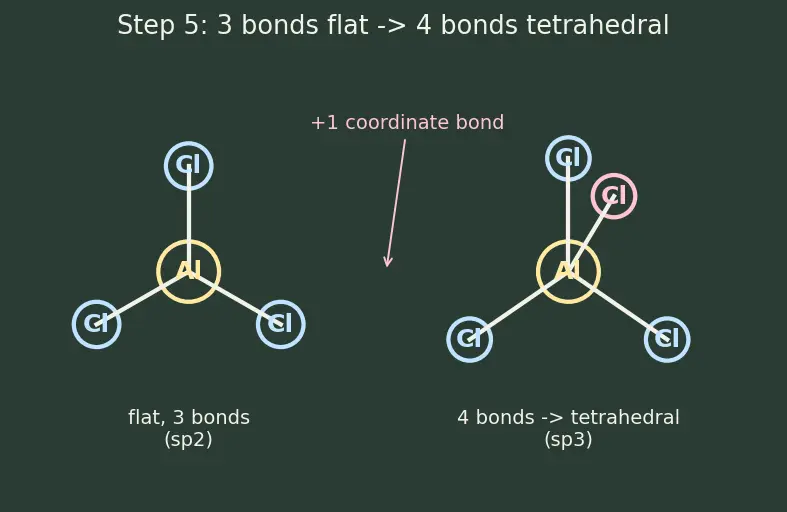

PICTURE. Side-by-side: the flat 3-bond monomer becoming the 4-bond tetrahedral aluminium, arrows showing the fourth cloud pushing the shape out of plane.

Step 6 — The edge case: drop $A l_{2} C l_{6}$ into water

WHAT. The dimer only survives where nothing better is offered — vapour and non-polar solvents. Put it in water and the story flips. Water molecules carry their own lone pairs and are far more eager donors than a busy bridging chlorine.

$A l C l_{3} + 3 H_{2} O \to A l (O H)_{3} + 3 H C l$

$H_{2} O$ ::: swarms the small, highly charged $A l^{3 +}$ , coordinating to it.
The bridge ::: breaks — water outcompetes chlorine for aluminium's empty seats.
Result ::: $A l (O H)_{3}$ forms and $H^{+}$ is released, so aqueous aluminium salt is acidic.

WHY the bridge loses. $A l^{3 +}$ is tiny and triple-charged — a savage electron-cloud puller (that is Fajans Rules in one breath). It grips coordinated water so hard that a water O–H bond snaps, spitting out $H^{+}$ . In water the whole dimer scaffolding is irrelevant; the ion is fully surrounded.

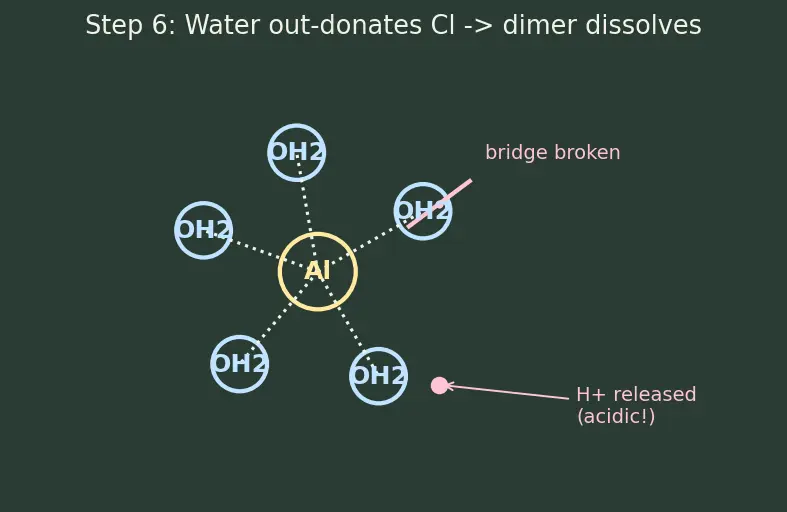

PICTURE. The dimer dissolving: bridges cut, water molecules docking onto each aluminium, an $H^{+}$ leaving.

Step 7 — The degenerate check: what if aluminium were not electron-deficient?

WHAT. Run the logic backwards to be sure we found the real cause. Suppose aluminium had already reached 8 electrons in the monomer (no empty seat). Then there is no hole, so a chlorine lone pair has nowhere to go, so no bridge, so no dimer.

WHY this proves the mechanism. This is the control experiment. The only ingredient we needed for dimerisation was the empty orbital (the deficiency of Step 2). Remove it and the dimer vanishes. That confirms: dimerisation exists because and only because monomeric $A l C l_{3}$ is 2 electrons short.

PICTURE. A "what-if" panel: a hypothetical satisfied aluminium (octet full), chlorine's lone-pair arrow bouncing off — no bond, no bridge.

The one-picture summary

Every idea, one flow: 3 electrons → 6 around Al → empty seat (Lewis acid) → Cl lone pair bridges → octet on both → tetrahedral $A l_{2} C l_{6}$ → water breaks it → acidic solution.

Recall Feynman: tell it to a 12-year-old

Aluminium is like a kid who only owns 3 building blocks but wants a tower of 8. He grabs three chlorine friends and borrows one block from each — now he has 6. Still not 8! Two spaces empty, and he's grumpy (that "grumpy for electrons" feeling is what chemists call a Lewis acid). Luckily every chlorine friend is carrying spare blocks in their pockets (lone pairs). So two of these grumpy aluminium kids stand back-to-back, and a chlorine from each reaches across and lends the other kid a block. Now both kids have 8 — happy! That handshake in the middle is the bridge, and the doubled-up thing is $A l_{2} C l_{6}$ . Because each kid now holds 4 things instead of 3, they can't stay flat — their arms spread into a little 3-D pyramid (tetrahedral, $s p^{3}$ ). But throw them in a swimming pool: water molecules are even more generous lenders, they mob each aluminium, the handshake breaks, and in the shuffle an acidy $H^{+}$ gets kicked out — that's why aluminium salt water tastes/tests acidic. Take away the grumpiness (imagine an aluminium already at 8) and none of this happens — proving the empty seat was the reason all along.
