Biological importance of Na, K, Ca, Mg: Visual walkthrough

We are deepening the "Nernst potential" box from the parent topic. The full electrochemistry lives in Nernst Equation.

Step 1 — Draw the stage: a wall with salt water on both sides

WHAT. A cell is a bag of salty water sitting inside more salty water. The bag's skin is the membrane — a thin wall. Put more of one ion (say K⁺) on the inside than the outside.

WHY. Every voltage in this story comes from one ingredient: a difference in how crowded an ion is on the two sides. So before any maths, we must see that crowding difference as a picture. No difference → no voltage. That's the whole engine.

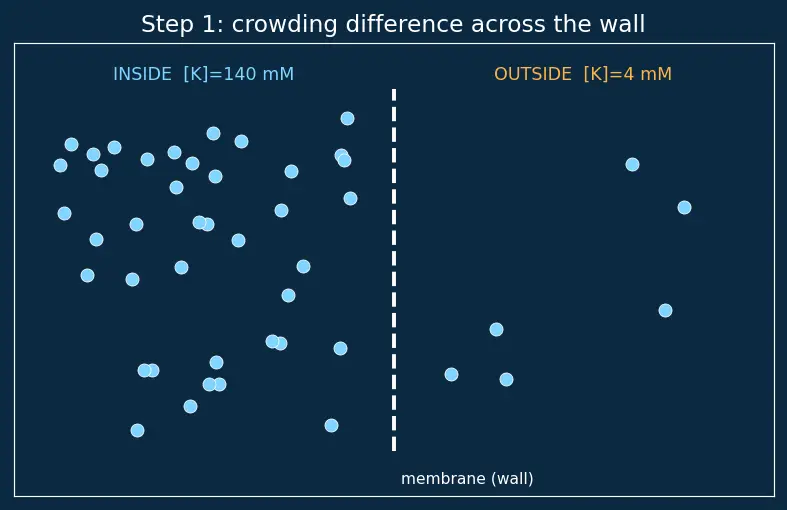

PICTURE. Look at the figure. Cyan dots are K⁺ ions. Inside (left) is packed; outside (right) is sparse. The white dashed line is the membrane. Right now nothing moves — we haven't opened a door yet.

Figure — Biological importance of Na, K, Ca, Mg

Step 2 — Open a door: crowding pushes ions out

WHAT. Punch a hole that lets only K⁺ through. Because inside is crowded and outside is empty, K⁺ dribbles out — from packed to sparse.

WHY. This is diffusion, and it needs no pump, no energy. Nature spreads a crowd out on its own, the same way a drop of ink spreads in water. We call the strength of this "spreading urge" the chemical push. It always points from the crowded side to the empty side.

PICTURE. The amber arrow shows K⁺ leaving through the channel. Watch: each K⁺ that leaves carries a positive charge with it. That fact is the twist that powers Step 3.

Step 3 — Charge builds up: an electrical push fights back

WHAT. Every K⁺ that leaves takes a "+" with it and abandons a "−" (its old partner anion, too big for the hole). So the outside becomes positive and the inside becomes negative.

WHY. Opposite charges attract. The growing negative inside now tugs the positive K⁺ back in. This is the electrical push, and it points the opposite way to the chemical push. We have a tug-of-war.

PICTURE. The membrane now has a "+" wall outside and a "−" wall inside (amber "+", cyan "−"). The white return-arrow is the electrical pull dragging K⁺ back. The two arrows point against each other.

Step 4 — Weigh the two pushes as work

WHAT. To compare the two pushes fairly, we ask each one the same question: "how much energy (work) does it take to move one mole of ions across?" Work is a common currency — joules — so we can add them.

WHY work, not force? Because force changes as the ion crosses, but total work is one clean number, and the tug-of-war balances when the two works are equal and opposite. Work is the right tool for "who wins the pull."

Chemical work to shove one mole against its crowding (from out→in, the uphill direction): $W_{c h e m} = R T ln \frac{[ X ] _{o u t}}{[ X ] _{in}}$

Term by term, right where it sits:

$R$ — the gas constant, $8.314 J mol^{- 1} K^{- 1}$ . Converts "amount of jiggling" into joules.
$T$ — temperature in kelvin ( $\approx 310$ K for body). Hotter = more jiggling = stronger chemical push, so $T$ multiplies.
$ln$ — the natural logarithm. WHY a log? Because crowding pushes act on ratios, not differences: doubling the ratio adds a fixed chunk of work, not multiplies it. $ln$ is exactly the "turn a ratio into an amount" tool.
$\frac{[ X ] _{o u t}}{[ X ] _{in}}$ — the crowding ratio. Bigger inside crowding makes this fraction small, its $ln$ negative — meaning the crowd helps ions leave (negative uphill work = downhill). Consistent with Step 2.

Electrical work to move charge across the voltage: $W_{e l ec} = - z F E$

$z$ — the ion's charge number ( $+ 1$ for K⁺ and Na⁺, $+ 2$ for Mg²⁺, Ca²⁺). More charge = the electric field grabs it harder.
$F$ — Faraday's constant, $96485 C mol^{- 1}$ . The charge carried by one mole of "+1" — the bridge from moles to coulombs.
$E$ — the voltage from Step 3.
the minus sign — bookkeeping: moving a positive ion into a region we defined as negative releases energy, hence negative work.

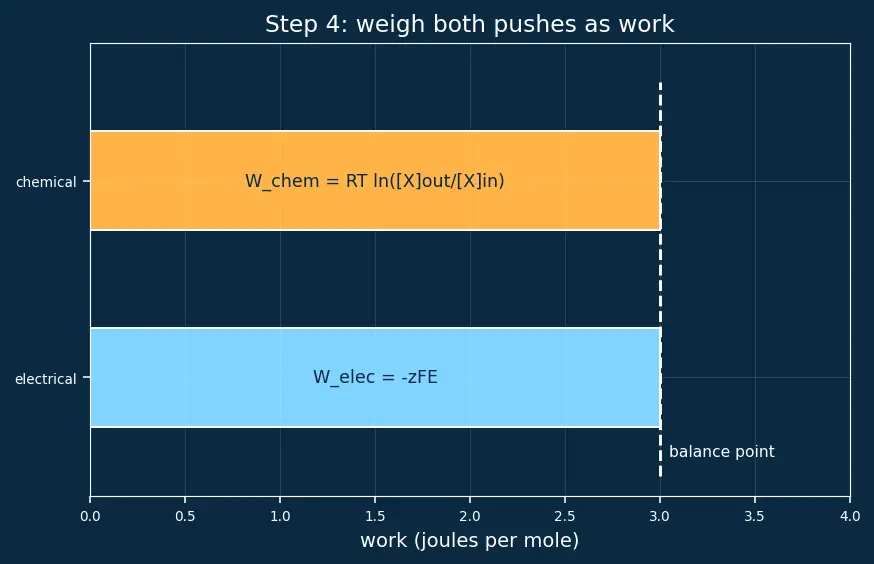

PICTURE. Two labelled bars, one per push, meeting at a balance point.

Step 5 — Set the tug-of-war to a draw and solve

WHAT. Equilibrium = the point where neither push wins, so no net movement. The two works cancel: $W_{c h e m} + W_{e l ec} = 0$

WHY. This is the definition of a steady resting state — ions still wiggle both ways, but the flow balances. That balance is precisely the resting voltage we want.

Do the algebra (one honest line at a time): $R T ln \frac{[ X ] _{o u t}}{[ X ] _{in}} - z F E = 0$ $z F E = R T ln \frac{[ X ] _{o u t}}{[ X ] _{in}}$ $E = \frac{R T}{z F} ln \frac{[ X ] _{o u t}}{[ X ] _{in}}$

Every symbol here was earned in Steps 1–4 — no new characters appeared. This is the Nernst equation from the parent box, now built from a picture.

PICTURE. The tug-of-war frozen at the balance line, with the boxed result written on the membrane.

Step 6 — Put potassium's numbers in

WHAT. For K⁺: $z = + 1$ , $T = 310$ K, $[K]_{o u t} = 4$ , $[K]_{in} = 140$ . $E_{K} = \frac{( 8.314 ) ( 310 )}{( + 1 ) ( 96485 )} ln \frac{4}{140}$

WHY these numbers. They are the parent note's own concentrations. We are checking that the picture-built formula reproduces its stated $E_{K} \approx - 90$ mV.

Crunch it:

$\frac{R T}{z F} = \frac{8.314 \times 310}{96485} \approx 0.0267$ V $= 26.7$ mV.
$ln \frac{4}{140} = ln (0.0286) \approx - 3.555$ .
$E_{K} \approx 26.7 \times (- 3.555) \approx - 95$ mV.

The minus sign is real: inside is negative, exactly as Step 3 predicted. $- 95$ mV ≈ the parent's $- 90$ mV (small textbook rounding).

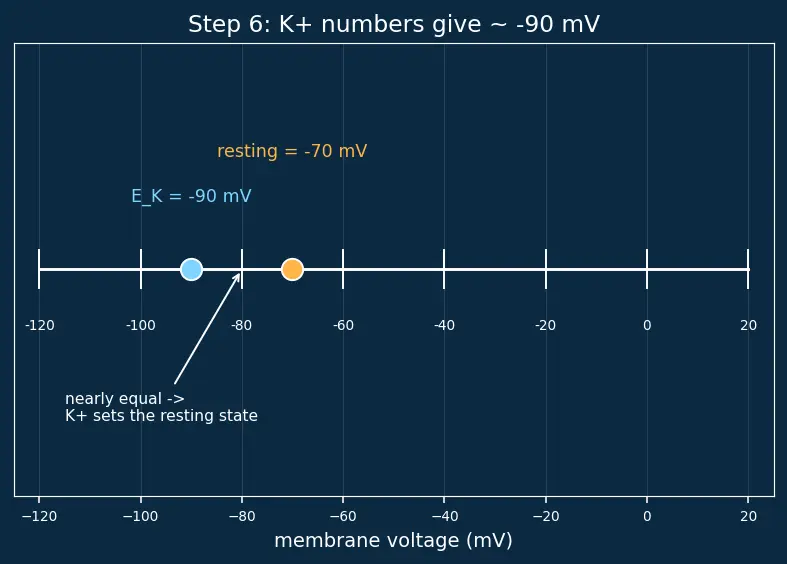

PICTURE. A number line of mV with $E_{K}$ (≈ $- 90$ ) plotted next to the true resting potential ( $- 70$ ), showing they nearly touch — which is why K⁺ dominates the resting state.

Step 7 — The edge cases (never leave the reader stranded)

WHAT & WHY — three degenerate inputs the formula must survive:

Case A — equal crowding ( $[X]_{o u t} = [X]_{in}$ ). Ratio $= 1$ , and $ln (1) = 0$ , so $E = 0$ . No crowding difference → no voltage. This is Step 1 with the doors open: nothing to drive, flat wall. The formula agrees.

Case B — a doubly-charged ion (Ca²⁺, $z = + 2$ ). The $z$ sits in the denominator, so doubling the charge halves the voltage for the same crowding ratio. That's why the tiny, sharp Ca²⁺ signal (parent's $1 0^{4}$ gradient) still gives a modest voltage — the $z = 2$ tames it. Plug Ca²⁺ ( $1 0^{- 3}$ out, $1 0^{- 7}$ in): $ln (1 0^{4}) = 9.21$ , $E_{C a} = \frac{26.7}{2} \times 9.21 \approx + 123$ mV.

Case C — ion locked out (ratio → 0 or → ∞). As inside crowding $\to 0$ , the ratio $\to \infty$ and $ln \to + \infty$ : voltage blows up. Physically the last ion is impossibly hard to hold, so the pull grows without limit. The log's slow growth means even a $1 0^{6}$ -fold gap gives only a few hundred mV — real cells never explode.

PICTURE. Three mini-panels: flat wall (A), half-height bar (B), a curve of $E$ vs ratio flattening out then rocketing at the extremes (C).

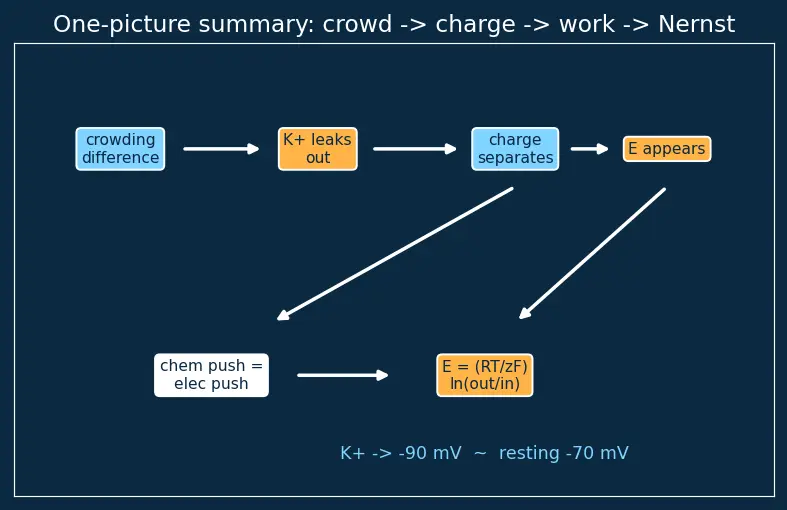

The one-picture summary

One frame ties it together: crowding difference (Step 1) → K⁺ leaks out (Step 2) → charge separates (Step 3) → chemical push vs electrical push weighed as work (Step 4) → balance them (Step 5) → out pops $E = \frac{R T}{z F} ln \frac{[ X ] _{o u t}}{[ X ] _{in}}$ , which gives K⁺ its $\approx - 90$ mV (Step 6) and survives every edge case (Step 7).

Recall Feynman retelling — the whole walkthrough in plain words

Imagine a bag of salty water floating in more salty water, but the bag has extra potassium packed inside. Poke a hole that only potassium fits through. The crowd inside spills out — that's just crowds spreading, no effort needed. But each potassium is a tiny "+", so as they leave, the outside piles up "+" and the inside is left "−". Now the "−" inside starts pulling the potassium back. Two invisible hands: one pushing out (the crowd), one pulling in (the charge). We measure each hand not by its grip but by the work it does moving one scoop of ions — and when the two works exactly cancel, the tug freezes. Freeze it, do the algebra, and you get one clean recipe: hotness over charge, times the log of the crowding lopsidedness. Feed potassium's real numbers in and it says the inside should sit around −90 millivolts — which is almost exactly the −70 millivolts a real resting nerve shows. That's why potassium, not sodium, is the ion that sets the cell's "quiet" voltage. Same recipe with sodium's numbers flips the sign to +67 mV, because for sodium the crowd is outside — same maths, mirror answer.

Connections

Nernst Equation — the full electrochemical treatment this page rebuilds visually
Alkali Metals (Na, K) — why $z = + 1$ and high mobility for the signalling ions
Alkaline Earth Metals (Mg, Ca) — why $z = + 2$ halves the voltage (Step 7B)
Osmosis and Fluid Balance — the crowding gradients that feed $[X]_{in}$ , $[X]_{o u t}$
ATP and Bioenergetics — the pump that maintains the gradient this derivation assumes
