Important compounds — NaOH, NaCl, Na₂CO₃ (Solvay), NaHCO₃; CaO, CaCO₃, gypsum, plaster of Paris: Visual walkthrough

We are chasing ONE target: sodium carbonate, written $N a_{2} C O_{3}$ . Let us decode that formula before we use it.

Now — why can't we just buy it? Because carbonate rock is calcium carbonate, and cheap salt is sodium chloride. The two useful bits ( $N a^{+}$ and $C O_{3}^{2 -}$ ) start in different rocks. Solvay is the clever bridge that swaps them. Let's build that bridge one plank at a time.

Step 1 — The two raw materials, and the atoms we need to move

WHAT. We lay out our only two cheap ingredients:

Brine = salty water = $N a C l$ dissolved in water. This holds our sodium as $N a^{+}$ ions swimming free.
Limestone = $C a C O_{3}$ , a solid white rock. This holds our carbonate.

WHY. Look at the target $N a_{2} C O_{3}$ . The sodium must come from the brine; the carbon-and-oxygen ( $C O_{3}$ ) must ultimately come from the limestone. Solvay's entire job is to carry the $C O_{3}$ over to the $N a$ .

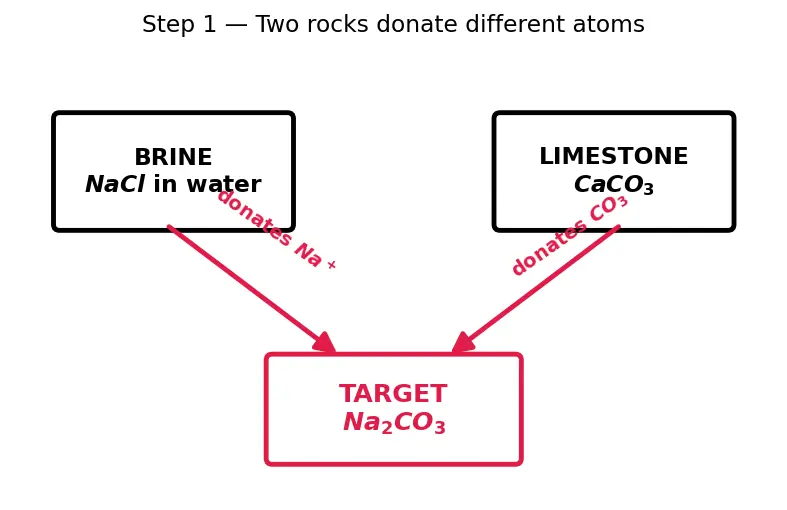

PICTURE. The red arrows show which atom each rock donates.

Figure — Important compounds — NaOH, NaCl, Na₂CO₃ (Solvay), NaHCO₃; CaO, CaCO₃, gypsum, plaster of Paris

Step 2 — Bake the limestone to release CO₂

WHAT. We heat limestone ( $C a C O_{3}$ ) in a kiln. It splits: $white rock in C a C O_{3} Δ quicklime, stays C a O + gas, leaves C O_{2} ↑$

Term by term: the $Δ$ over the arrow means "apply heat". $C a O$ is quicklime, a solid we keep for later (Step 6). The $↑$ on $C O_{2}$ means the gas bubbles up and escapes.

WHY. We need $C O_{2}$ gas as our "delivery van" — it will carry the carbonate to the sodium. Heating is the tool because $C a C O_{3}$ is held together strongly at room temperature; only heat energy breaks it. And because the gas escapes an open kiln, the reaction never reverses — this is Le Chatelier's Principle: remove a product, the reaction keeps chasing forward to replace it.

PICTURE. Red = the escaping $C O_{2}$ we are harvesting.

Step 3 — Charge the brine with ammonia (the recyclable helper)

WHAT. Into the brine we first dissolve ammonia gas, $N H_{3}$ . This makes ammoniacal brine.

WHY — this is the cleverest choice. We cannot just push $C O_{2}$ into plain salt water; too little would dissolve and nothing would precipitate. Ammonia is a base — it grabs onto acidic $C O_{2}$ eagerly and makes the water hungry for far more $C O_{2}$ than it could otherwise hold. Think of $N H_{3}$ as a sponge that pre-soaks the brine so it can absorb the delivery gas. Crucially, we will get every bit of this ammonia back at the end (Step 6), so it is a helper, not a cost.

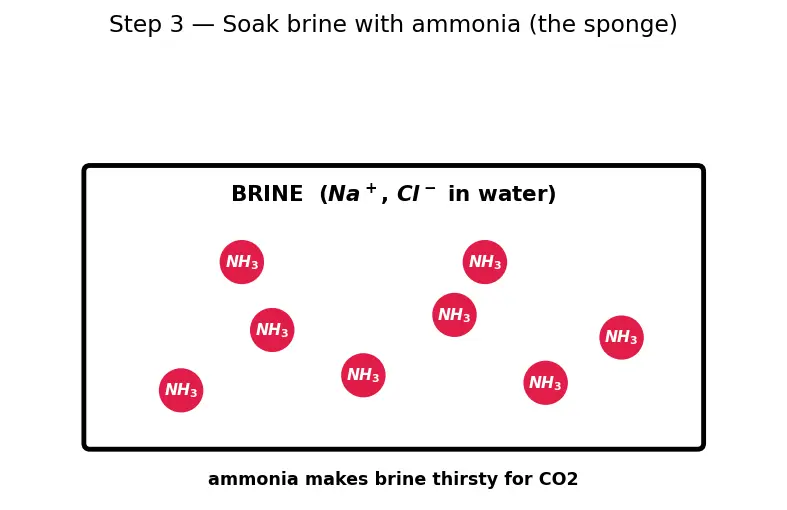

PICTURE. The red $N H_{3}$ molecules saturating the salt solution.

Recall Why ammonia and not just more pressure?

Question ::: Why add $N H_{3}$ instead of just forcing more $C O_{2}$ into brine at high pressure? Answer ::: $N H_{3}$ is a base that chemically holds $C O_{2}$ as bicarbonate ions in solution, giving a huge concentration of $H C O_{3}^{-}$ cheaply — and it is fully recovered. Raw pressure would be expensive and would not create the bicarbonate needed to precipitate $N a H C O_{3}$ .

Step 4 — Bubble in the CO₂: bicarbonate ions form

WHAT. Now push the $C O_{2}$ (harvested in Step 2) into the ammoniacal brine. The ammonia + water + $C O_{2}$ combine: $the sponge N H_{3} + water H_{2} O + delivery gas C O_{2} \to ammonium bicarbonate N H_{4} H C O_{3}$

Term by term: $N H_{4} H C O_{3}$ splits in water into $N H_{4}^{+}$ (ammonium) and $H C O_{3}^{-}$ (bicarbonate — one hydrogen, one carbon, three oxygens, charge $- 1$ ). The bicarbonate ion $H C O_{3}^{-}$ is the carrier of the carbonate we ultimately want.

WHY. We deliberately make bicarbonate $H C O_{3}^{-}$ , not carbonate $C O_{3}^{2 -}$ , because — as the next step shows — bicarbonate paired with sodium is the one thing in this soup that refuses to stay dissolved.

PICTURE. Red highlights the freshly born $H C O_{3}^{-}$ ion.

Step 5 — The magic precipitation: NaHCO₃ falls out

WHAT. The tank now swims with four kinds of ion: $N a^{+}$ , $C l^{-}$ , $N H_{4}^{+}$ , $H C O_{3}^{-}$ . The sodium finds the bicarbonate: $from brine N a^{+} + from Step 4 H C O_{3}^{-} \to solid, falls out N a H C O_{3} ↓$

The $↓$ means this solid drops to the bottom. Everything else ( $N H_{4}^{+}$ , $C l^{-}$ ) stays dissolved as $N H_{4} C l$ .

WHY this and nothing else falls. Among all pairings possible in this cold, concentrated mixture, $N a H C O_{3}$ is the least soluble. So it alone crystallises out. And by removing $N a^{+}$ and $H C O_{3}^{-}$ from solution, it pulls the whole chain of reactions forward — Le Chatelier's Principle again: take away a product, the system races to make more. Cold matters because solubility drops with temperature; concentrated brine matters because of the common-ion effect — so much $N a^{+}$ around that $N a H C O_{3}$ has no room to stay dissolved.

PICTURE. Red crystals of $N a H C O_{3}$ settling; the spectator ions stay above.

Step 6 — Two clean-ups: bake the solid, recover the ammonia

WHAT (a) — calcination. Filter and heat the solid $N a H C O_{3}$ : $two units 2 N a H C O_{3} Δ TARGET! N a_{2} C O_{3} + H_{2} O ↑ + C O_{2} ↑$ Two bicarbonate units give up one water and one $C O_{2}$ , leaving our prize $N a_{2} C O_{3}$ . Note that released $C O_{2}$ — we loop it back to Step 4, wasting nothing.

WHAT (b) — ammonia recovery. Take the $N H_{4} C l$ left in the tank and the $C a O$ from Step 2 (slaked to $C a (O H)_{2}$ ): $waste liquid 2 N H_{4} C l + from Step 2’s CaO C a (O H)_{2} \to C a C l_{2} + recycled! 2 N H_{3} ↑ + 2 H_{2} O$ The $N H_{3}$ is fed straight back to Step 3.

WHY. These two loops are the soul of Solvay: the ammonia goes round and round, and the only true waste is calcium chloride $C a C l_{2}$ . That is why the process is cheap enough to run the world.

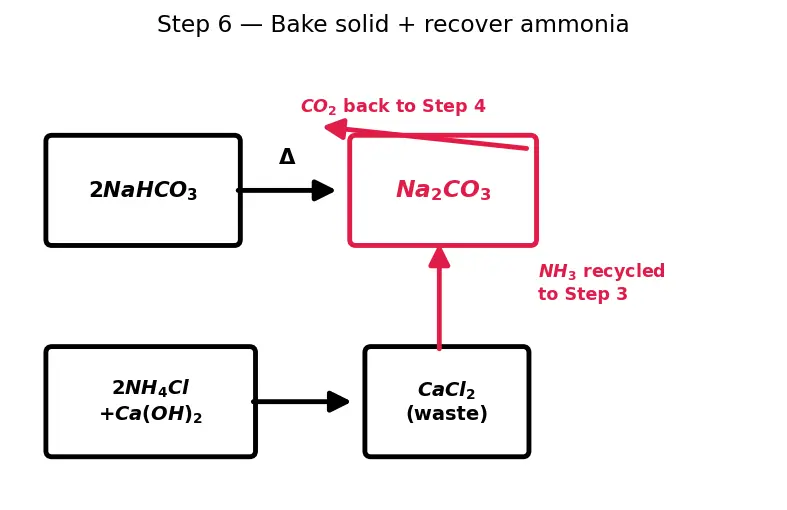

PICTURE. Red = the two recycled streams ( $C O_{2}$ and $N H_{3}$ ) rejoining the loop.

Step 7 — What actually happened overall (and why the "sum" lies)

WHAT. Add up all the steps and the bookkeeping collapses to: $2 N a C l + C a C O_{3} \to N a_{2} C O_{3} + C a C l_{2}$

WHY the sum is misleading. This one line looks like a simple swap you could do in a beaker — but this direct reaction never happens on its own. Mixing $N a C l$ and $C a C O_{3}$ in water does nothing, because $C a C O_{3}$ barely dissolves. The reaction only runs because we (1) turned the carbon into escaping $C O_{2}$ gas, (2) used $N H_{3}$ to force bicarbonate into solution, and (3) yanked $N a H C O_{3}$ out as a solid. Remember the driver (precipitation + gas escape + recycling), never just the net equation.

PICTURE. The overall arrow shown as a "black box" hiding all the real machinery.

The one-picture summary

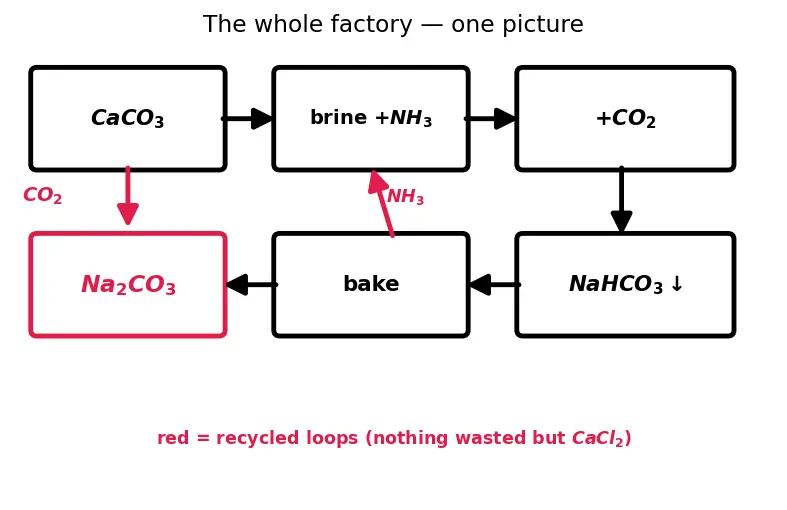

This single figure is the whole factory. Read it clockwise: rock in at top-left, gases and ammonia looping in red, washing soda out at bottom-right.

Recall Feynman retelling — the whole walkthrough in plain words

We wanted washing soda, but its two ingredients live in different rocks: the sodium is in salt water, the carbonate is locked in white limestone. So first we bake the limestone and catch the puff of gas ( $C O_{2}$ ) that comes off — that gas is our carbonate delivery van. But you can't just blow that gas into salt water and hope. So we first stir in ammonia, which acts like a sponge that makes the water desperately thirsty for the gas. Now we bubble the gas in, and it forms bicarbonate. The bicarbonate teams up with the sodium from the salt, and here's the trick: that combo is the one thing that refuses to stay dissolved in the cold, crowded liquid — so it falls to the bottom as a solid we can scoop out. We bake that solid and it becomes our prize, washing soda, releasing gas we send back round. Finally, from the leftover liquid we claw back all the ammonia using the quicklime we made when we baked the rock in the very first step. Ammonia goes round forever; only some calcium chloride is thrown away. If you tried this with potassium instead of sodium it would flop, because potassium bicarbonate is too happy to stay dissolved and never falls out.
