Rate law — order vs molecularity: Visual walkthrough

Step 1 — What "rate" means, drawn as a slope

WHAT. Before any formula, picture a jar of reactant A. As time passes, A gets used up: its amount per litre — its concentration, which we write in square brackets as $[A]$ — goes down. "How fast is the reaction?" just means "how steeply is $[A]$ dropping right now?"

WHY this idea first. Every symbol later ( $k$ , $m$ , order) is a description of this curve's steepness. If you can read a slope off a graph, you already understand rate.

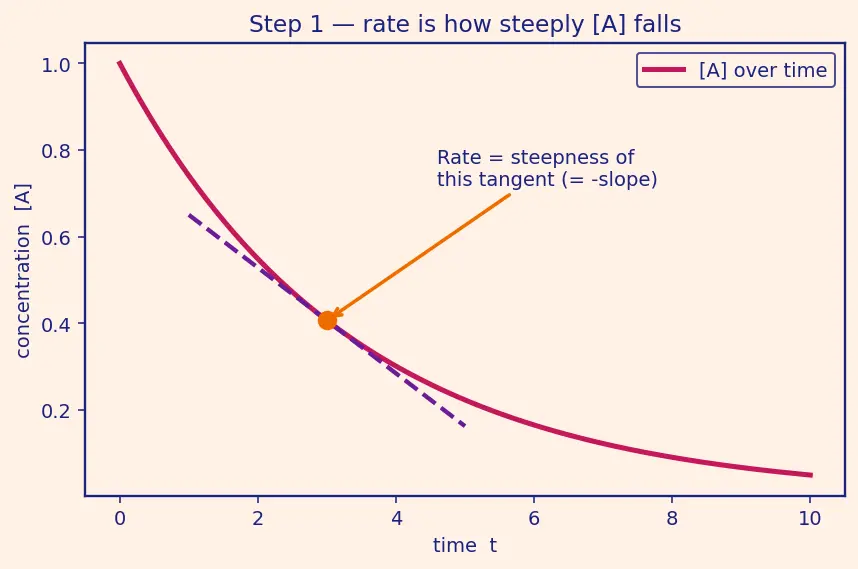

PICTURE. In the figure, $[A]$ is plotted downward as time goes right. The rate at any instant is the steepness of the tangent line touching the curve there.

Figure — Rate law — order vs molecularity

Step 2 — Where the rate law comes from: turn two knobs, watch the speed

WHAT. We suspect the rate depends on how crowded the reactants are. So in the lab we build the equation by turning knobs: set a starting $[A]$ and $[B]$ , measure the starting steepness, then change one knob and remeasure.

WHY. We do not guess the exponents from the balanced equation. We discover them. The only honest source is: change concentration, see what the speed does.

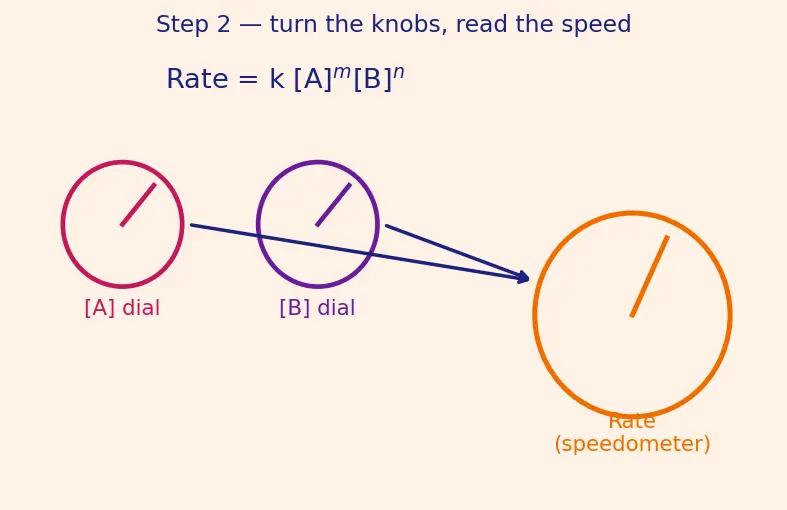

PICTURE. Two dials — one for $[A]$ , one for $[B]$ — feeding a speedometer. We propose the speedometer obeys the shape below and then find the exponents that fit.

Step 3 — Isolating one knob: the ratio trick

WHAT. Keep $[B]$ fixed, change only $[A]$ , and divide the two rates.

WHY. If we change both knobs at once we can't tell which one caused the speed change. Holding B still is like a controlled experiment: whatever the speed does now, A did it.

PICTURE. Two trials side by side. B is the same colour bar in both (unchanged); A grows; the speedometer swings. The ratio of the two speedometer readings is our measuring stick.

$\frac{Rate _{2}}{Rate _{1}} = \frac{k [ A ] _{2}^{m} [ B ] ^{n}}{k [ A ] _{1}^{m} [ B ] ^{n}} = (\frac{[ A ] _{2}}{[ A ] _{1}})^{m}$

the $k$ 's ::: cancel — same reaction, same temperature.
the $[B]^{n}$ 's ::: cancel — we held B fixed on purpose. This is why we froze that knob.
what survives ::: only the A-ratio raised to $m$ . The mystery exponent now stands alone.

$m = \frac{l n ( Rate _{2} / Rate _{1} )}{l n ( [ A ] _{2} / [ A ] _{1} )}$

Step 4 — Worked measurement: doubling A quadruples the rate

WHAT. Real numbers from the parent's table. Trials 1 and 2 keep $[B] = 0.10$ M and double $[A]$ from $0.10$ to $0.20$ M; the rate jumps $0.020 \to 0.080$ .

WHY. To see an order pop out as an integer, not just trust the algebra.

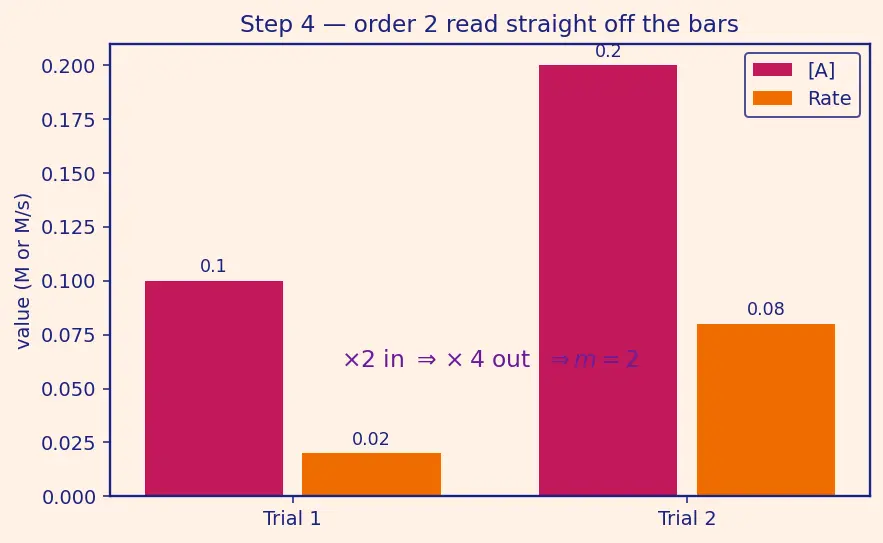

PICTURE. A bar chart: doubling the A-bar makes the rate-bar grow four-fold. "Times 2 in, times 4 out" is the visual signature of order 2.

$\frac{0.080}{0.020} = (\frac{0.20}{0.10})^{m} ⟹ 4 = 2^{m} ⟹ m = 2$

Now compare trials 1 and 3 (freeze A, double B): rate stays $0.020 \to 0.020$ .

$\frac{0.020}{0.020} = (\frac{0.20}{0.10})^{n} ⟹ 1 = 2^{n} ⟹ n = 0$

$n = 0$ ::: doubling B did nothing, so B is invisible to the rate; its exponent is zero and $[B]^{0} = 1$ .

Result: $Rate = k [A]^{2}$ , overall order $= 2$ . Solving trial 1 for $k$ : $0.020 = k (0.10)^{2} ⟹ k = \frac{0.020}{0.01} = 2.0 M^{- 1} s^{- 1}$

Step 5 — Molecularity: counting molecules in ONE collision

WHAT. Switch to the mechanism side. A single, indivisible step — an elementary step — happens when a specific set of molecules crash together at once. The count of those molecules is the molecularity.

WHY it's a different quantity. Order came from a speedometer. Molecularity comes from a cartoon of the collision. One is measured, one is imagined from a proposed mechanism. That is the entire reason they can disagree.

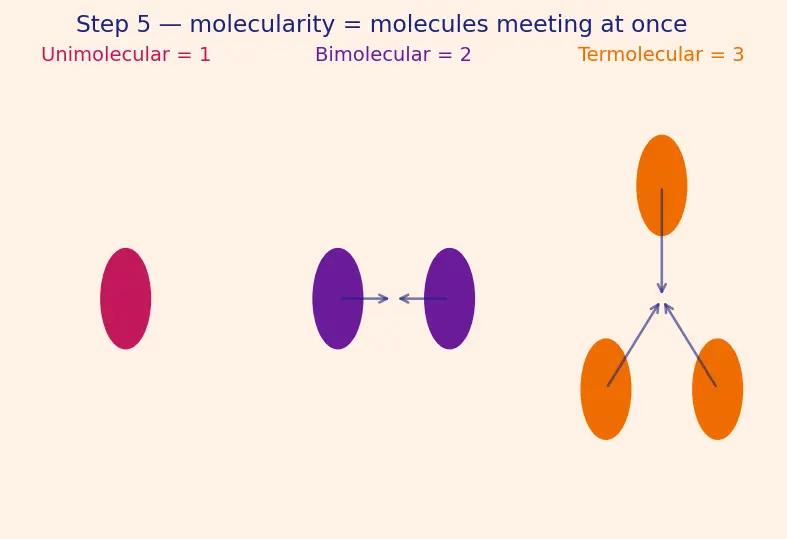

PICTURE. Three panels: one lone molecule breaking apart (unimolecular, 1); two molecules colliding (bimolecular, 2); three converging at a single point (termolecular, 3).

Step 6 — The bottleneck: why only the slow step is seen

WHAT. Take $2 NO_{2} + F_{2} \to 2 NO_{2} F$ . Its real mechanism is two bimolecular steps:

$NO_{2} + F_{2} slow NO_{2} F + F$
$NO_{2} + F fast NO_{2} F$

WHY only step 1 matters. Picture a two-pipe funnel where the top pipe is narrow (slow) and the bottom is wide (fast). Water piles up waiting at the narrow pipe; the wide pipe drains anything instantly. The narrow pipe alone sets how fast water gets through. Chemically: the intermediate $F$ is gobbled up the instant it forms, so $[F]$ never builds up and never appears in the measured rate.

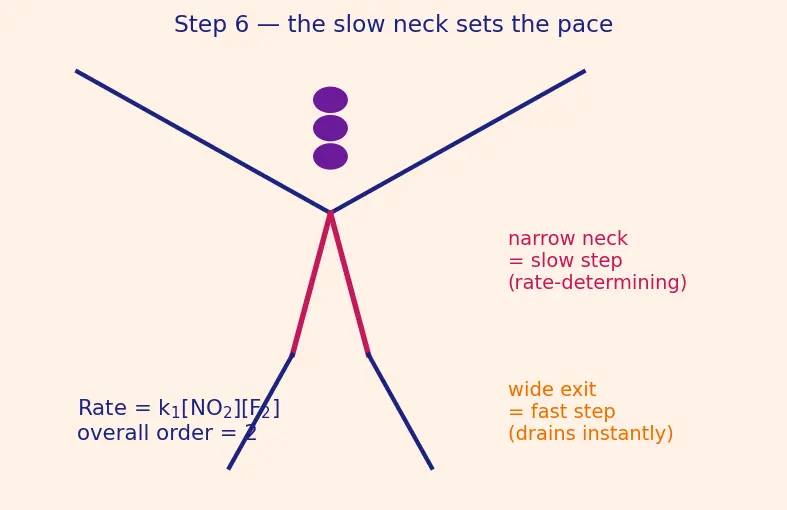

PICTURE. The funnel with a narrow top segment (rate-determining) and wide bottom. Molecules queue at the neck.

The slow step is elementary and bimolecular in $NO_{2}$ and $F_{2}$ , so: $Rate = k_{1} [NO_{2}] [F_{2}]$

order in $NO_{2}$ = 1, order in $F_{2}$ = 1, overall order = 2.
sum of stoichiometric coefficients on the left of the overall equation = $2 + 1 = 3$ .
$2 \neq = 3$ ::: order does not match overall stoichiometry. The molecularity of each step is 2, yet the overall order is also 2 here only by coincidence of which step is slow — change the slow step and the order changes.

Step 7 — The degenerate cases you must never trip on

WHAT. Cover the edges so no scenario surprises you.

PICTURE. Three mini-plots: zero order (flat sensitivity), fractional order, and "molecularity undefined."

Zero order ( $m = 0$ ): rate ignores that reactant entirely — the flat line. Seen in Step 4 for B. Physically: a surface or enzyme is saturated, so adding more reactant can't speed things up.
Fractional order: $H_{2} + Br_{2} \to 2 HBr$ has order $\approx \frac{1}{2}$ in $Br_{2}$ . A half-power can never come from counting colliding molecules (you can't collide half a molecule), so it can only come from a chain of steps blended together. This is a fingerprint that the reaction is not elementary.
Molecularity undefined: for any overall multi-step reaction, "how many molecules collide" has no single answer — there is no one collision. Molecularity belongs to steps, never to the overall reaction.

The one-picture summary

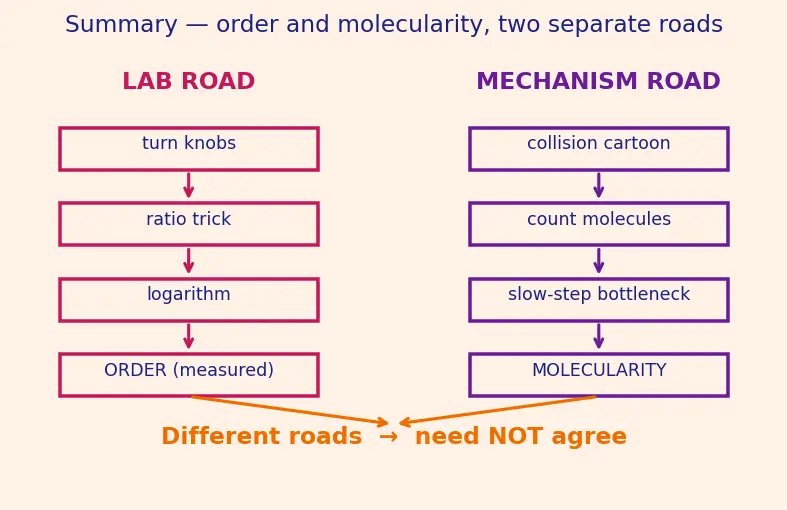

This figure stacks the whole journey: knobs → speedometer → ratio trick → measured order on one side, and collision cartoon → funnel bottleneck → mechanism order on the other side, meeting at the truth that the two numbers are computed by different roads and need not agree.

Recall Feynman retelling — say it back in plain words

A reaction's rate is just how fast a concentration curve slides downhill — a slope. To learn how crowding controls that slope, we turn one concentration knob at a time and divide the two speeds; the ratio isolates a single hidden power, and a logarithm drags that power down where we can read it. That power is the order, and it is whatever the lab says it is. Separately, if we imagine the actual dance of molecules, each elementary step has a molecularity — just the count of molecules that crash together in that step (1, 2, and rarely 3). For a single elementary step, the collision count and the measured exponent are the same thing. But most real reactions are a chain of steps, and the chain has a bottleneck — the slowest step. Only the molecules waiting at that narrow pipe show up in the measured rate law; anything a later fast step consumes stays invisible. That is why the overall order rarely matches the balanced equation, why fractions and zeros appear, and why molecularity refuses to exist for the reaction as a whole.
