Foundations — Spontaneity from E°_cell and ΔG = −nFE

Before you can read the parent note (linked at the very bottom of this page), every symbol it throws at you must first be earned. Below, each piece is built from nothing: plain words → the picture → why the topic needs it. Read top to bottom; each rung leans on the one under it. Nothing is used before it is defined — so the parent-note link, which contains symbols we have not built yet, waits until the final line.

1. Electrons and the idea of "wanting" to move

The picture: think of an electron as a small marble that can hop between atoms. (Exactly what it carries when it hops — a thing called electric charge — we pin down in Section 4; for now just picture the marble moving.)

Why the topic needs it: every single thing in this chapter — voltage, current, spontaneity — is just electrons moving from one place to another. If you can picture a marble rolling, you can picture this whole topic.

Some atoms are "generous" (happy to give marbles away), others are "greedy" (happy to grab marbles). That mismatch is the engine.

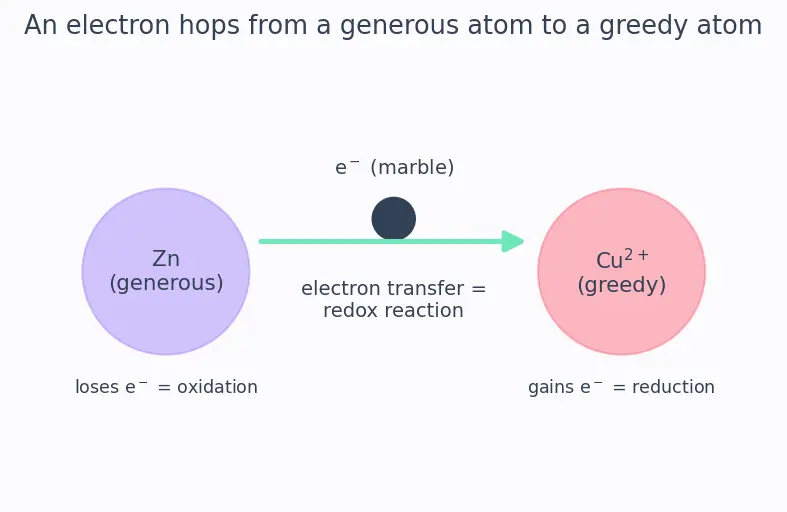

Figure s01 (below) shows this engine: a generous zinc atom on the left, a greedy copper ion on the right, and a single electron-marble hopping across the green arrow between them. Notice the two labels underneath — losing the marble is "oxidation," gaining it is "reduction" — the exact words we define next.

2. Reduction, Oxidation, and the redox pair

Picture two buckets. One tips its marbles out (oxidation), the other catches them (reduction). You can't tip without something catching. This is exactly the left-to-right hop drawn in figure s01.

Why the topic needs it: the parent topic asks "will this redox reaction go on its own?" You must first know that a redox reaction is the marble transfer. Everything else measures that transfer. See Standard Electrode Potentials for how we score each half of the transfer.

3. Ionic charge — what a superscript like Al³⁺ means

Before we can count electrons, we need the little superscript symbol chemists write on ions, because it records how many marbles an atom has given or taken.

Picture a jar of marbles: a neutral atom has its jar balanced. Remove 3 marbles and the jar reads "$3+$" — three marbles owed. That superscript is a receipt for electrons transferred.

Why the topic needs it: the whole page is bookkeeping of transferred electrons. The ionic-charge superscript is exactly how each electron transfer is written down, and reading it correctly is how we will count $n$ in the next section.

4. n — counting the marbles

Picture a conveyor belt: $n$ is how many full crates of marbles cross the belt for the reaction as written.

Why the topic needs it: the amount of energy you get depends on how many electrons moved. Two electrons deliver twice the punch of one. So $n$ scales everything.

5. Electric charge and the coulomb (C)

Picture charge as how much water is in a tank — a bulk amount, not how fast it flows. Now the marble from Section 1 gets its meaning: each electron-marble carries one tiny scoop of negative charge, and moving many of them moves a lot of charge.

Why the topic needs it: electrical work depends on how much charge moves. To use $n$ (a count of moles) in an energy formula, we must convert "moles of electrons" into "coulombs of charge." That conversion is the next symbol.

6. F — Faraday's constant, the converter

Picture $F$ as an exchange rate: "1 mole of marbles" $\to$ "96,485 coulombs of charge." Multiply your count of moles ($n$) by $F$ and you get the total charge: $q=nF$

Why the topic needs it: the topic mixes chemistry's counting unit (moles) with physics' electrical unit (coulombs). $F$ is the single number that glues them. See Faraday's Laws of Electrolysis for the same constant doing the same job in reverse.

7. The joule (J) — the unit of energy itself

Picture lifting a small apple (about 1 newton of weight) up by one metre — the effort you spent is roughly one joule.

Why the topic needs it: both quantities we are heading toward — the electrical energy $nFE$ and the free-energy change $\Delta G$ — are measured in joules. Fixing what a joule is lets every later "= energy" statement stand on solid ground. It also lets the volt (next section) be defined cleanly as joules per coulomb.

8. Potential difference E — the "steepness" (volts, V)

The picture: think of a slide in a playground. $E$ is how steep the slide is.

Figure s02 (below) draws three slides side by side. On the left, a steep downhill slide ($E>0$, mint): the electron-marble rushes down on its own. In the middle, a flat slide ($E=0$, butter-yellow): no push, nothing moves — equilibrium. On the right, an uphill slide ($E<0$, coral): the marble would have to be forced up. Read the sign of $E$ straight off the tilt of the slide.

Why "volts = joules per coulomb" matters: it tells you E is energy per unit charge. So if you have $q$ coulombs falling through a push of $E$ volts, the energy released is simply $\text{energy}=q\times E=nF\times E=nFE.$ That product $nFE$ is literally "(joules per coulomb) $\times$ (coulombs) $=$ joules." The units cancel to give energy — that is the entire reason the bridge equation, which we assemble in Section 12, will work.

9. E°_cell — the standard, fair-comparison voltage

Picture a race where everyone starts at the same line — the ${}^{\circ }$ guarantees a fair, repeatable measurement so numbers from different labs can be compared.

Why the cell voltage is a subtraction of two half-cell values. A full cell is really two half-cells wired together: at one electrode marbles arrive (reduction), at the other marbles leave (oxidation). Each half-cell has its own "eagerness to pull electrons in," scored as a reduction potential — see Standard Electrode Potentials. Voltage is a difference in level between two points (like the height drop between the top and bottom of a hill; only the difference matters, not the absolute heights). So the cell's overall push is the pulling-power of the electrode that gets the electrons minus the pulling-power of the electrode it takes them from: $E_{cell}^{\circ }=E_{cathode}^{\circ }-E_{anode}^{\circ }$ If the cathode pulls harder than the anode, the difference is positive and electrons flow that way on their own. The subtraction is the sign convention: it encodes "which side wins the tug-of-war."

Why the topic needs it: the sign of $E_{cell}^{\circ }$ is the fast spontaneity test. Positive $\Rightarrow$ downhill $\Rightarrow$ spontaneous. When concentrations are not standard, you'd adjust using the Nernst Equation.

10. System vs surroundings — the thermodynamic ledger

Before we talk about energy "leaving" or "entering," we must say leaving what.

Picture a fence around the reacting chemicals. Energy that crosses the fence outward is energy the system gives to the surroundings (it can light a bulb); energy crossing inward is energy the system receives (like from a battery).

Why the topic needs it: every sign in thermodynamics is bookkeeping across this fence. "Spontaneous" means the system pushes energy out to the surroundings without help. Keeping "system" and "surroundings" straight is what makes the minus sign in the final equation honest rather than magic.

11. ΔG and ΔG° — Gibbs free energy, the thermodynamic verdict

Picture a bank account of usable energy held by the system. A spontaneous reaction pays energy out across the fence to the surroundings, so the system's balance drops: $\Delta G<0$. A non-spontaneous one needs a deposit from outside: $\Delta G>0$.

• $\Delta G<0$ → spontaneous (system pays energy out)
• $\Delta G>0$ → non-spontaneous (system needs energy in)
• $\Delta G=0$ → at equilibrium, no net push

Figure s03 (below) shows this account. A tall lavender bar (reactants, high $G$) drops to a short mint bar (products, low $G$); the coral arrow between them is the drop, labelled $\Delta G<0$, and the caption reminds you the lost energy leaves the system as useful work equal to $nFE$.

Why the topic needs it: $\Delta G$ is thermodynamics' independent judge of spontaneity, and $\Delta G^{\circ }$ is that judge under the same fair conditions as $E_{cell}^{\circ }$, so the two can be equated. Deeper background lives in Gibbs Free Energy Fundamentals, and its link to equilibrium in Relationship between K_eq and ΔG°.

12. Putting the symbols together

Now every symbol in $\boxed{\Delta G=-nFE}$ is earned:

That minus sign is not a trick; it is bookkeeping across the fence of Section 10. Energy leaving the system as work is a decrease in the system's free-energy balance. Using standard voltages gives the standard version $\Delta G^{\circ }=-nF{E}_{cell}^{\circ }$.

Prerequisite map

Equipment checklist

Cover the right side and answer out loud before revealing.

Now that every symbol is built, you are ready for the parent topic: Spontaneity from E°_cell and ΔG = −nFE.
