Galvanic (voltaic) cells — anode (oxidation), cathode (reduction): Foundations

Before you can read the Daniell-cell story, you need to own every squiggle it uses without hesitation. Below, each symbol gets three things: plain words, the picture it stands for, and why the topic can't live without it. They are ordered so each one leans on the last.

1. What is a redox reaction? (the ground floor)

The picture. Imagine two hands and a fistful of tiny marbles (the marbles are electrons). One hand opens and drops marbles — that hand is being oxidized. The other hand catches them — that hand is being reduced. There is no "dropping" without a "catching". Look at the left panel below.

Why the topic needs it. A galvanic cell is nothing but this marble-passing, except we make the marbles take a long detour through a wire. If you don't see redox as paired giving/taking, the whole "electrons flow in the wire" idea has no source.

Figure — Galvanic (voltaic) cells — anode (oxidation), cathode (reduction)

To track who lost and who gained, chemists tag each atom with a number — that is the next symbol. (See Oxidation Numbers for the full rules.)

2. The charge superscript: $Zn^{2 +}$ , $e^{-}$ , $NO_{3}^{-}$

The picture. Think of a neutral atom as a balanced see-saw: protons ( $+$ ) on one side, electrons ( $-$ ) on the other, perfectly level — that level see-saw is a net charge of $0$ . Take 2 electrons away and the $+$ side wins by 2 — that's the $2 +$ . The number is how many electrons off balance, the sign is which way.

Why the topic needs it. Every half-reaction is a charge-balancing statement. When Zn becomes $Zn^{2 +} + 2 e^{-}$ , the $2 +$ on the ion and the two $e^{-}$ must add back to the neutral $0$ (equal protons and electrons) we started with. If you can't read the superscript, you can't check that a reaction is even legal.

Recall Read the charge

What is the charge on $SO_{4}^{2 -}$ , and what does it mean physically? ::: A charge of $- 2$ : the sulfate group has 2 more electrons than protons.

3. State labels: (s), (aq), (l), (g)

The picture. $Zn(s)$ is a solid grey bar you could hold. $Zn^{2 +} (aq)$ is invisible ions swimming in water. Same element, completely different scene — one is a lump on the bench, the other is dissolved in the beaker.

Why the topic needs it. The whole cell is built on the difference: the metal bar (s) is the electrode; the ions in solution (aq) are what dissolve off it or plate onto it. The reaction moves atoms across the (s)/(aq) boundary, and that boundary is literally the surface of the electrode.

4. The half-reaction and its arrow $\to$

The picture. Take the two-hands picture from §1 and cut it in half. The oxidation half-reaction is just the opening hand with its dropped marbles ( $2 e^{-}$ ) written on the right. The reduction half-reaction is the catching hand. Two halves, drawn separately, because in a cell they physically sit in two different beakers.

Why the topic needs it. This is the central trick of galvanic cells. In an ordinary test tube, both halves happen touching each other and you never see the electrons. By writing them apart, we can put them in separate rooms and force the electrons to walk between the rooms — which is the whole invention.

5. The electrodes: anode and cathode

Anode — where oxidation happens (marbles dropped, electrons leave into the wire).
Cathode — where reduction happens (marbles caught, electrons arrive from the wire).

The picture (figure above). Two bars in two beakers. On the anode bar, arrows point outward into the wire (electrons leaving). On the cathode bar, arrows point inward (electrons arriving). The names describe the direction of the electron traffic at that bar.

Why the topic needs it. These two words are the parent page's whole vocabulary — "An Ox / Red Cat". Once you can look at a bar and say "electrons leave here, so this is the anode where oxidation happens", the rest of the topic is just reading which metal takes which role. Later, Electrolytic Cells flip the sign convention but keep these definitions, which is why we anchor them to the reaction, not the $+ / -$ label.

6. The potential symbol $E$ and its little circle $E^{\circ}$

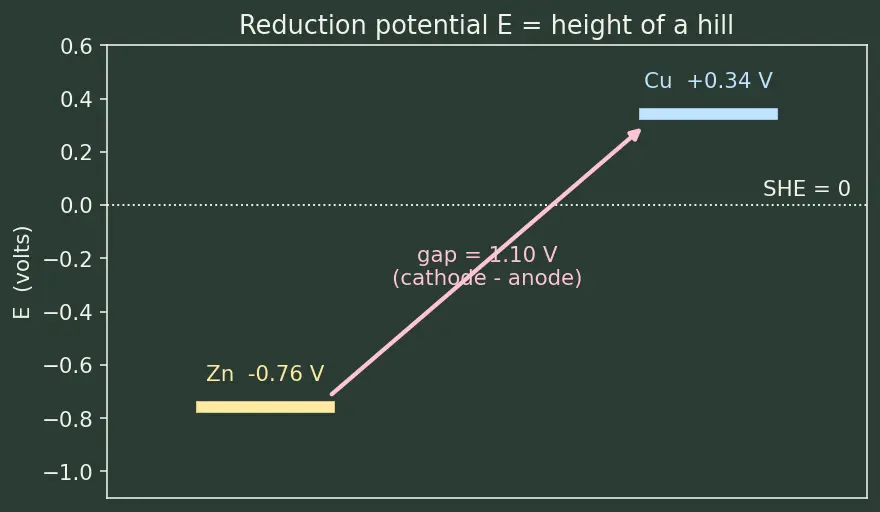

The picture. Think of $E$ as the height of a hill. Electrons, like water, roll downhill — from low potential to high potential in the chemistry's favour. A species with high $E$ sits at the bottom of the valley and sucks electrons in; a species with low (very negative) $E$ sits on the hilltop and lets them roll away. The picture below draws Zn on a hilltop and Cu in a valley.

Why the topic needs it. The entire reason electrons choose to flow one way is this height difference. Without a number for "how much each metal wants electrons", you could only guess the direction. $E^{\circ}$ turns "zinc kind of wants to lose electrons" into " $- 0.76$ V", so we can compare and even predict spontaneity. These numbers come from Reduction Potentials, measured against the Standard Hydrogen Electrode.

7. The subtraction: $E_{cell}^{\circ} = E_{cathode}^{\circ} - E_{anode}^{\circ}$

Why a subtraction and not, say, an addition? Go back to the hill picture (§6). $E_{cell}^{\circ}$ is the height difference between the two hills — and a difference is always a subtraction. The cathode is the low valley (high $E$ ), the anode is the high hilltop (low $E$ ). Their gap is valley minus hilltop = cathode minus anode. For the Daniell cell: $E_{cell}^{\circ} = (+ 0.34) - (- 0.76) = 1.10 V$

Why the minus of a negative flips to a plus. Subtracting $- 0.76$ is the same as adding $0.76$ — two "downs" from a hilltop make the total drop bigger. That is why a very negative anode ( $- 0.76$ ) gives a nice large voltage: the hill is tall.

Recall Sign check

If $E_{cell}^{\circ}$ comes out negative, what does it tell you? ::: The reaction is not spontaneous as written — it won't run as a galvanic cell (you'd need to force it: an electrolytic cell).

Why the topic needs it. This one subtraction is the payoff of everything above. It converts two lookup numbers into the single voltage the cell delivers, and its sign tells you if the cell works, fails, or is dead-level. The link between this voltage and energy is developed in Gibs Free Energy and Cell Potential, and how it shifts away from standard conditions is Nernst Equation.

8. Amount-of-substance: the mole and $g/mol$

The picture. A "mole of electrons" is one full bucket of marbles. The half-reaction $Cu^{2 +} + 2 e^{-} \to Cu$ says: for every 2 buckets of electrons that arrive, 1 bucket of copper atoms plates onto the bar. Buckets in, buckets out, in a fixed 2-to-1 ratio.

Why the topic needs it. The worked example asks for mass of copper deposited. Electrons are counted in moles; you convert moles of copper to grams using $63.5 g/mol$ . Without the mole as a bridge between "number of electrons" and "grams on the bench", you can't answer "how much metal did I make?" — the subject of Faraday's Laws of Electrolysis.

Prerequisite map

Equipment checklist

Test yourself — cover the right side of each line. If any answer is fuzzy, reread that section above.

Meaning of "oxidation" vs "reduction" ::: Oxidation = losing electrons; reduction = gaining electrons; they always occur together.
What $^{2 +}$ means in $Zn^{2 +}$ ::: The atom is short 2 electrons, so its net charge is $+ 2$ .
Net charge of a neutral atom ::: Exactly $0$ — equal numbers of protons and electrons, and no superscript is written.
Difference between $Zn(s)$ and $Zn^{2 +} (aq)$ ::: (s) is a solid metal bar; (aq) is invisible ions dissolved in water.
Why electrons must balance across a half-reaction arrow ::: Total charge on the left must equal total charge on the right — the equation must be electrically legal.
What to do when two half-reactions give and take different numbers of electrons ::: Multiply one (or both) whole half-reactions by coefficients so both carry the same number of $e^{-}$ , then the electrons cancel on adding.
Which name goes with oxidation: anode or cathode ::: Anode (An Ox); the cathode is reduction (Red Cat).
What $E^{\circ}$ physically measures ::: The standard-condition tendency (in volts) of a species to gain electrons — its "electron-pull".
Why $E_{cell}^{\circ}$ uses subtraction ::: It is the height difference between two potential hills — cathode minus anode.
What $E_{cell}^{\circ} > 0$ , $< 0$ , and $= 0$ each mean ::: $> 0$ spontaneous (working galvanic cell); $< 0$ non-spontaneous (needs forcing / electrolytic); $= 0$ equilibrium, no net reaction.
What a mole is and what $g/mol$ converts ::: A mole is a fixed huge count of particles; molar mass converts moles of a substance into grams.
