Visual walkthrough — Buffer solutions — Henderson-Hasselbalch equation

Before we touch algebra, let us agree on what the words on the page even mean.

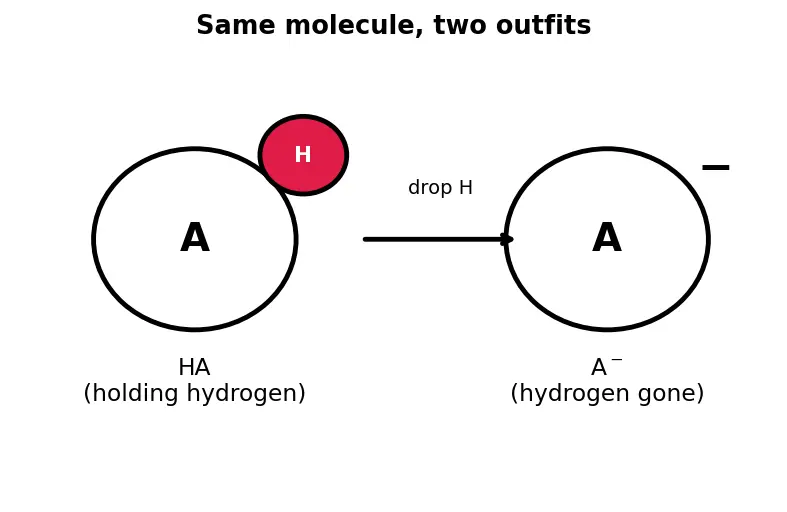

See these two outfits side by side.

---

Step 1 — The tug-of-war between the two outfits

WHAT. In water, an $\mathrm{HA}$ molecule can drop its hydrogen to become ${\mathrm{A}}^{-}$ plus a free ${\mathrm{H}}^{+}$. And an ${\mathrm{A}}^{-}$ can grab a floating ${\mathrm{H}}^{+}$ back to become $\mathrm{HA}$. Both directions happen at once:

$\underset{\text{holding H}}{\underbrace{\mathrm{HA}}}\rightleftharpoons \underset{\text{freed hydrogen}}{\underbrace{{\mathrm{H}}^{+}}}+\underset{\text{leftover part}}{\underbrace{{\mathrm{A}}^{-}}}$

The double arrow $\rightleftharpoons$ means "this reaction runs both ways at the same time." It is not going anywhere — it has settled into a balance.

WHY. A buffer only works because both outfits are present at once. If everything were $\mathrm{HA}$, there'd be nothing to catch added acid; if everything were ${\mathrm{A}}^{-}$, nothing to donate. The double arrow is the whole reason a buffer exists — see Weak acids and bases and Common ion effect.

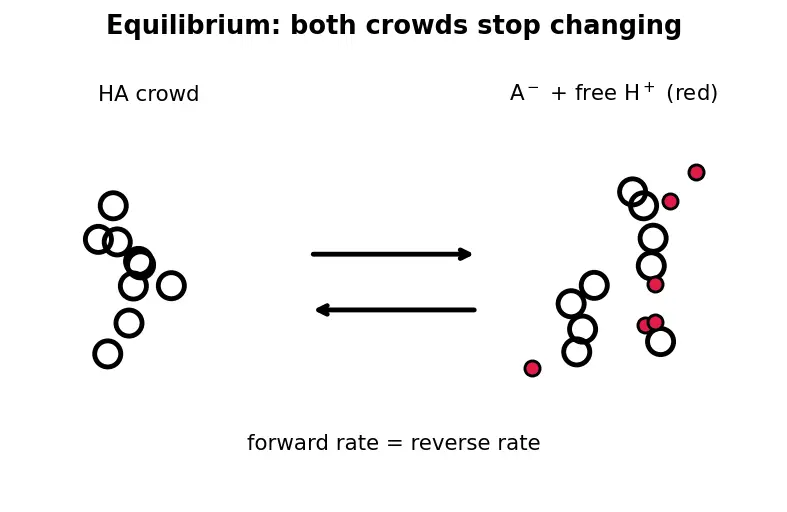

PICTURE. Below, the left pan is a crowd of $\mathrm{HA}$; the right pan is ${\mathrm{A}}^{-}$ plus loose ${\mathrm{H}}^{+}$ dots. At balance ("equilibrium") the rate of molecules going right equals the rate going left — the crowd sizes stop changing even though individual molecules keep swapping.

---

Step 2 — Turning the balance into a number: $K_a$

WHAT. Chemists summarise "where the balance sits" with a single number, the acid dissociation constant $K_a$:

$K_a=\frac{[{\mathrm{H}}^{+}][{\mathrm{A}}^{-}]}{[\mathrm{HA}]}$

Read it term by term:

• $[{\mathrm{H}}^{+}]$ — crowdedness of freed hydrogen (a product, right side of the arrow)
• $[{\mathrm{A}}^{-}]$ — crowdedness of leftover base (a product)
• $[\mathrm{HA}]$ — crowdedness of the intact acid (the reactant, left side)
• the fraction bar puts products on top, reactant on bottom

WHY this particular fraction? Because the law of chemical equilibrium says: at balance, (products multiplied together) ÷ (reactants) always lands on the same fixed number for a given substance and temperature. That fixed number is $K_a$. A big $K_a$ means the top is heavy — the acid likes to let go of its hydrogen (a stronger acid). A small $K_a$ means it clings on (a weaker acid). See Acid-base equilibria.

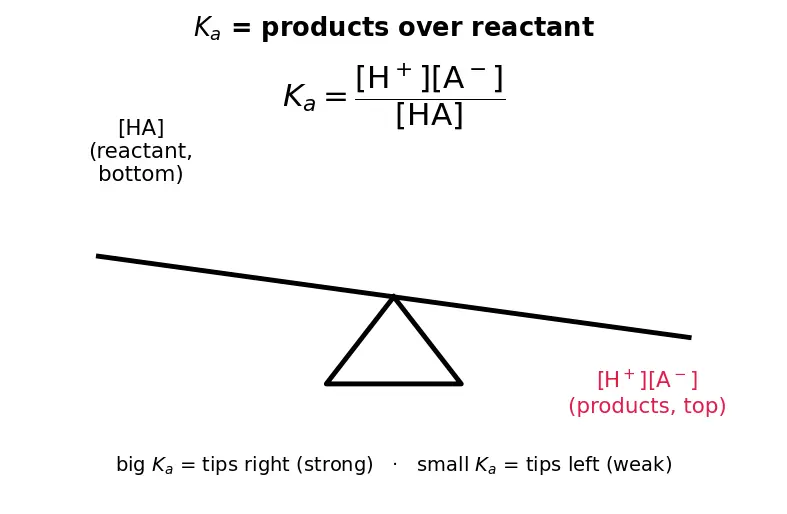

PICTURE. The seesaw again, now with the fraction written across it: top-heavy tilts toward "dissociated," bottom-heavy tilts toward "intact."

---

Step 3 — Rearranging to spotlight $[{\mathrm{H}}^{+}]$

WHAT. We want to know the acidity, which lives in $[{\mathrm{H}}^{+}]$. So we solve the $K_a$ equation for $[{\mathrm{H}}^{+}]$ by multiplying both sides by $\frac{[\mathrm{HA}]}{[{\mathrm{A}}^{-}]}$:

$[{\mathrm{H}}^{+}]=\underset{\text{how eager the acid is}}{\underbrace{K_a}}\times \underset{\text{ratio of the two outfits}}{\underbrace{\frac{[\mathrm{HA}]}{[{\mathrm{A}}^{-}]}}}$

WHY. This is the pivot of the whole derivation. It says the free-hydrogen crowdedness $[{\mathrm{H}}^{+}]$ is set by two knobs:

1. a fixed property of the acid ($K_a$), and
2. an adjustable ratio — how much intact acid there is compared to leftover base.

That second knob is exactly what you control when you mix a buffer. This is why the equation cares about a ratio, not absolute amounts.

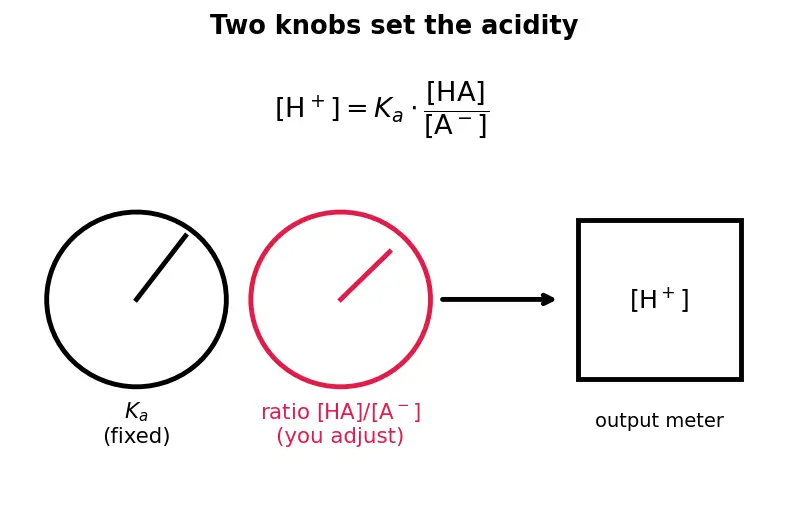

PICTURE. Two dials feeding into one output meter labelled $[{\mathrm{H}}^{+}]$. Turn the ratio dial up (more $\mathrm{HA}$ on top) and the meter reads more acidic.

---

Step 4 — Why we reach for a logarithm

WHAT. Hydrogen-ion crowdedness spans an insane range: from $10^{-1}$ down to $10^{-14}$ moles per litre. Writing "$0.00000001$" is miserable. A logarithm fixes this.

${\log }_{10}(x)=\text{"what power of 10 gives }x\text{?"}$

For example ${\log }_{10}(1000)=3$ because $10^3=1000$; and ${\log }_{10}(0.01)=-2$ because $10^{-2}=0.01$.

WHY this tool and not another? We specifically want a tool that (a) crushes those wild powers of ten into small friendly numbers, and (b) turns multiplication into addition — because our Step 3 formula is a product $K_a\times \text{ratio}$, and logs obey the magic rule $\log (a\times b)=\log a+\log b$. No other everyday function does both. That is precisely why pH is defined with a log:

$\mathrm{pH}\equiv -{\log }_{10}[{\mathrm{H}}^{+}]$

The minus sign is cosmetic: since $[{\mathrm{H}}^{+}]$ is a small number, $\log$ of it is negative, and the minus flips it to a friendly positive value (like $4.76$).

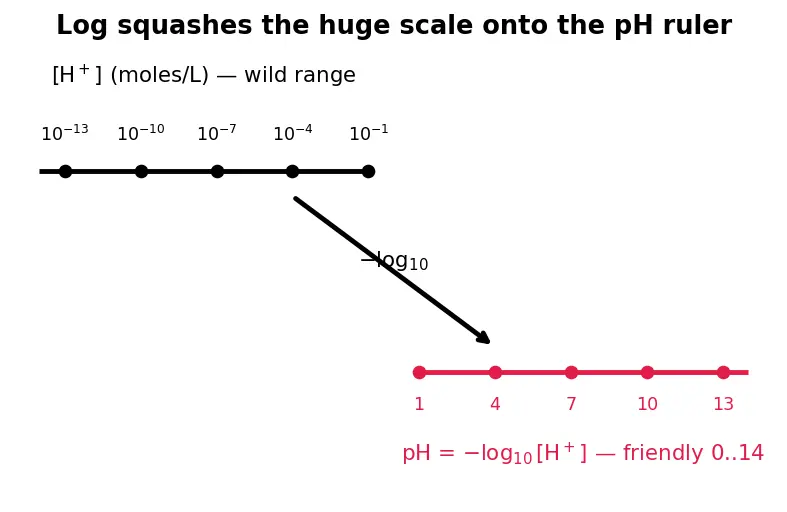

PICTURE. A "number-line squasher": the top axis is the huge scale of $[{\mathrm{H}}^{+}]$; below it, the log-and-flip maps it onto the tidy 0–14 pH ruler.

---

Step 5 — Feeding Step 3 through the log machine

WHAT. Take $-{\log }_{10}$ of both sides of the Step 3 result $[{\mathrm{H}}^{+}]=K_a\cdot \frac{[\mathrm{HA}]}{[{\mathrm{A}}^{-}]}$:

$\underset{=\mathrm{pH}}{\underbrace{-{\log }_{10}[{\mathrm{H}}^{+}]}}=-{\log }_{10}\left(K_a\cdot \frac{[\mathrm{HA}]}{[{\mathrm{A}}^{-}]}\right)$

Now apply the magic rule $\log (a\cdot b)=\log a+\log b$ to split the right side:

$\mathrm{pH}=\underset{\text{call this }\mathrm{p}{K}_a}{\underbrace{-{\log }_{10}(K_a)}}-{\log }_{10}\left(\frac{[\mathrm{HA}]}{[{\mathrm{A}}^{-}]}\right)$

We name $-{\log }_{10}(K_a)$ as $\mathrm{p}{K}_a$ — same friendly-number trick applied to $K_a$. A small, clingy acid (tiny $K_a$) has a large $\mathrm{p}{K}_a$.

WHY. Splitting the product is the entire payoff of choosing logs. The acid's personality ($\mathrm{p}{K}_a$) now sits separately, added on, from the mixing ratio. They no longer multiply — they stack.

PICTURE. The single product-bar of Step 3 snaps into two stacked tiles: a fixed grey tile ($\mathrm{p}{K}_a$) and a movable red tile (the ratio term).

---

Step 6 — One last flip, and we are done

WHAT. That trailing minus sign is ugly. Use $\log (1/x)=-\log (x)$: flipping the fraction upside-down absorbs the minus.

$-{\log }_{10}\left(\frac{[\mathrm{HA}]}{[{\mathrm{A}}^{-}]}\right)=+{\log }_{10}\left(\frac{[{\mathrm{A}}^{-}]}{[\mathrm{HA}]}\right)$

So:

$\boxed{\mathrm{pH}=\underset{\text{acid’s fixed anchor}}{\underbrace{\mathrm{p}{K}_a}}+{\log }_{10}\left(\underset{\text{base over acid}}{\underbrace{\frac{[{\mathrm{A}}^{-}]}{[\mathrm{HA}]}}}\right)}$

WHY flip? So the equation reads intuitively: more base on top → the log is positive → pH climbs above the anchor. More acid on the bottom → log negative → pH drops below the anchor. The plus sign makes the direction match your intuition.

PICTURE. The final equation with three coloured brackets pointing to a pH ruler: the $\mathrm{p}{K}_a$ pins the anchor, the red ratio-arrow slides the pointer up or down.

---

Step 7 — Every case, including the tricky ones

WHAT. Let us verify the equation behaves everywhere by sweeping the ratio through all its regimes.

Ratio $[{\mathrm{A}}^{-}]/[\mathrm{HA}]$	${\log }_{10}(\text{ratio})$	pH vs $\mathrm{p}{K}_a$	meaning
$10$	$+1$	$\mathrm{p}{K}_a+1$	mostly base; upper edge of usefulness
$1$	$0$	$=\mathrm{p}{K}_a$	equal outfits; strongest buffer
$0.1$	$-1$	$\mathrm{p}{K}_a-1$	mostly acid; lower edge
$\to 0$ (no base)	$\to -\infty$	pH $\to -\infty$?!	degenerate — formula breaks
$\to \infty$ (no acid)	$\to +\infty$	pH $\to +\infty$?!	degenerate — formula breaks

WHY the edges break. When $[{\mathrm{A}}^{-}]=0$ exactly, there is no buffer at all — just a lone weak acid, and the derivation's assumption "both outfits present in comparable amounts" is false. The log of zero is $-\infty$, which is the equation honestly warning you it no longer applies. The same happens with no acid. This is why the usable window is $\mathrm{p}{K}_a\pm 1$ (ratio between $0.1$ and $10$): that band is drawn in red below. See Buffer capacity via Le Chatelier's principle and Titration curves.

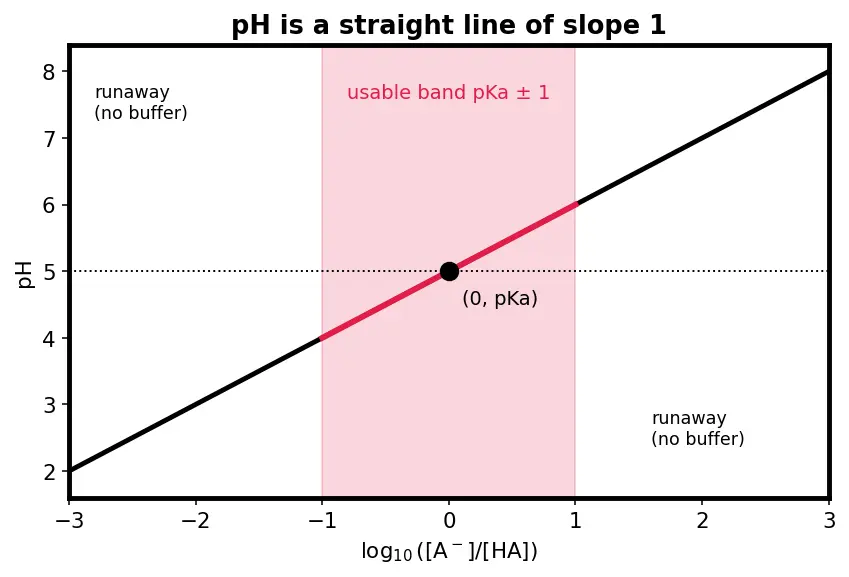

PICTURE. A curve of pH versus $\log (\text{ratio})$ — a perfectly straight line of slope 1 through the point $(0,\mathrm{p}{K}_a)$, with the red usable band highlighted and the two runaway ends greyed out.

---

The one-picture summary

Everything above collapses into one figure: the product $[{\mathrm{H}}^{+}]=K_a\times \text{ratio}$ enters the log machine and comes out as a sum $\mathrm{pH}=\mathrm{p}{K}_a+\log (\text{ratio})$ — a straight line pinned at the pKₐ.

Recall Feynman retelling — say it back in plain words

A buffer is a molecule wearing two outfits: one holds a hydrogen ($\mathrm{HA}$), one doesn't (${\mathrm{A}}^{-}$). They keep swapping, and the balance point is captured by one number, $K_a$: products-over-reactant. I rearranged that to spotlight the free-hydrogen crowd, $[{\mathrm{H}}^{+}]$, and found it equals $K_a$ times the acid-to-base ratio — two independent dials. Because hydrogen concentrations swing over huge powers of ten, and because I had a product to untangle, I reached for the logarithm: it squashes the range and turns multiply into add. Taking $-\log$ split my product into two stacked pieces — the acid's fixed personality ($\mathrm{p}{K}_a$) plus a sliding ratio term. One cosmetic flip of the fraction turned a minus into a plus so the direction feels natural: more base, higher pH. On a graph it's a straight line of slope 1 sitting on the pKₐ, and it only tells the truth in the band $\mathrm{p}{K}_a\pm 1$ — push the ratio to zero or infinity and the log screams to infinity, its way of saying "you don't have a buffer anymore."

Recall Quick self-test

Why does the equation use a ratio and not absolute concentrations? ::: Because Step 3 gave $[{\mathrm{H}}^{+}]=K_a\cdot [\mathrm{HA}]/[{\mathrm{A}}^{-}]$ — only the ratio of the two outfits, not their totals, sets the acidity. Why choose a logarithm here specifically? ::: It squashes the enormous $10^{-1}\to 10^{-14}$ range into friendly numbers and converts the product $K_a\times \text{ratio}$ into an additive sum. What does the "+" sign in front of the log guarantee intuitively? ::: More conjugate base on top makes the log positive, so pH rises above pKₐ — the sign matches the direction the chemistry actually moves. When does the equation stop working? ::: When either $[\mathrm{HA}]$ or $[{\mathrm{A}}^{-}]$ approaches zero — the log runs to infinity because there is no longer a functioning buffer.
