Bond enthalpies — estimating ΔH_rxn from bond energies: Visual walkthrough

Step 1 — What a "bond" is, as a picture

WHAT. Two atoms held together are like two balls connected by a stretched spring that wants to stay snapped shut. That "wanting to stay together" is stored energy — a little valley the atoms have rolled into.

WHY a valley? Because to pull the atoms apart you must climb out of the valley: you spend energy. That climb-cost is the single most important quantity on this whole page. We give it a name and a symbol so we never have to say the long phrase again.

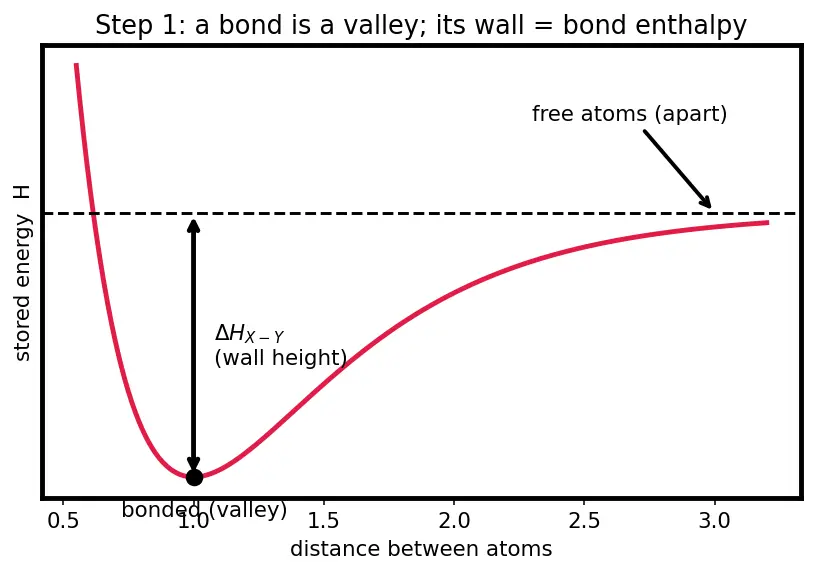

PICTURE. Below, the red curve is the energy of two atoms as we change their distance. The bottom of the valley is the happy, bonded state. The height of the wall you must climb to reach "atoms free and apart" is exactly $Δ H_{X - Y}$ .

Figure — Bond enthalpies — estimating ΔH_rxn from bond energies

Step 2 — Breaking costs, forming pays back (the two arrows)

WHAT. Breaking a bond = climbing up the wall (energy goes IN, sign $+$ ). Forming a bond = sliding down into the valley (energy comes OUT, sign $-$ ). These are the same wall walked in opposite directions.

WHY the sign flip? Because energy is conserved. If climbing out costs $+ 436$ kJ, then falling back in must give exactly $- 436$ kJ. Forming the identical bond is just breaking-run-backwards, so it carries the opposite sign. This single fact is where the minus sign in the master equation is born.

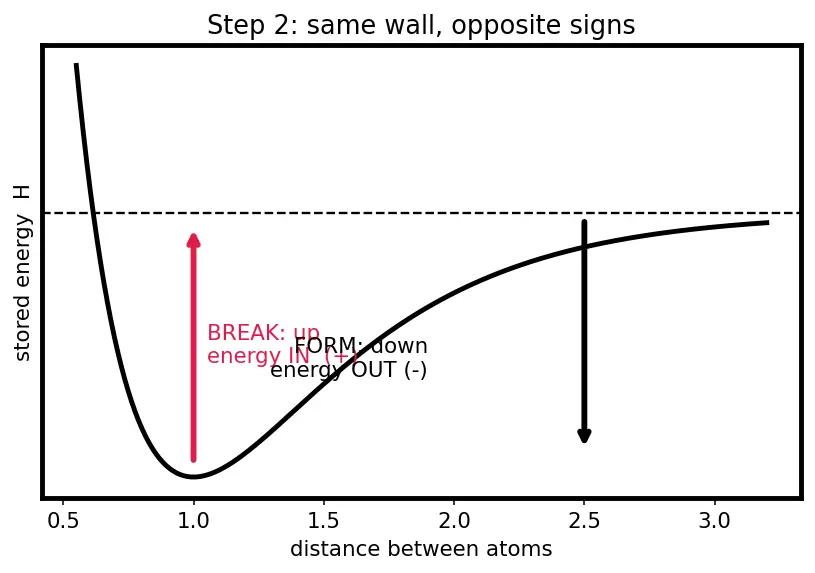

PICTURE. One red "up" arrow (break, energy in) and one black "down" arrow (form, energy out) on the same valley.

Step 3 — Why we're allowed to invent a fake path

WHAT. A reaction goes reactants $\to$ products directly. But we don't know the messy real route. So we invent a detour: first rip all reactants into loose atoms, then re-assemble those atoms into products.

WHY is that legal? Because enthalpy $H$ is a state function — it depends only on where you start and where you finish, never on the road you took. This is Hess's Law. Like altitude on a mountain: the height difference between base and peak is fixed no matter which trail you climb.

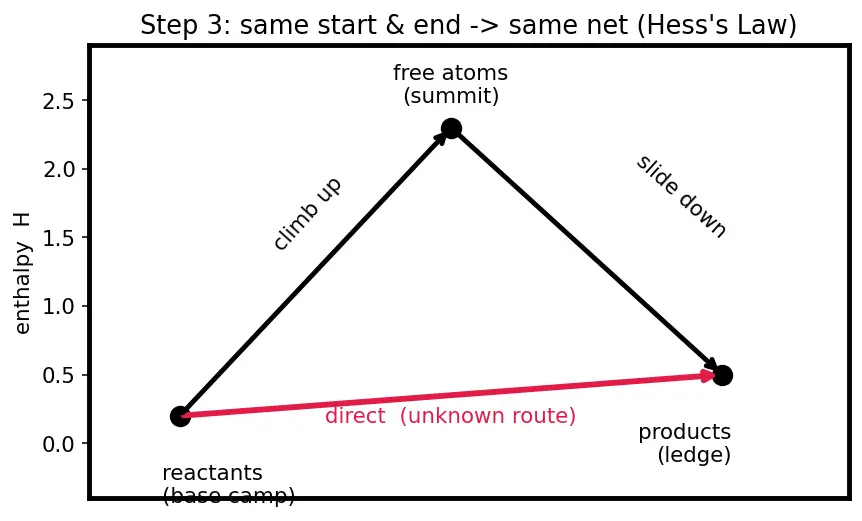

PICTURE. A triangle: reactants at bottom-left, products at bottom-right, and a high "free atoms" peak in the middle. Two paths, same start and end.

Step 4 — Path leg 1: atomize the reactants (all the way up)

WHAT. Break every bond in the reactant molecules. Add up all those climbing-costs.

WHY add, and why all positive? Every broken bond is a wall you climb (Step 2), so every term is $+$ . Summing them (the symbol $\sum$ , "sigma", just means "add up the list") gives the total energy to reach the summit from the reactant side.

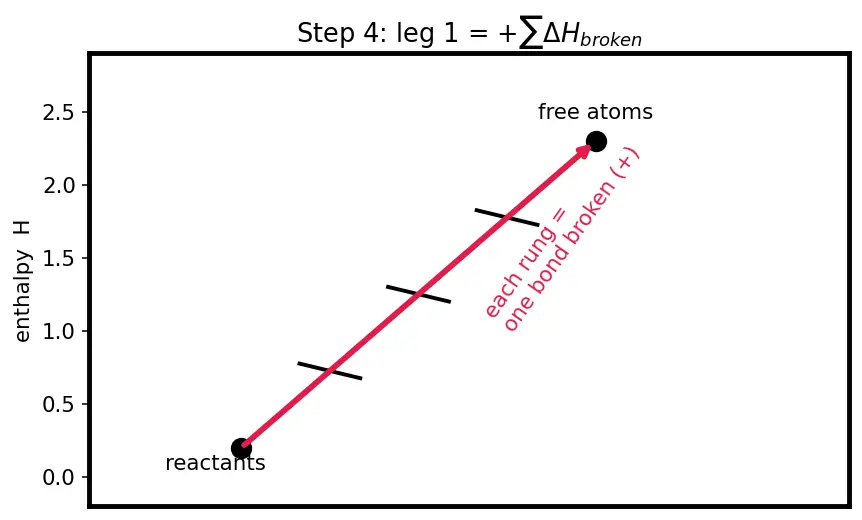

PICTURE. The red arrow climbs from "reactants" up to the "free atoms" summit; each rung is one bond broken.

Step 5 — Path leg 2: build the products (all the way down)

WHAT. From the free atoms at the summit, form every bond in the products. Add up those pay-backs.

WHY does this leg carry a minus? Because forming is falling down the wall (Step 2): energy comes OUT, sign $-$ . So the descent from summit to products is $- \sum (product bonds)$ .

PICTURE. The black arrow slides from the "free atoms" summit down to "products".

Step 6 — Add the two legs → the master equation appears

WHAT. The net height change base $\to$ ledge is just up-leg plus down-leg. Add Steps 4 and 5.

WHY does this equal $Δ H_{r x n}$ ? Because of Hess's Law (Step 3): the detour's total = the direct reaction's total. So: $Δ H_{r x n} = E_{up} + E_{down} = \sum Δ H_{broken} + (- \sum Δ H_{formed})$

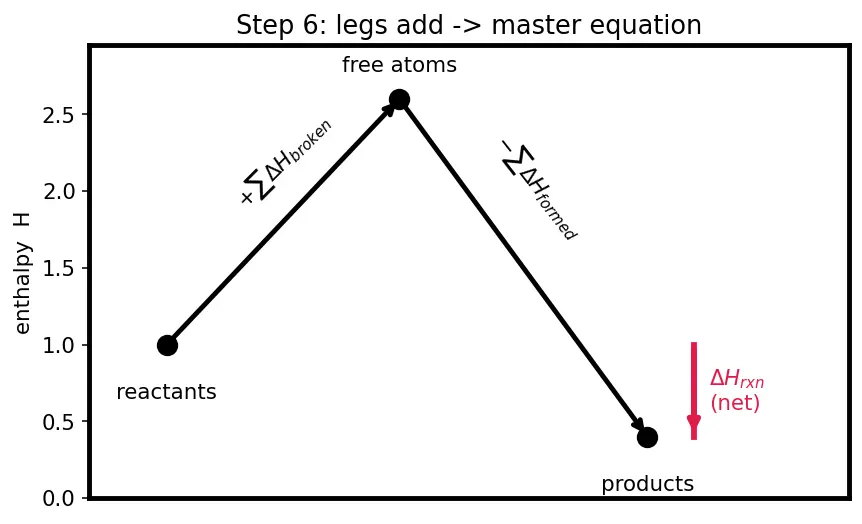

PICTURE. The full triangle with a short vertical bar showing the net drop from reactants to products = $Δ H_{r x n}$ .

Step 7 — The two possible outcomes (both signs)

WHAT. After subtracting, only two things can happen — the products sit below the reactants, or above.

WHY two cases? The number $Δ H_{r x n}$ can be negative or positive, and each means something physical:

See Exothermic vs Endothermic Reactions.

PICTURE. Two side-by-side triangles: left, products end lower (red drop, exothermic); right, products end higher (endothermic).

Step 8 — The degenerate / edge cases you must not trip on

WHAT. Three sneaky situations where the counting looks different but the equation still holds.

PICTURE. A cancellation strip: a $+ 413$ up-arrow and a $- 413$ down-arrow for the same C–H, meeting at a red "= 0".

Step 9 — Why the picture is only an estimate (the wall isn't fixed)

WHAT. Our whole derivation assumed each bond has ONE wall height. Reality: the same C–H is a slightly different wall in methane vs ethanol.

WHY the wobble? Tables give an average wall. Also: our summit route demands gas-phase atoms only, and it ignores extra stabilisation like Resonance Energy. So the derived $Δ H_{r x n}$ is a good shortcut, not the exact truth — the precise route uses Standard Enthalpy of Formation data.

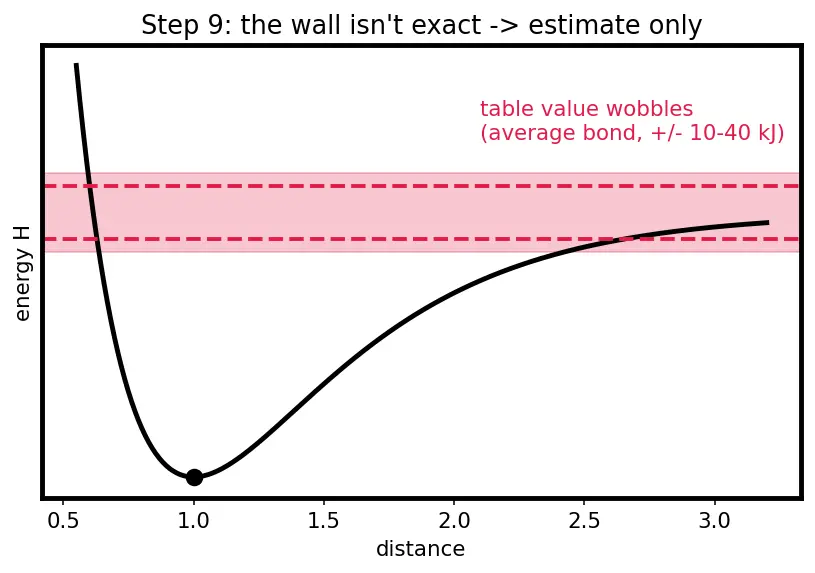

PICTURE. The same valley from Step 1, now drawn with a fuzzy red band around the wall height — "the number wobbles."

The one-picture summary

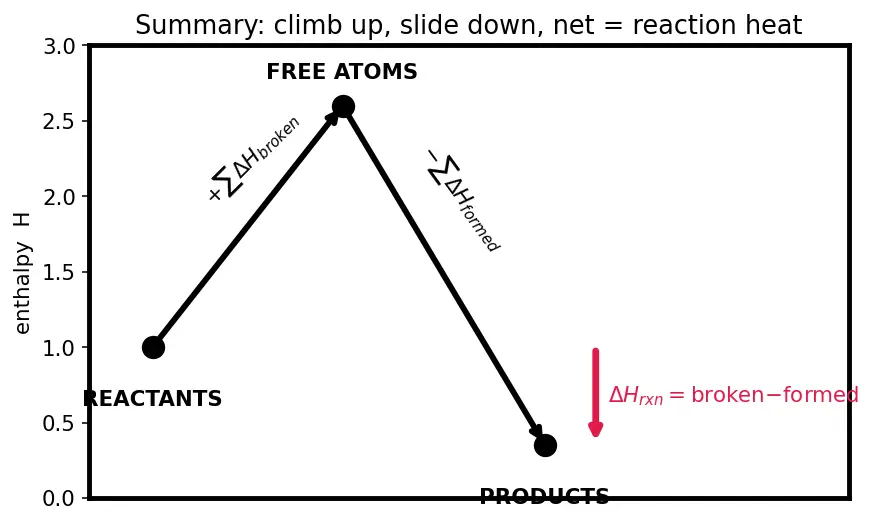

Everything above, compressed: reactants climb to the atom-summit (sum of broken bonds, red, $+$ ), then descend to products (sum of formed bonds, $-$ ); the leftover vertical gap is $Δ H_{r x n}$ .

Recall Feynman retelling — say it to a 12-year-old

Imagine two magnetic marbles clicked together in a little dip — that click is a bond. To yank them apart you have to pull hard; that pull-energy is the bond's "wall height." Now suppose you want to turn one toy (reactants) into another toy (products). The clever trick: pretend you first smash the old toy into a pile of single marbles at the top of a hill (you pull apart EVERY click — that costs energy, all pluses, the climb up), then you snap those marbles into the new toy (every snap gives a little energy back, all minuses, the slide down). Since a hill's height doesn't care which path you walked (that's Hess's Law), the leftover — energy spent climbing minus energy given back sliding — is exactly the reaction's heat. If you got more back sliding than you spent climbing, the leftover comes out as warmth: exothermic. If unchanged clicks appear on both sides, their pull-and-resnap cancels to nothing. And because real clicks aren't all exactly the same strength, the answer is a very good guess, not the perfect truth.

Active Recall

Which law lets us invent the atomic path?

Hess's Law — enthalpy is a state function (path-independent).

The minus sign in the master equation comes from what physical fact?

Forming a bond releases energy (slide DOWN the wall), the opposite sign of breaking it.

A C–H bond unchanged from reactant to product contributes what to ΔH?

Zero — its

+

(broken) and

-

(formed) terms cancel.

2 H_{2} O

contains how many O–H bonds?

Four (2 per molecule × 2 molecules).

Δ H_{r x n} < 0

means the reaction is?

Exothermic — more energy released forming than spent breaking.
