Intuition The big picture (WHY solids differ)A solid is matter where particles are locked in place — they vibrate but don't flow. The only real question in solid-state geometry is: is the arrangement of particles orderly and repeating, or random? That single yes/no splits all solids into crystalline (long-range order) and amorphous (short-range order only). Everything else — unit cells, Bravais lattices — is just the bookkeeping we invent to describe the repeating pattern efficiently. WHY invent a "unit cell"? Because if a pattern repeats forever, you only need to store the smallest repeating block plus the rule "copy it in 3 directions."
Definition Crystalline solidA solid with long-range order : the arrangement of particles repeats periodically over the entire crystal. Has a sharp melting point and is anisotropic (properties depend on direction).
Definition Amorphous solidA solid with only short-range order (order fades within a few atoms). No repeating lattice. Melts over a range of temperature (softens gradually) and is isotropic (same properties in all directions). Examples: glass, rubber, plastics.
Intuition WHY sharp vs range melting point?In a crystal every bond is in an identical environment, so all bonds break at the same temperature → sharp melting. In an amorphous solid, bonds sit in different local environments (some weaker, some stronger), so they break over a spread of temperatures → gradual softening. Amorphous solids are really "frozen liquids" — hence sometimes called supercooled liquids or pseudo-solids.
Intuition WHY anisotropy (crystalline) vs isotropy (amorphous)?Imagine slicing a crystal: in one direction you cut through tightly packed rows, in another through gaps. Different arrangement per direction → different property per direction → anisotropic . In amorphous solids the randomness averages out to be the same everywhere → isotropic .
Property
Crystalline
Amorphous
Order
Long-range
Short-range only
Melting
Sharp point
Over a range
Directional properties
Anisotropic
Isotropic
Cut/cleavage
Clean flat faces
Irregular
Heat of fusion
Definite
Not definite
Definition Space (crystal) latticeA 3-D array of points (lattice points) where each point has identical surroundings . It is the abstract skeleton; put an atom/ion/molecule (the basis/motif ) on each point → you get the real crystal.
The smallest repeating unit of the lattice which, when translated (copied) along its three edges, reproduces the whole crystal. Defined by edge lengths a , b , c a, b, c a , b , c α , β , γ \alpha, \beta, \gamma α , β , γ
Intuition WHAT the six parameters meanThink of a squashed box (parallelepiped). Three edge lengths tell you how long each side is; three angles tell you how tilted the box is. α \alpha α b b b c c c β \beta β a a a c c c γ \gamma γ a a a b b b fully specify the box shape.
An atom shared between cells contributes only a fraction to any one cell. WHY? Because it belongs to several cells at once — you'd double-count it otherwise.

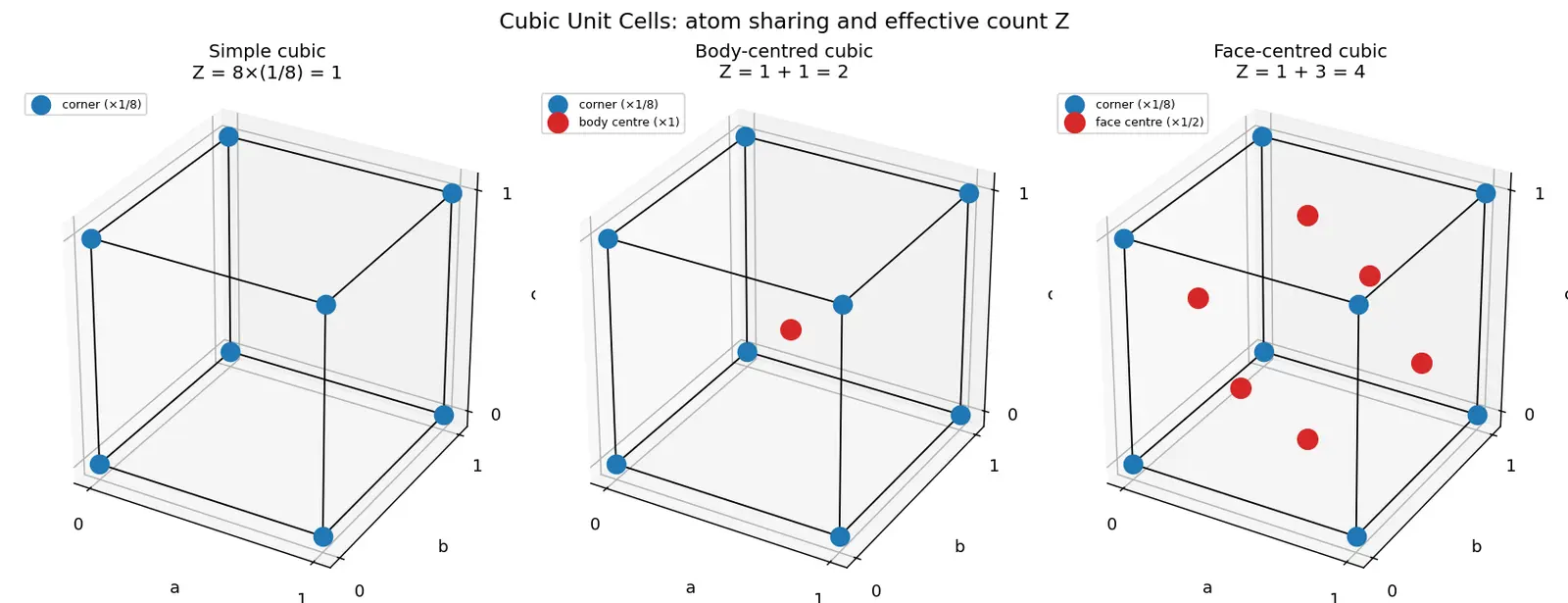

Worked example Simple / primitive cubic — WhyZ = 1 Z=1 Z = 1 1 8 \tfrac18 8 1 Z = 8 × 1 8 = 1 Z = 8 \times \tfrac18 = 1 Z = 8 × 8 1 = 1 Why this step? All 8 corner atoms together add up to exactly one whole atom.
Worked example Body-centred cubic (BCC) — WhyZ = 2 Z=2 Z = 2 × 1 8 = 1 \times \tfrac18 = 1 × 8 1 = 1 × 1 = 1 \times 1 = 1 × 1 = 1 Z = 1 + 1 = 2 Z = 1+1 = 2 Z = 1 + 1 = 2 Why this step? The centre atom is fully inside → not shared → counts as a whole 1.
Worked example Face-centred cubic (FCC) — WhyZ = 4 Z=4 Z = 4 × 1 8 = 1 \times \tfrac18 = 1 × 8 1 = 1 × 1 2 = 3 \times \tfrac12 = 3 × 2 1 = 3 Z = 1 + 3 = 4 Z = 1 + 3 = 4 Z = 1 + 3 = 4 Why this step? Each face atom is split between the 2 cells meeting at that face.
Intuition WHY exactly 7 systems?Ask: "how many distinct box shapes can tile 3-D space?" Constraining edge lengths (a , b , c a,b,c a , b , c α , β , γ \alpha,\beta,\gamma α , β , γ 7 unique symmetry classes.
Intuition WHY 14 Bravais lattices, not more?For each shape you can also add lattice points at faces/body/base. But many combinations are redundant (a "face-centred cubic seen sideways" might just equal another already-counted lattice). Bravais proved only 14 distinct space lattices survive after removing duplicates.
Crystal system
Edges
Angles
Bravais lattices
Example
Cubic
a = b = c a=b=c a = b = c all 90 ° 90° 90°
P, I, F (3)
NaCl
Tetragonal
a = b ≠ c a=b\ne c a = b = c all 90 ° 90° 90°
P, I (2)
SnO 2 \text{SnO}_2 SnO 2
Orthorhombic
a ≠ b ≠ c a\ne b\ne c a = b = c all 90 ° 90° 90°
P, I, F, C (4)
BaSO 4 \text{BaSO}_4 BaSO 4
Hexagonal
a = b ≠ c a=b\ne c a = b = c 90 , 90 , 120 ° 90,90,120° 90 , 90 , 120° P (1)
ZnO
Rhombohedral
a = b = c a=b=c a = b = c all equal ≠ 90 ° \ne 90° = 90°
P (1)
Calcite
Monoclinic
a ≠ b ≠ c a\ne b\ne c a = b = c two 90 ° 90° 90° ≠ \ne =
P, C (2)
Gypsum
Triclinic
a ≠ b ≠ c a\ne b\ne c a = b = c all ≠ \ne = 90 ° 90° 90°
P (1)
CuSO 4 ⋅ 5 H 2 O \text{CuSO}_4\cdot5\text{H}_2\text{O} CuSO 4 ⋅ 5 H 2 O
Total = 3 + 2 + 4 + 1 + 1 + 2 + 1 = 14 = 3+2+4+1+1+2+1 = \mathbf{14} = 3 + 2 + 4 + 1 + 1 + 2 + 1 = 14
Common mistake "Glass is a crystalline solid because it's hard and transparent."Why it feels right: Hardness and transparency feel like "orderly." The fix: Order ≠ hardness. Glass has NO long-range order — it flows extremely slowly and softens over a range → it's amorphous (supercooled liquid). Test = melting behaviour, not hardness.
Z = 6 Z=6 Z = 6 Why it feels right: You see 6 face atoms and count them whole. The fix: Each face atom is shared by 2 cells → contributes 1 2 \tfrac12 2 1 6 × 1 2 = 3 6\times\tfrac12 = 3 6 × 2 1 = 3 = 1 =1 = 1 Z = 4 Z=4 Z = 4
Common mistake "There are 14 crystal systems."Why it feels right: 14 is the famous number. The fix: There are 7 crystal systems (shapes) and 14 Bravais lattices (shapes + centring). Don't swap the two numbers.
Common mistake "Amorphous solids are anisotropic like crystals."Why it feels right: They're solid, so "must be like crystals." The fix: Amorphous = random = averages out = isotropic . It's the crystals that are anisotropic.
Recall Feynman: explain to a 12-year-oldImagine LEGO. If you snap bricks into a neat repeating pattern that goes on and on — that's a crystal . You only need one small chunk (the unit cell ) and the instruction "keep copying it" to build the whole wall. Because the pattern is neat, it looks different from the side vs the top (anisotropic), and if you push it, it snaps cleanly at once (sharp melting).
Now imagine dumping the same bricks in a bag, all jumbled — that's amorphous (like glass). No pattern, looks the same messy way from every side (isotropic), and it "melts" slowly and gooily instead of at one sharp moment. Corner bricks are shared with the neighbour's wall, so you only count part of them — that's the 1 8 \tfrac18 8 1 1 2 \tfrac12 2 1
Mnemonic Remembering counts and numbers"Corner-Edge-Face-Body = 8-4-2-1 sharing" → fractions 1 8 , 1 4 , 1 2 , 1 \tfrac18,\tfrac14,\tfrac12,1 8 1 , 4 1 , 2 1 , 1 "7 shapes, twice-minus adds up to 14" — 7 crystal systems, 14 Bravais lattices.
Cubic Z-values: SBF = 1-2-4 (Simple, Body, Face → 1, 2, 4).
"CuBiC has all-equal, all-90" (cubic = a = b = c a=b=c a = b = c 90 ° 90° 90°
What single property splits solids into crystalline vs amorphous? Presence (crystalline) or absence (amorphous) of long-range order.
Why does a crystalline solid have a sharp melting point? All bonds are in identical environments, so all break at the same temperature.
Why is an amorphous solid isotropic? Its random arrangement averages out, giving the same properties in every direction.
Contribution of a corner atom to a unit cell, and why? 1/8, because it is shared among 8 adjacent cells.
Contribution of a face-centred atom, and why? 1/2, because it is shared between 2 cells.
Z for simple cubic, BCC, and FCC? 1, 2, and 4 respectively.
Derive Z for FCC. 8 corners×1/8 = 1, plus 6 faces×1/2 = 3, total = 4.
What is a unit cell? The smallest repeating unit that reproduces the whole lattice by translation along its 3 edges.
How many crystal systems and how many Bravais lattices exist? 7 crystal systems and 14 Bravais lattices.
Parameters that define a unit cell? Three edge lengths a, b, c and three angles α, β, γ.
Conditions for the cubic system? a=b=c and α=β=γ=90°.
Which cubic Bravais lattices exist? Primitive (P), Body-centred (I), Face-centred (F).
Why is glass classified as amorphous, not crystalline? It lacks long-range order and softens over a temperature range (supercooled liquid).
What is the basis/motif in a lattice? The atom/ion/molecule group placed on each lattice point.
Close packing in solids — HCP, CCP, void fraction Packing efficiency and density of unit cell Radius ratio rule and coordination number Ionic solids — NaCl, ZnS, CaF2 structures X-ray diffraction — Bragg's law (how order is measured )Defects in solids — Schottky and Frenkel Intermolecular forces (why particles stay locked)
Intuition Hinglish mein samjhoSolid state ka poora khel bas ek sawaal pe tika hai: particles ka arrangement orderly aur repeating hai ya random ? Agar order poore crystal me repeat hota rahe to wo crystalline solid hai (jaise NaCl, diamond) — iska melting point sharp hota hai kyunki har bond ek jaisa environment me hai, sab ek saath toot-te hain. Agar order sirf thodi door tak ho aur phir gayab, to wo amorphous solid hai (jaise glass, rubber) — ye range me softly melt hota hai aur har direction me same behave karta hai (isotropic). Crystalline anisotropic hota hai kyunki alag direction me particles ka packing alag dikhta hai.
Ab agar pattern hamesha repeat ho raha hai to poora likhne ki zarurat nahi — bas unit cell yaani sabse chhota repeating box store karo aur "copy karte jao" ka rule laga do. Is box ko 3 lengths (a , b , c a,b,c a , b , c α , β , γ \alpha,\beta,\gamma α , β , γ corner atom 8 cells me share hota hai to 1 / 8 1/8 1/8 face atom 2 cells me to 1 / 2 1/2 1/2 edge 1 / 4 1/4 1/4 body centre pura 1 1 1 Z = 1 Z=1 Z = 1 Z = 2 Z=2 Z = 2 Z = 4 Z=4 Z = 4
Yaad rakho: 7 crystal systems (box ki shapes) aur 14 Bravais lattices (shape + centring milake). Ye number ulta mat karna — exam me sabse common galti yahi hai. Aur glass ko crystalline mat samajh lena sirf isliye ki wo hard aur transparent hai — order matters, hardness nahi. Ye chapter aage packing efficiency, density calculation, aur ionic structures ke liye base banata hai, isliye sharing rule aur Z Z Z
