Foundations — Gas laws — Boyle (PV const at T), Charles (V - T const at P), Gay-Lussac (P - T const at V)

This page assumes nothing. If the parent note (Gas Laws) used a symbol, we build it here from the ground up.

1. The container and the swarm (the picture everything lives in)

Before any symbol, fix the picture in your head. Imagine a sealed box. Inside are millions of tiny balls — molecules — flying in straight lines, bouncing off each other and off the walls. Nothing escapes, nothing enters.

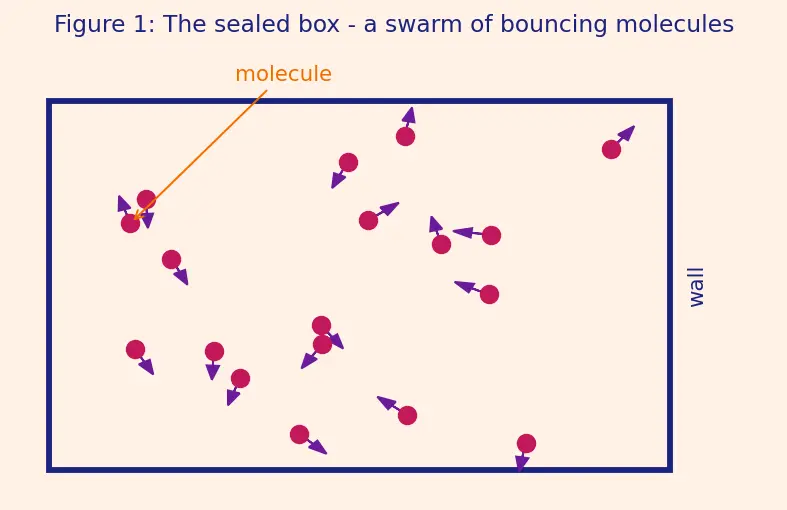

Figure 1 — the sealed box and its swarm. Magenta dots are molecules; violet arrows show their random velocities; the navy square is the container wall.

Everything that follows is a number describing this box or this swarm. Keep the picture: red dots zooming, walls getting hit.

2. The amount: $n$ (how many balls)

The picture: $n$ is simply how crowded the box's population is — double $n$ and you've poured in twice as many red dots.

Why the topic needs it: every gas law says "for a fixed amount of gas...". That phrase is $n=$ constant. If you let balls leak in or out, none of the laws hold. So $n$ is the knob we deliberately keep locked the whole time.

3. The volume: $V$ (how much room)

The picture: $V$ is the size of the transparent cube in Figure 1. A gas always fills its whole container, so the gas's volume is the container's volume — there is no "empty space above the gas" like there is above water in a glass.

Why the topic needs it: $V$ is one of the three knobs. Charles's law lets $V$ grow; Boyle's law shrinks it; Gay-Lussac's law locks it.

4. Pressure: $P$ (how hard the swarm pushes)

This is the subtlest symbol, so we build it slowly with its own picture.

Where does the push come from? Every time a ball hits a wall and bounces back, it shoves the wall a tiny bit — like a hailstone tapping a window. One tap is nothing. But billions of taps per second add up to a steady press.

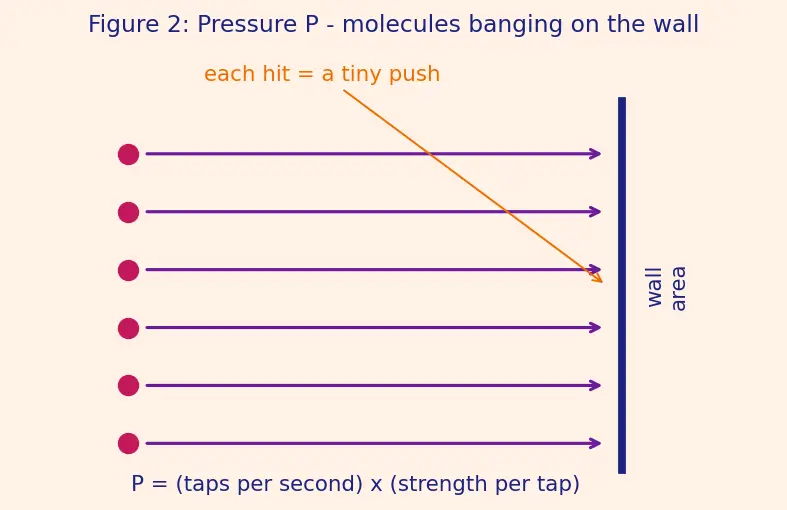

Figure 2 — pressure is banging on the wall. Magenta molecules fly at the navy wall; each violet arrow is one impact; the caption formula shows pressure = frequency × strength of hits.

Units of $P$: atmospheres ($\text{atm}$), pascals ($\text{Pa}$), or bar. In this chapter we mostly use $\text{atm}$.

Why the topic needs it: $P$ is the third knob. Boyle trades $P$ against $V$; Gay-Lussac raises $P$ by heating. The microscopic "banging" picture is developed fully in Kinetic Theory of Gases.

5. Temperature: $T$ (how fast the balls jiggle)

Temperature is where beginners get burned, so we define it twice — the everyday way, then the way physics actually needs.

The everyday picture: $T$ is "how hot". But how we number it matters enormously.

Two temperature scales — and why only one works

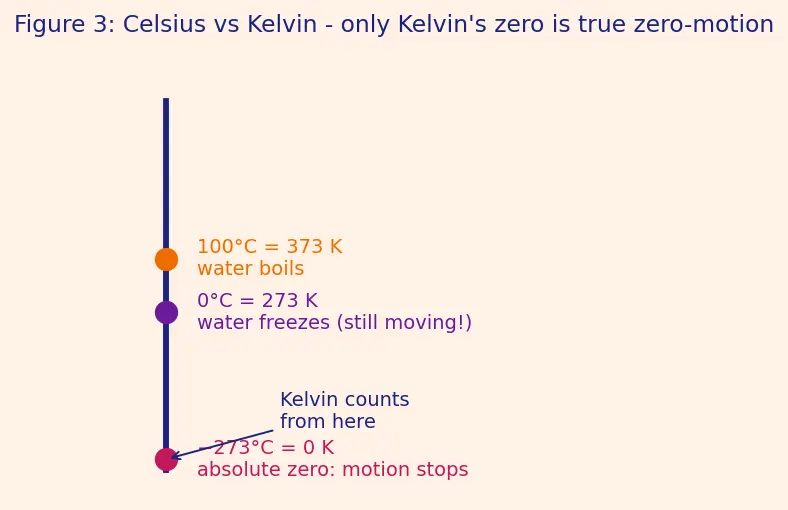

Figure 3 — Celsius vs Kelvin. A vertical navy scale marks absolute zero (magenta), water freezing (violet) and water boiling (orange); note that at $0^{\circ }\text{C}$ the molecules are still moving.

Why the topic needs it: $T$ is the master knob. Charles ($V\propto T$) and Gay-Lussac ($P\propto T$) are proportional to $T$, and proportionality only makes sense counting from a true zero. Full detail: Absolute Zero and Kelvin Scale.

6. Proportionality symbols: $\propto$, "constant", and ratios

The laws are written with a shorthand you must be able to read.

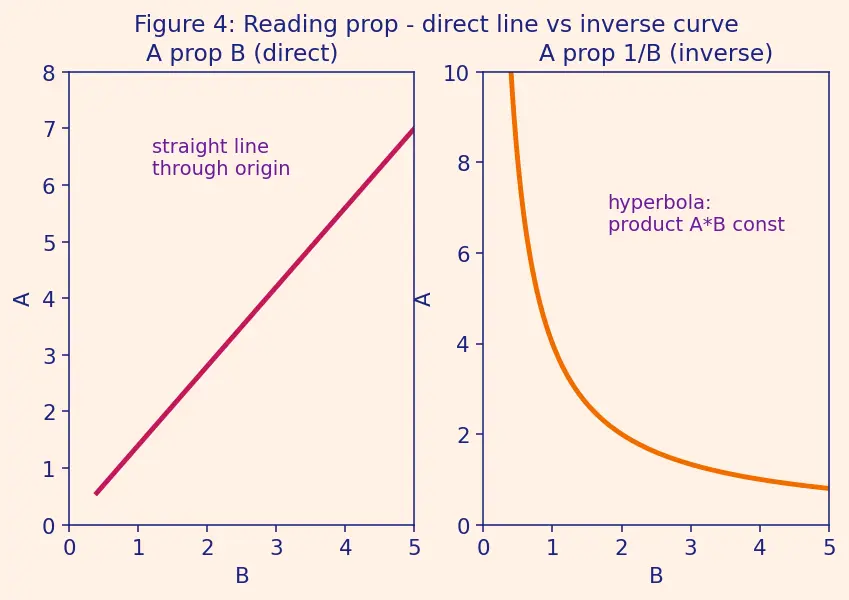

Figure 4 — direct vs inverse proportion. Left (magenta): $A\propto B$ is a straight line through the origin. Right (orange): $A\propto 1/B$ is a hyperbola whose product $A\cdot B$ stays constant.

Why the topic needs it: all three laws are one-line proportionalities. Reading $\propto$ fluently, and converting it to a "ratio stays constant" statement, is the whole algebra of the chapter.

7. Subscripts: $P_1,V_1,T_1$ vs $P_2,V_2,T_2$

The picture: state 1 = the box on the left (before you squeeze/heat), state 2 = the box on the right (after). Nothing new — just "photo before" and "photo after".

Why the topic needs it: every worked example compares two states, e.g. $P_1{V}_1=P_2{V}_2$. Without subscripts you couldn't say "the same gas, but changed".

8. The master equation $PV=nRT$ and the letter $R$

All four knobs meet in one equation, whose last symbol we now name.

Prerequisite map

Read it top-down: the bouncing-ball swarm births $P$, $T$, $n$; the container gives $V$; the Kelvin scale fixes $T$; all feed the master equation $PV=nRT$, which — with proportionality and before/after subscripts — collapses into the three named laws.

Equipment checklist

Test yourself — cover the right side and answer before revealing.
