Visual walkthrough — VSEPR theory — geometry from electron pairs (linear, trigonal planar, tetrahedral, trigonal bipyramidal, octahedral, etc

Before symbols, one plain fact you already trust: two magnets with the same pole pushed together shove each other away. Electrons carry negative charge, and two negatives push away in exactly the same stubborn manner. That single fact is the whole engine of this page.

---

Step 1 — What is a "domain"? (a balloon on a knot)

WHAT. Around one central atom we bundle up its electrons into regions of negative charge. We call each region a domain. The rule for counting them, from Lewis Structures:

• one single bond = 1 domain,
• one double bond = 1 domain (all its electrons point the same way — one fat balloon, not two),
• one triple bond = 1 domain,
• one lone pair = 1 domain.

WHY. Shape depends only on how many directions the charge sticks out in — not on how many electrons hide in each direction. A double bond is more electrons but still one direction, so it is one balloon.

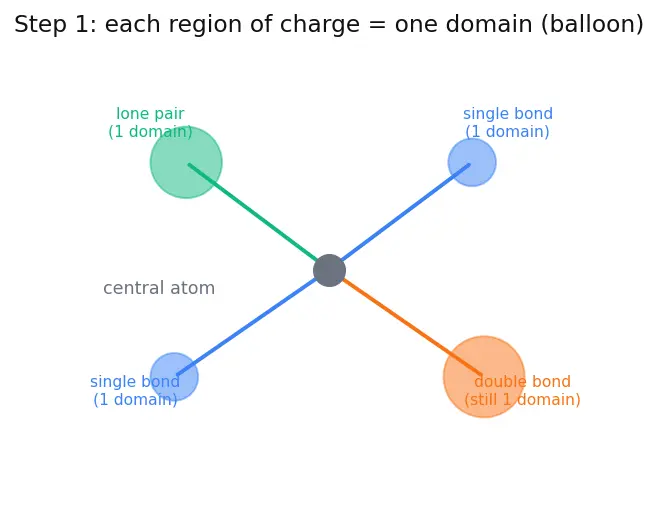

PICTURE. Look at the figure: a central gray dot (the atom) with four balloons tied at one knot. Notice the orange balloon (a double bond) is fatter but still counts as a single arrow of direction.

---

Step 2 — The rule made precise: points on a sphere

WHAT. Imagine every domain as a point sitting on the surface of a sphere, all at the same distance from the centre. Our job: push the points apart until no pair can get farther from its neighbours.

WHY. Two negative clouds repel, and the repulsion grows as they get closer. To make the total pushing as small as possible, the clouds slide around the sphere until they are as spread out as they can be. Minimum repulsion = maximum spacing. This is a pure packing question — no chemistry needed to solve it, only geometry.

PICTURE. Two points on a circle: when both are on the same side they crowd (short red arrow = big repulsion); when they slide to opposite ends the arrow relaxes. The relaxed configuration is the answer.

---

Step 3 — SN = 2 and SN = 3 (the flat cases)

WHAT. With two balloons, the farthest-apart arrangement is a straight line: the two points sit on opposite ends of a diameter, $180^{\circ }$ apart → linear. With three balloons, the best they can do while staying equal is the corners of a flat triangle, $120^{\circ }$ apart → trigonal planar.

WHY $180^{\circ }$ and $120^{\circ }$? For two points, "as far apart as possible" is opposite ends — nothing beats a half-turn. For three equal points on a circle, splitting the full $360^{\circ }$ into three equal slices gives $360^{\circ }/3=120^{\circ }$; any other split makes two of them crowd closer.

PICTURE. Left panel: two blue arrows dead in line. Right panel: three arrows at even $120^{\circ }$ spokes, with the equal angles marked.

$\text{SN}=2:180^{\circ }\text{SN}=3:\frac{360^{\circ }}{3}=120^{\circ }$

• $360^{\circ }$ ::: one full turn around the central atom in the plane.
• dividing by $3$ ::: because three equal balloons share the circle equally.

---

Step 4 — SN = 4 must leave the plane

WHAT. For four balloons, staying flat (a $90^{\circ }$ cross, +x, +y, −x, −y) is not the best. The four points lift out of the plane into the corners of a tetrahedron — a little three-sided pyramid.

WHY. In the flat $90^{\circ }$ cross, neighbours are only $90^{\circ }$ apart. By pulling two of them up and two down into 3D, every pair opens up to a larger angle, so every repulsion drops. Geometry — not chemistry — forces the molecule off the page.

PICTURE. Left: the crowded flat cross ($90^{\circ }$, red "too close" arcs). Right: the same four balloons lifted into a tetrahedron, angles now visibly wider.

---

Step 5 — Computing the tetrahedral angle $109.47^{\circ }$

WHAT. We now calculate the exact tetrahedral angle. Place four tetrahedron corners at alternating cube vertices: $\mathbf{a}=(1,1,1),\mathbf{b}=(1,-1,-1)$ each an arrow from the centre to a corner.

WHY the dot product? We need "the angle between two arrows in 3D." The one tool built exactly for that job is the dot product: for any two vectors it satisfies $\mathbf{a}\cdot \mathbf{b}=|\mathbf{a}||\mathbf{b}|\cos \theta$

• $\mathbf{a}\cdot \mathbf{b}$ ::: multiply matching components and add: $a_x{b}_x+a_y{b}_y+a_z{b}_z$.
• $|\mathbf{a}|$ ::: the length of arrow $\mathbf{a}$, from Pythagoras $\sqrt{a_x^2+a_y^2+a_z^2}$.
• $\cos \theta$ ::: the cosine of the angle we want — the dot product hands us this directly.

We chose the dot product (not tangent or sine) because it is the single formula that isolates $\cos \theta$ from the raw coordinates with no triangle-drawing.

Plug in: $\mathbf{a}\cdot \mathbf{b}=(1)(1)+(1)(-1)+(1)(-1)=1-1-1=-1$ $|\mathbf{a}|=|\mathbf{b}|=\sqrt{1^2+1^2+1^2}=\sqrt{3}$ $\cos \theta =\frac{-1}{\sqrt{3}\cdot \sqrt{3}}=\frac{-1}{3}$

WHY undo with arccos? We know $\cos \theta$ but want $\theta$. The arccos ("which angle has this cosine?") is the button that reverses cosine: $\theta =\arccos \left(-\frac{1}{3}\right)=109.47^{\circ }$ The minus sign is important: a negative cosine means the angle is bigger than $90^{\circ }$ — the arrows lean away from each other, exactly what "spread apart" should look like.

PICTURE. The two red arrows $\mathbf{a}$ and $\mathbf{b}$ drawn from the cube's centre to opposite-type corners, the angle between them arced and labelled $109.47^{\circ }$.

---

Step 6 — SN = 5 and SN = 6 (two "sizes" of neighbour, and the perfect $90^{\circ }$)

WHAT. Five balloons cannot all be equal — the best is a trigonal bipyramid: three in a flat equatorial triangle ($120^{\circ }$ apart) plus two poles (axial) sticking straight up and down ($90^{\circ }$ from the equator). Six balloons can all be equal: the octahedron, every neighbour at a clean $90^{\circ }$.

WHY two kinds of position at SN=5? You cannot arrange five points on a sphere so all pairwise angles are equal — geometry simply does not allow it. The compromise splits into two families: crowded axial (three $90^{\circ }$ neighbours each) and roomier equatorial (two $90^{\circ }$ neighbours each). For SN=6 the symmetry does work: six points = the six faces of two square pyramids glued base-to-base, all $90^{\circ }$.

PICTURE. Left: trigonal bipyramid with the equatorial $120^{\circ }$ triangle in blue and the two axial poles in orange, $90^{\circ }$ marked. Right: octahedron with all six vertices and a $90^{\circ }$ arc.

---

Step 7 — The degenerate twist: lone pairs bend the angles

WHAT. A lone pair is a balloon tied to only one nucleus, so nothing pulls it outward — it stays fat and close, and pushes harder than a bonding balloon (which two nuclei stretch thin). Result: $\text{lone–lone}>\text{lone–bond}>\text{bond–bond}$ So lone pairs squeeze the remaining bonds to smaller angles.

WHY this order and these numbers? Same SN = 4 (tetrahedral electron geometry), but adding lone pairs pushes the bonds together: $\underset{0\text{LP}}{\underbrace{C{H}_4}}109.5^{\circ }>\underset{1\text{LP}}{\underbrace{N{H}_3}}107^{\circ }>\underset{2\text{LP}}{\underbrace{H_{2}O}}104.5^{\circ }$ Two fat lone pairs (water) shove harder than one (ammonia), which shoves harder than none (methane).

PICTURE. Three molecules side by side: methane wide open, ammonia pinched, water pinched more — the shrinking angle drawn as a closing wedge, the fat lone-pair balloons shaded gray.

---

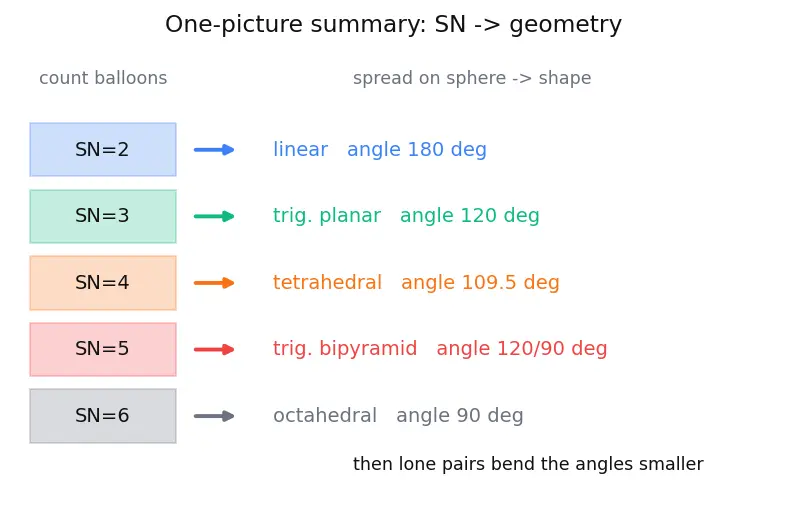

The one-picture summary

Everything on this page in a single ladder: count balloons → spread on sphere → read off shape → let lone pairs bend it.

Recall Feynman retelling — the whole walkthrough in plain words

Tie some balloons to one knot. They shove apart on their own: two balloons make a straight line, three make a flat triangle, four have to leave the flat page and make a little pyramid — because staying flat crowds them at a mean $90^{\circ }$, while the pyramid opens everyone up. If you do the arrow-math for that pyramid, the angle comes out to $109.47^{\circ }$ (a negative cosine, meaning the arrows lean away). Five balloons can't all be equal, so three sit around the middle and two cap the poles; six balloons can be equal, all at a perfect right angle. Finally, a balloon tied to only one atom (a lone pair) is fatter and pushes harder, so wherever it goes it squeezes the real bonds a little tighter — that's why water is more pinched than ammonia, which is more pinched than methane. The shape you see is just where the atoms land after all the balloons stop pushing.

Recall Quick self-check

Why does SN=4 refuse to stay flat? ::: A flat $90^{\circ }$ cross crowds neighbours; lifting into a tetrahedron opens every angle to $109.5^{\circ }$, lowering repulsion. Which tool gives the angle between two 3D bond arrows, and why? ::: The dot product, because $\mathbf{a}\cdot \mathbf{b}=|\mathbf{a}||\mathbf{b}|\cos \theta$ isolates $\cos \theta$ from raw coordinates. What does a negative cosine tell you about the angle? ::: It is greater than $90^{\circ }$ — the arrows lean apart. Why do lone pairs go equatorial in a trigonal bipyramid? ::: Equatorial has only two $90^{\circ }$ neighbours vs axial's three, minimising the worst repulsions.

---

Prerequisites feeding this page: Lewis Structures (to count domains), Hybridization and Formal Charge (to justify the electron count), and this shape then drives Bond Polarity and Dipole Moment. For the deeper electron picture see Molecular Orbital Theory.
