Polarity of bonds — dipole moment μ = q·d

WHAT is a dipole moment?

WHY do we even need this quantity? Because "polar" alone is vague. We want to quantify polarity so we can compare HCl vs HF, predict solubility, IR activity, and molecular shape. $\mu$ turns "somewhat polar" into a real measurable number.

HOW we derive $\mu = q \cdot d$ from first principles

We start from the physics of an electric dipole: two equal and opposite point charges.

Step 1 — Set up the charges. Put charge $-q$ at position $\vec{r}_-$ and $+q$ at $\vec{r}_+$ . Why this step? A polar bond behaves like exactly this: one end short of electrons ( $+q$ ), the other end with extra ( $-q$ ).

Step 2 — Define the dipole moment as the "charge-weighted position". For a set of charges $q_i$ at positions $\vec r_i$ : $\vec{\mu} = \sum_i q_i \vec{r}_i$ Why this step? This is the standard definition of the first electric moment — it measures how charge is displaced from a central point.

Step 3 — Plug in our two charges. $\vec{\mu} = (+q)\vec{r}_+ + (-q)\vec{r}_- = q(\vec{r}_+ - \vec{r}_-)$ Why this step? The two equal magnitudes let us factor out $q$ , leaving only the separation vector.

Step 4 — Recognise the separation. Let $\vec{d} = \vec{r}_+ - \vec{r}_-$ , the vector of length $d$ pointing from $-$ to $+$ . $\boxed{\vec{\mu} = q\,\vec{d} \quad\Rightarrow\quad \mu = q\cdot d}$ Why this step? The magnitude is simply $q$ times the distance — exactly the formula we wanted, and it emerged, not assumed.

WHY the Debye? A typical charge is ~ $10^{-19}$ C and a bond length ~ $10^{-10}$ m, giving $\mu \sim 10^{-29}$ C·m — an ugly number. The Debye is scaled so most molecules land in the range $0$ – $5$ D. Convenient.

Percent ionic character

$\% \text{ ionic character} = \frac{\mu_{\text{observed}}}{\mu_{\text{ionic (if } q=e)}} \times 100$

where $\mu_{\text{ionic}} = e \cdot d$ using the actual bond length.

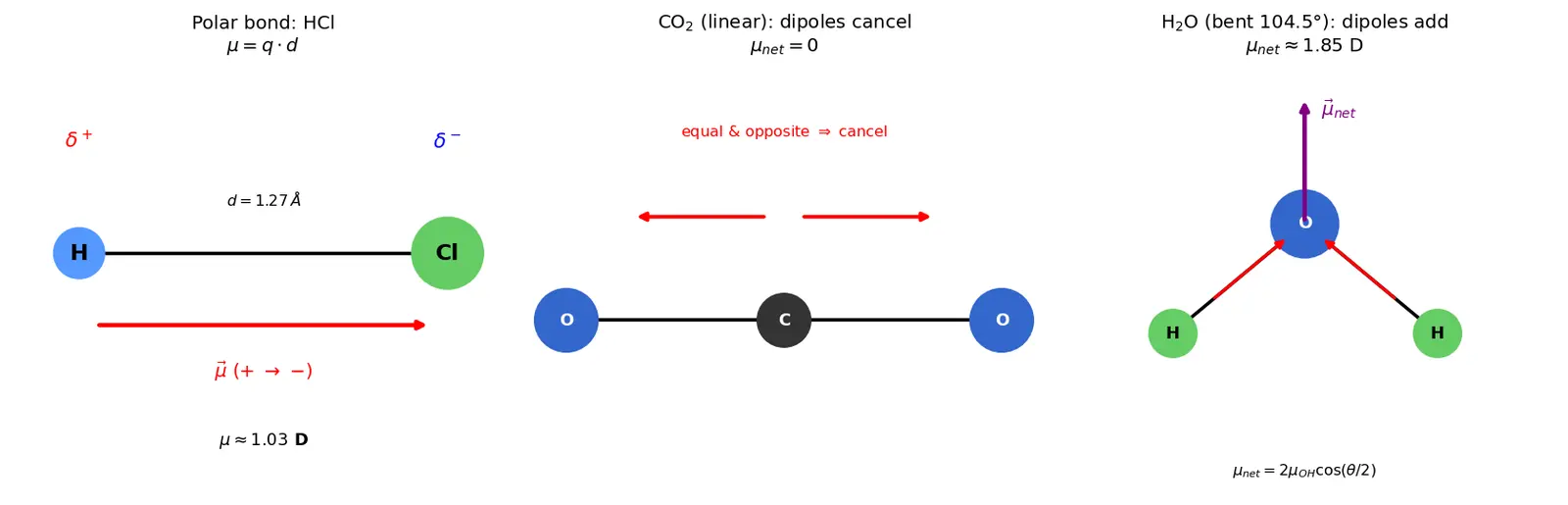

Figure — Polarity of bonds — dipole moment μ = q·d

Worked Examples

Worked example 1 — Dipole moment of HCl

Given: HCl bond length $d = 1.27\ \text{Å} = 1.27\times10^{-10}$ m, and effective charge $q = 0.17e$ . Compute $\mu$ .

$\mu = q\cdot d = (0.17)(1.6\times10^{-19})(1.27\times10^{-10})$ Why this step? Convert the partial charge into coulombs first ( $0.17e$ ), then multiply by the real bond distance. $\mu = 3.45\times10^{-30}\ \text{C·m} = \frac{3.45\times10^{-30}}{3.336\times10^{-30}} \approx 1.03\ \text{D}$ Why divide? To convert C·m into Debye for the usual chemistry scale. Matches the experimental $\mu_{\text{HCl}} \approx 1.03$ D. ✔

Worked example 3 — Why

$\text{CO}_2$ has $\mu = 0$ but $\text{H}_2\text{O}$ does not CO₂ is linear (O=C=O). Each C=O bond is polar (arrow points C→O), but the two arrows are equal and opposite: $\vec{\mu} = \vec{\mu}_1 + \vec{\mu}_2 = 0$ Why? Vector cancellation — 180° apart. H₂O is bent (~104.5°). The two O–H dipoles do not cancel; they add to a net downward vector. $\mu_{\text{net}} = 2\mu_{\text{OH}}\cos\left(\frac{104.5°}{2}\right) \approx 2(1.5)(0.61) \approx 1.85\ \text{D} \checkmark$ Why the cosine? Only the components along the bisector survive; the perpendicular components cancel. Shape decides polarity, not bonds alone.

Forecast-then-Verify

Common Mistakes (Steel-manned)

Recall Feynman: explain to a 12-year-old (click to open)

Imagine two kids sharing a rope (the electron pair). If one kid is much stronger, he pulls the rope toward himself. Now the rope's middle isn't in the middle — it's shifted to the strong kid's side. That shift makes his side a little "heavy-negative" and the weak kid's side a little "light-positive." The dipole moment is just: how strong is the pull × how far the rope shifted. And if you have two ropes pulling in exactly opposite directions, they cancel — no net shift — even though each rope is being pulled!

Connections

Electronegativity — the driver of unequal sharing.
VSEPR Theory — gives the geometry that decides cancellation.
Ionic vs Covalent character — Fajans' rules & % ionic character.
Hydrogen bonding — strong for high- $\mu$ molecules like H₂O, HF.
Intermolecular forces — dipole–dipole attractions scale with $\mu$ .
Infrared Spectroscopy — only vibrations that change $\mu$ are IR-active.

Flashcards

What quantity measures the degree of polarity of a bond?

The dipole moment

\mu = q\cdot d

, a vector from

+

-

\mu = q\cdot d

, what does

q

represent?

The magnitude of the partial separated charge (a fraction of

e

), not a full electron.

State the SI and chemistry units of dipole moment.

SI: coulomb·metre (C·m); chemistry: Debye,

1\ \text{D}=3.336\times10^{-30}

C·m.

By convention, in which direction does the dipole arrow point (chemistry)?

From the positive (

\delta^+

) end to the negative (

\delta^-

) end.

Why is

\mu_{\text{CO}_2} = 0

despite polar C=O bonds?

Linear geometry makes the two equal bond dipoles point 180° apart, so they cancel as vectors.

Why does H₂O have a net dipole?

It is bent (~104.5°); the two O–H dipoles don't cancel and add along the bisector (~1.85 D).

Formula for percent ionic character?

\dfrac{\mu_{\text{observed}}}{\mu_{\text{ionic}(q=e)}}\times100

, where

\mu_{\text{ionic}}=e\cdot d

For a bent molecule, net dipole in terms of bond dipole and angle

\theta

\mu_{\text{net}} = 2\mu_{\text{bond}}\cos(\theta/2)

Why does BF₃ have zero dipole moment?

Trigonal planar (120°): three equal bond dipoles sum to zero.

Two factors determining

\mu

magnitude?

The partial charge

q

(from electronegativity difference) and the bond length

d

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, jab do alag atoms ek bond banate hain, toh jo atom zyada "greedy" hota hai (zyada electronegativity), woh shared electrons ko apni taraf kheench leta hai. Isse ek side thoda negative ( $\delta^-$ ) aur doosri side thoda positive ( $\delta^+$ ) ho jaati hai. Is chhote se charge separation ko naapne ke liye hum dipole moment use karte hain, formula: $\mu = q \cdot d$ . Yaha $q$ hai partial charge (poora electron nahi, uska ek fraction) aur $d$ hai charges ke beech ki distance. Yeh ek vector hai — arrow hamesha plus se minus ki taraf point karta hai (chemistry convention).

Sabse important baat: polar bonds hone ka matlab yeh nahi ki molecule bhi polar hoga! Kyunki dipoles vectors hain, agar geometry symmetric hai toh woh cancel ho jaate hain. Jaise CO₂ linear hai — dono C=O ke arrows opposite direction mein, toh net $\mu = 0$ . Lekin H₂O bent hai (104.5°), isliye dono O–H dipoles cancel nahi hote, add ho jaate hain aur net dipole ~1.85 D banta hai. Toh yaad rakho — shape is the boss.

Units ka dhyaan rakhna: SI mein C·m hota hai lekin bahut chhota number aata hai, isliye chemists Debye use karte hain, jaha $1\text{ D} = 3.336\times10^{-30}$ C·m. Percent ionic character nikaalne ke liye observed dipole ko fully-ionic wale dipole (jaha $q = e$ ) se divide karke 100 se multiply kar do. HCl ke liye yeh ~17% aata hai — matlab HCl mostly covalent hai par thoda polar. Exam mein yeh concept solubility, IR activity, aur intermolecular forces sabse connect hota hai, isliye ise ache se pakdo!
