Foundations — Formal charge calculation — best resonance structure

Before you can use the formula $\text{FC}=V-L-\frac{1}{2}B$, you must be able to see every letter in it. This page builds each symbol from absolute zero — plain words, a picture, and the reason the topic needs it. Nothing here assumes you have met Lewis Structures before; we grow them from a single dot.

Symbol 0 — What is an electron dot?

WHAT it looks like: the letter of the element (say $\text{O}$) surrounded by up to 8 dots. WHY we need it: every quantity in this topic — bonds, lone pairs, charge — is just a way of counting these dots. If you cannot count dots, no formula below has meaning.

The picture shows the two ways two dots can appear:

• stuck to one atom alone → a lone pair (that atom owns both),
• placed between two atoms → a shared pair, i.e. a bond (the two atoms share them).

That single distinction — alone vs shared — is the whole game.

Symbol 1 — $V$: valence electrons the free atom brings

WHAT it looks like: the dots you draw around a single, unbonded atom. WHY the topic needs it: $V$ is the atom's starting wealth of toys. Formal charge compares what an atom ends up owning in the molecule to this starting number $V$. No starting count, no comparison.

Symbol 2 — the bond, and the number $n$ of bonds

WHAT it looks like: lines radiating out of an atom. WHY: bonds are the shared toys. Because they are shared, an atom does not own all of them — this "shared, so split it" fact is exactly what creates the $\frac{1}{2}$ in the formula (next symbol).

Look at the three panels: single line = 1 shared pair, double = 2 shared pairs, triple = 3 shared pairs. Count the lines, and you have $n$.

Symbol 3 — $B$: bonding electrons (and why the ½)

WHAT it looks like: count all the dots sitting on the atom's bond-lines, then keep half. WHY the topic needs it: this is the single most common place students double-count. The picture below shows the split explicitly.

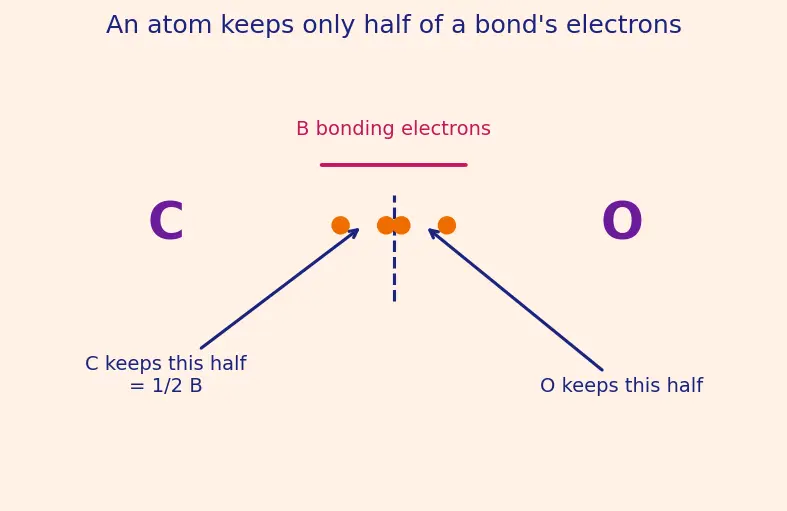

The magenta bracket shows all $B$ bonding electrons; the dashed line splits them down the middle — the atom keeps only the left half, $\frac{1}{2}B$.

Symbol 4 — $L$: lone-pair (non-bonding) electrons

WHAT it looks like: the pairs of dots hugging a single atom (2 dots per lone pair, so 2 lone pairs = $L=4$). WHY: because these electrons are not shared, the atom owns all of them — no halving. That asymmetry (all of $L$, half of $B$) is the heart of the formula.

Putting the symbols together — what FC measures

WHAT it looks like: subtract two dot-counts. That's all. WHY the topic needs the whole chain: to rank Resonance Structures we need one number per atom telling us how far it drifted from neutral — and $V-L-\frac{1}{2}B$ is that number.

Two more ideas the parent assumes

Prerequisite map

Read it top-down: dots split into three counts ($V$, $L$, $B$); $B$ gets halved; the three feed $\text{FC}$; $\text{FC}$ plus electronegativity ranks the best structure.

Equipment checklist

Test yourself — you are ready for the parent note when every line below is instant.
