Black-body radiation and Planck's quantum hypothesis E = hν: Foundations

This page assumes you know nothing. We build every letter in the parent note from the ground up, in the order they depend on each other. Whenever a symbol first appears in the parent topic, it is defined here first.

1. Wavelength $λ$ — the "length of one ripple"

Figure — Black-body radiation and Planck's quantum hypothesis E = hν

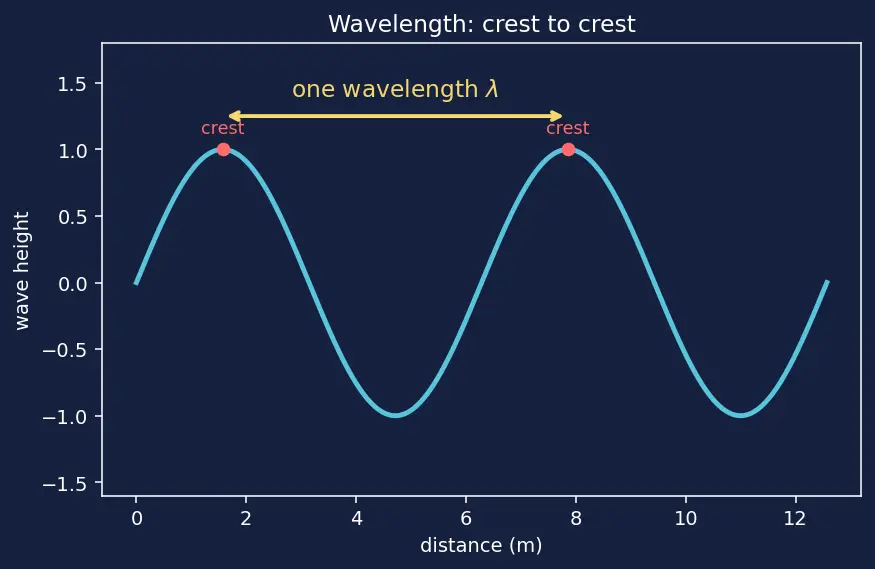

What it looks like: in the figure, the blue wave repeats. The yellow bracket marks one full copy — crest to crest. Squeeze the wave (bracket gets shorter) and $λ$ is small; stretch it out and $λ$ is large.

Why the topic needs it: the black-body graph is plotted "intensity vs wavelength". The horizontal axis is $λ$ . Small $λ$ = ultraviolet/blue side; large $λ$ = infrared/red side. Without $λ$ you cannot even read the axis.

2. Frequency $ν$ — "how many ripples pass per second"

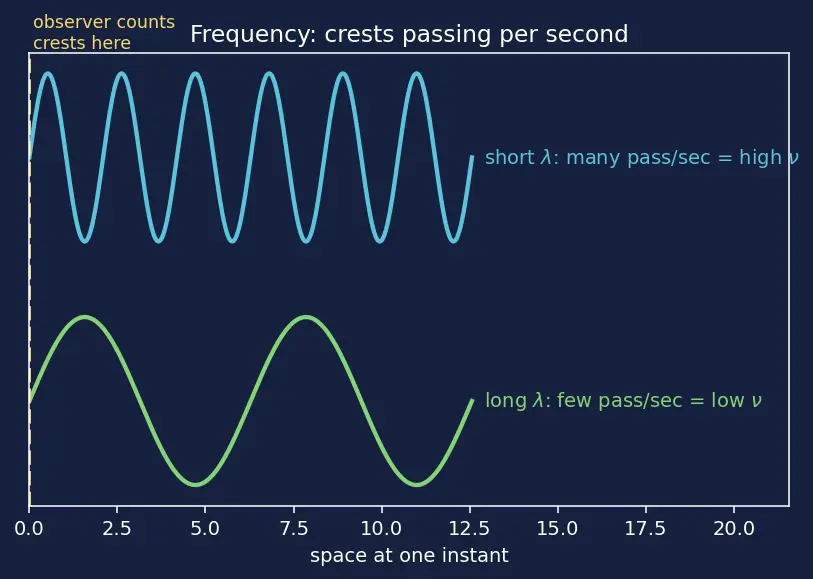

Why $λ$ and $ν$ are two views of the same thing: in the figure, short ripples (small $λ$ ) mean more crests pack into the same distance, so more pass you per second — high $ν$ . Long ripples mean few pass — low $ν$ . They move opposite ways.

Why the topic needs $ν$ : Planck's headline equation is $E = h ν$ . It is written in frequency, not wavelength, because energy turns out to rise straight in step with $ν$ (double the frequency → double the energy). That clean proportion is easiest to see in $ν$ .

3. Energy $E$ and the constant $h$ — "energy comes in steps"

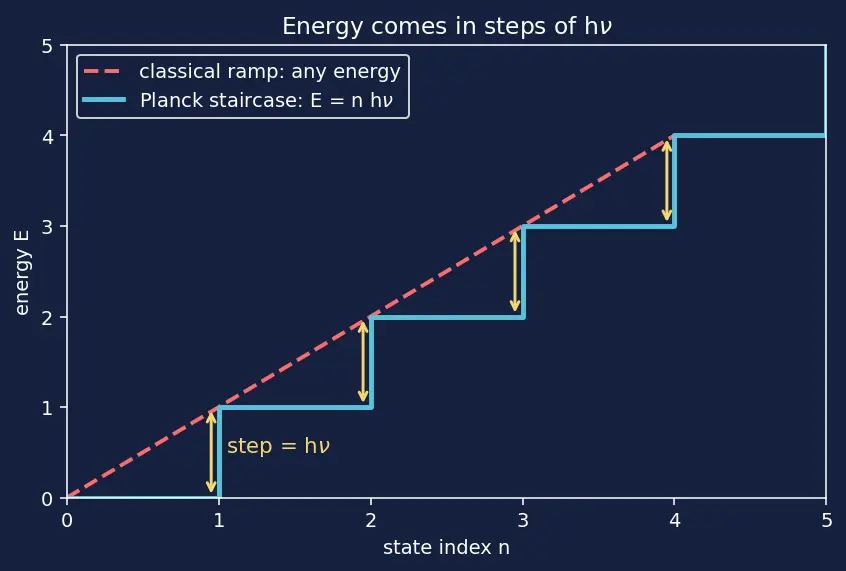

What it looks like: the figure shows a staircase, not a ramp. A ramp = old classical idea (any energy allowed). A staircase = Planck's idea (only whole steps allowed). Each step is $h ν$ tall. Higher frequency $ν$ → taller steps (steeper staircase).

Why the topic needs it: this single equation is the whole point of the chapter. $h$ is so unimaginably tiny that the steps look smooth in daily life — that is why nobody noticed until black bodies forced the issue.

4. Temperature $T$ and the thermal budget $k T$

What it looks like: think of $k T$ as your "energy pocket money" at a given temperature. If a staircase step $h ν$ costs more than your pocket money $k T$ , you cannot afford to climb it — that mode stays frozen. This single comparison, $h ν$ vs $k T$ , decides everything in Planck's law.

Why the topic needs it: the whole cure for the ultraviolet catastrophe is the tug-of-war between the step size $h ν$ and the budget $k T$ . When $h ν ≫ k T$ the mode is starved; when $h ν ≪ k T$ it behaves classically.

5. The exponential $e^{- x}$ — "the affordability discount"

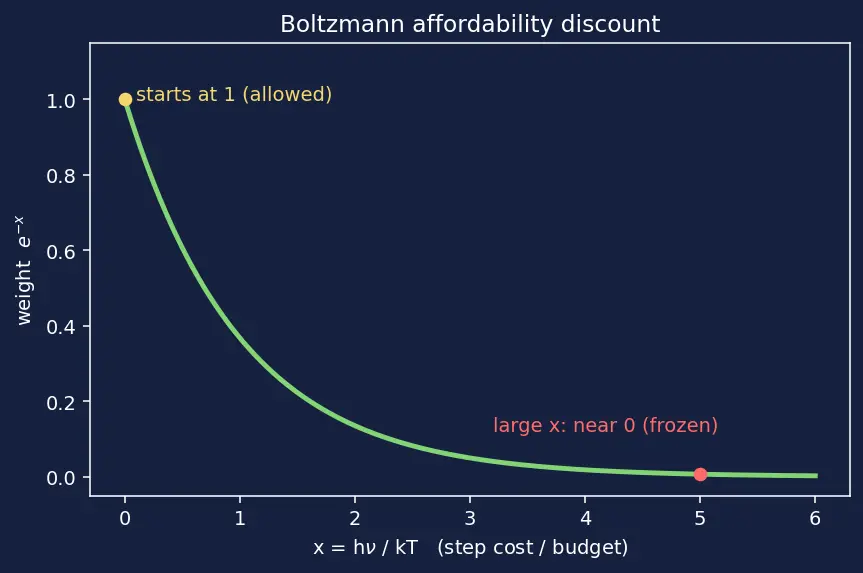

What it looks like: the green curve in the figure. At $x = 0$ it is at height 1 (fully allowed). As $x$ increases it plunges — by $x = 5$ it is almost zero.

Why the topic needs it — the Boltzmann Distribution: nature weights each energy level by $e^{- E / k T}$ . Put $E = h ν$ and the weight is $e^{- h ν / k T}$ . Read $x = h ν / k T$ as "step cost ÷ pocket money". Cheap step (small $x$ ) → weight near 1 → level gets used. Expensive step (large $x$ ) → weight near 0 → level frozen out. That exact factor is what makes the black-body curve fall at high frequency instead of blowing up.

6. Reading the plot: intensity $u$ vs $ν$ (or $λ$ )

Why the slice notation $d ν$ ? Frequency is continuous — there is no single "amount at exactly $ν$ ". You can only ask "how much between $ν$ and $ν + d ν$ ". The $d ν$ marks that thin window. The area under the whole curve = total energy radiated (this is the Stefan-Boltzmann Law quantity), and the position of the hump is the Wien's Displacement Law peak.

7. The summation symbol $\sum$ — "add up all the steps"

Why the topic needs it: to find the average energy of an oscillator, Planck adds up every allowed step $E_{n} = nh ν$ , each weighted by its affordability $e^{- nh ν / k T}$ . That sum is written with $\sum$ . Because $x = e^{- h ν / k T}$ is between 0 and 1, the sum is a geometric series that collapses to $\frac{1}{1 - x}$ — a neat closed form.

Recall Why must

$x = e^{- h ν / k T}$ be between 0 and 1? Because $h ν / k T$ is positive, so $- h ν / k T$ is negative, so $e^{(negative)}$ is between 0 and 1. This is exactly the range where a geometric series converges to a finite number.

Prerequisite map

Equipment checklist

I can say in words what

λ

(wavelength) is and point to it on a wave.

Distance from one crest to the next; the length of a single ripple.

I can say what

ν

(frequency) is and its unit.

Number of crests passing per second; unit hertz (Hz = 1/s).

I can convert between

λ

and

ν

Use

ν = c / λ

with

c = 3.0 \times 1 0^{8} m/s

I know the value and units of

h

h = 6.626 \times 1 0^{- 34} J s

I can state the packet law.

E = h ν

for one quantum;

E = nh ν

for allowed totals.

I know what

k T

represents.

The typical thermal energy budget per mode at temperature

T

;

k = 1.381 \times 1 0^{- 23} J/K

I can describe how

e^{- x}

behaves.

Starts at 1 when

x = 0

, shrinks smoothly toward 0 as

x

grows, never negative.

I know why

e^{- h ν / k T}

appears.

It is the Boltzmann affordability weight — big step vs small budget starves high-frequency modes.

I can read the meaning of

u (ν) d ν

Energy contained in a thin frequency slice near

ν

; area under the curve is total energy.

I know what

\sum_{n = 0}^{\infty}

tells me to do.

Add all terms for

n = 0, 1, 2, \dots

; here it produces a geometric series.

Connections

Parent topic (Hinglish) — the full story these symbols unlock.
Boltzmann Distribution — source of the $e^{- E / k T}$ weight defined in §5.
Wien's Displacement Law — about the peak of the $u$ -vs- $λ$ curve of §6.
Stefan-Boltzmann Law — about the total area under that curve.
Photoelectric Effect, Bohr Model of the Atom, de Broglie Wavelength — later ideas that reuse $E = h ν$ .
