Visual walkthrough — Mendeleev's periodic table — based on atomic mass

Before line one, two words we must own:

---

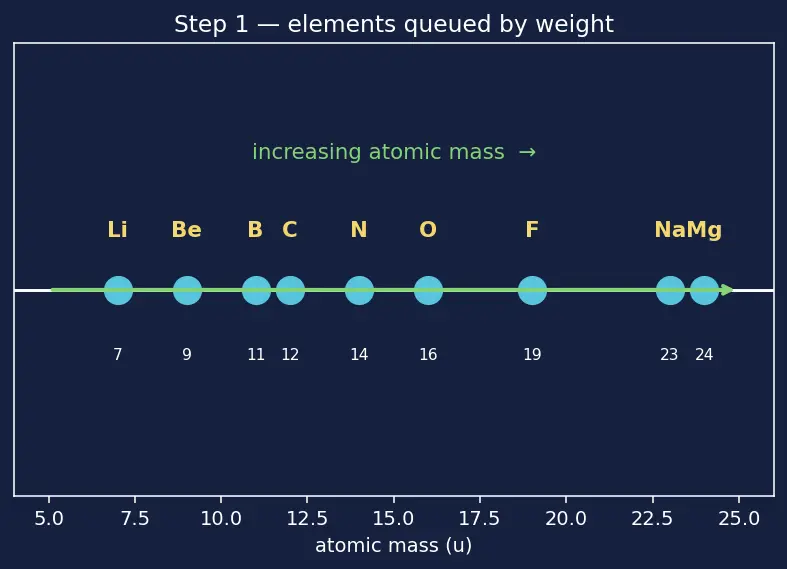

Step 1 — Lay every element on a number line by weight

WHAT. Take the elements known by 1869 and place each one on a horizontal line, position = its atomic mass. Lightest on the left.

WHY. In 1869 nobody knew about protons, so atomic number did not exist yet. The only number you could actually weigh for every element was its atomic mass — so it was the natural ruler.

PICTURE. Beads on a ruler, spaced by their mass tag.

---

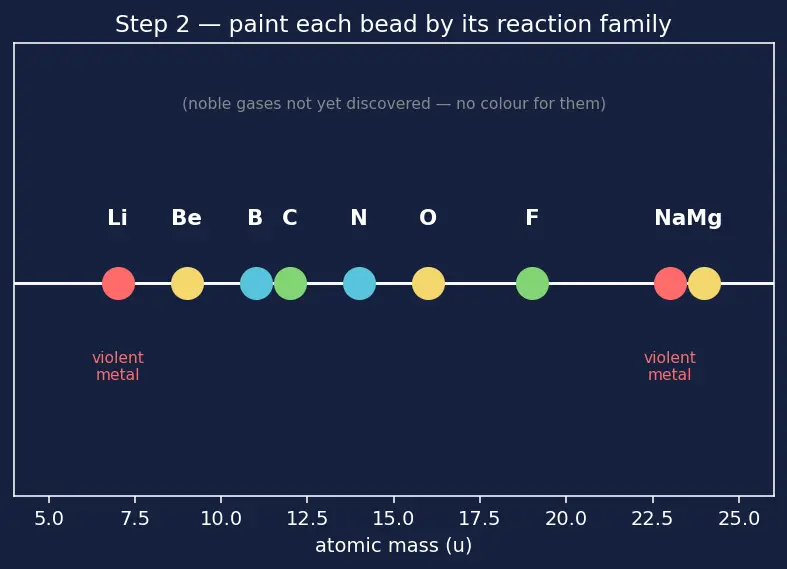

Step 2 — Colour each bead by its chemical "personality"

WHAT. Now paint each bead by how it reacts. Li, Na → violent metals that make an oxide of the form ${\text{R}}_2\text{O}$. F, Cl → nasty gases that grab one hydrogen ($\text{RH}$).

WHY. Weight alone is boring — it hides the real story. We are hunting for repeats. To see a repeat you must first make the "personality" visible, so we encode it as colour.

PICTURE. The same ruler, now every bead wears a colour = its reaction family.

---

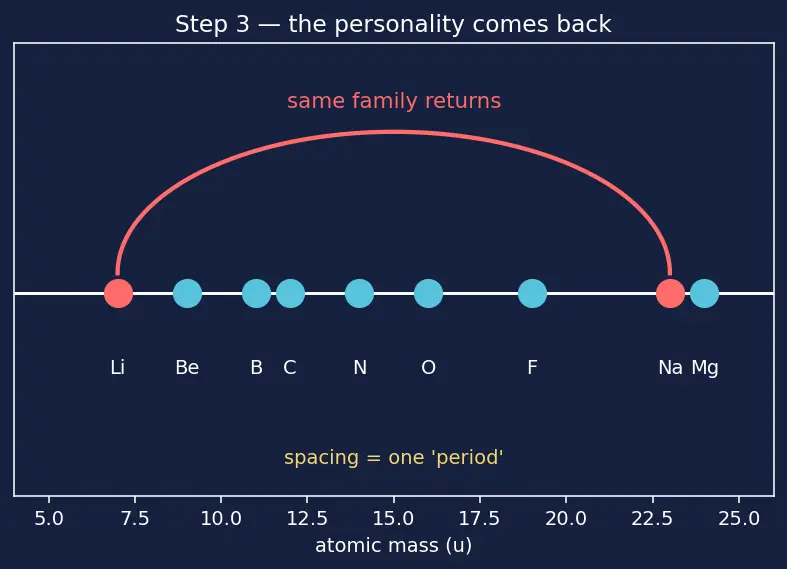

Step 3 — Spot the return, and measure its spacing

WHAT. Follow one colour. Lithium (a violent metal) sits at mass 7. The next violent metal, sodium, sits at mass 23. The personality came back.

WHY. A property that returns at regular intervals is exactly what "periodic" means — like the same day of the week returning every 7 days. This return is the single most important observation in the whole chapter; it is what makes a table possible instead of a straight list.

PICTURE. Arced arrows jumping from each element to the next element of the same family.

---

Step 4 — Cut the line at each return and stack the rows

WHAT. Every time a personality returns, snap the line and start a new row directly below the old one, so the two twins line up vertically.

WHY. A straight line hides the repeat; a grid shows it. By breaking exactly at the return, Li lands on top of Na, Be on top of Mg — chemical twins now share a column. That vertical stacking is the entire payoff.

PICTURE. The ribbon of Step 1 folded into two rows; dashed vertical guides connect the twins.

---

Step 5 — Read valency off the formulas to lock each column

WHAT. For each element write its highest oxide and its hydride, and read the valency from the formula.

Across a period the highest oxides march ${\text{R}}_2\text{O},\text{RO},{\text{R}}_2{\text{O}}_3,{\text{RO}}_2,{\text{R}}_2{\text{O}}_5,{\text{RO}}_3,{\text{R}}_2{\text{O}}_7$

Reading one oxide formula, symbol by symbol. Take ${\text{R}}_2{\text{O}}_5$: "$\text{R}$" is our element, "$2$" says two R atoms, "${\text{O}}_5$" says five oxygen atoms. Oxygen always uses 2 hands, so $5\times 2=10$ hands on the oxygen side, shared by $2$ R atoms $\Rightarrow$ each R uses $10/2=5$ hands. Oxide valency $=5$. Doing this along the row gives rising valencies 1, 2, 3, 4, 5, 6, 7.

The hydrides on the right side run ${\text{RH}}_4,{\text{RH}}_3,{\text{RH}}_2,\text{RH}$ — hydride valency falls 4, 3, 2, 1.

WHY. Colour is fuzzy; a formula is a hard fact. Using the rising oxide valency together with the falling hydride valency is a two-number fingerprint that pins a column far more tightly than "looks metallic". See Valency and oxide formulas.

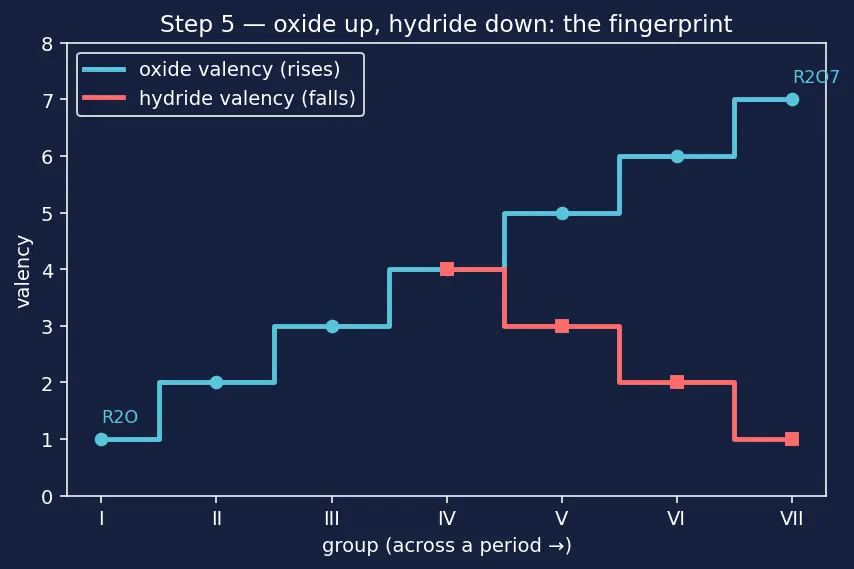

PICTURE. Two staircases over the period — oxide valency climbing, hydride valency descending — crossing near the middle.

---

Step 6 — Leave GAPS where the pattern demands a missing twin

WHAT. Sometimes the column above a slot is a violent-metal family, but no known element has the right mass to sit there. Mendeleev left the slot empty and predicted the tenant, naming it with eka ("one below").

WHY. A real law makes predictions. If the grid is genuine, an empty cell isn't an error — it's a forecast: the properties of that cell must be the average of its neighbours.

PICTURE. An empty box under silicon; arrows from silicon (above) and neighbours give the predicted mass and density.

---

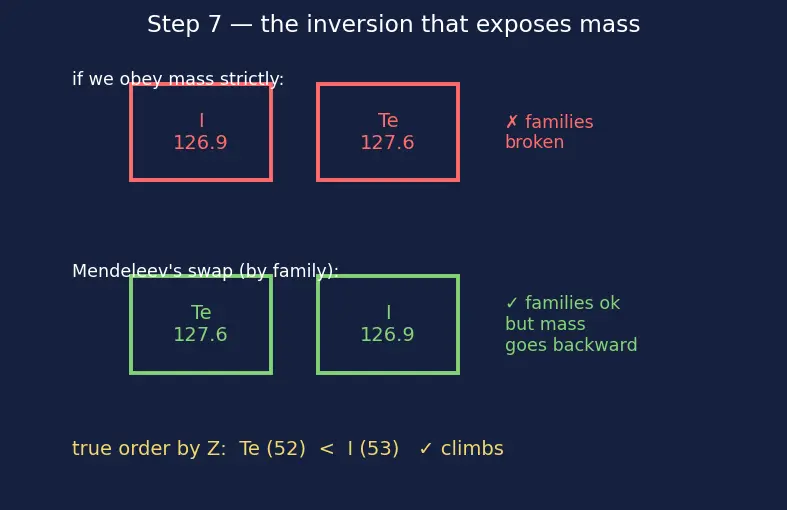

Step 7 — Edge case: when mass-order and family-order disagree (inversions)

First, name the symbol we are about to lean on:

WHAT. Sometimes the strict mass queue puts an element in the wrong colour column. Example: tellurium (mass 127.6) is heavier than iodine (126.9), yet Te belongs with the oxygen family and I belongs with the halogens. Mendeleev swapped them — heavier Te placed before lighter I.

WHY. He trusted chemistry over the ruler. But notice what this exposes: if you must sometimes break the mass order to keep families together, then mass is not the true ordering variable. The real order is that hidden ID badge, atomic number $Z$, which restores a perfect climb with no swaps ($Z_{\text{Te}}=52<Z_{\text{I}}=53$).

PICTURE. A short strip with the mass order (Te then I would look backwards) and the corrected family order, plus the $Z$ values below showing $Z$ never inverts.

---

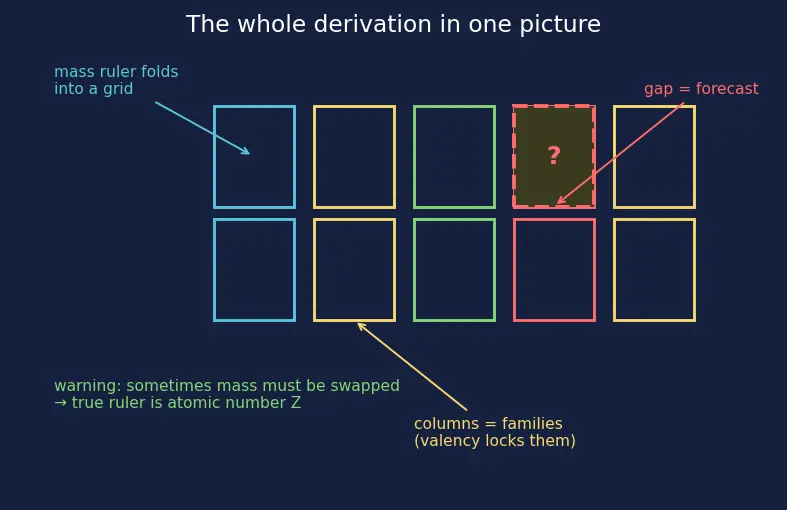

The one-picture summary

Steps 1→7 compressed: a mass ruler folds into a grid, colours line up into groups, valency staircases label the columns, an eka-gap forecasts a new element, and a single inversion warns that the true ruler is $Z$.

Recall Feynman: the whole walk in plain words

Line up every element like people in a queue, lightest first (Step 1) — though two people can weigh almost the same, so the queue is a bit blurry. Give each a colour for its "job" — how it reacts (Step 2); some jobs (the noble gases) hadn't even been discovered yet, so those chairs sit empty. Walking down the queue you notice the same jobs keep coming back at steady spacing (Step 3), so you chop the queue into rows and stack them so the same-job people share a column (Step 4). To be sure two people are really the same job, you check the formulas they make — one staircase of oxide numbers going up, one of hydride numbers going down (Step 5) — though the middle-of-the-room folks (transition metals, and later the lanthanoids/actinoids) hold several jobs at once and never sit neatly. Where a column clearly needs a person nobody has met yet, you leave an empty chair and describe who must sit there — and years later germanium walked in and sat down perfectly (Step 6). Finally, a few times a heavier person clearly had a lighter person's job, so you swap them by job, not weight — which quietly tells you the real queue number was never weight at all: it was a secret ID badge, the atomic number $Z$ (Step 7).

---
