Intuition The one core ideaEvery atom carries a two-number ID tag: a bottom number counting the positive balls (protons) that decide which element it is, and a top number counting all the balls packed in its centre (protons + neutrons) that decide how heavy it is. Master just these two counts and you can name any atom, count every particle inside it, and sort atoms into families — everything else in the parent note is bookkeeping on top of this.
This page builds every symbol the parent topic uses, starting from "what is an atom" and never using a word before it is pictured. Read top to bottom; each block earns the next.
Before we write a single letter, we need a mental picture the letters will describe.

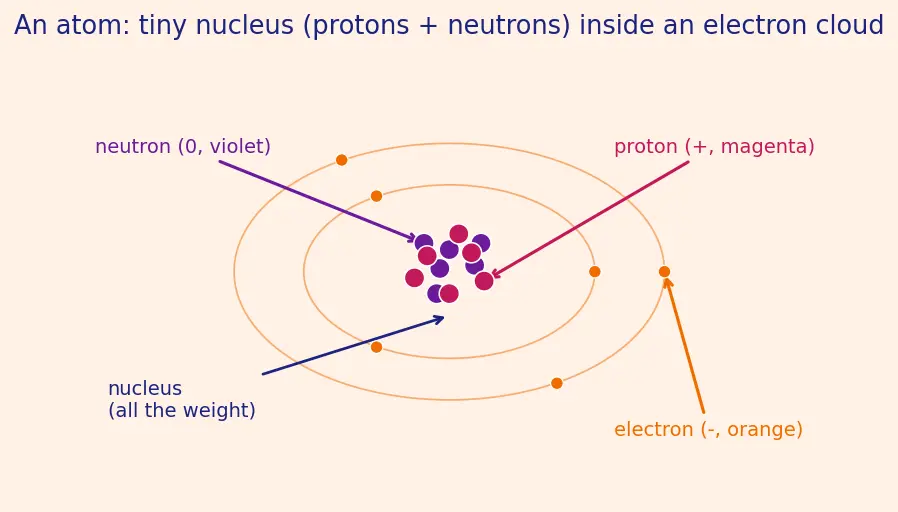

Definition What an atom looks likeAn atom is a tiny centre (the nucleus ) surrounded by a fuzzy cloud of very light particles (the electrons ) that whizz around it. In the picture:
The magenta balls in the centre = protons (positive charge).
The violet balls in the centre = neutrons (no charge).
The small orange dots far outside = electrons (negative charge).
The centre is unbelievably small compared to the electron cloud — but it holds almost all the weight. That comes from Rutherford Model of the Atom , and the particles themselves come from Discovery of Protons, Neutrons and Electrons .
Why start here? Every symbol below is just a count of these three kinds of ball. If you can point at each ball type in the picture, you can read every formula in the parent note.
Definition Proton — the identity ballA proton is a positive ball that lives in the nucleus. Picture: a magenta ball in the centre. Why the topic needs it: the number of protons is what makes carbon "carbon" and oxygen "oxygen." Change that count and you change the element itself.
Definition Neutron — the weight-only ballA neutron is a ball with no charge that also lives in the nucleus. Picture: a violet ball next to the magenta ones. Why the topic needs it: neutrons add weight without adding charge. Two atoms of the same element can carry different numbers of neutrons — that is the whole reason isotopes exist.
Definition Electron — the light outer ballAn electron is a negative ball that orbits outside the nucleus. Picture: the tiny orange dots in the cloud. Why the topic needs it: an electron is about 1836 times lighter than a proton, so it barely counts toward weight — but its count decides charge, and moving electrons is what makes ions .
Intuition Why weight lives in the nucleusIf a proton weighs "1" then an electron weighs about 1836 1 200 1 heavy an atom is, we can honestly ignore electrons and just count the balls in the centre.
Now we give names to the counts. A symbol is just a short label standing in for "the number of ___ ."
Z Z the number of protons in the nucleus . Picture: count the magenta balls — that count is Z Z = 6 Why a letter and not just "protons"? Because we will do arithmetic with it (add it, subtract it), and a short label is easier to compute with than a whole word.
N N the number of neutrons in the nucleus . Picture: count the violet balls.
A A the total number of nucleons — where nucleon is the family word for "a ball in the nucleus," i.e. a proton or a neutron. Picture: count every ball in the centre, magenta and violet together.
The "=" sign you will see everywhere means "the left side and the right side are the very same number." It is a claim of equality, not an instruction to "do something." So when we write:

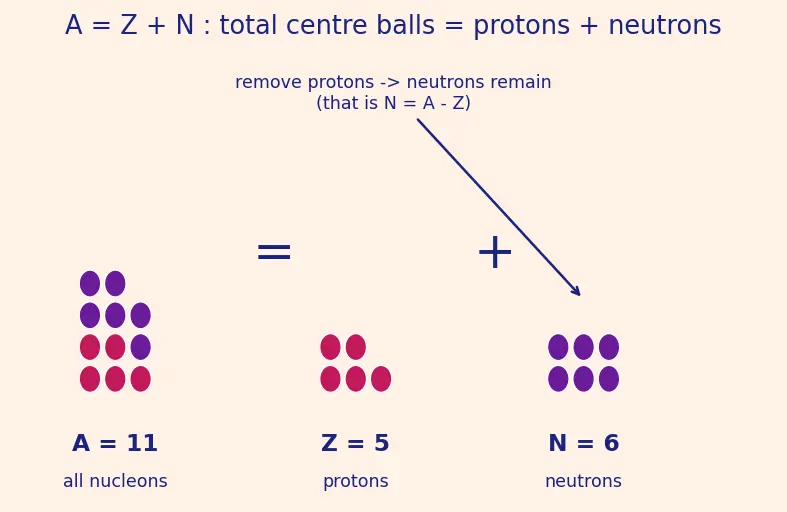

A = Z + N
we are claiming : "the total centre-ball count equals the proton count added to the neutron count." Look at the figure — that is obviously true, because every centre ball is either a proton or a neutron and nothing else.
Recall Why is subtraction the right tool here?We use subtraction (not division or anything fancier) because "take away the protons from the total" is literally a removal of one count from another ::: subtraction is exactly the operation "how many are left after removing some," which matches removing protons from the pile of all nucleons.
Definition What "charge" meansCharge is a label for the push-pull property: positive (+) and negative (−) balls attract, like-signs repel. Picture: protons carry + 1 − 1 0 neutral atom — the pluses and minuses cancel exactly, so:
electrons = Z ( neutral atom only! ) Why? Neutral means "total charge zero," which needs one − 1 + 1
q gains or loses electrons it becomes an ion , and its total charge is no longer zero. We call that leftover charge q Picture: remove one orange dot from a neutral atom and one positive proton is now "unbalanced," so q = + 1
Lose electrons → fewer minuses → positive ion (cation ), e.g. X +
Gain electrons → extra minuses → negative ion (anion ), e.g. X −
The electron count for any ion:
electrons = Z − q
Worked example Reading the sign correctly (all cases)
q = + 2 = Z − ( + 2 ) = Z − 2 q = − 2 = Z − ( − 2 ) = Z + 2 q = 0 = Z − 0 = Z
WHY the formula covers every case: the single rule Z − q q q adds . You never need a separate rule for cations and anions.
Common mistake "A negative charge means fewer electrons."Why it feels right: "negative" sounds like "less." Fix: negative charge comes from extra electrons (electrons are the negative balls). So X 2 − two more electrons than the neutral atom, not fewer.
Now we assemble the counts into the compact tag the parent note uses everywhere.
Mnemonic Which number goes whereTop is Total, Bottom is Below-in-count (protons). A Z Z
The parent sorts atoms into families using Greek word-parts. Understanding the parts means you never memorise the families blindly.
iso- = "same."-tope (from topos , "place") → same place in the periodic table → same Z -bar (from baros , "weight") → same weight → same A -tone → the leftover → same neutron count N
Definition Quick preview (fully built in D2)
Isotopes: same Z A Isobars: same A Z Isotones: same N Z A
The point of D1 is only that you can now read every symbol in those definitions: Z A N
Atom = nucleus plus electron cloud
Electrons = light negative balls
Isotopes Isobars Isotones

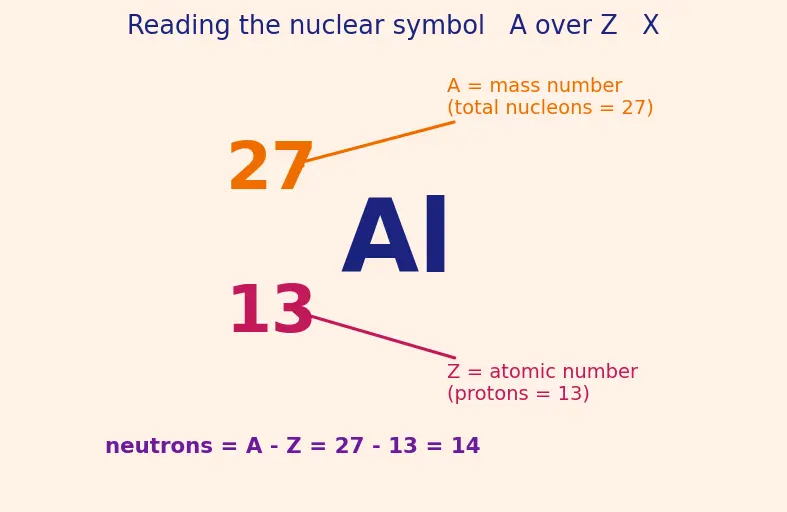

Worked example Read the tag13 27 Al
Z = 13 = 13 A = 27 = 27 N = A − Z = 27 − 13 = 14 Neutral → electrons = Z = 13
8 16 O 2 −
protons = Z = 8
neutrons = A − Z = 16 − 8 = 8
q = − 2 = Z − q = 8 − ( − 2 ) = 10
Cover the right side and test yourself — you are ready for the topic only if each is instant.
Point at a proton, neutron, and electron in an atom picture protons and neutrons are the balls in the central nucleus; electrons are the light balls in the outer cloud.
What does Z the number of protons in the nucleus (also electrons, if the atom is neutral).
What does N the number of neutrons in the nucleus.
What does A the total nucleons = protons + neutrons.
State the master equation and its rearrangement. A = Z + N N = A − Z
Why can we ignore electrons when talking about weight? each electron is ~1836× lighter than a proton, so nearly all mass sits in the nucleus.
In Z A X top-left = A Z
How many electrons does an ion of charge q electrons = Z − q q
Does a 2 − more — two extra electrons.
What do the word-parts -tope, -bar, -tone point to? -tope → same Z A N
